SMD Outdoor LED Display Screen
$237.00
- Description
- Additional information
Description

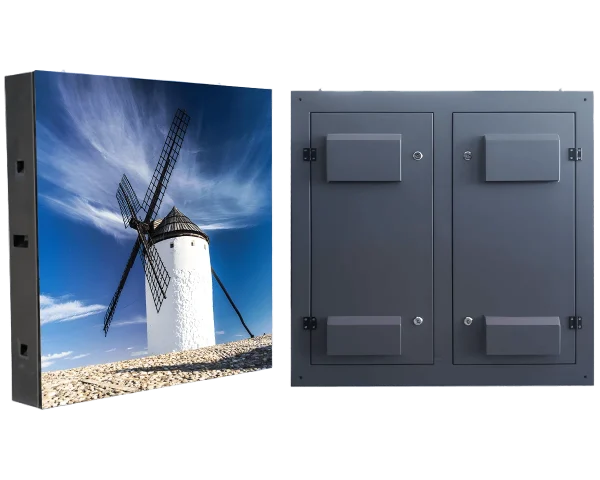

Outdoor SMD LED Display
SMD Outdoor LED Display-P1.9, P2.5, P2.6, P2.9, P3, P4, P5, P6, P8, P10
10,000nits
Energy Saving
IP65
High Contrast
High Resolution
Wide Viewing Angle (160°)
3840Hz ~ 7680Hz
3 Layers Coating Protection
Product Description
High Brightness
High quality LED brings brightness up to 10,000nits. The pixel pitches are P1.9, P2.5, P2.6, P2.9, P3, P4, P5, P6, P8 and P10.
High Resolution
Fine pixel pitches form high resolution which can capture and hold the attention of passersby.
Energy Saving
We use customized PCB and power supply, so average power consumption is less than 150W/㎡. Compared with the similar products in the market, our SMD LED Screen series LED display saves 20% energy.

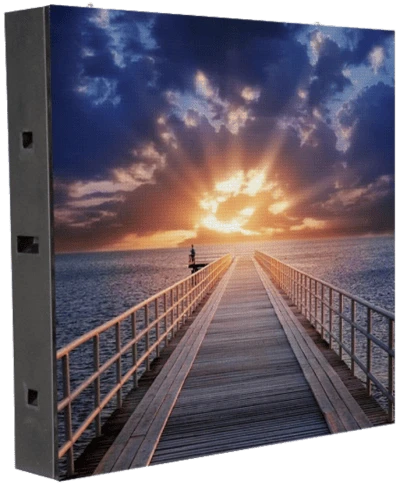

Ultra-wide Viewing Angle
With 160°wide viewing angle, the screen can be seen from as various positions as possible.
Three Layers Coating Protection

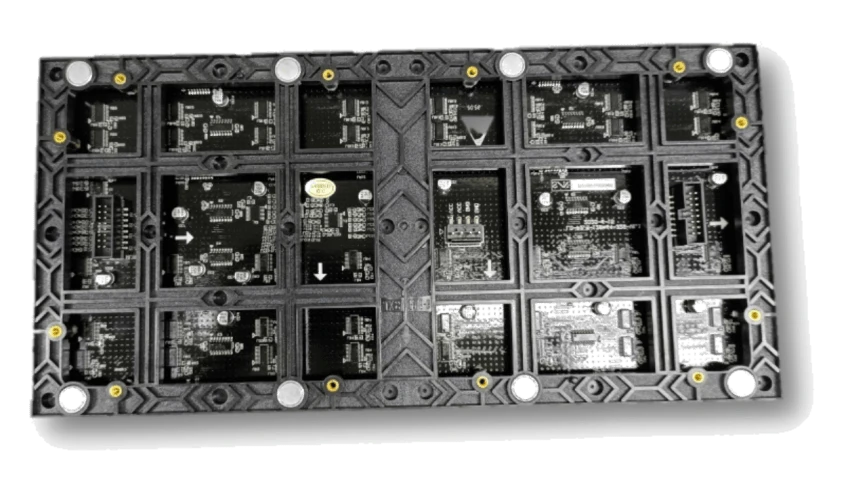

Three layers high quality conformal coating protects the driving IC and other electron components from dust and humidity.

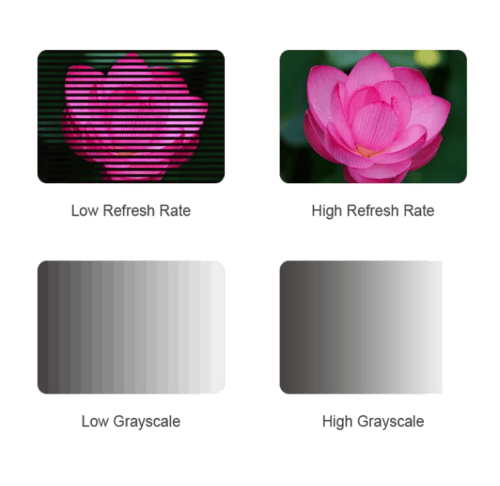

High Refresh Rate
3840Hz refresh rate for high dynamic range pictures eliminates scan lines and flicker on the display at the moment we capture the display. High grayscale ensures the premium vision and the LED display has vivid visual performance.

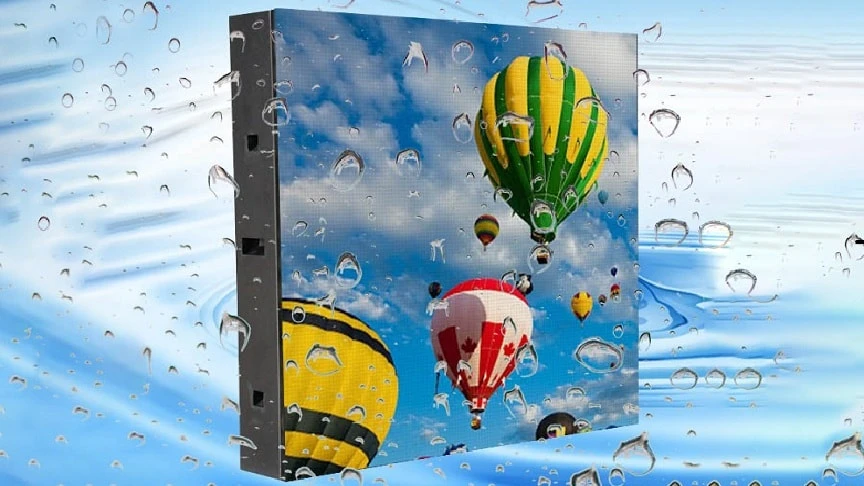

IP65 Grade Protection
IP65 ensures stable operation of the screen even in extreme weather as below: high temperature, low temperature and high humidity.
High Contrast
High Contrast : The contrast ratio of the LED screen gives a sharp image quality

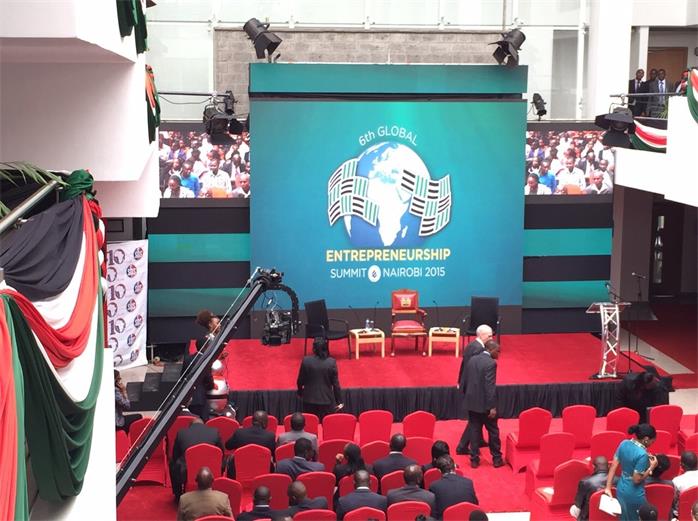

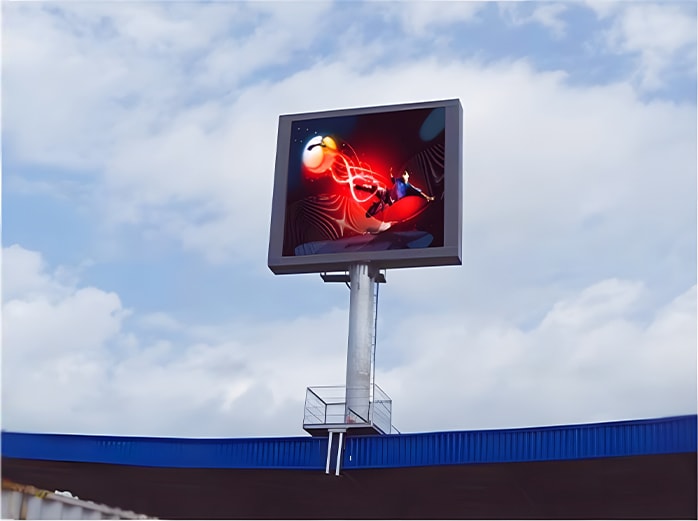

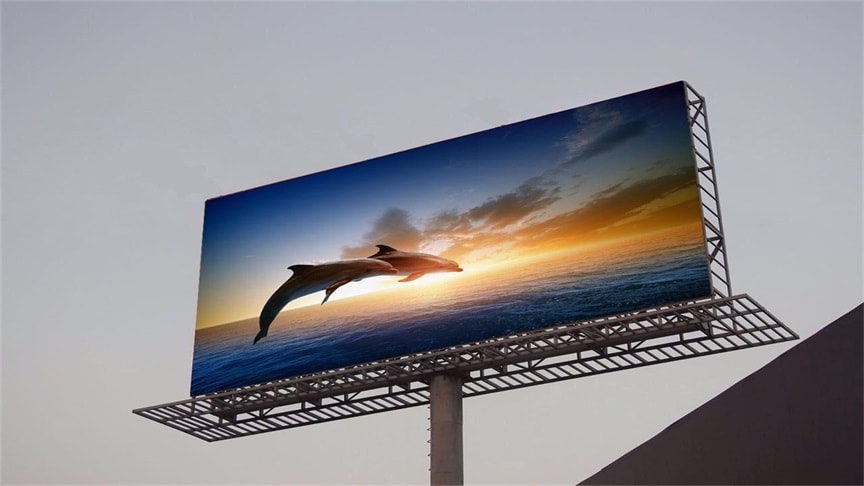

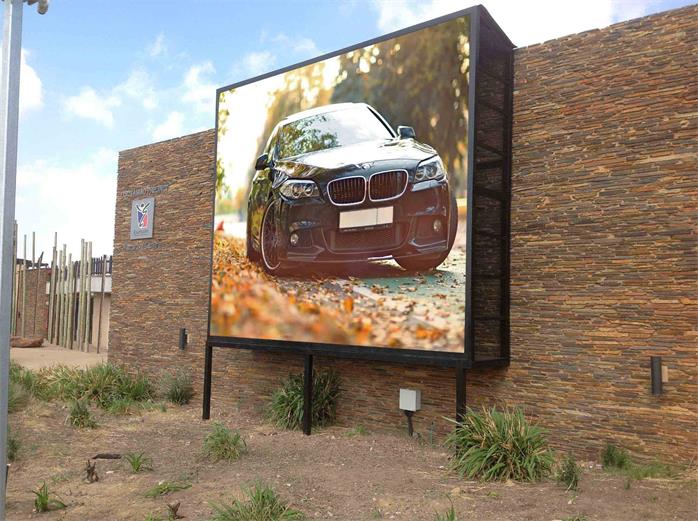

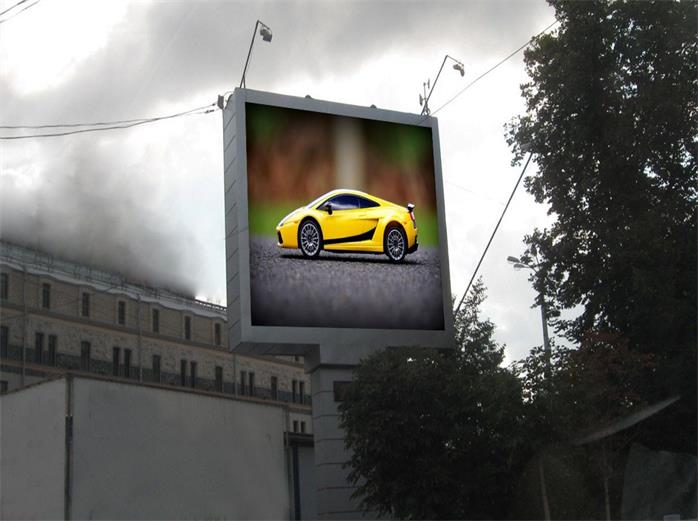

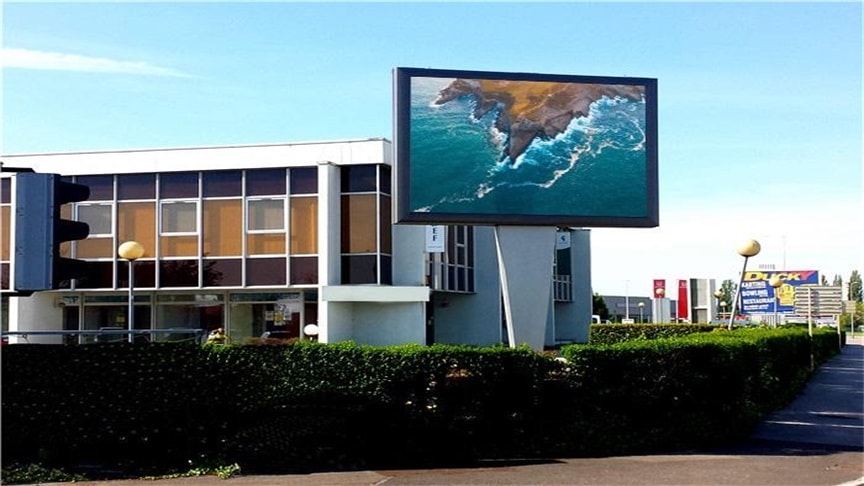

Application Fields
This product is usually used in:
Outdoor Advertising;Â Digital Out of Home(DOOH);Â Truck.
Outdoor SMD LED Display Parameter
| Item | P1.9 | P2.5 | P2.6 | P2.9 |
|---|---|---|---|---|
| Pixel Pitch | 1.953mm | 2.50mm | 2.604mm | 2.976mm |
| LED Type | SMD1212 | SMD1415 | SMD1415 | SMD1415 |
| Module Resolution | 128dots × 128dots | 128dots x 64dots | 96dots × 96dots | 84dots × 84dots |
| Driving Mode | 1/32scan | 1/16scan | 1/16scan | 1/14scan |
| Module Pixels | 16,384dots | 8,192dots | 9,216dots | 7,056dots |
| Module Size | 250mm × 250mm | 320mmx160mm | 250mm × 250mm | 250mm × 250mm |
| Cabinet Size | 500mm × 500mm | 960mmx960mm | 500mm × 500mm | 500mm × 500mm |
| Cabinet Resolution | 256dots × 256dots | 384dotsx384dots | 192dots × 192dots | 168dots × 168dots |
| Pixel Density | 262,144dots/㎡ | 160,000dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ |
| Minimum Viewing Distance | ≥1.9m | ≥2.5m | ≥2.6m | ≥2.9 m |
| Brightness | 4,000nits (Black) | 4,500nits(Black) | 4,000nits (Black) | 4,000nits (Black) |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 14 bits～22bits | 14 bits～22bits | 14 bits～22bits | 14 bits～22bits |
| Viewing Angle | H:160° / V:160° | H:170° / V:120° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 800W/㎡ | 1000W/㎡ | 800W/㎡ | 800W/㎡ |
| Average Power Consumption | 230W/㎡ | 240W/㎡ | 230W/㎡ | 230W/㎡ |
| Input Voltage | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～60℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum |
| Cabinet Weight | 60kg/㎡ or 45kg/㎡ | 60kg/㎡ or 45kg/㎡ | 60kg/㎡ or 45kg/㎡ | 60kg/㎡ or 45kg/㎡ |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
Additional information
| Weight | 45 kg |
|---|
