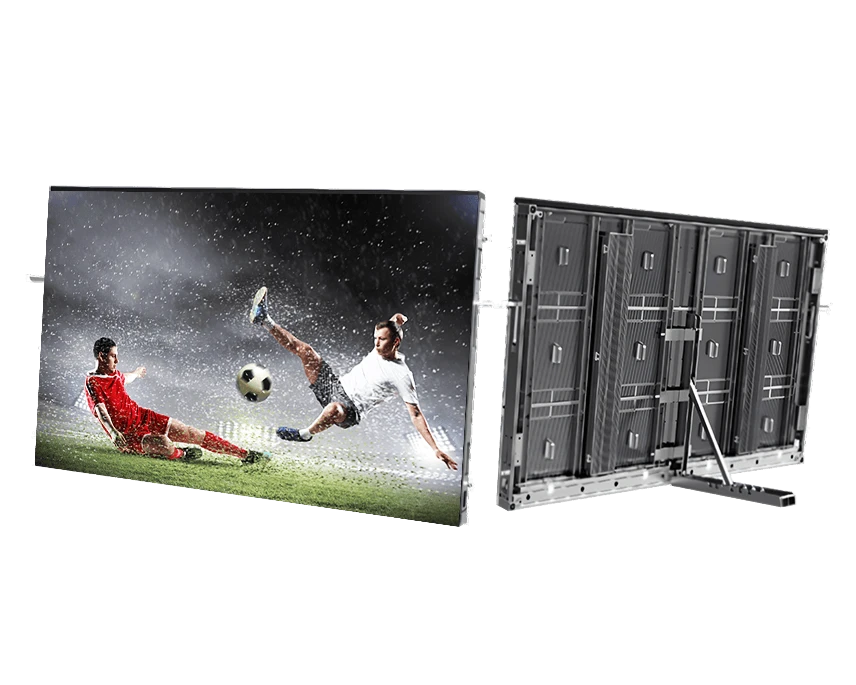

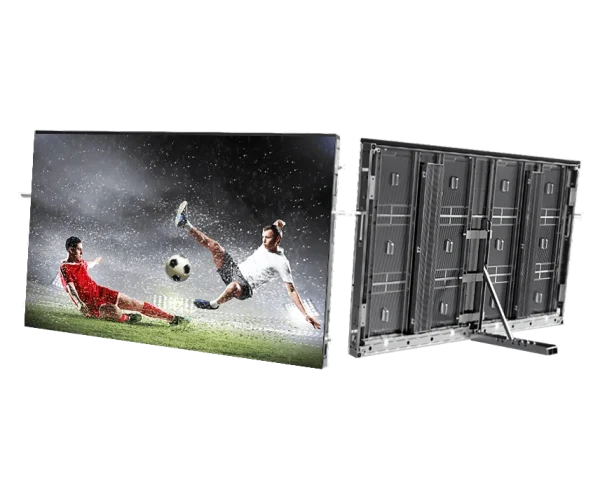

Stadium LED Screens Sports Stadium Perimeter LED Display 1600×900
$681.00
- Description
- Additional information
Description
Stadium LED Screens Ultra
Perimeter LED Screen for Stadium-P6.6, P8, P10
Soft Plastic Mask
Multifunctional
High Quality SMD LED
14bits～22bits
Big Viewing Angle
IP68/IP66
3,840Hz～7,680Hz
6,000nits ~ 10,000nits
Product Description
Emergency Access Design
It is also called safe door design. The LED safety door display cabinet can rotate on the horizontal plane, so as to achieve the switch of the LED stadium safety door opening and closing state. It can respond to the occurrence of emergency.
Player Protective Design
This product uses Aluminum Alloy, a private mold processing soft mask with special craftsmanship. It has excellent anti-collision capability. Coupled with a top soft pillow to protect the players from injury when they hit the screen in the stadium by accident.

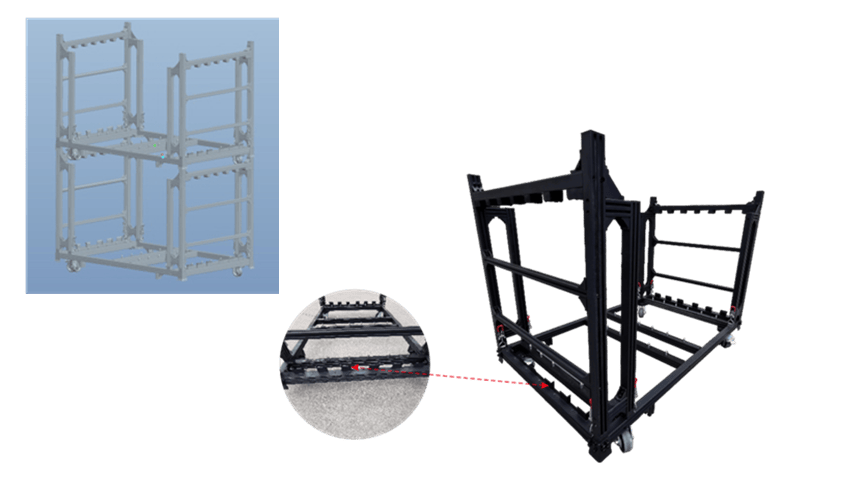

Convenient Stadium Screen Carts
The carts are specially designed for the perimeter LED screens, to put the displays into and transport the displays. Putting panels in carts is the easiest method to load and unload. Cart: Pack 4 Panels, the size is 900*1600mm. Cart: Two carts can be stacked.
UEFA/FIFA Standard

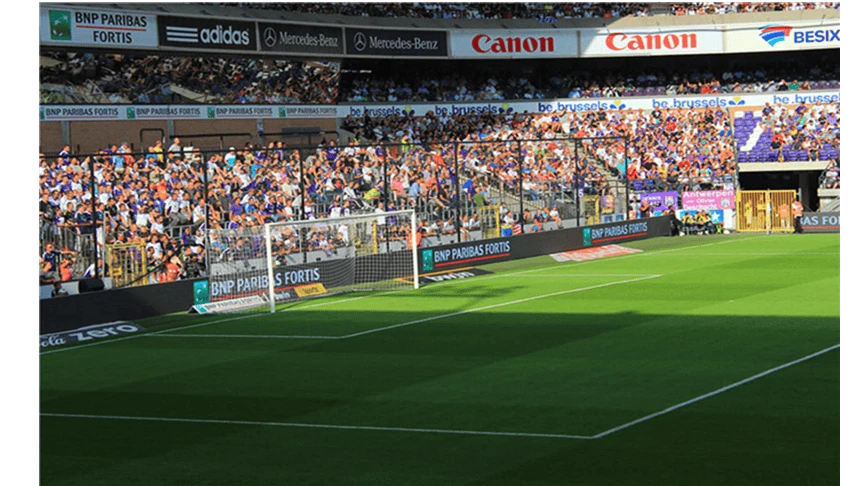

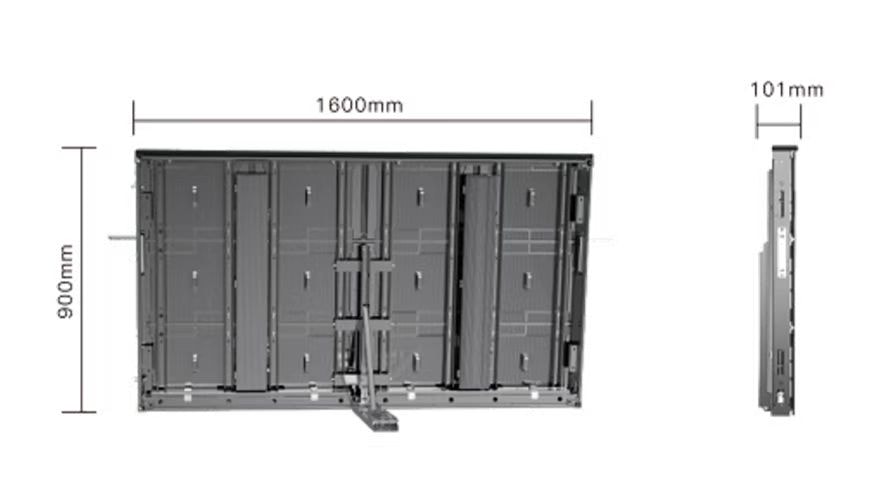

1600mmx900mm cabinet size. Our Stadium LED Screens Pro series perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums.
Light Weight and Fast Installation

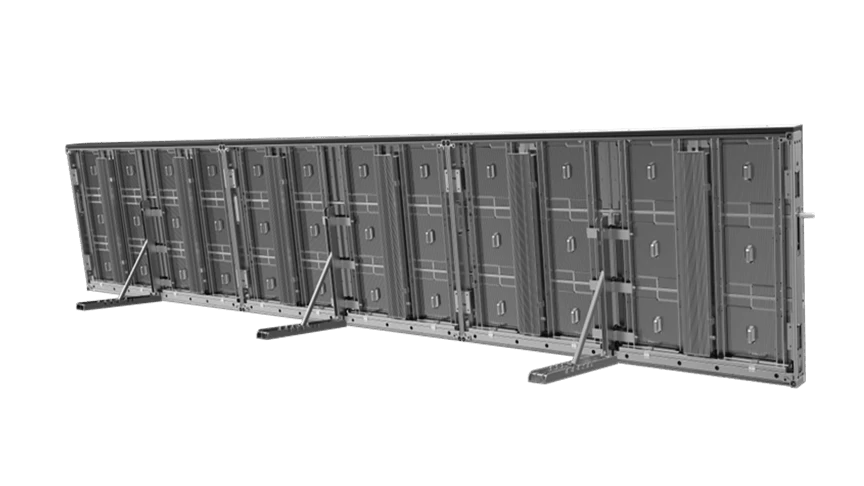

Cabinet weight is only 45kg. The high-precision die-casting aluminum cabinet is adopted. Compared with the traditional one, the perimeter led screen’s cabinet is quicker, and it has better splicing effect.
High Protective Grade Front IP68/ Rear IP66
Sports Stadium LED Display 1600×900 Ultra series adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environments.
High Refresh Rate & Wide Viewing Angle
The viewing angle of our sports LED display can be up to 170 degrees. With the high refresh rate of 3840Hz, the visual effect is excellent when we play the videos or images.

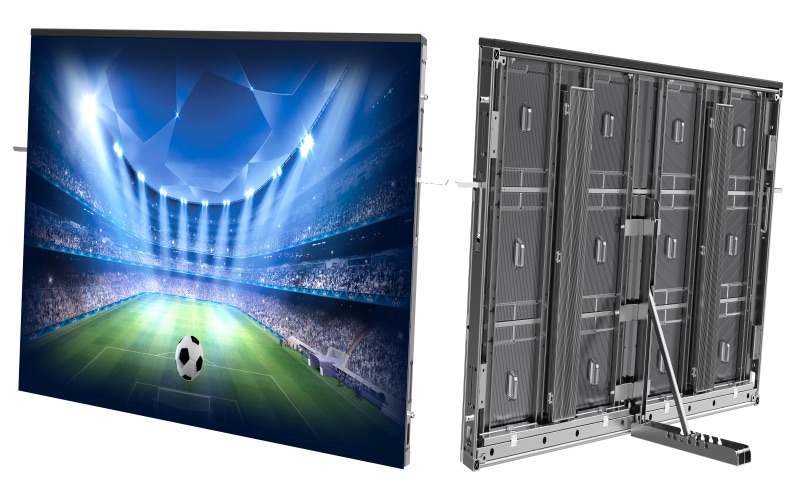

High Brightness up to 10000nits
Our perimeter LED screen’s brightness is up to 9500nits even higher. Product Passed All CertificationsOur products have been certified by CE (including EMC & LVD), UL, RoHS, ETL, FCC, CB, IECEE, KC, PSE, etc.

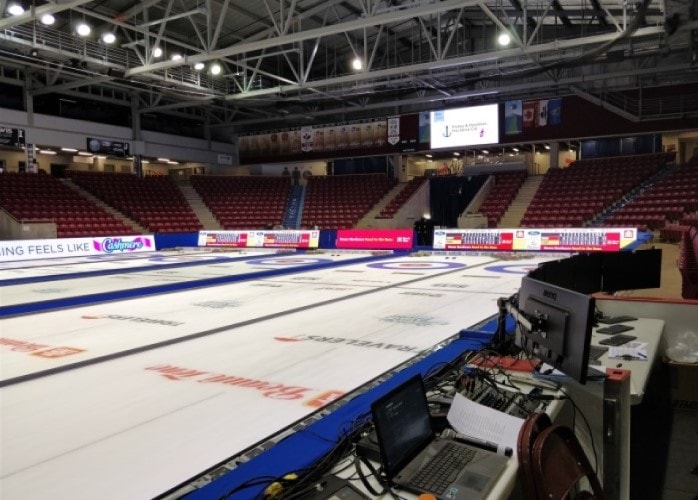

Application Fields

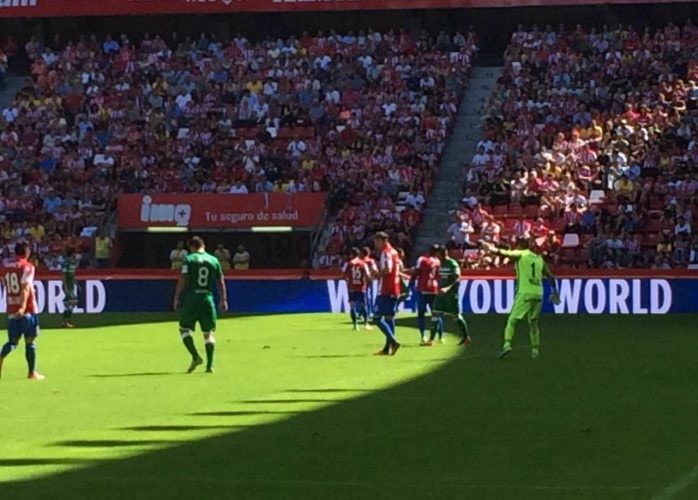

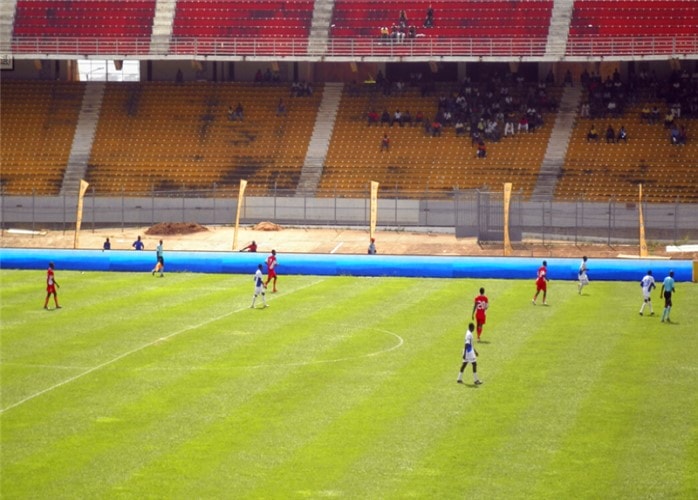

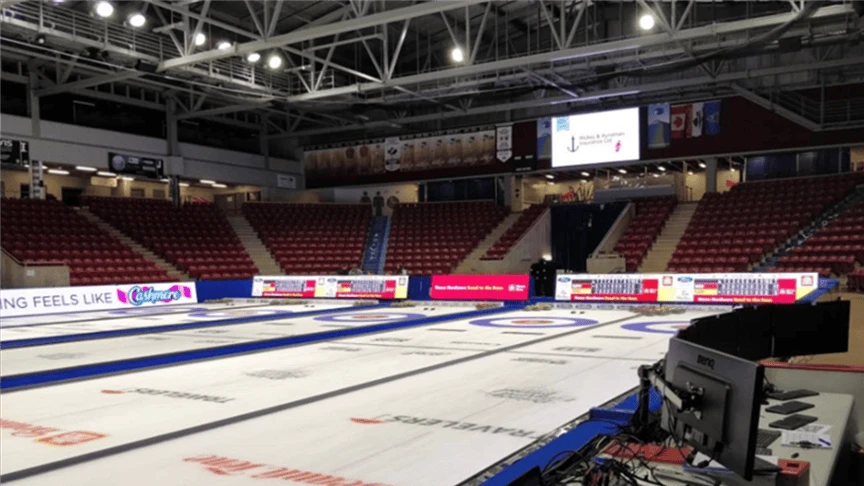

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as:

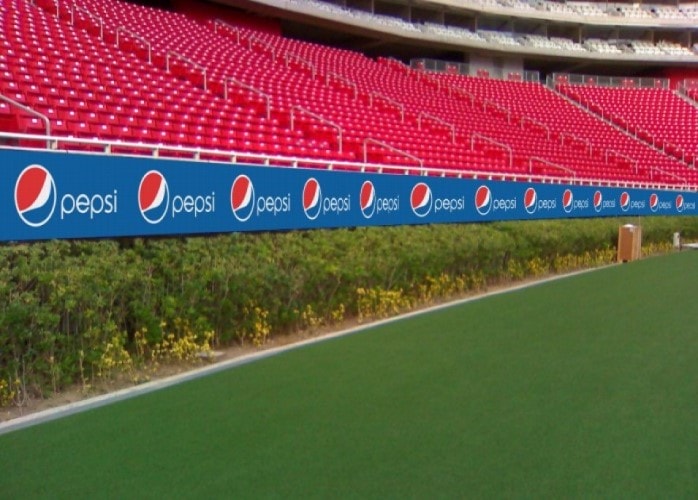

Perimeter Banner Screen; Score Board; Live Feed Video Screen.
Stadium LED Screens Sports Stadium LED Display 1600×900 Parameter
| Item | P6.6 | P8.3 | P10 |
|---|---|---|---|
| Pixel Pitch | 6.67mm | 8.33mm | 10mm |
| LED Type | SMD 2727 | SMD 3535 | SMD 3535 |
| Module Resolution | 60dots × 45dots | 48dots × 36dots | 40dots × 30dots |
| Driving Mode | Constant Current | Constant Current | Constant Current |
| Module Pixels | 2,700dots | 1,728dots | 1200dots |
| Module Size | 400mm × 300mm | 400mm × 300mm | 400mm × 300mm |
| Cabinet Size | 1,600mm × 900mm x 101mm | 1,600mm × 900mm x 101mm | 1,600mm × 900mm x 101mm |
| Cabinet Resolution | 240dots × 135dots | 192dots × 108dots | 160dots × 90dots |
| Pixel Density | 22,500dots/㎡ | 14,400dots/㎡ | 10,000dots/㎡ |
| Minimum Viewing Distance | ≥6m | ≥8m | ≥10m |
| Brightness | 6,500nits～9,500nits | 6,500nits～10,000nits | 6,500nits～10,000nits |
| IP Grade | Front IP68 / Rear IP66 | Front IP68 / Rear IP66 | Front IP68 / Rear IP66 |
| Refresh Rate | ≥18000 | ≥18000 | ≥18000 |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H.170° / V.110° | H.170° / V.110° | H.170° / V.110° |
| Contrast Ratio | Â 4000: 1 | Â 4000: 1 | Â 4000: 1 |
| Maximum Power Consumption | 630W/㎡ | 550W/㎡ | 550W/㎡ |
| Average Power Consumption | 250W/㎡ | 200W/㎡ | 200W/㎡ |
| Input Voltage | AC260V～AC90V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～60℃ | ﹣20℃～60℃ | ﹣20℃～60℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Cabinet Weight | 45kg/panel | 45kg/panel | 45kg/panel |
| Operating System | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
Additional information
| Weight | 50 kg |
|---|
