G-Energy JPS225V5.0-GS 5V40A 225W LED Display Power Supply
$24.00
G-Energy JPS225V5.0-GS 5V40A 225W LED Display Power Supply Specification： total output power (W)：225 Rated input voltage (Vac)：100-240Output voltage (Vdc)：+5.0Output current range (A)：0-40.0Voltage regulation accuracy：±2%Ripple and Noise (mVp-p)：≤150Working temperature: -30—40…
- Description
- Additional information
Description
G-Energy JPS225V5.0-GS 5V40A 225W LED Display Power Supply Specification：
total output power (W)：225
Rated input voltage (Vac)：100-240
Output voltage (Vdc)：+5.0
Output current range (A)：0-40.0
Voltage regulation accuracy：±2%
Ripple and Noise (mVp-p)：≤150
Working temperature: -30—40 (a L200mm*W145mm*H3mm aluminum plate needs to be placed outside as
Auxiliary cooling) ℃
Storage temperature: -40—80 ℃
Relative humidity: 10—50%
Heat dissipation method: natural cooling
Atmospheric pressure: 80—106 Kpa
Altitude: 2000 m

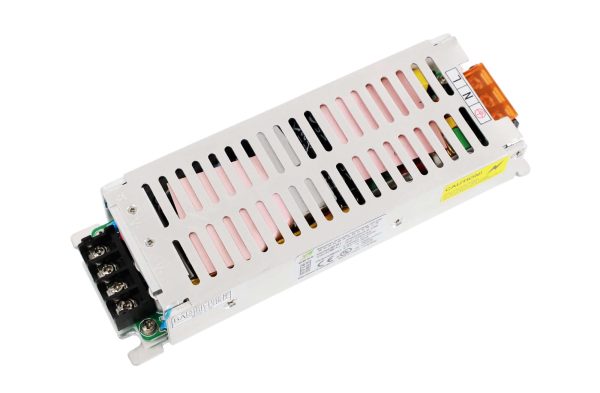

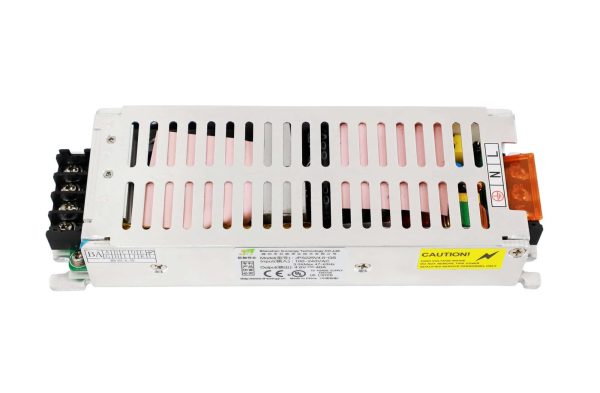

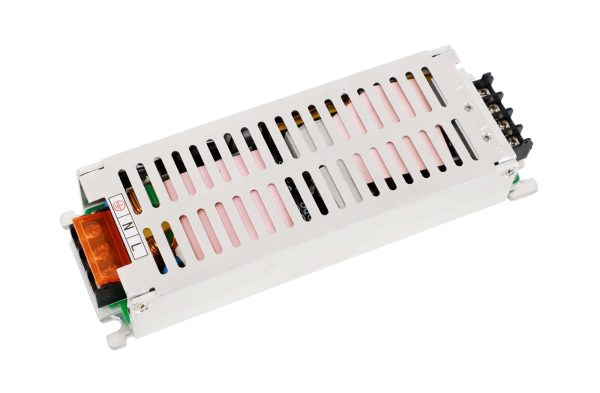

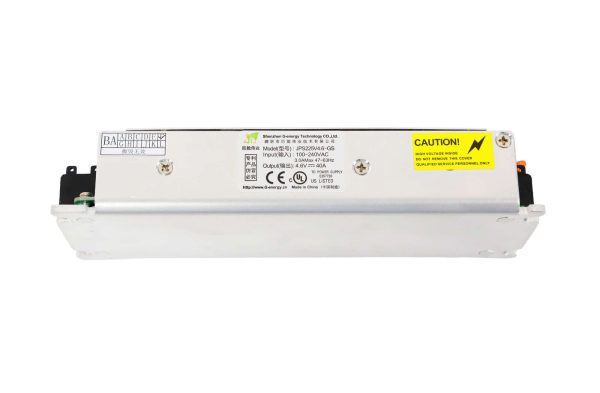

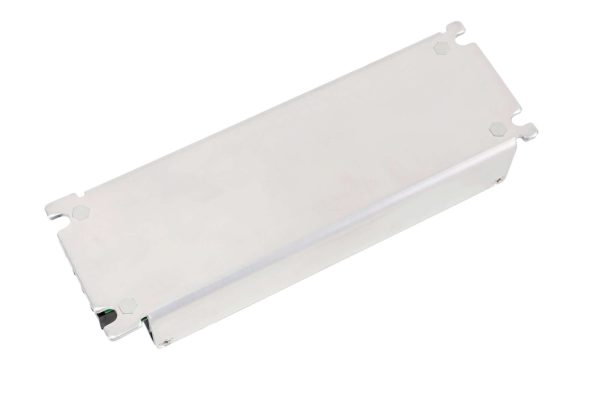

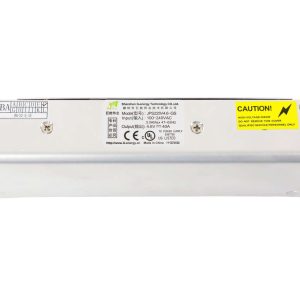

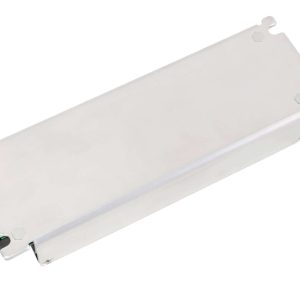

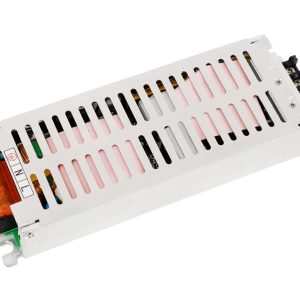

G-Energy JPS225V5.0-GS 5V40A 225W LED Display Power Supply pictures:
Download Specification:
G-Energy JPS225V5.0-GS LED Display Power Supply Specification
Additional information
| Weight | 0.38 kg |
|---|
