G-Energy JPS300P-D 300W LED screen Power Supply
$29.50
G-Energy JPS300P-D 300W LED screen Power Supply Specification： total output power (W)：300Rated input voltage (Vac)：100-240、176-264Output voltage (Vdc)：+5.0Output current range (A)：0-50、0-60Voltage regulation accuracy：±1%Ripple and Noise (mVp-p)：≤150Working temperature: -30—60 (typical…
- Description
- Additional information
Description
G-Energy JPS300P-D 300W LED screen Power Supply Specification：
total output power (W)：300
Rated input voltage (Vac)：100-240、176-264
Output voltage (Vdc)：+5.0
Output current range (A)：0-50、0-60
Voltage regulation accuracy：±1%
Ripple and Noise (mVp-p)：≤150
Working temperature: -30—60 (typical value 25) ℃
The power substrate temperature exceeds the over-temperature protection point (typical value 105C°) solved by auxiliary heat dissipation
Ambient temperature: -30—60 (typical value 25) ℃ (derating is required if the maximum temperature is exceeded)
Storage temperature: -40—85 (typical value 25) ℃
Relative humidity: 10—95% (non-condensing)
Altitude: 0-2000 m (normal operation)
Atmospheric pressure: 70—106 Kpa
Heat dissipation method: natural cooling (when the power supply is working, it needs to be installed on the metal backplate to assist heat dissipation)

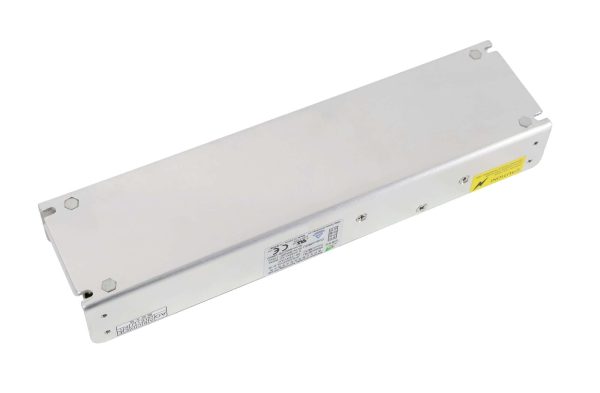

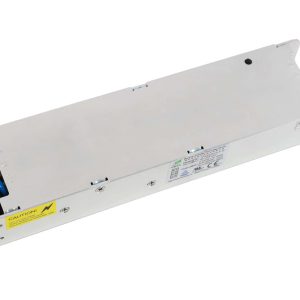

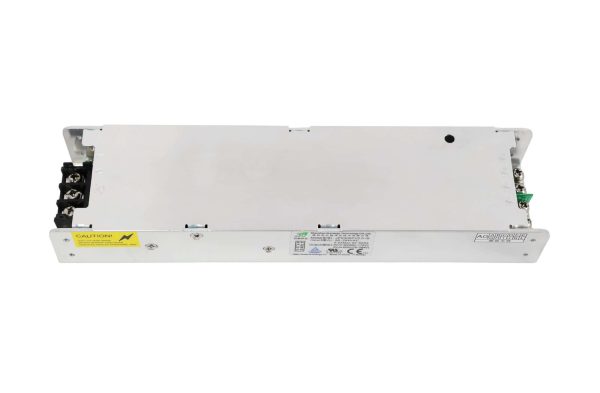

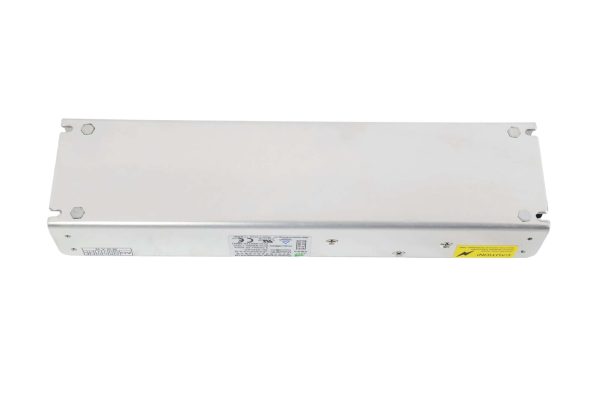

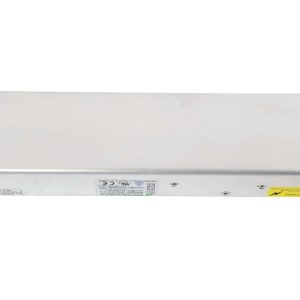

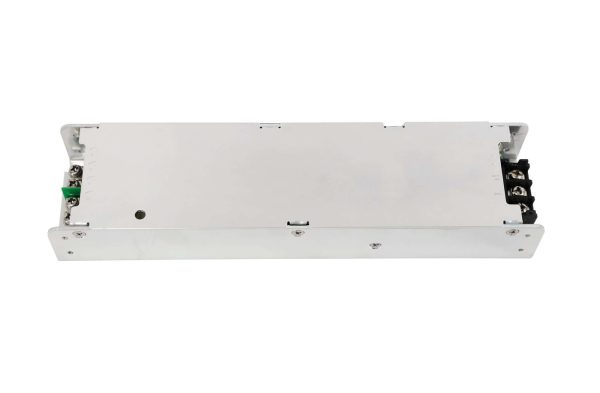

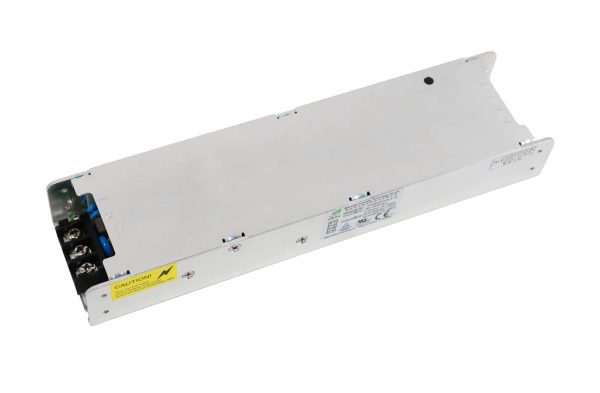

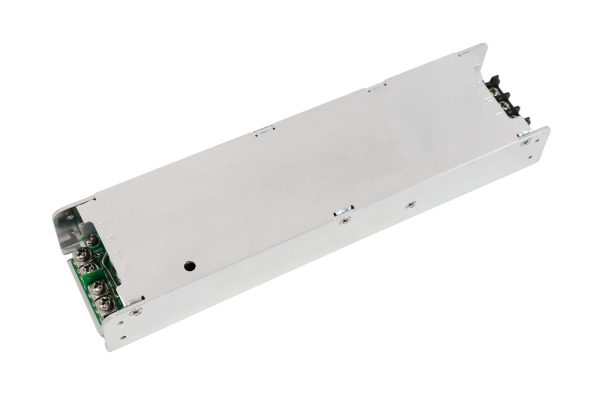

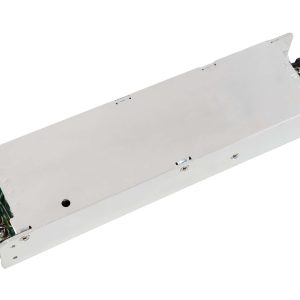

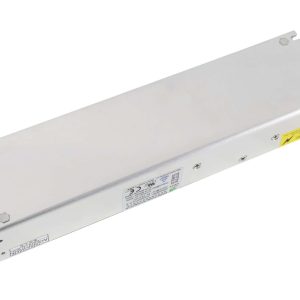

G-Energy JPS300P-D 300W LED screen Power Supply pictures:
Download Specification:
G-Energy JPS300P-D LED screen Power Supply Specification
Additional information
| Weight | 0.38 kg |
|---|
