Indoor Fine Pitch LED Displays Video Walls Screens for Crisp Clear Visuals
$152.00
- Description
- Additional information
Description
Fine Pitch LED Displays Screens
Indoor Fine Pitch LED Display-P1.2, P1.5, P1.86, P2.0, P2.5, P3
Energy Saving
Front  Access
Ultra Slim Design
Easy Maintenance
Die-Casting Aluminum
Quick Installation
3840Hz~7680Hz
Seamless connection
Product Description

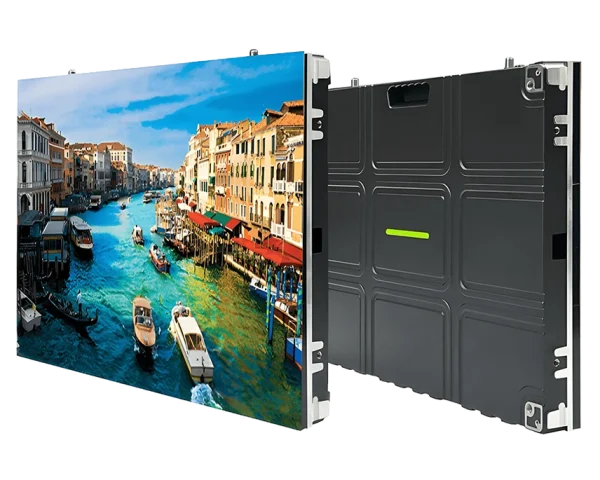

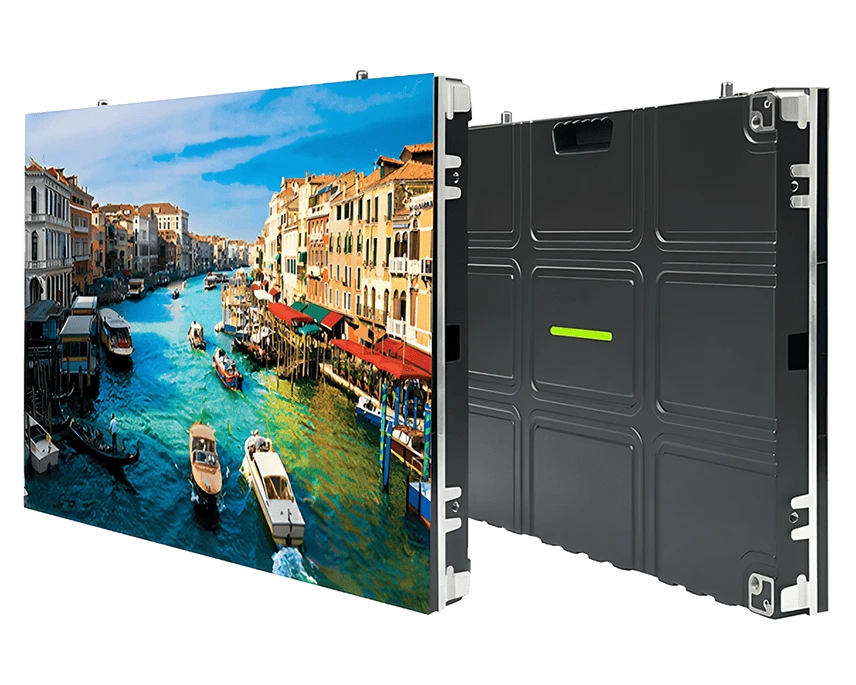

Slim and lightweight design
The Die-casting aluminum cabinet is designed to be 7 kgs/panel, which brings much more convenience when we do the installation and transportation. More importantly, it can reduce the pressure of architecture and the risk of collapse.
Front Access Service
With front access service, the front part of the LED screen can be easily removed, allowing for quick and easy maintenance or replacement of components. This makes it much easier for technicians to fix any issues that may arise with the screen, without having to disassemble the whole screen or move it from its location.
Seamless  Connection
The cabinet is made of die-casting aluminum, which ensures that the structure is accurate. This guarantees the flatness of the entire LED screen.

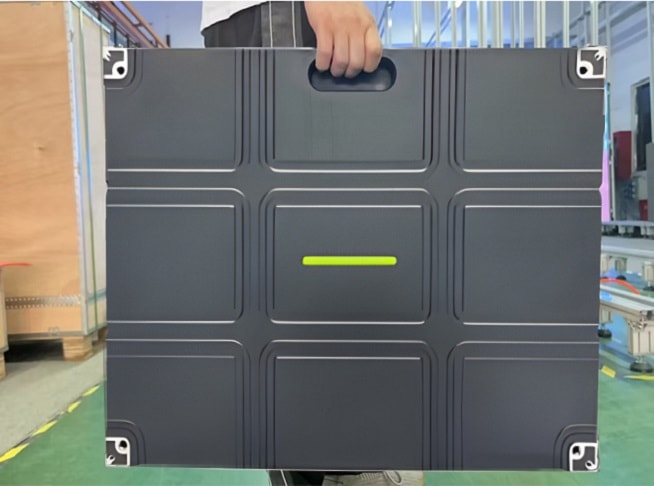

Groove on each cabinet.
This design matches the shape of the hand. It brings great convenience for your installation team during the installation and transportation. It greatly reduces the risk of falling accidently. Most of other indoor products in the market don’t have this design.

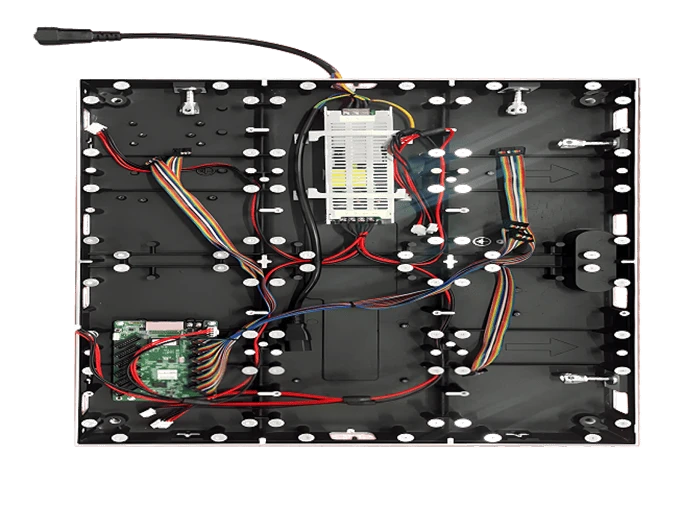

Power and signal redundancy
We have reasonale space to support two power supplies and two receiving cards.This design ensures the operation of cabinets, since when there is something wrong with one of the power supplies or receiving cards, the other one will take charge in the operation.

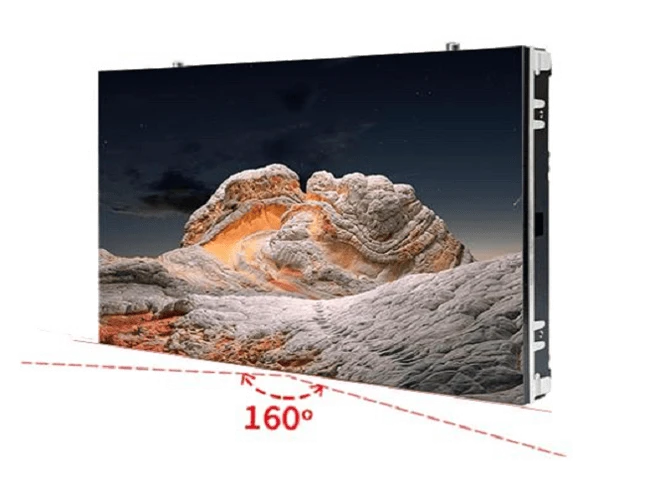

Large Viewing Angle
The vertical and horizontal viewing angles of the LED display are 160°, which means the display can be viewed from a wide angle. Multiple viewers can comfortably view the display from different angles without having to adjust their positions, resulting in a more immersive experience.
Application Files

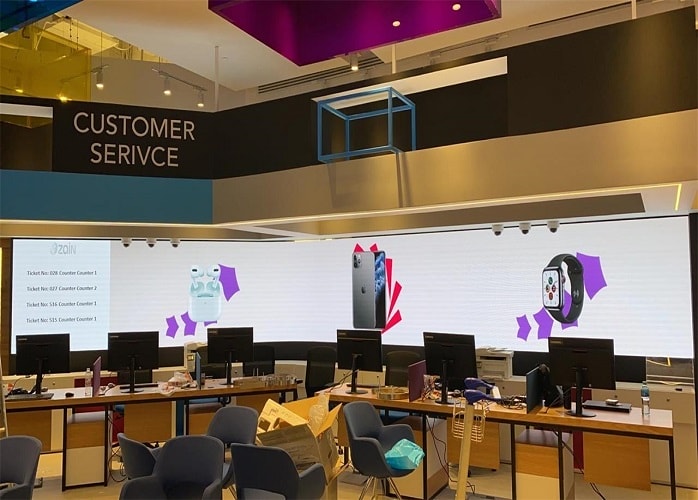

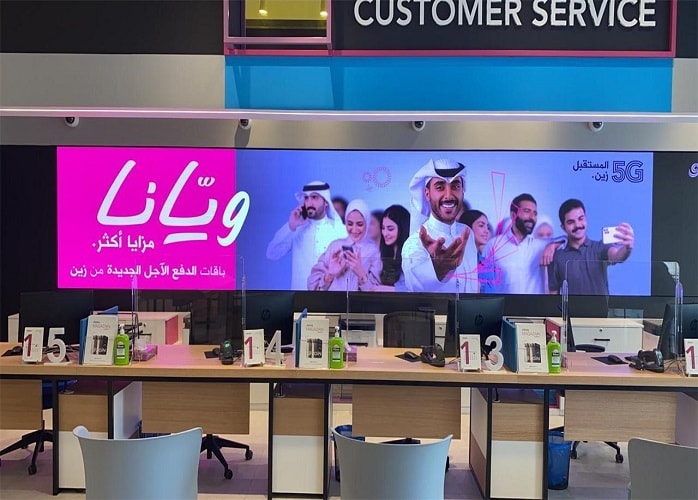

Meeting Room;Â Exhibition Center; Shopping Mall; Airport.
Small Pixel Pitch and Fine Pitch LED Display Screens Parameter
| Item | P1.2 | P1.5 | P1.86 |
|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm |
| LED Type | SMD1212 | SMD1212 | SMD1515 |
| Module Resolution | 256dotsx 128dots | 208dotsx 104dots | 172dotsx 86dots |
| Driving Mode | 1/64scan | 1/52scan | 1/43scan |
| Module Pixels | 21,632dots | 21,632dots | 14,792dots |
| Module Size | 320mm × 160mm | 320mm × 160mm | 320mm × 160mm |

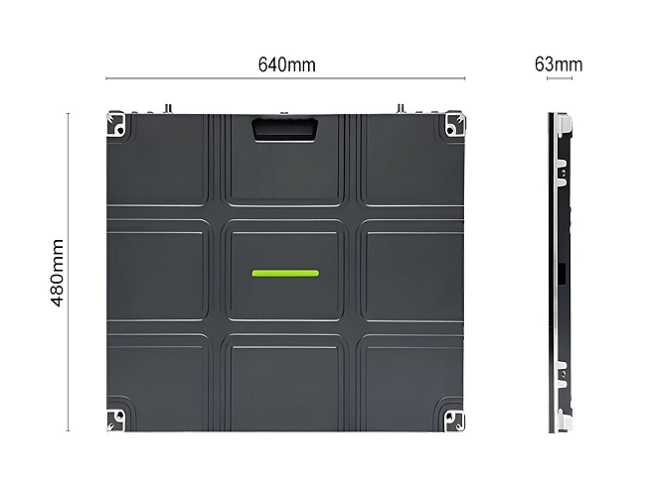

| Cabinet Size | 640mm × 480mm | 640mm × 480mm | 640mm × 480mm |
| Cabinet Resolution | 512dots x 384dots | 416dots x 312dots | 344dots x 258dots |
| Pixel Density | 640000dots/㎡ | 422500dots/㎡ | 288,906dots/m² |
| Minimum Viewing Distance | 1.25m | 1.5m | 1.8m |
| Brightness | 600-1000nits | 600-1000nits | 600-1000nits |
| IP Grade | IP43 | IP43 | IP43 |
| Refresh Rate | 3840Hz ~7680Hz | 3840Hz ~7680Hz | 3840Hz ~7680Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 500W/m² | 500W/m² | 500W/m² |
| Average Power Consumption | 170W/m² | 170W/m² | 170W/m² |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～50℃ | ﹣20℃～50℃ | ﹣20℃～50℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7kg/panel | 7kg/panel | 7kg/panel |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
Additional information
| Weight | 30 kg |
|---|
