Outdoor DIP LED Display Screen
$325.00
- Description
- Additional information
Description
DIP 1R1G1B LED Screen
DIP LED Display-P10, P16, P20
Low Power Consumption
3,840Hz～7,680Hz
Stable Outdoor Fixed Installation
High Brightness (10,000nits)
3 Layers Coating Protection
14bits～22bits
Product Description
Low Power Consumption
We use customized PCB and power supply, so average power consumption is less than 150W/㎡. Compared with the similar products in the market, the display saves 20% energy. The pixel pitches are P10, P16, P20.
High Brightness
Gold bonding wire DIP LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules.

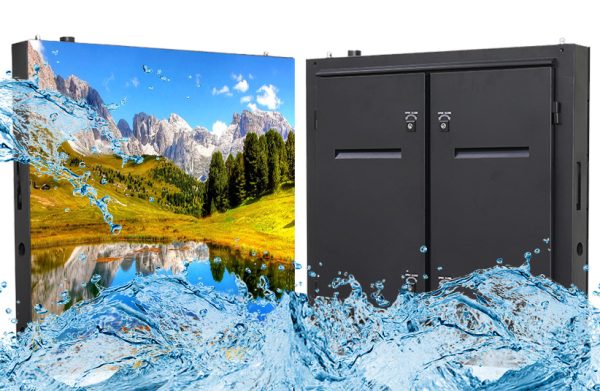

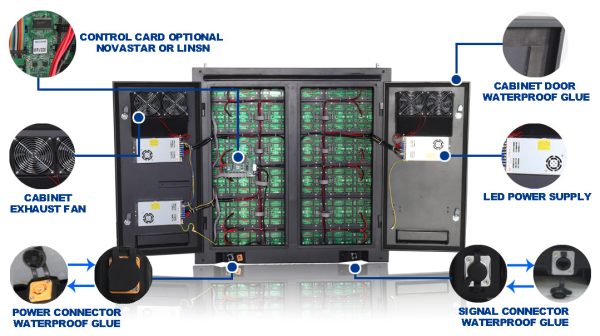

High Protective Grades
3 layers high quality conformal coating protects the driving IC and other electron components from dust and humidity. Strong signal cable brings more security and the cables look neat.

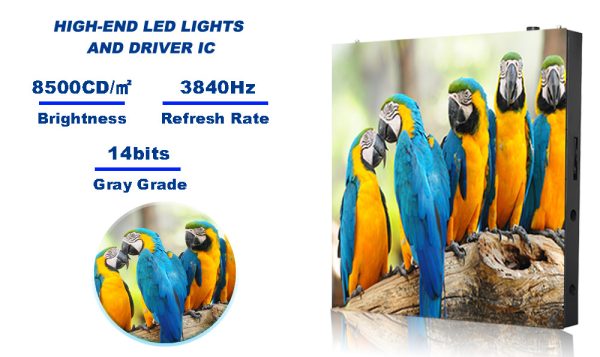

High Refresh Rate
The image on the screen is formed perfectly. One of the reasons is that the refresh rate can reach 7680Hz.

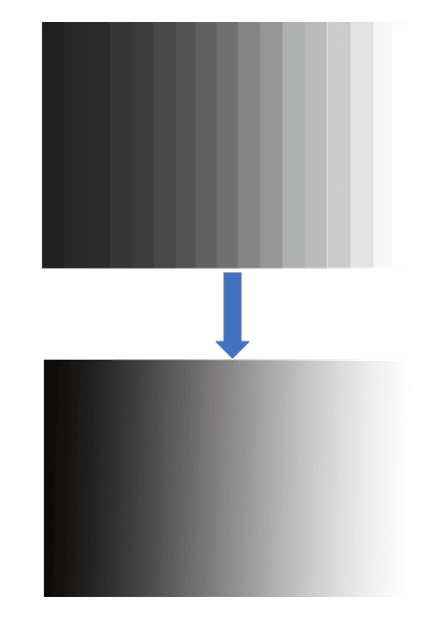

Great Gray Scale
Most LED screens from other suppliers have a low gray scale, so some of the colors can’t be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grays cale is 14bits ~ 22bits. It is very high so the image looks very vivid and perfect.

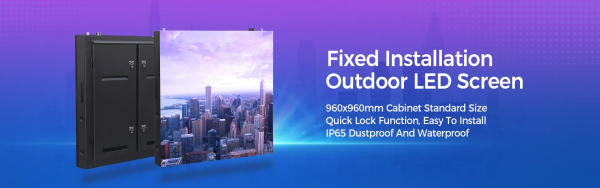

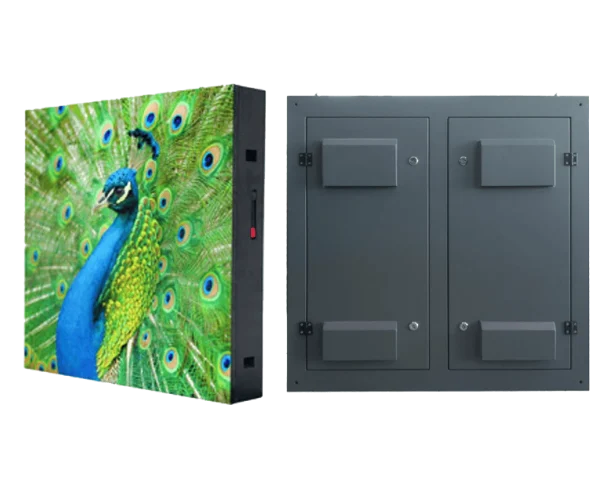

Stable Outdoor Fixed Installation

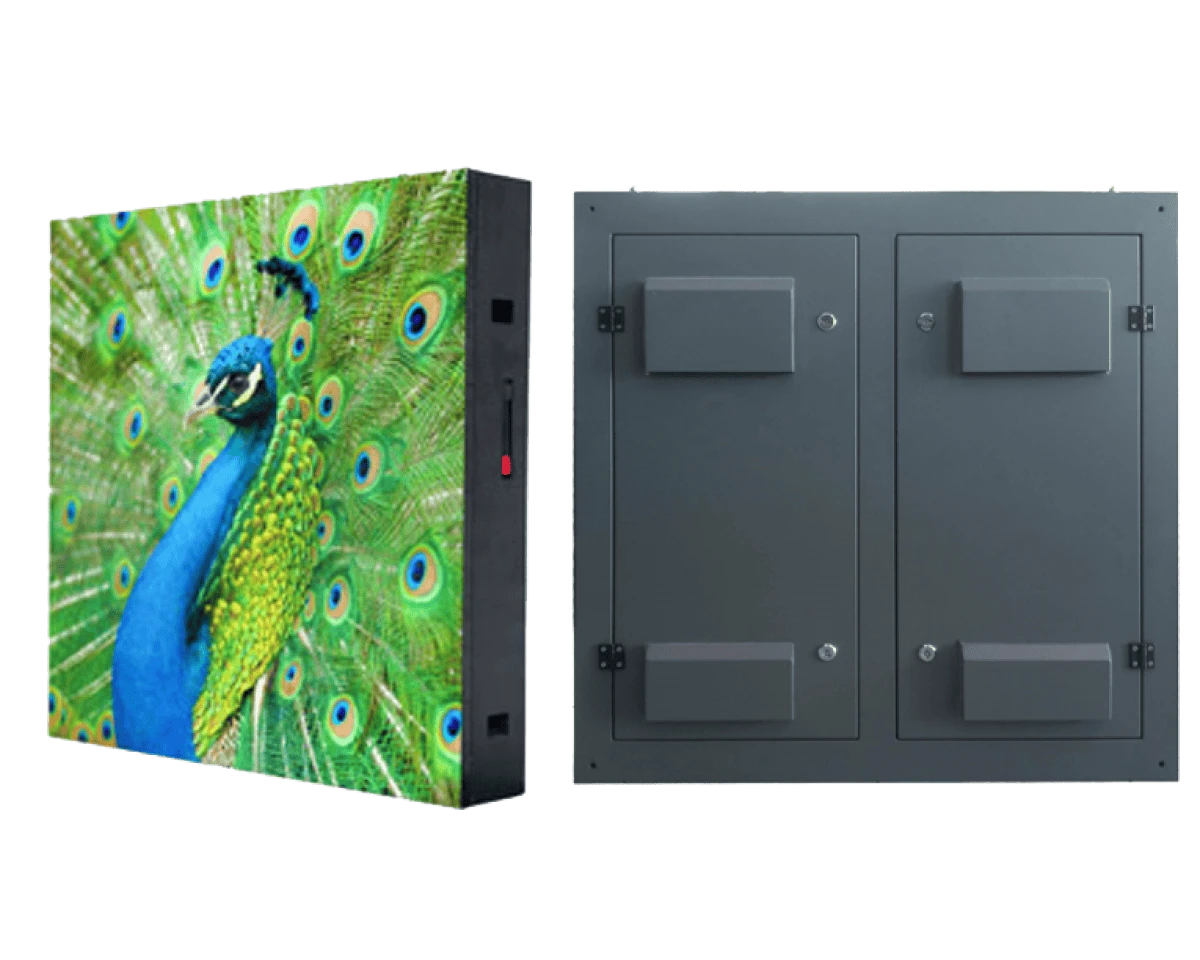

The cabinet is made of steel material or aluminum material. We adopt the best materials and the great crafts to manufacture this LED display. Therefore, the screen functions very stably in outdoor scenes.
Visual Performance

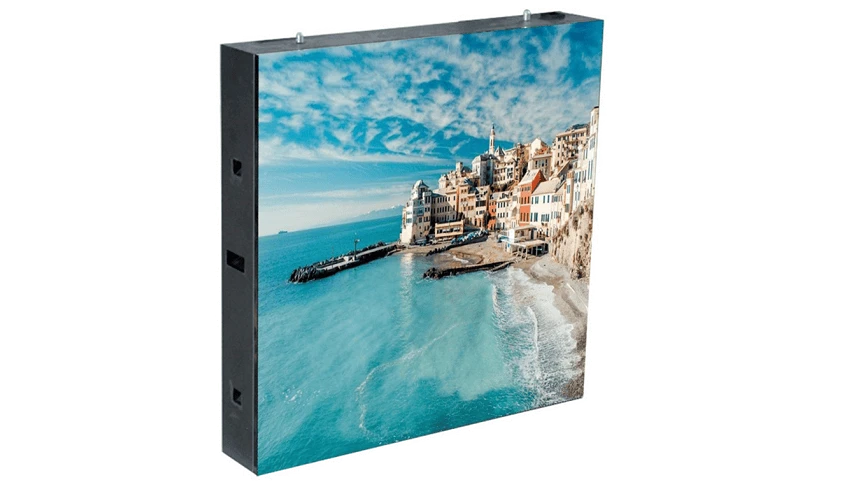

High Contrast: The contrast ratio of the LED screen gives sharp image quality. High Brightness: The brightness of the LED display can be up to 10,000nits. Even if the screen is facing the direct sunlight, the image still looks clear.

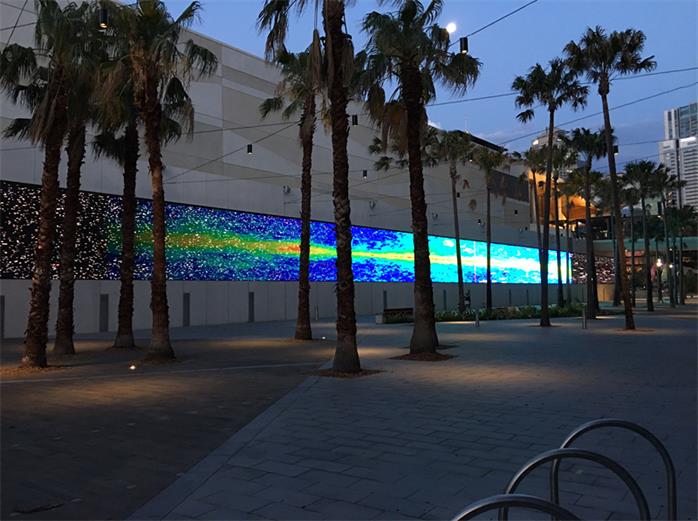

Stable Performance, Reliable Quality

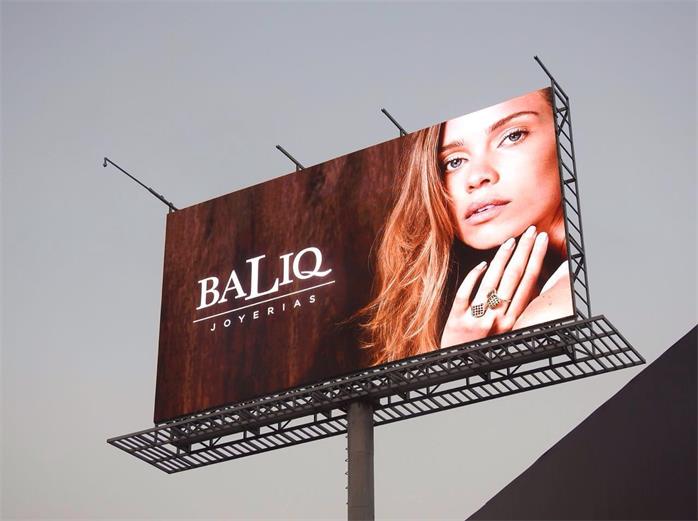

We have sold many LED screens to different districts like American, European, Middle East, African, etc. Many of our screens have been working for more than 5 years, and they are still working properly. They are the great solution for outdoor advertising billboards.

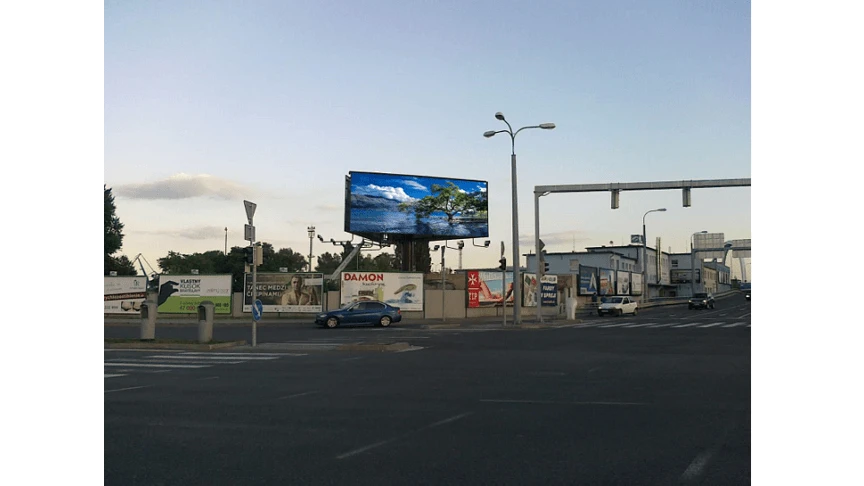

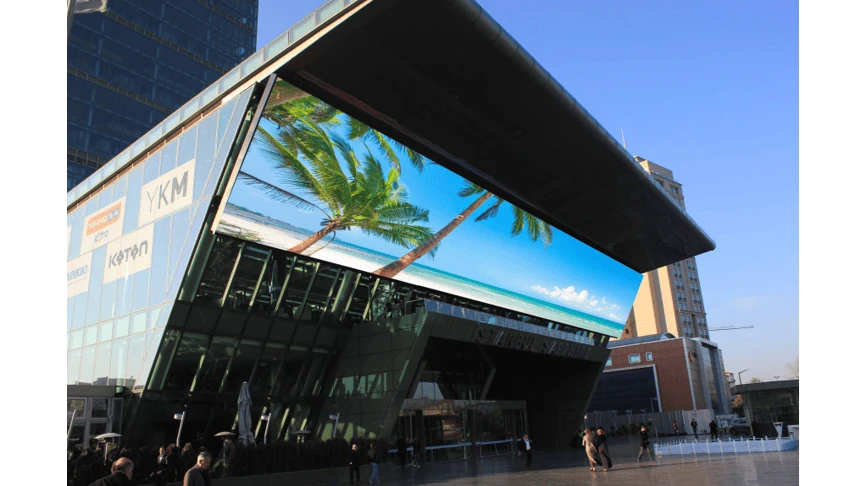

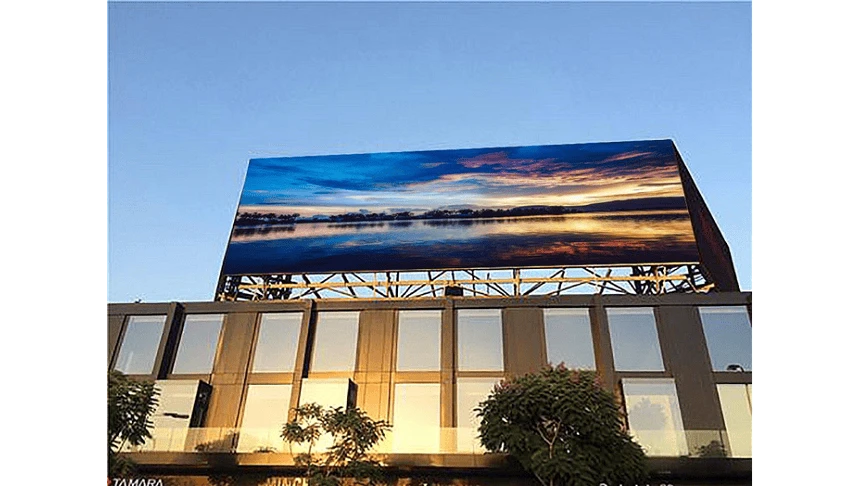

Application Fields
In order to fit each different scene, the outdoor LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:

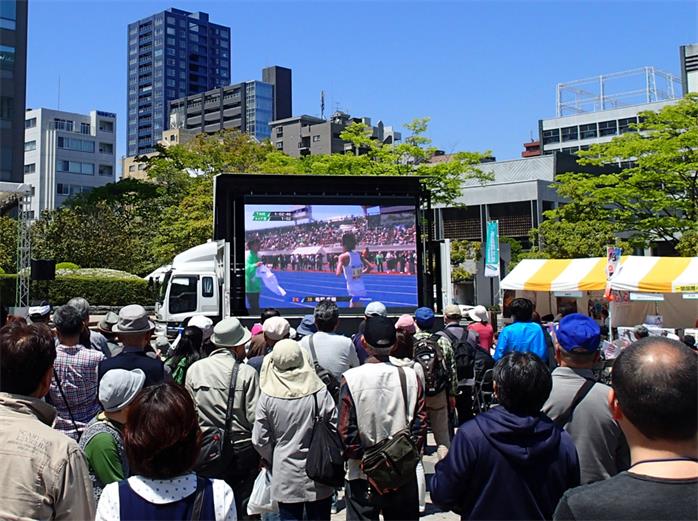

Outdoor Advertising;Â Digital Out of Home(DOOH);Â LED Truck.
High Brightness High stability DIP LED Display Parameter
| Item | P10 | P16 | P20 |
|---|---|---|---|
| Pixel Pitch | 10mm | 16mm | 20mm |
| LED Type | DIP346 | DIP346 | DIP346 |

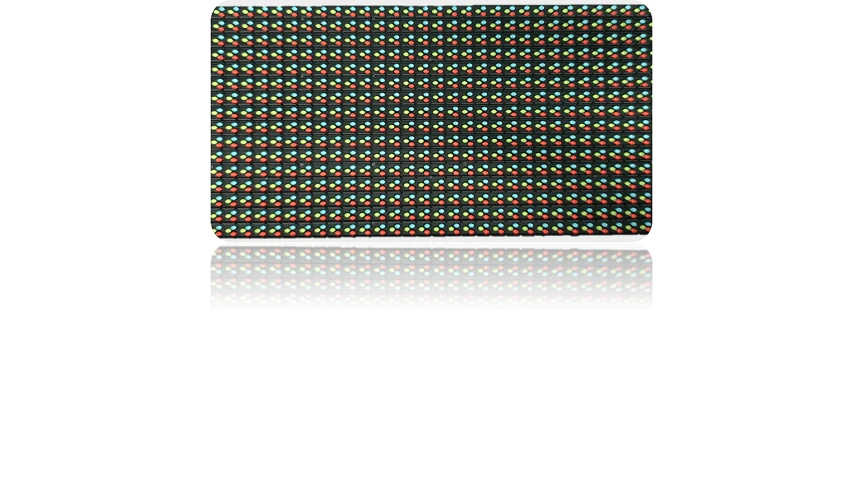

| Module Resolution | 32dots × 16dots | 16dots × 16dots | 16dots × 8dots |
| Driving Mode | 1/4scan | static | static |
| Module Pixels | 512dots | 256dots | 128dots |
| Module Size | 320mm × 160mm | 256mm × 256mm | 320mm × 160mm |

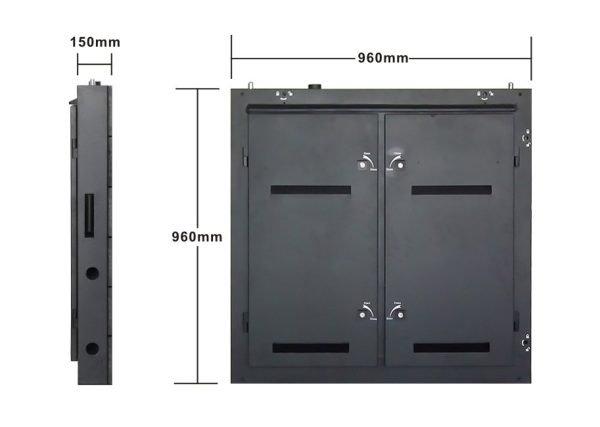

| Cabinet Size | 960mm × 960mm | 1,024mm × 768mm | 960mm × 960mm |
| Cabinet Resolution | 96dots × 96dots | 64dots × 48dots | 48dots × 48dots |
| Pixel Density | 10,000dots/㎡ | 3,906dots/㎡ | 2,500dots/㎡ |
| Minimum Viewing Distance | ≥10m | ≥16m | ≥20m |
| Brightness | ≥9,000nits |  8,000nits～10,000nits | 7,000nits～7,500nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:120° / V:60° | H:120° / V:60° | H:120° / V:60° |
| Maximum Power Consumption | 460W/㎡ | 520W/㎡ | 390W/㎡ |
| Average Power Consumption | 130W/㎡ | 150W/㎡ | 110W/㎡ |
| Input Voltage | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Iron / Aluminum | Iron / Aluminum | Iron / Aluminum |
| Cabinet Weight | 60kg/㎡ or 45kg/㎡ | 60kg/㎡ or 45kg/㎡ | 60kg/㎡ or 45kg/㎡ |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
Additional information
| Weight | 45 kg |
|---|
