Outdoor Indoor Transparent LED Screen
$263.00
P2.8 P3.9 P7.8 P10.4 P15.6 P20 500x500mm 500x1000mm 1000x1000mm
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
High Transparency
3500-4500cd/㎡
Magnetic Suction Installation
Front Rear Maintenance
Die Cast Aluminum
6kg
Advantages
Feature Description
- – With strict LED display production process
- – Based on the Horizontal arrangement lighting technology, it is up to 65%transparency
- – Cabinet size is customized according to application ,match with the building glass perfectly
- – Support front and rear maintenance,easy to maintain and low cost maintenance
- – 3840Hz High refresh
Video
Parameters
Cabinet Specs

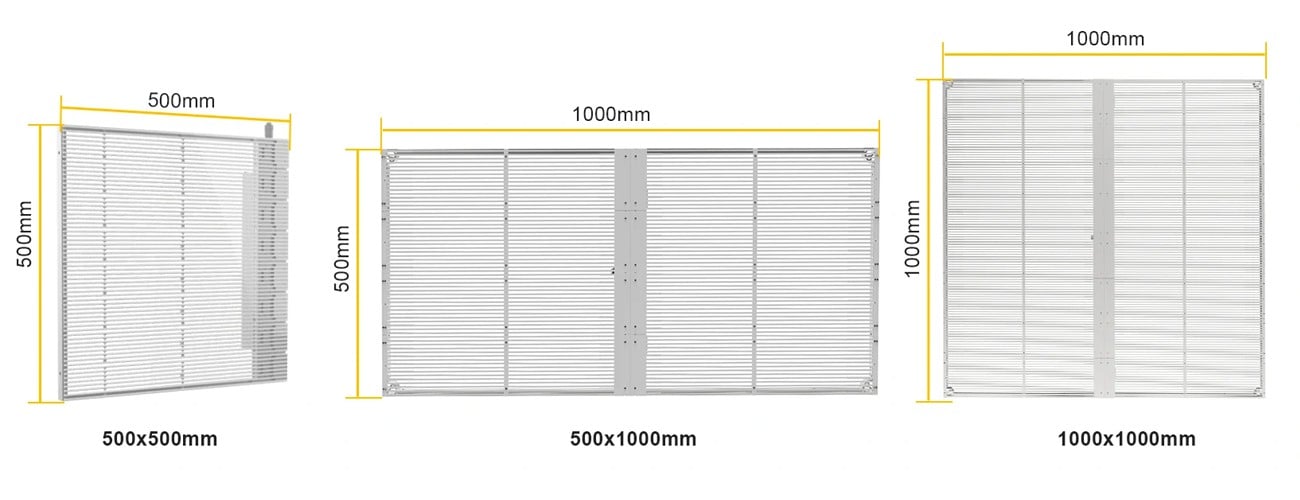

First class design for die casting cabinet frame, each cabinet (include all components) is only 6 kg ,Size: 500x500mm 500x1000mm 1000x1000mm

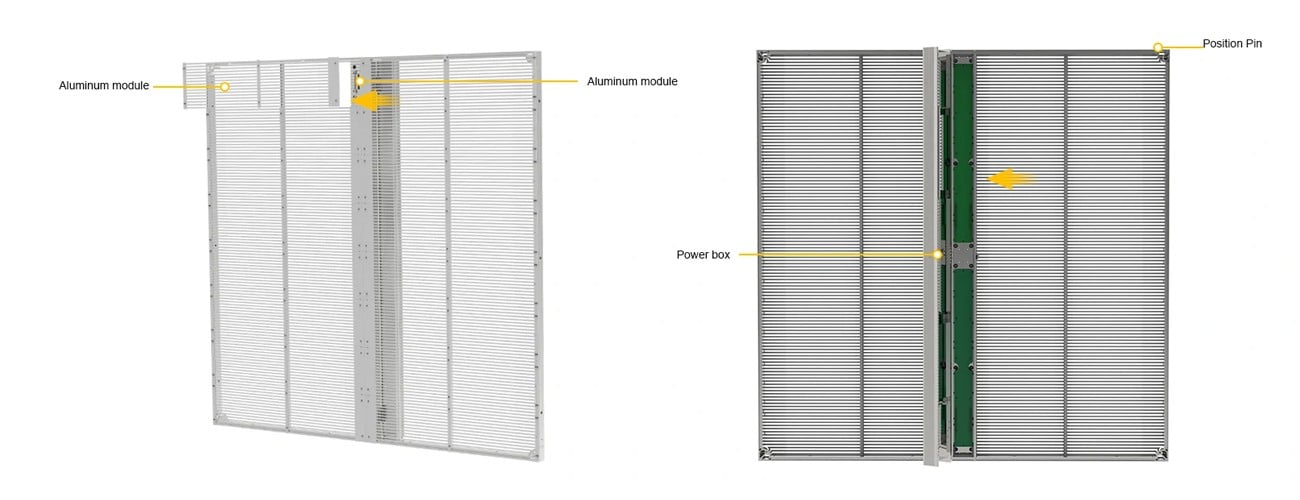

Friendly Maintenance
Front and rear maintenance design, module supports front maintenance, power supply and HUB board can be opened at the back

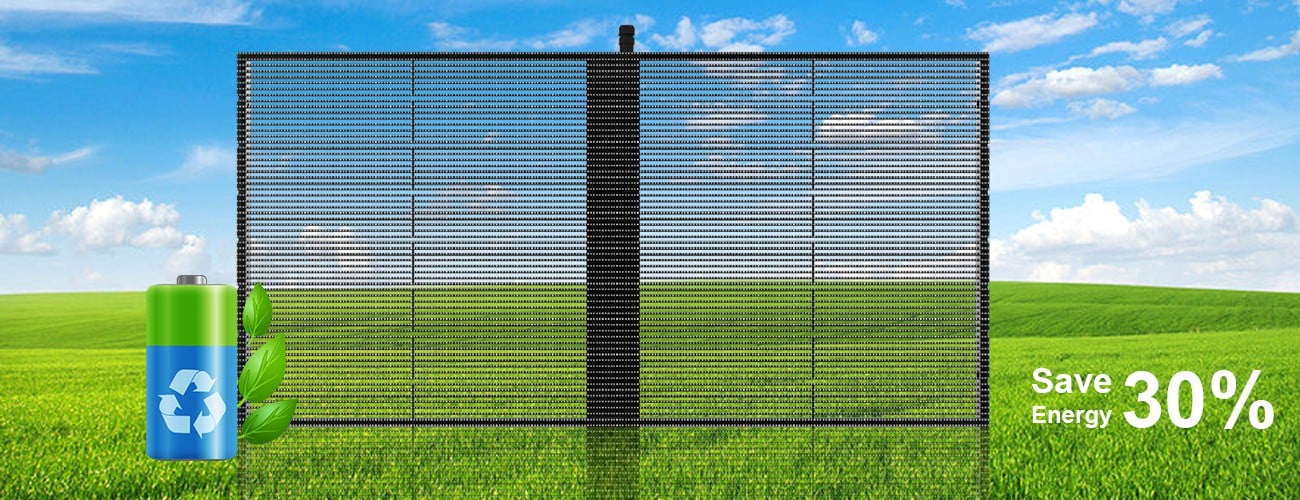

Low Power Consumption
Saving energy by more than 30%, compared with the normal screen. which is energy-saving and environment-friendly

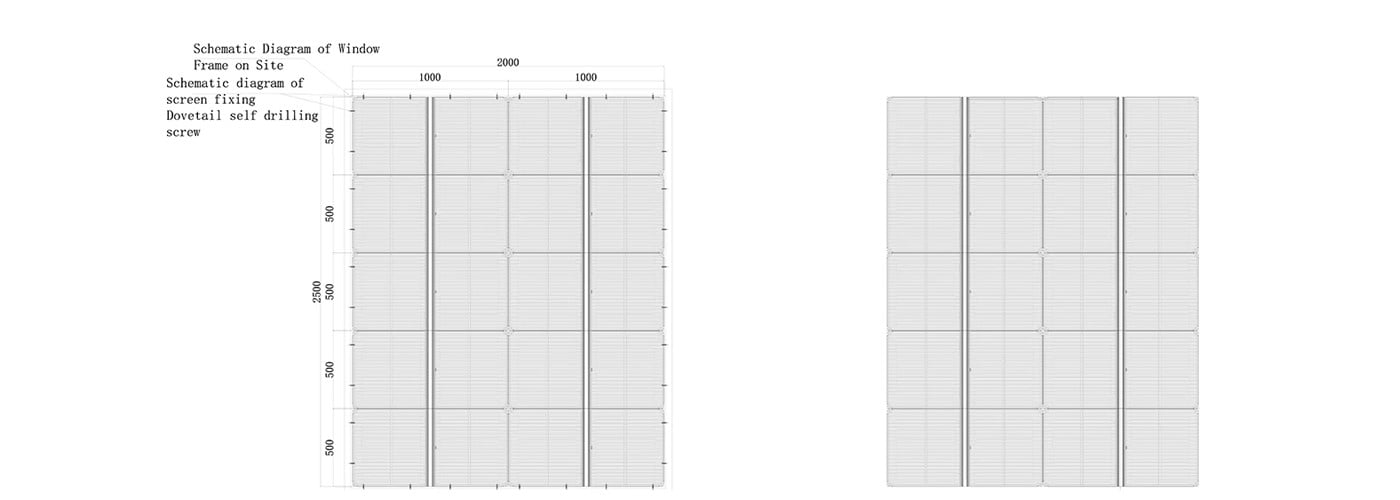

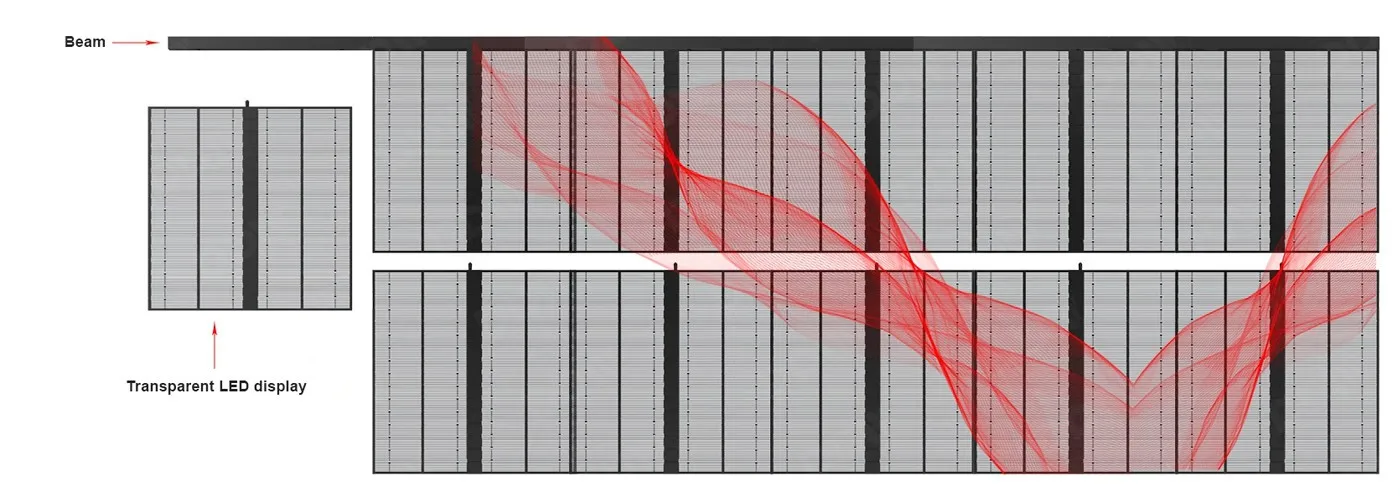

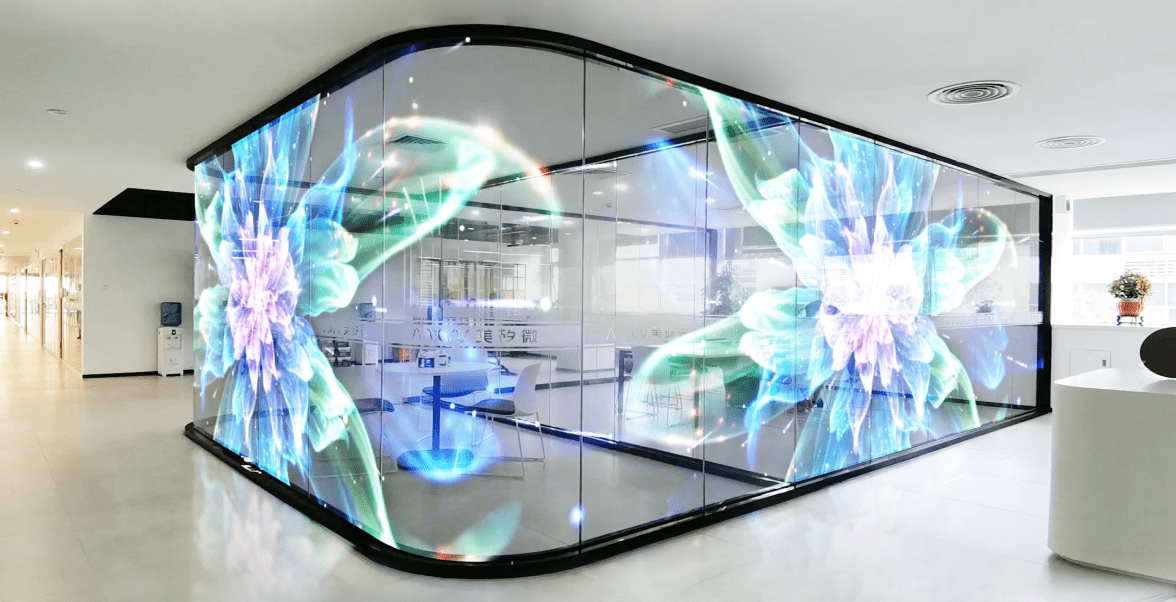

Installation
Aluminum profile support
Various installation mode
Indoor Transparent LED Screen Specifications
| Pixel Pitch | P2.84 | P3.91 | P7.81 | P10.42 | P15.625 | P20 |
| Pixel Density(m²） | 56320 | 32768 | 16384 | 9216 | 4096 | 2304 |
| Permeability | 0.56 | 0.7 | 0.56 | 0.65 | 0.75 | 0.85 |
| Refresh Rate(Hz) | ≥3851 | ≥3840 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Cabinet Size(mm) | 1000*500 | |||||
| Cabinet Refresh Rate | 352*80 | 256*64 | 128*64 | 96*48 | 64*32 | 48*24 |
| LED Light | 1415 RGB | 1921 RGB | 1921 RGB | 1921 RGB | 3535 RGB | 3535 RGB |
| Brightness(nits)/㎡ | ≥2700 | ≥4500 | ≥4000 | ≥4000 | ≥4000 | ≥4000 |
| Max Consumption(W/M) | 800 | |||||
| Ave Consumption(W/M) | 240 | 240 | 240 | 200 | 180 | 150 |
| Grey Scale(Bit) | 27 | 16 | 16 | 16 | 16 | 16 |
| Degree protection | IP41 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Weight PC/KG | 5 | 5 | 6 | 6 | 6 | 6 |
| Work Environment | ﹣10℃~51℃ | |||||
| Display Interface | DIV/HDMI | |||||
| Installation Mode | Fixed installation | |||||
| LED Life(h) | 210000 | 100000 | 100000 | 100000 | 100000 | 100000 |

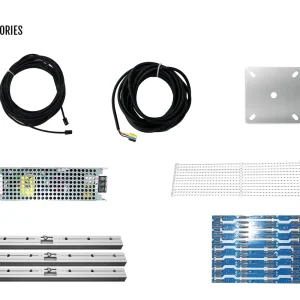

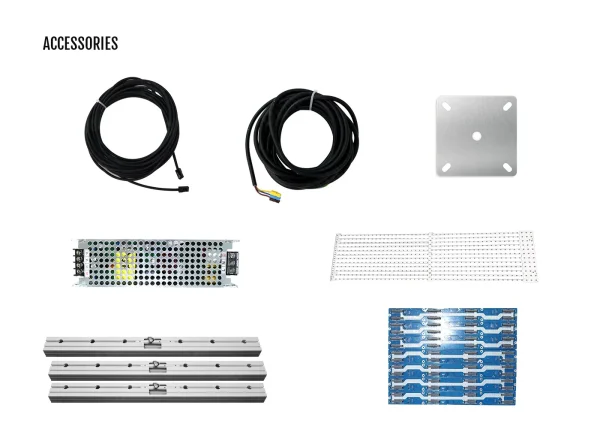

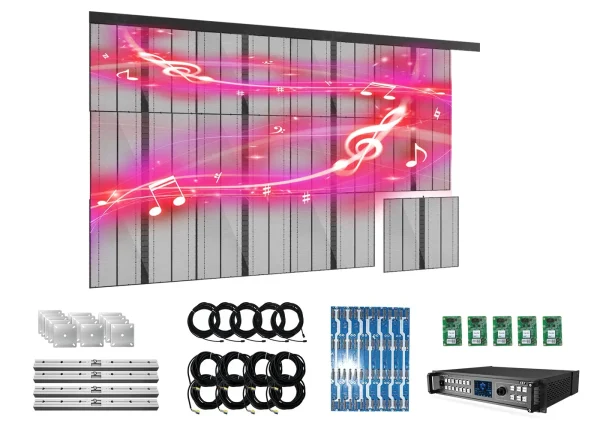

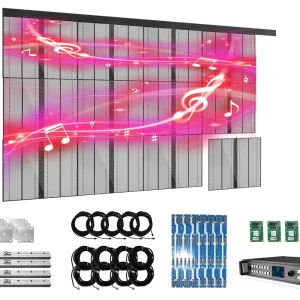

Accessories

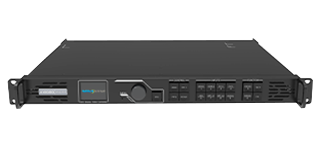

Video Processor

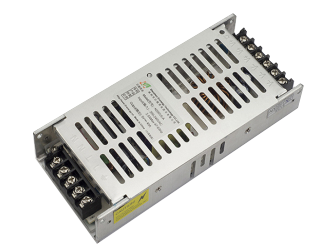

Power Supply
LED module
Mounting accessories
Signal cable
Power cable
Adapter board
Connecting piece
Additional information
| Weight | 35 kg |
|---|
