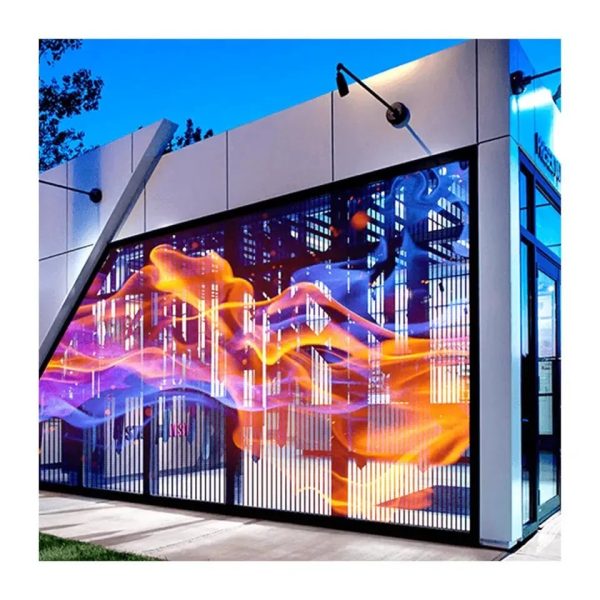

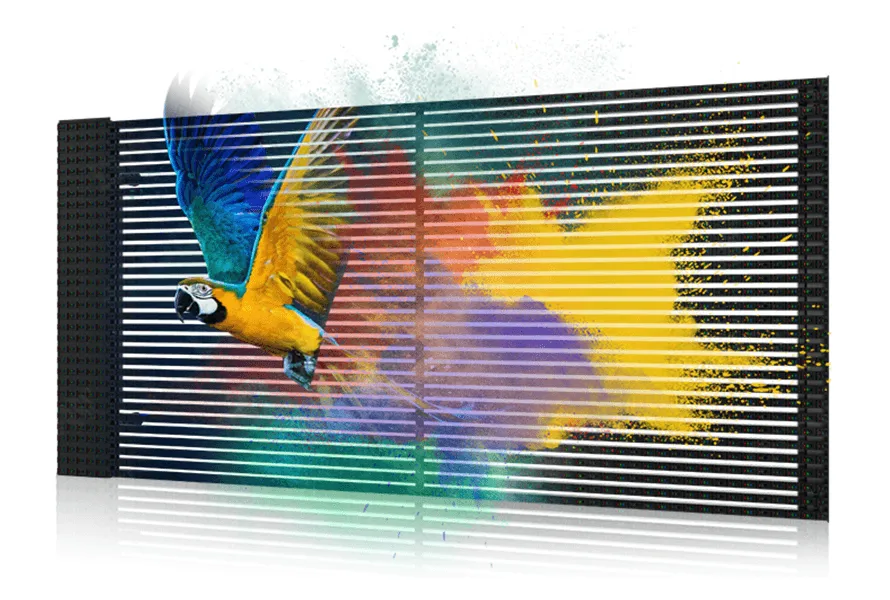

Outdoor Transparent LED Display Ultra-Thin Light LED Grille Screen
$328.00
P10.42 P15.6 P20 P25 P31 1000×500 IP67 waterproof
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
High Transparency
5500-7500cd/㎡
Magnetic Suction Installation

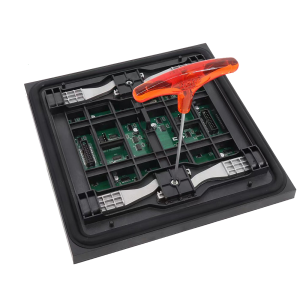

Front Rear Maintenance
Die Cast Aluminum
IP67 Waterproof
Advantages
Feature Description
- – High transparency, high light transmittance
- – Simple structure and light weight
- – Fast installation and easy maintenance
- – Green energy saving, good heat dissipation
- – 3840Hz High refresh
Video
Parameters

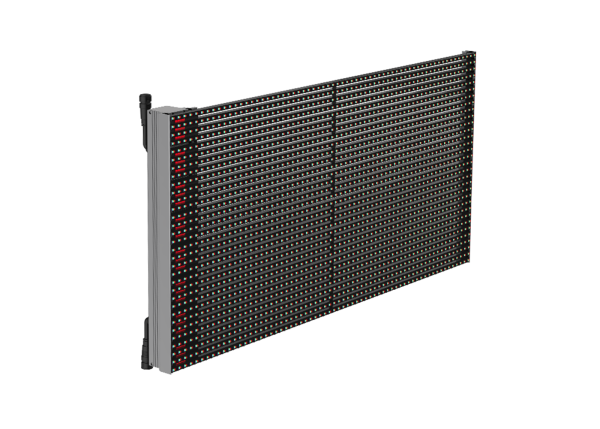

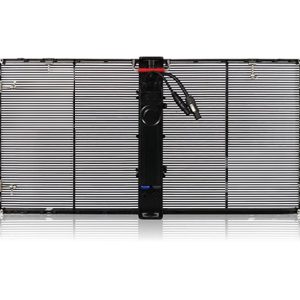

Cabinet Specs
First class design for die casting cabinet frame, each cabinet (include all components) is only 9kg ,Size: 500x500mm 500x1000mm 1000x1000mm

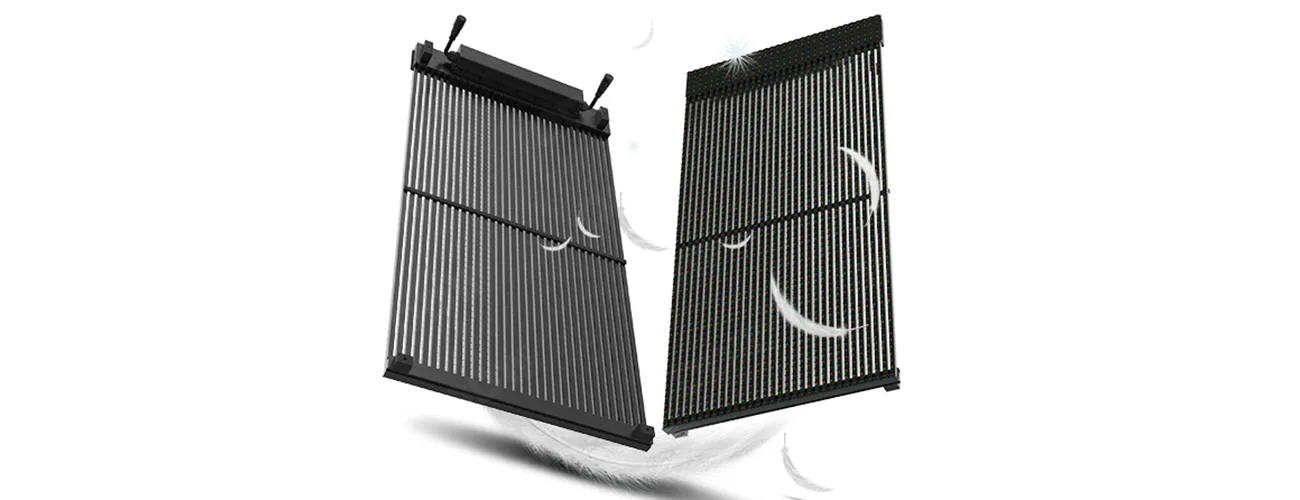

Ultra light design
Weight: 9kg/cabinet Aluminum alloy natural heat dissipation ,Lightweight design can save transportation costs

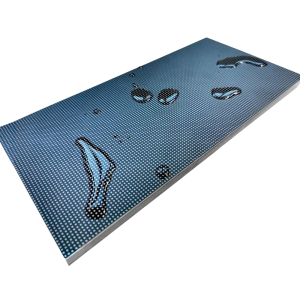

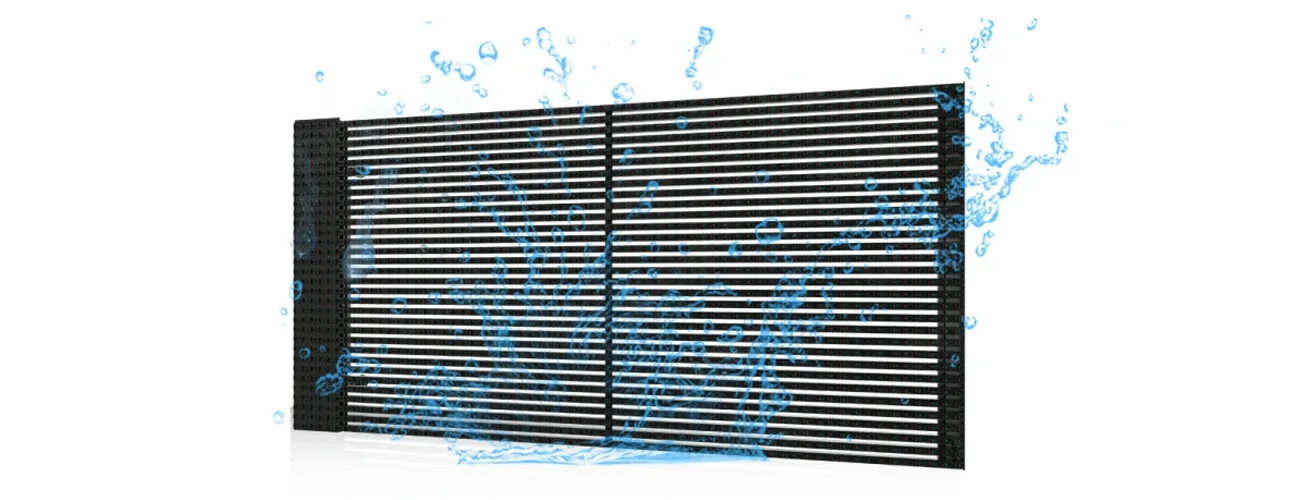

IP67 waterproof
IP67 waterproof and dust proof,suitable for both outdoor use

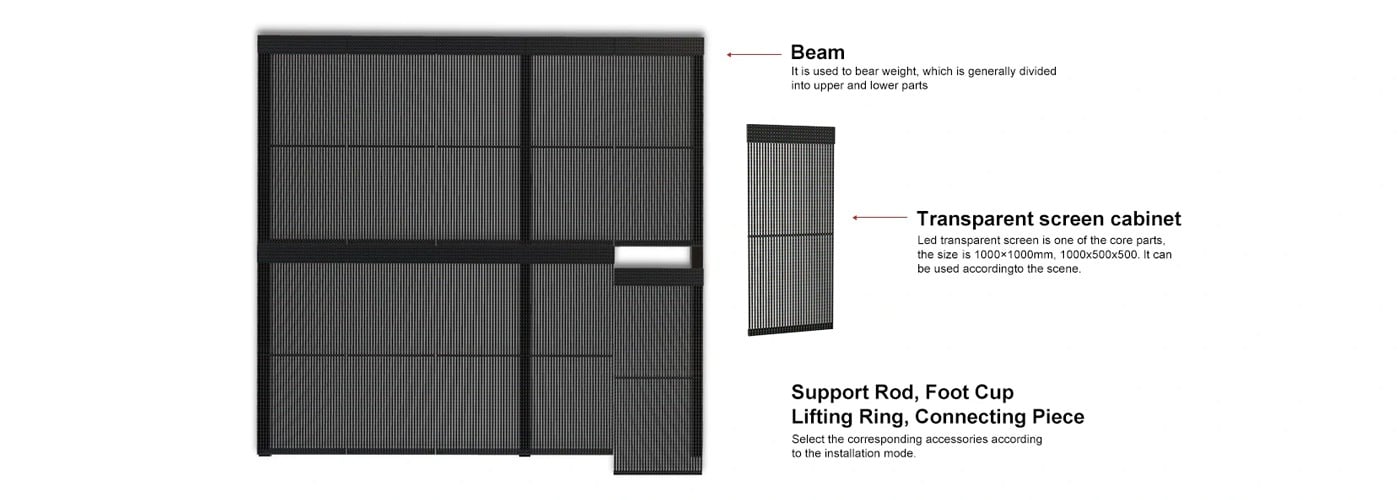

Installation
Easy installation
Embedded installation
Outdoor Transparent LED Display Ultra-Thin Light LED Grille Screen Specifications
| Model | P15.625 | P20 | P25 | P31.25 |
| Pixel Picth | 15.625(mm) | 20(mm) | 25(mm) | 31.25(mm) |
| Cabinet size (mm) | 1000*500 | 1000*500 | 1000*500 | 1000*500 |
| LED | DIP346 | DIP346 | DIP346 | DIP346 |
| Density points(㎡） | 4096 | 2500 | 1600 | 1024 |
| Installation | Front/Back | Front/Back | Front/Back | Front/Back |
| Cabinet material | Iron/aluminum | Iron/aluminum | Iron/aluminum | Iron/aluminum |
| IP rate | IP68 | IP68 | IP68 | IP68 |
| Grayscale | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Refresh rate(hz) | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7680 |
| Frame change frequency | 50/60hz | 50/60hz | 50/60hz | 50/60hz |
| Horizontal viewing angle | >140° | >140° | >140° | >140° |
| Vertical viewing angle | >140° | >140° | >140° | >140° |
| Best viewing distance | >8m | >8m | >8m | >8m |
| Input Voltage | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V |
| Temperature-operating | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ |
| Humidity-operating | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Life span (H) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 |
| MTBF (H) | >10,000 | >10,000 | >10,000 | >10,000 |

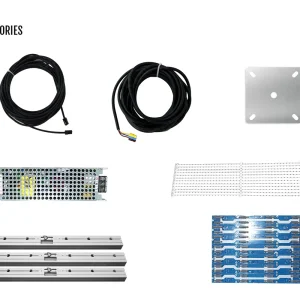

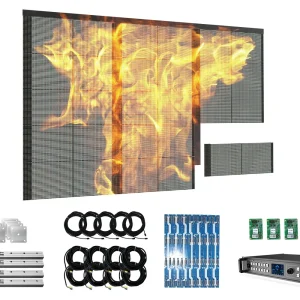

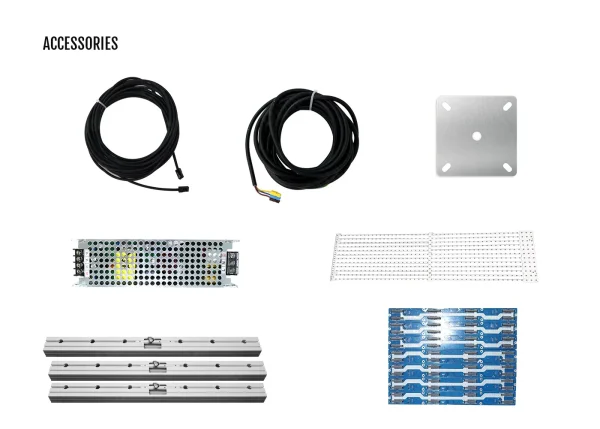

Accessories

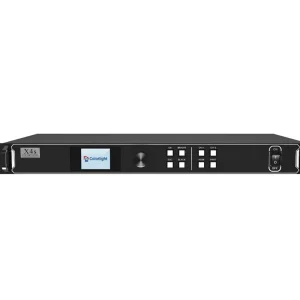

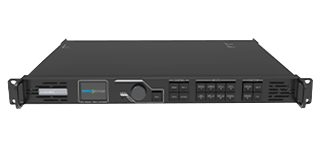

Video Processor

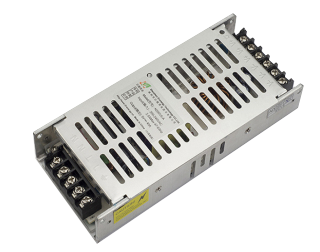

Power Supply
LED module
Mounting accessories
Signal cable
Power cable
Adapter board
Connecting piece
Additional information
| Weight | 35 kg |
|---|
