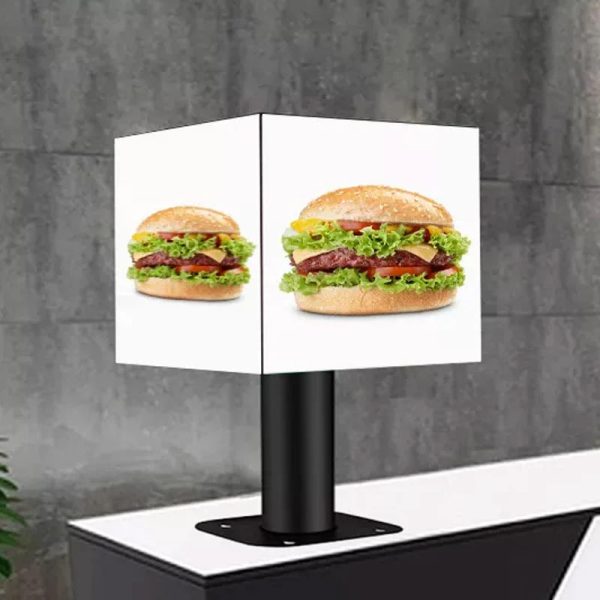

Outdoor Indoor LED Cube Display Screen
$218.00

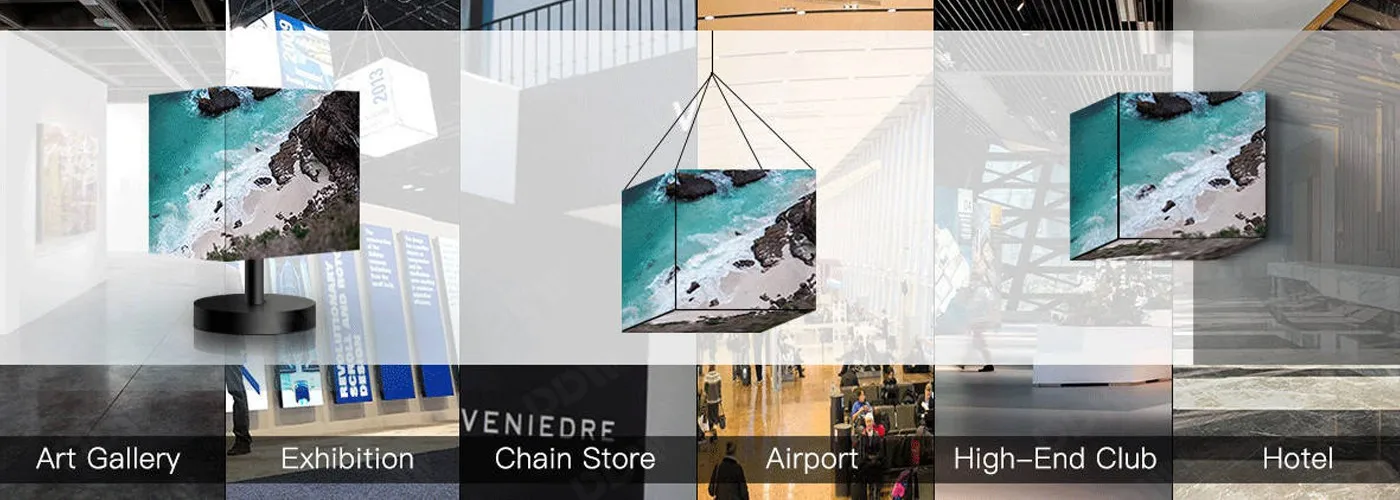

LED cube display is designed for HD visual effects that is applicable for museum, trade shows, special events that need creative decorations. It can be widely used for many different application areas.

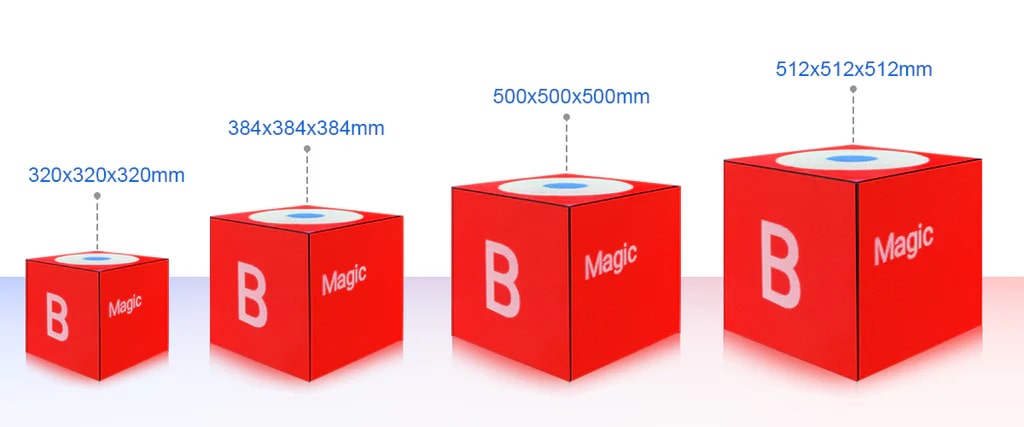

Regular size range from 200*200mm,400*400mm,600*600mm, 800*800mm, multiple size choice: 4 sides, 5 sides,6 sides. Large size can be also customized.
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
IP65 Waterproof
High Brightness
Magnetic Suction Installation
Front Maintenance
360° Visual Angle
Low Power Consumption
Advantages
Feature Description
- – Industry outdoor minimum distance products, waterproof grade IP65
- – Any size and size can be designed and manufactured according to customer requirements
- – 360 Visual angle, any angle can feel good visual effect
- – Convenient installation, support a variety of installation methods
Video
Parameters
Friendly Maintenance
The cabinet adopt cable-less design which can be maintenence in seconds, magnetic modules with front and rear maintenance
Cabinet Specs
Each side can be made as square screen based on different sizes of modules, 4 sides,5 sides,6 sides optional
Installation
internal structure

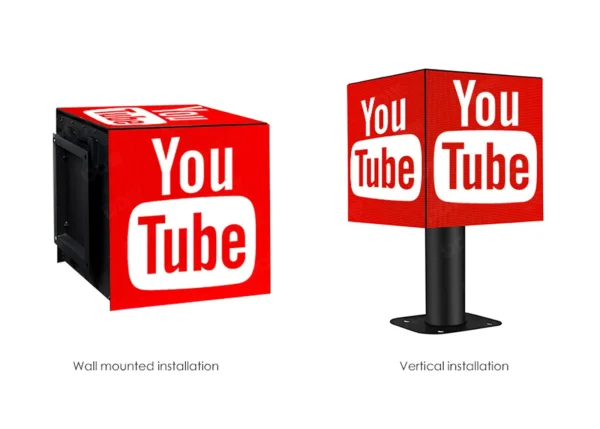

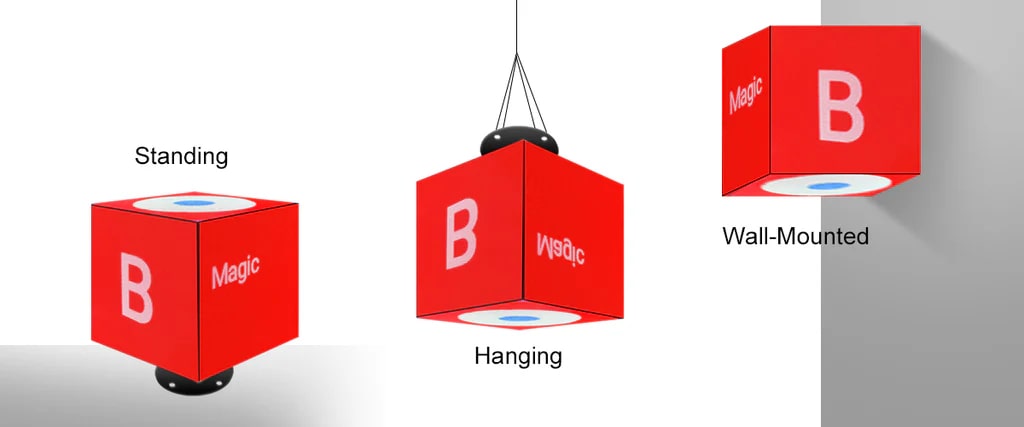

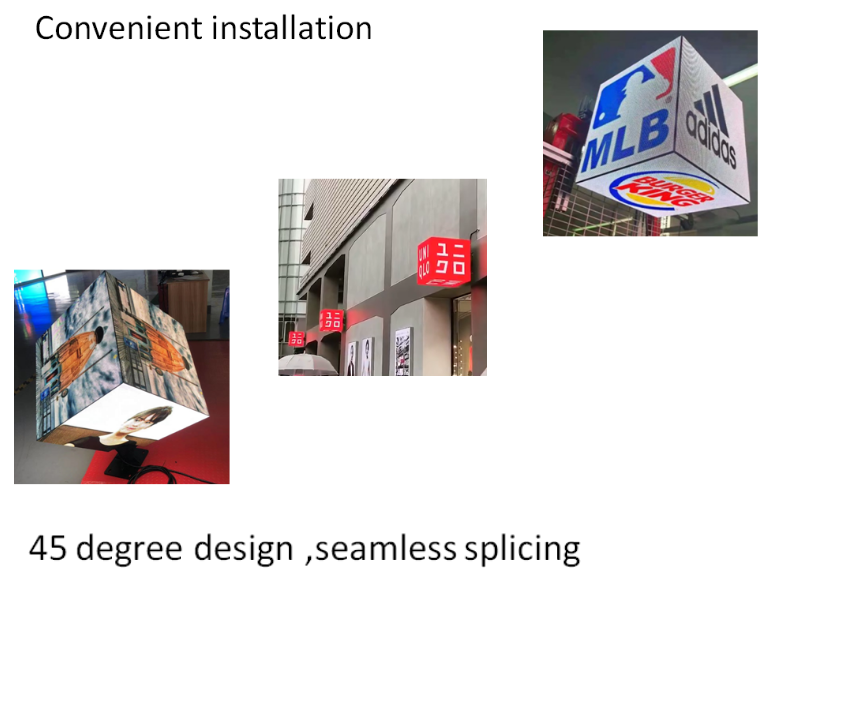

Various installation mode
Outdoor Indoor LED Cube Display Screen Specifications
| Item | PH2.5 Outdoor Magic Cube Display | |||
| Single side size (mm) | 200mm*200mm | 400mm*400mm | 600mm*600mm | 800mm*800mm |
| Sides | 4 or 5 | |||
| LED Type | SMD2020 | |||
| Module size ( mm ) | 200×200 | |||
| Module Resolution | 80dots*80dots | |||
| Display Size ( mm ) | 200x200x4 | 400x400x5 | 600x600x5 | 800x800x5 |
| Single side Resolution | 80dots*80dots | 160dots*160dots | 240dots*240dots | 320dots*320dots |
| Refresh Ratio | 3840Hz | |||
| Brightness ( cd/m² ) | 5800>650 | |||
| Max Power ( W/m² ) | 160 | |||
| Aversge Power ( W/m² ) | 50 | |||
| Protection level | IP45/IP65 | |||
Accessories
Power Supply
LED suction cup
Power cable-Flat cable
CAT cable 5V Power-cable
Additional information
| Weight | 20 kg |
|---|
