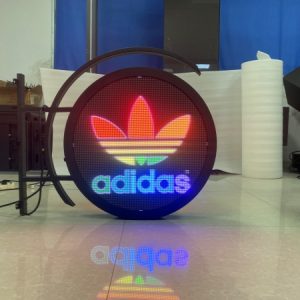

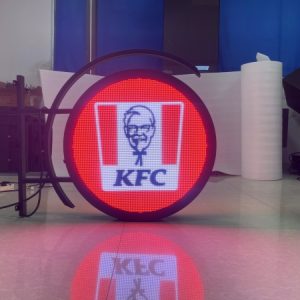

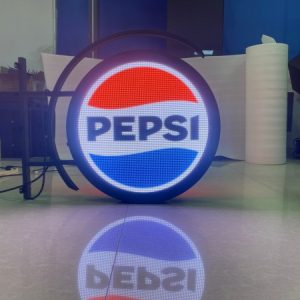

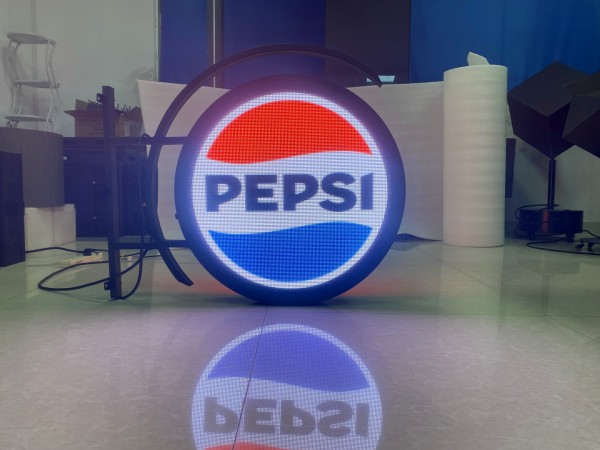

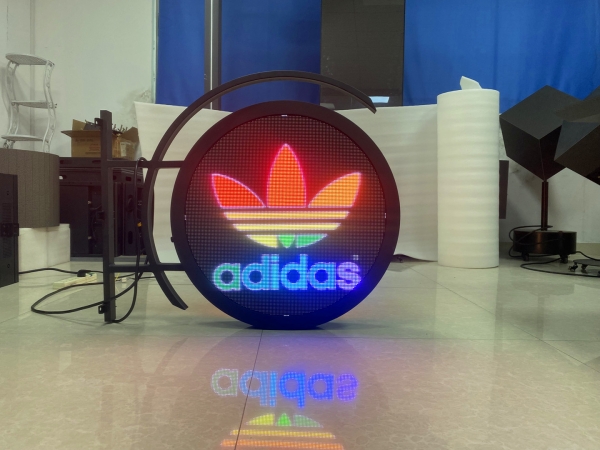

Name: Double Sided LED LOGO Screen Display
SKU: Double Sided led logo screen
Availability: InStock

Double Sided LED LOGO Screen Display

0 out of 5

$450.00

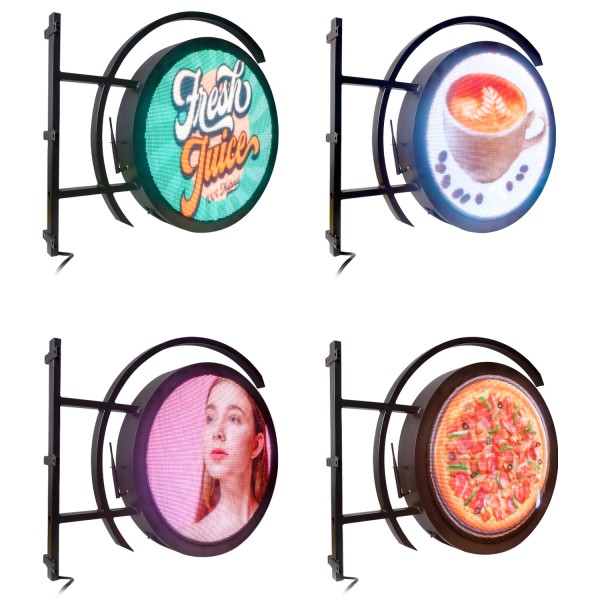

Indoor and outdoor single side or double sided led circle screen for shop logo advertising use

SKU: Double Sided led logo screen Categories: Creative LED Screen, Leeman LED Display Screen Tag: Leeman LED Display

Description

3840 Hz

Wide Viewing Angles

Double Sided

IP65 Waterproof

4500 cd/m²

Front Maintenance

Die Cast Aluminum

Low Power Consumption

Feature Description

– Waterproof lP65, suitable for both outdoor and indoor use
– Good heat dissipation: adopt Iron structural cooling solution
– Uper bright, beautiful, energy-saving, enviromental protection,long life span, easy to change images
– Front maintenance, light weight and easy installation

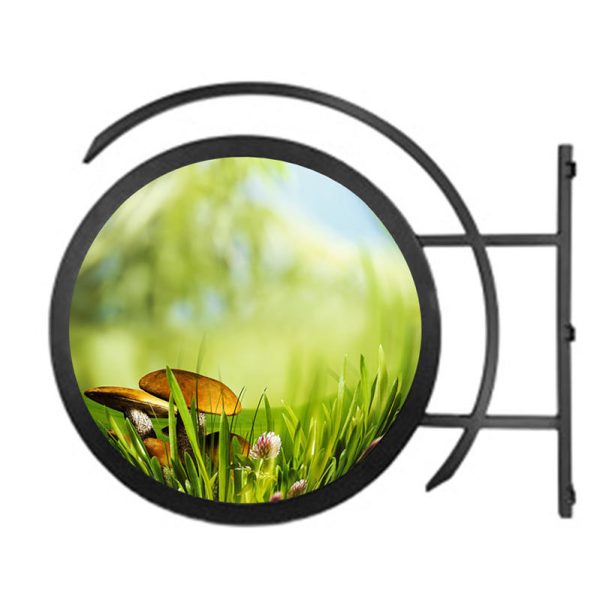

– The circular design is simple and beautiful

Cabinet Specs

Different sizes can be customized according to requirements.

Friendly Maintenance

The cabinet adopt cable-less design which can be maintenence in seconds, magnetic modules with front and rear maintenance

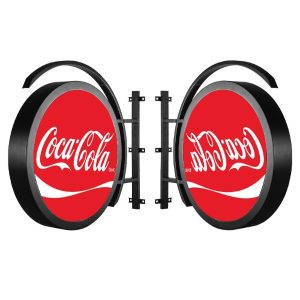

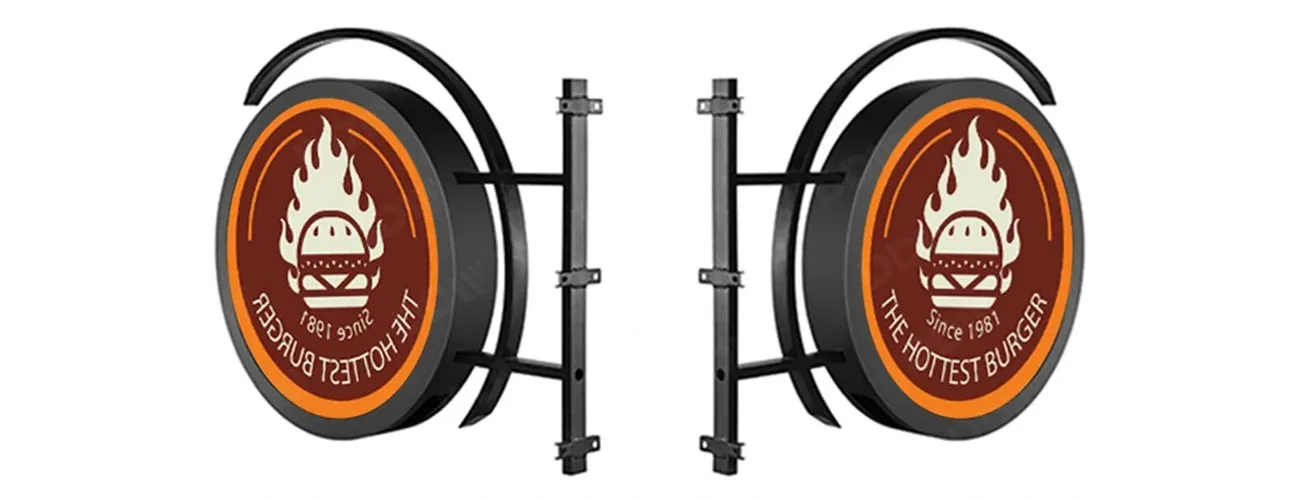

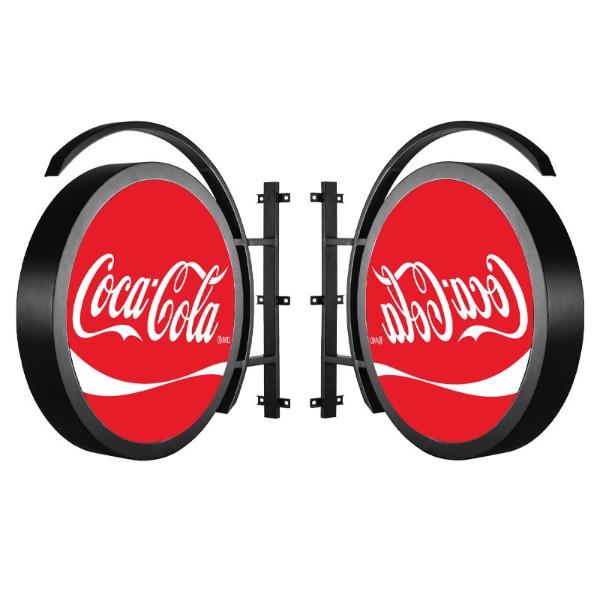

Two-sided display optional

Double-sided and multi-directional playback pictures can be customized according to different needs

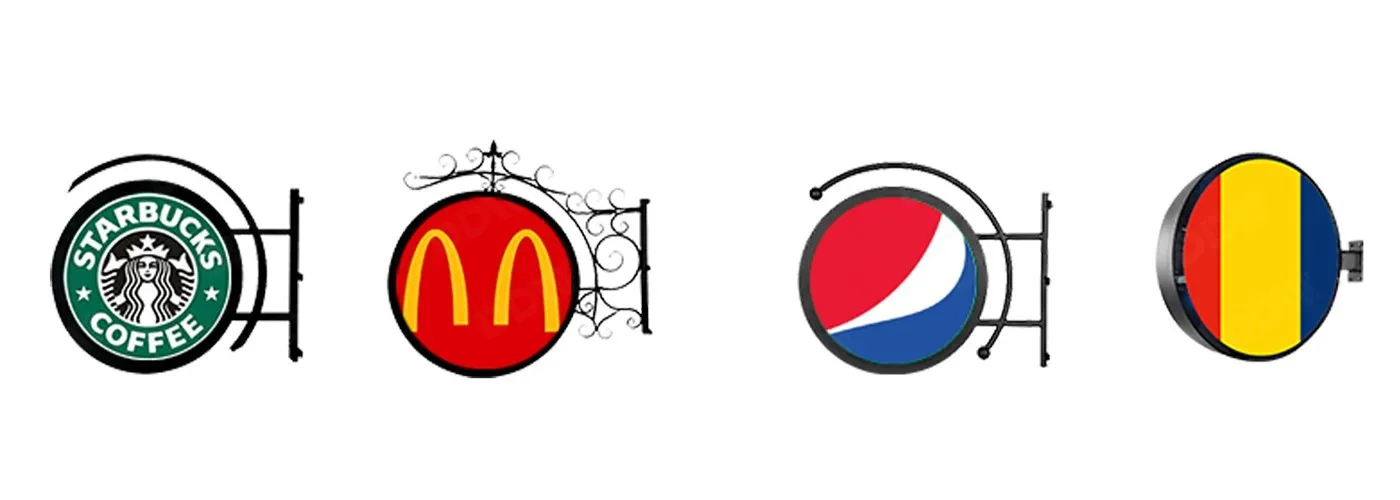

Different appearance

Aging test

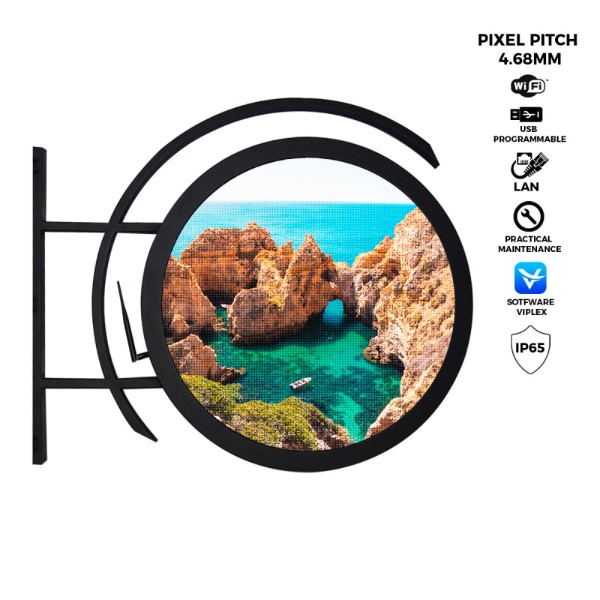

Pitch Pixel	4.68mm
Module Size	300mm*300mm
Module Resolution	64×64
LED chip	San’an
LED packaging form	National Star packaging table paste three in one
Display density	16384 points /pcs
Maximum white balance brightness	4500cd/㎡
Gray level	Red, green and blue ≥ 256 levels, up to 65536 levels
Display color	≥ 16.7M, up to 281trillion
Runaway points	≤ 1 / 10000
Optimum sight distance	≥ 7M
viewing angle	Horizontal: ≥ 120 ° vertical: ≥ 120 °
Device drive	1/8 scan (riyuecheng 2017td)
Brightness adjustment	256 level software adjustment, 16 level automatic adjustment
Frame change frequency	≥60HZ
refresh frequency	≥3840HZ
control mode	Carlette asynchronous
Waterproof grade and material	IP65, module potting adhesive adopts Jinlian transparent original adhesive
Screen life	≥ 100000 hours
Continuous working time	> 72 hours
Mean time between failures	> 1000 hours
working voltage	AC 220V±15%，50Hz±2 Hz
Ambient temperature and humidity	Temperature: -20 ℃ ~ +60 ℃, humidity: 10%-95%
Power consumption (max / average)	About 400W / set
planeness	Inter image adjacency ≤ 0.5mm; Module splicing gap ≤ 0.5mm
Maintenance mode	Pre maintenance
Screen weight	≤ 16kg/ set
Uniformity	The pixel light intensity and module are uniform, and each pixel can be corrected at a single point
