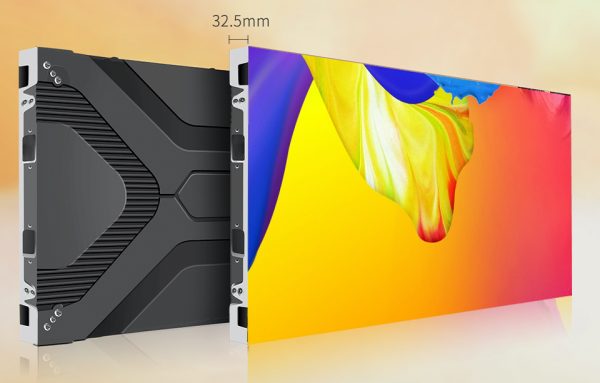

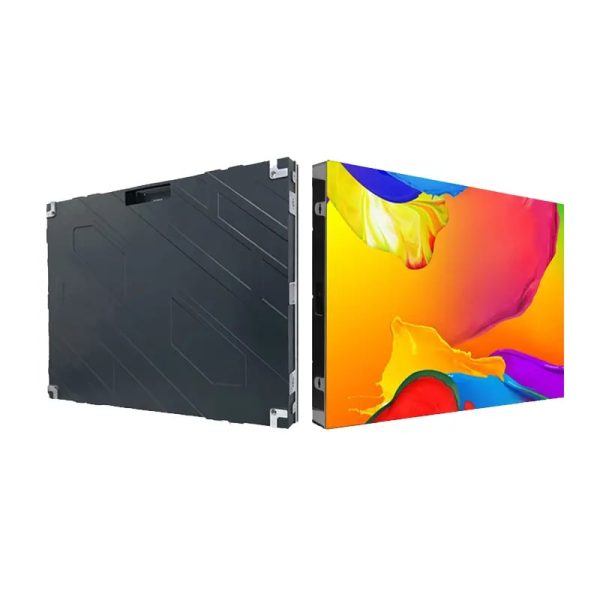

4k HD GOB LED Display Narrow Pixel Fine Pitch LED Screen
$196.00
P1.25 1.579 P1.875 P2.5 GOB LED Display 640×480,support power backup, system backup, flash storage and EMC, front maintenance, fixed installation and ceiling installation and also right corner combination.
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
Common Cathode Design
Curved Design
Front Magnet Maintenance
3D XR Performance
Die Cast Aluminum
Right Angle Splicing
Advantages
Feature Description
-
–
Low brightness and high gray technology, 5000:1, low power consumption
-
–
3840Hz refresh rate, high dynamic picture display is real and natural, no smear
-
–
Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
-
–
Metal heat dissipation, ultra-quiet fan less design
-
–
Full front maintenance. High precision adjustment
-
–
Optional power supply and signal dual backup function
-
–
Cabinet size 16:9 golden section, easy splicing of 2K, 4K, 8K large screens, point-to-point true color restoration
Video
Parameters
Cabinet Specs

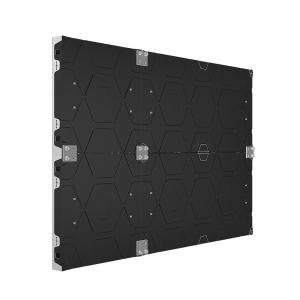

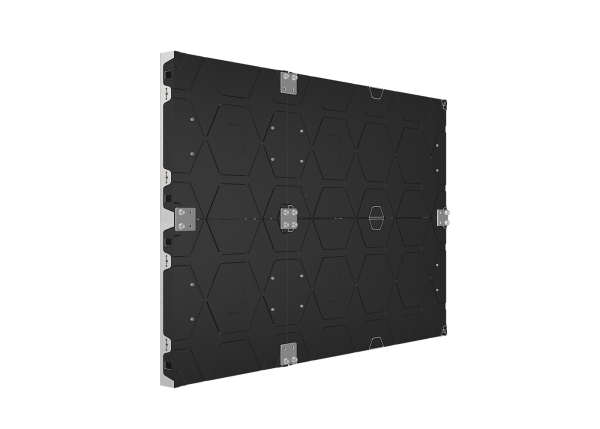

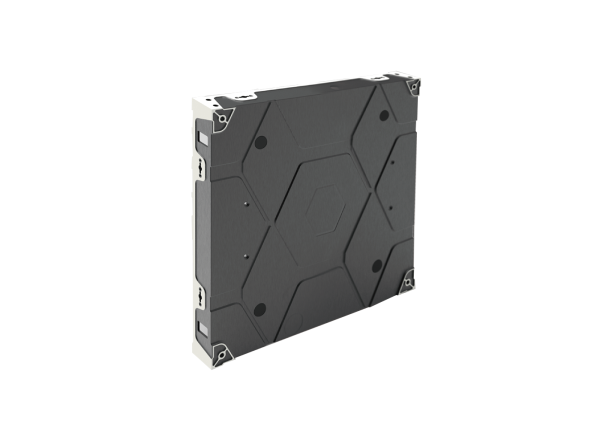

Cabinet size 640x480mm /module size 320x160mm

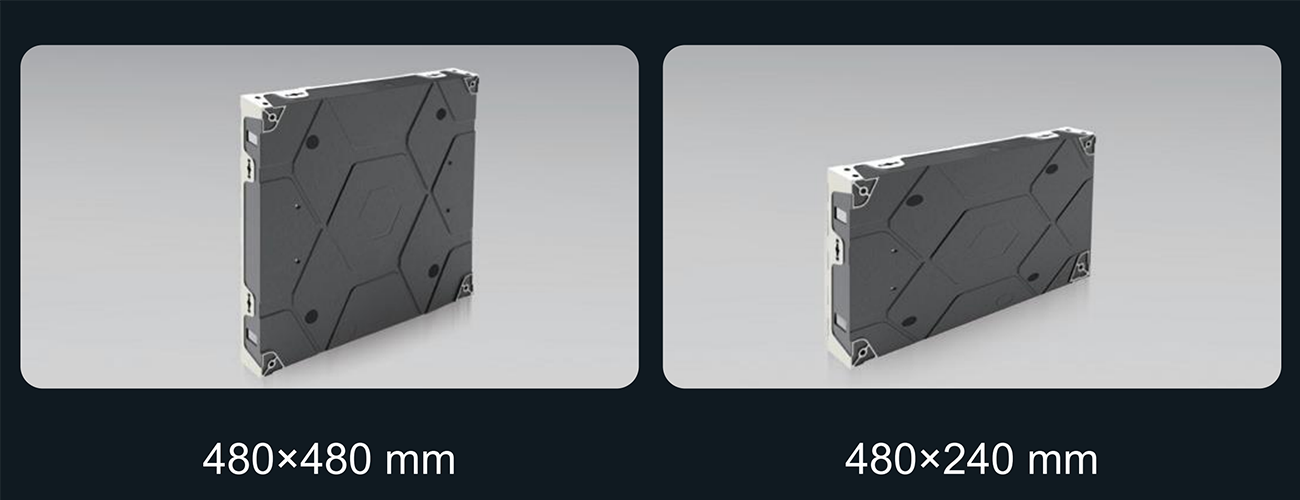

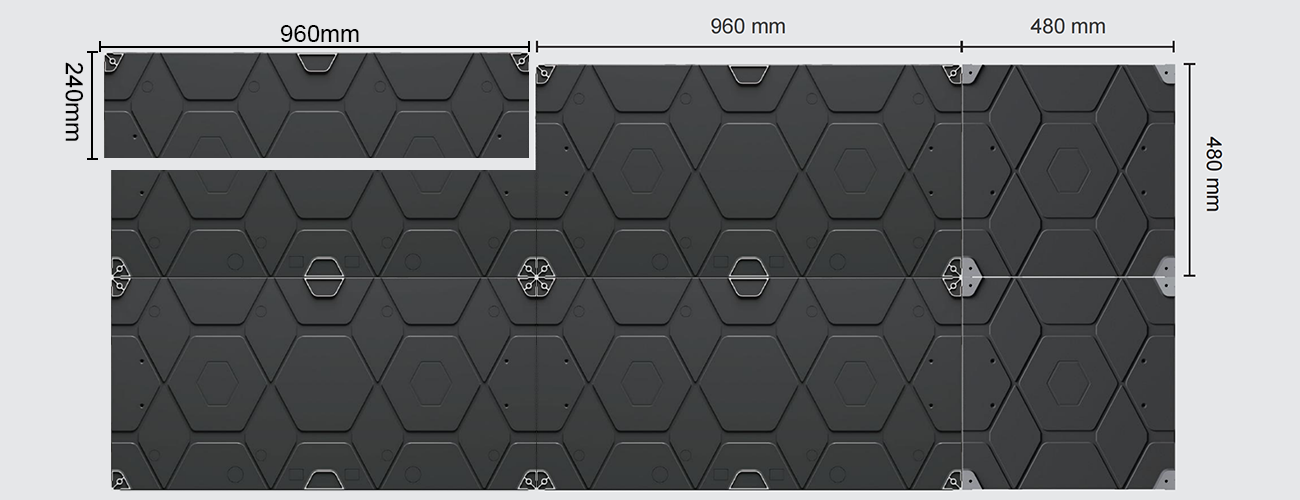

Full and Half Size
Customizable cabinet sizes are available to meet the specific needs of different application scenarios as per customer requirements.
Mixed splicing

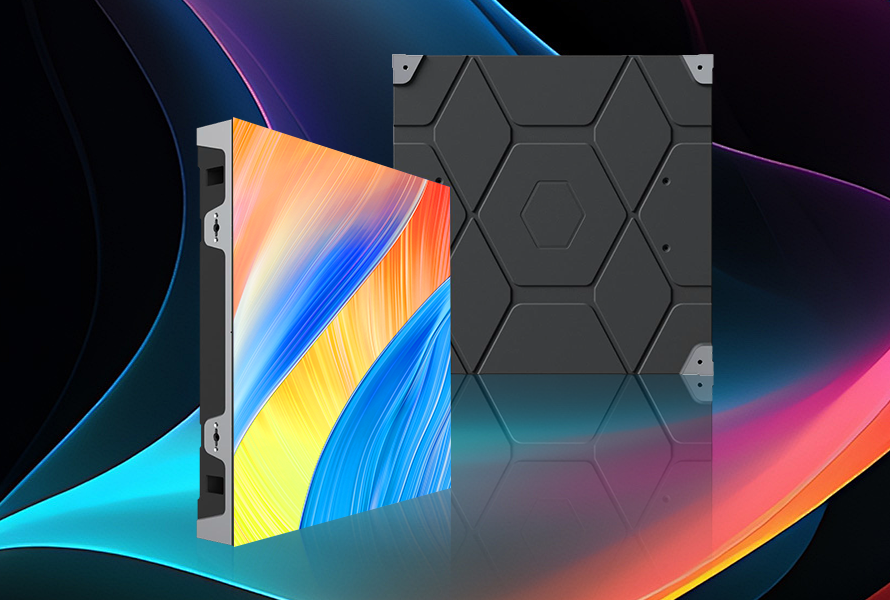

The PRO series (640 × 480mm) and HS series (640 × 640mm) are designed to be compatible and allow for mixed splicing.

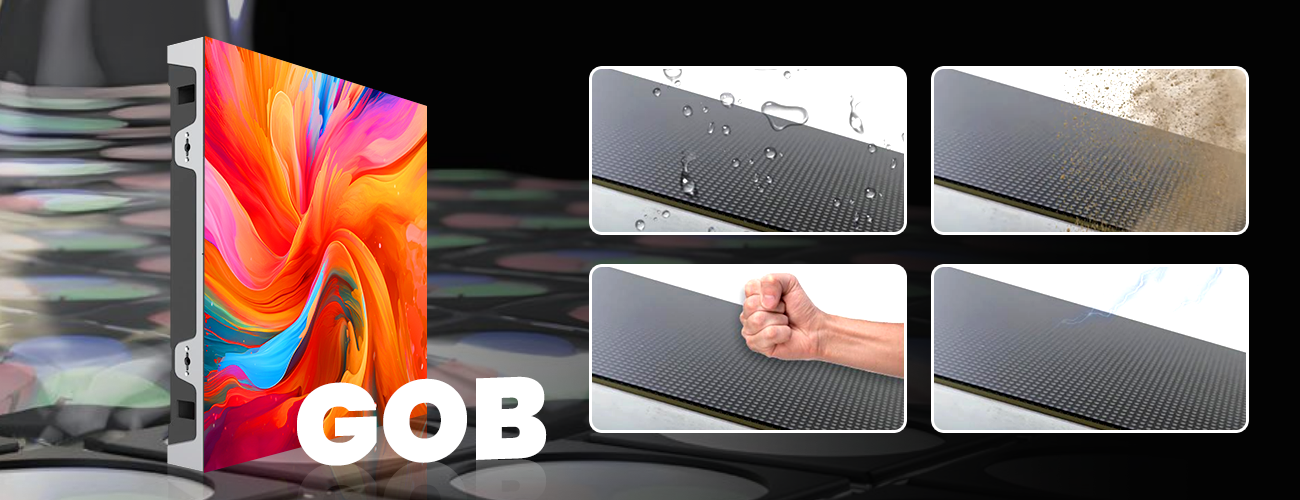

Optional GOB module
Special treatment with GOB technology, enabling surface water- resistant, dust-resistant, impact-resistant and anti-static.

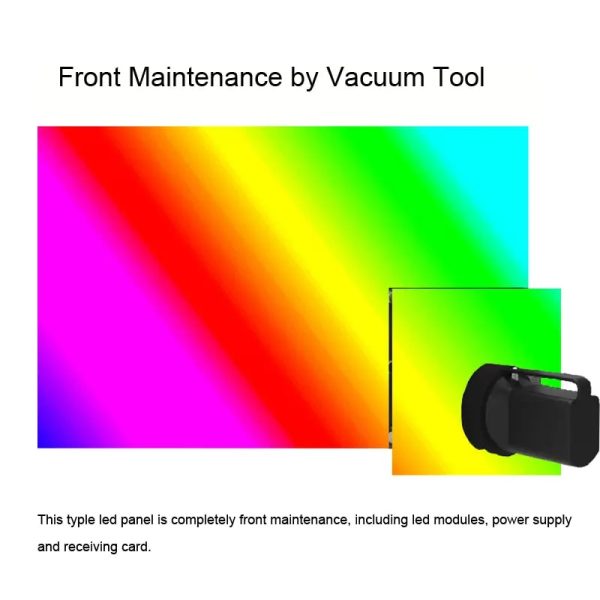

Front maintenance
Support full front maintenance, featuring hot-plug modules and cable-free connection.

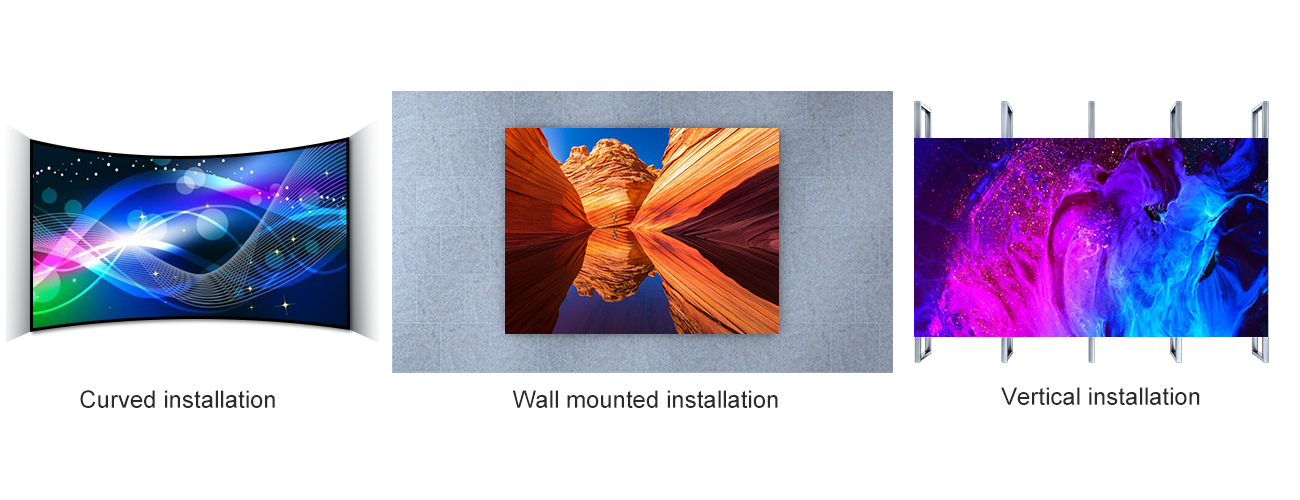

Installation
Various installation mode
4k HD GOB LED Display – Narrow Pixel Fine Pitch LED Screen Specifications
| Pixel Pitch (mm) | P1.25 | P1.579 | P1.875 | P2.5 |
| Cabinet Resolution (mm)(W×H) | 384×384 | 304×304 | 256×256 | 192×192 |
| Pixel Density (dots/m²) | 640,000 | 401,084 | 284,444 | 160,000 |
| Pixel Configuration | SMD1010 | SMD1010/1212 | SMD1515 | SMD2121 |
| Cabinet Size (mm)(W×H×D) | 640×480×58 | |||
| Brightness (nits) | 800~100 | |||
| Gray Scale (bit) | 14~16 | |||
| Pixel Calibration | Support brightness and color calibration | |||
| Color Temp (K) | 2000~12000 (Adjustable) | |||
| Control System | Synchronous control | |||
| IP Level | IP41 | |||
| Drive Mode | Constant current drive (Compatible) | |||
| Frame Rate (Hz) | 50/60 | |||
| Refresh Rate (Hz) | ≤3840 | |||
| Working Voltage (V) | AC: 100V~240V, 50~60Hz | |||
| Max. Power Consumption (W/m²) | ≤725 | ≤680 | ≤600 | ≤520 |
| Avg. Power Consumption (W/m²) | ≤290 | ≤270 | ≤240 | ≤200 |
| Lifetime (H) | 100,000 | |||
| Operation Temp (°C) | -10~+40 | |||
| Storage Temp (°C) | -20~+60 | |||
| Operation Humidity (RH) | 10%~80%, no condensation | |||
| Cabinet Weight (kg) | 5.85 | |||

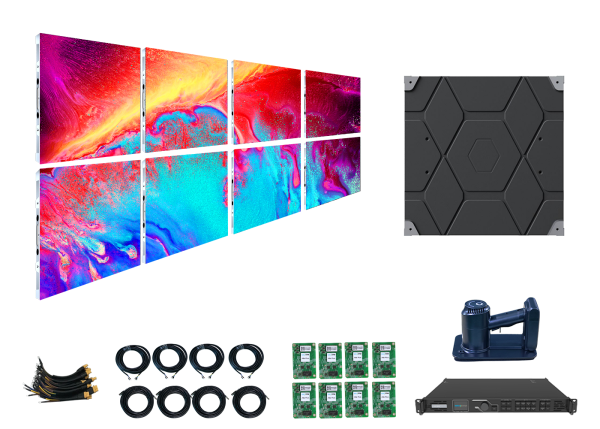

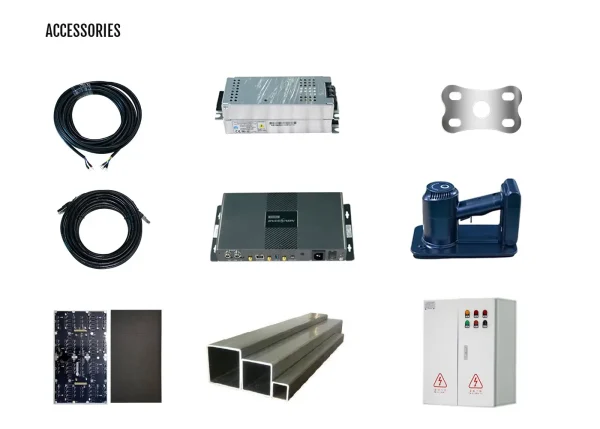

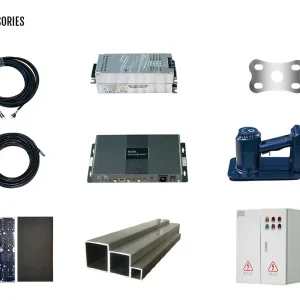

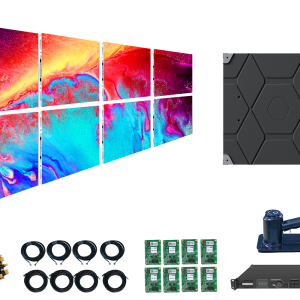

Accessories

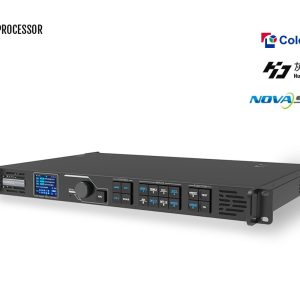

Sending box
Power Supply
LED suction cup
Mounting accessories
Signal cable
Power cable
Movable power cabinet
Wooden packing
Additional information
| Weight | 35 kg |
|---|
