Platinum Series DOOH Common Cathode Energy Saving LED Display
$499.00
Platinum Series DOOH Outdoor P5.7mm P6.67mm P8mm P10mm Nationstar golden wire Aluminum cabinet front and Back maintain
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
IP65 Waterproof
High Flexibility
Common Cathode Design
Front Rear Maintenance
Die Cast Aluminum
5500cd High brightness
Advantages
Feature Description
- – High precision Aluminum cabinet frame
- – Electric power saving up to 30%
- – Steel material fast lock system
- – 5000:1 High contrast ratio
- – Hub board front access
- – IP65 waterproof grade
Video
Parameters
Efficient heat dissipation
Both the bottom shell and the box of the module are designed with heat dissipation ribs, and the power supply is close to the rear The shell is equipped with self-developed graphene thermal conductive silicone grease material to dissipate heat. The effect is ahead of its peers.

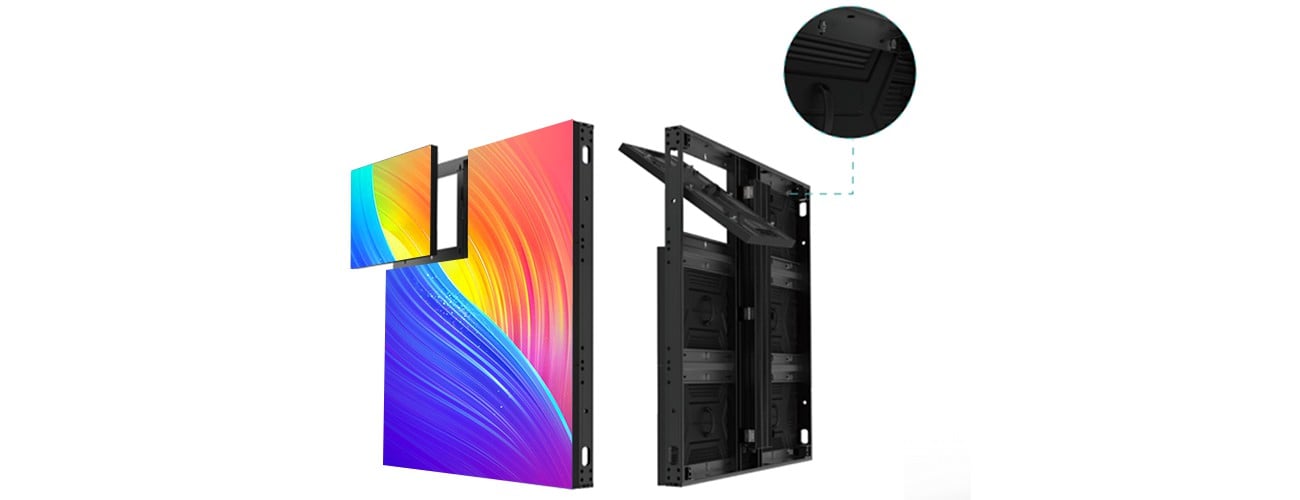

Front and rear maintenance
Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble and disassemble easily and quickly.

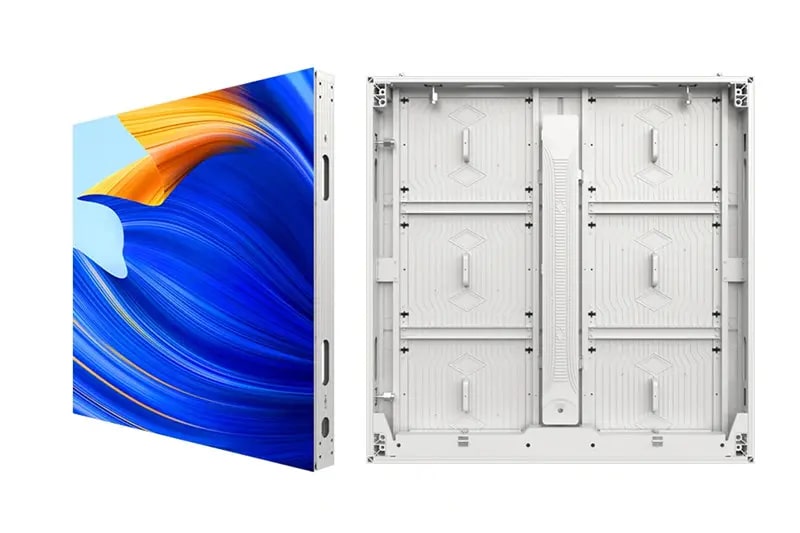

Ultra-light design
Lightweight aluminum box, CNC machining ensures high precision and flatness, improve installation efficiency and save transportation costs.
Installation
Installation Diagram
Wall hanging/single column/vertical support
Platinum Series DOOH Common Cathode Energy Saving LED Display Specifications
| P6.67 | |
| Pixel pitch | 6.67mm |
| LED type | SMD |
| Pixel density | 22500px/m² |
| Module size (W×H) | 480×320mm |
| Module resolution (W×H) | 72×48px |
| Cabinet size (W×H×D) | 960×960×104mm |
| Cabinet resolution (W×H) | 144×144px |
| Weight | 23±1kg |
| Cabinet material | Aluminum profile |
| brightness | 6000nits – 10000CD/M2 |
| Refresh frequency | 3840~7680 Hz |
| Grayscale | 14~16 bit |
| Viewing angle | H140°/V120° |
| Contrast | 5000：1 |
| Drive mode | 1/6s |
| Color temperature | 6000~8500K |
| Protection level | IP65 |
| Peak power | 500w/m² |
| average power | 150W/m² |
| Maintenance method | Front and rear maintenance |
| Operating temperature | -20°C ~ 50℃ |
| Working humidity | 10~90% RH |
| storage temperature |
-40℃ ~ 80℃
|
Accessories
Sending box
Power Supply
Pickup card
Outdoor Movable power cabinet
Signal cable
Power cable
Power cabinet
Wooden case packing
Additional information
| Weight | 45 kg |
|---|
