Outdoor Front Service LED Display Module Panel
$20.00
Outdoor Front Service LED Display Module 320x160mm,250x250mm,320x320mm,480x320mm,500x250mm
- Description
- Additional information
Description
Features
Feature Description
- – High Refresh Rate
- – High Brightness
- – SMD 3 in 1
- – 3 Years Warranty
- – IP65 Waterproof
- – CE,RoHS,FCC Approved

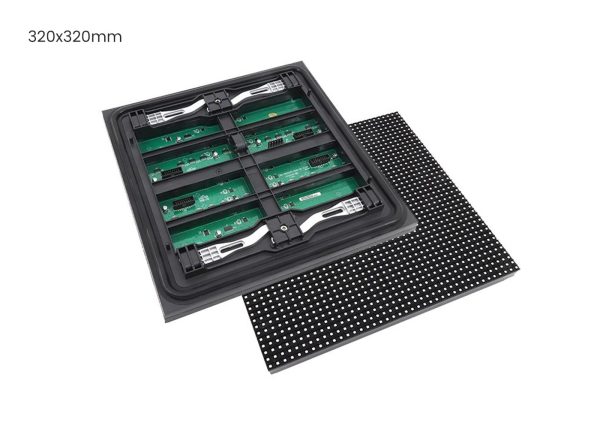

320x320mm Outdoor LED Module
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P4mm | SMD1921 | 320*320 | 80*80 | 1/10Scan | 1920 / 3840 | 5500 |
| P5mm | SMD1921 | 320*320 | 64*64 | 1/8Scan | 1920 / 3840 | 5000 |
| P5.33mm | SMD1921 | 320*320 | 60*60 | 1/8Scan | 1920 / 3840 | 5000 |
| P6.67mm | SMD2727 | 320*320 | 48*48 | 1/6Scan | 1920 / 3840 | 5500 |
| P8mm | SMD3535 | 320*320 | 40*40 | 1/5Scan | 1920 / 3840 | 5000 |
| P10mm | SMD3535 | 320*320 | 32*32 | 1/2Scan | 1920 / 3840 | 6000 |
| P10mm | DIP346 | 320*320 | 32*32 | 1/4Scan | 1920 | 9000 |
| P16mm | DIP346 | 320*320 | 20*20 | 1/1Scan | 1920 | 10000 |
250x250mm Outdoor LED Module
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P3.12mm | SMD1415 | 250*250 | 80*80 | 1/10Scan | 1920 / 3840 | 6500 |
| P3.91mm | SMD1921 | 250*250 | 64*64 | 1/8Scan | 1920 / 3840 | 6000 |
| P4.81mm | SMD1921 | 250*250 | 52*52 | 1/6Scan | 1920 / 3840 | 5500 |
| P5.95mm | SMD2727 | 250*250 | 42*42 | 1/7Scan | 1920 / 3840 | 6000 |
| P6.94mm | SMD2727 | 250*250 | 36*36 | 1/6Scan | 1920 / 3840 | 6000 |
| P8.33mm | SMD3535 | 250*250 | 30*30 | 1/5Scan | 1920 / 3840 | 6000 |
| P10.41mm | SMD3535 | 250*250 | 24*24 | 1/2Scan | 1920 / 3840 | 6000 |
320x160mm outdoor LED Module
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P3.33mm | SMD1415 | 320*160 | 96*48 | 1/12Scan | 1920 / 3840 | 5500 |
| P4mm | SMD1921 | 320*160 | 80*40 | 1/10Scan | 1920 / 3840 | 5500 |
| P5mm | SMD1921 | 320*160 | 64*32 | 1/8Scan | 1920 / 3840 | 5500 |
| P6.67mm | SMD2727 | 320*160 | 48*24 | 1/6Scan | 1920 / 3840 | 5500 |
| P8mm | SMD2727 | 320*160 | 40*20 | 1/5Scan | 1920 / 3840 | 5000 |
| P10mm | SMD2727 | 320*160 | 32*16 | 1/2Scan | 1920 / 3840 | 6000 |
Additional information
| Weight | 3 kg |
|---|
