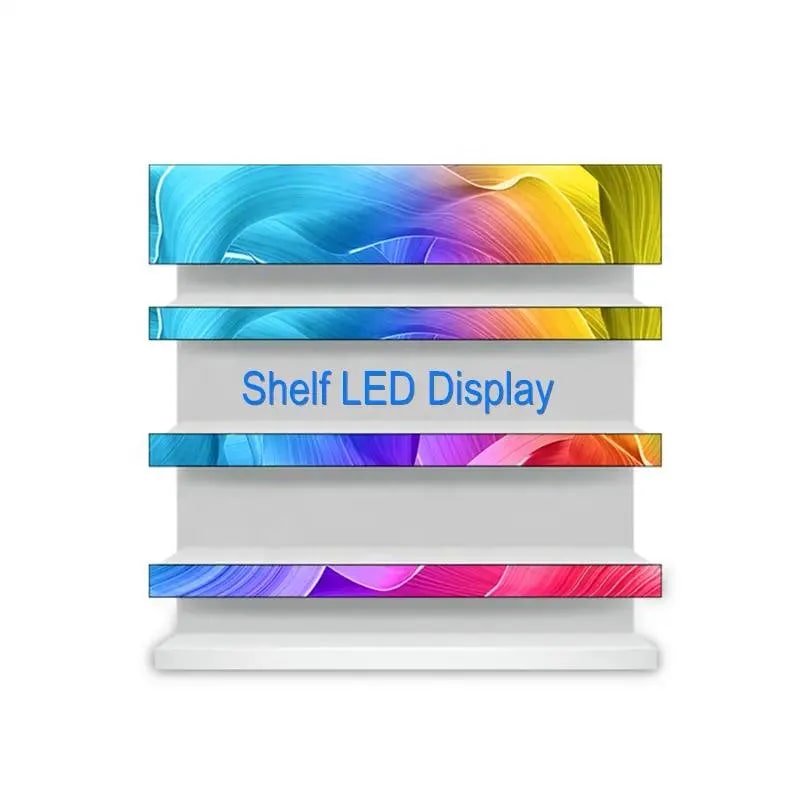

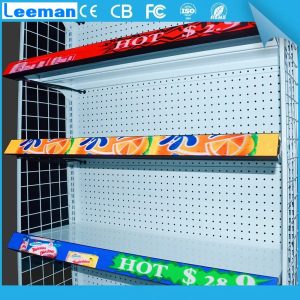

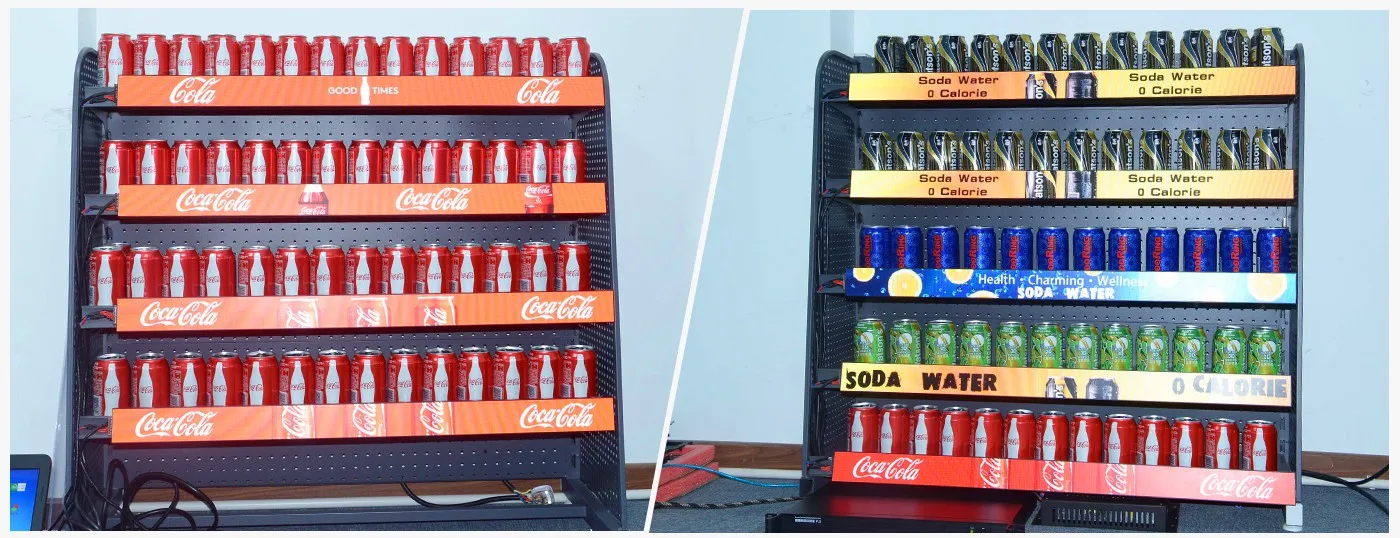

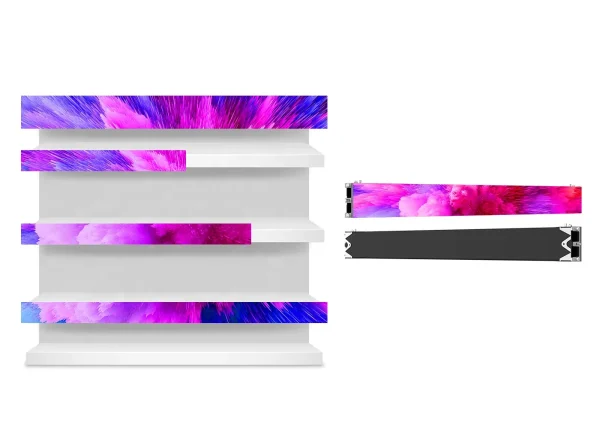

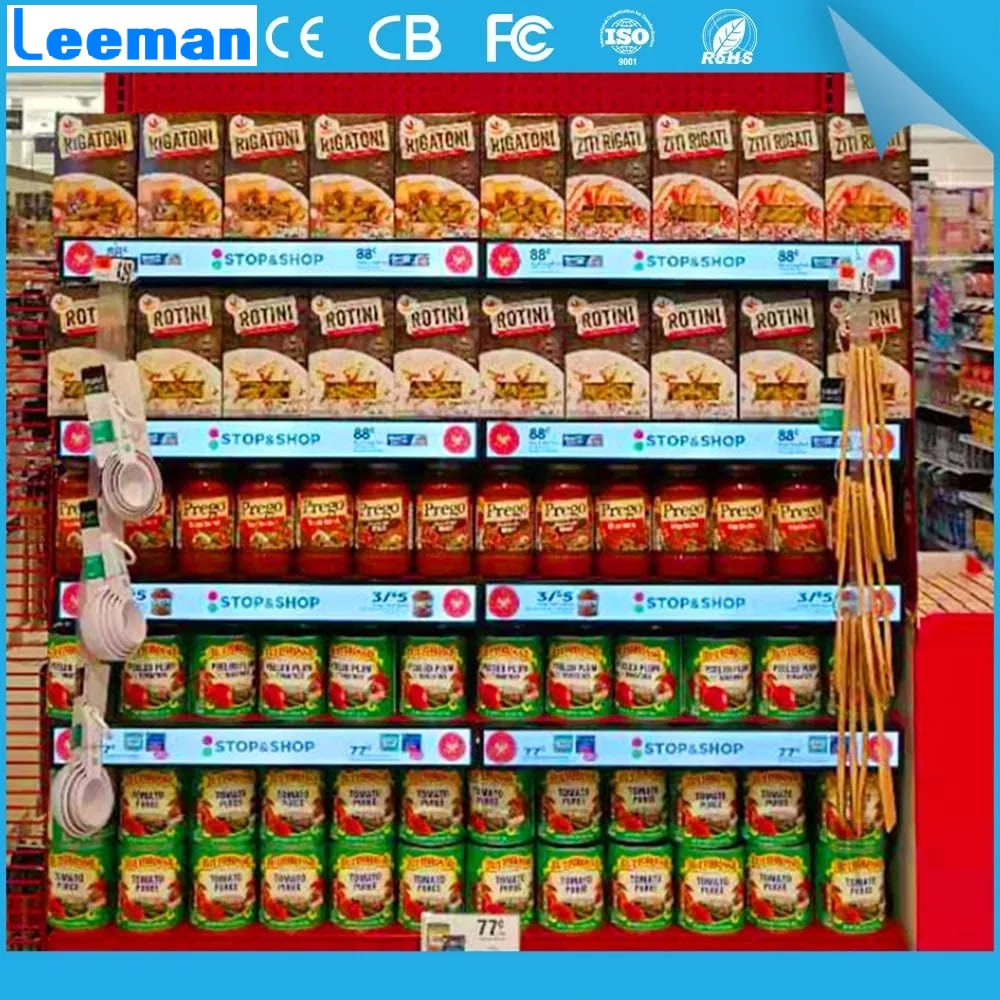

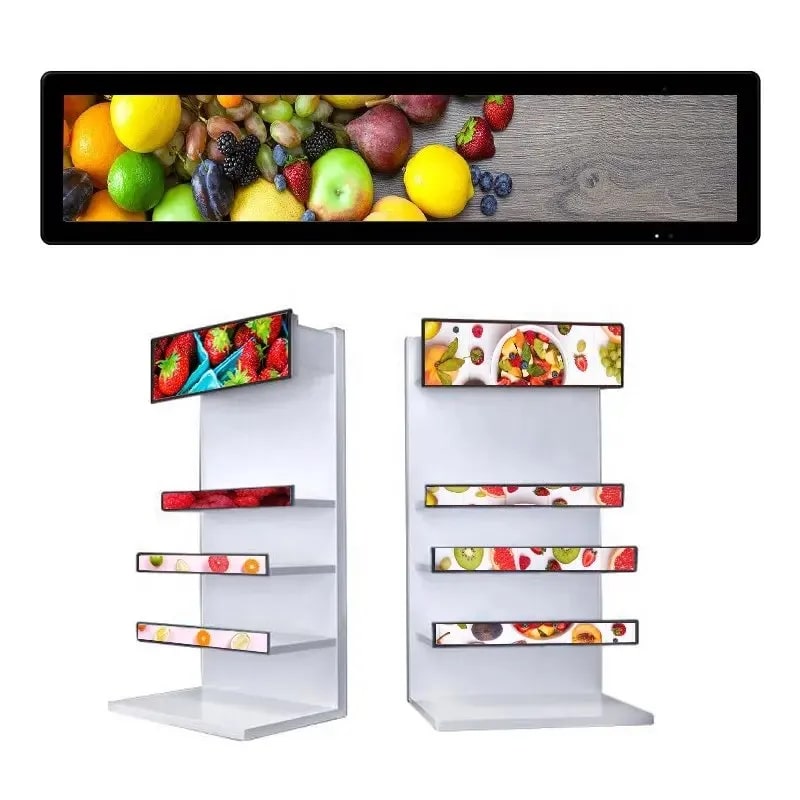

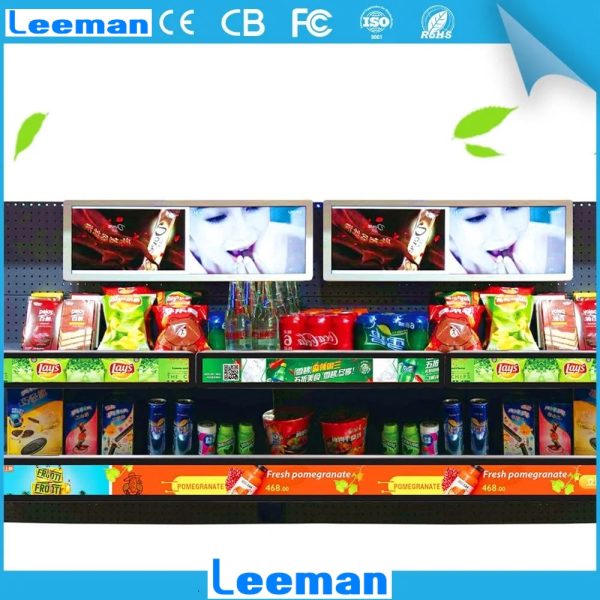

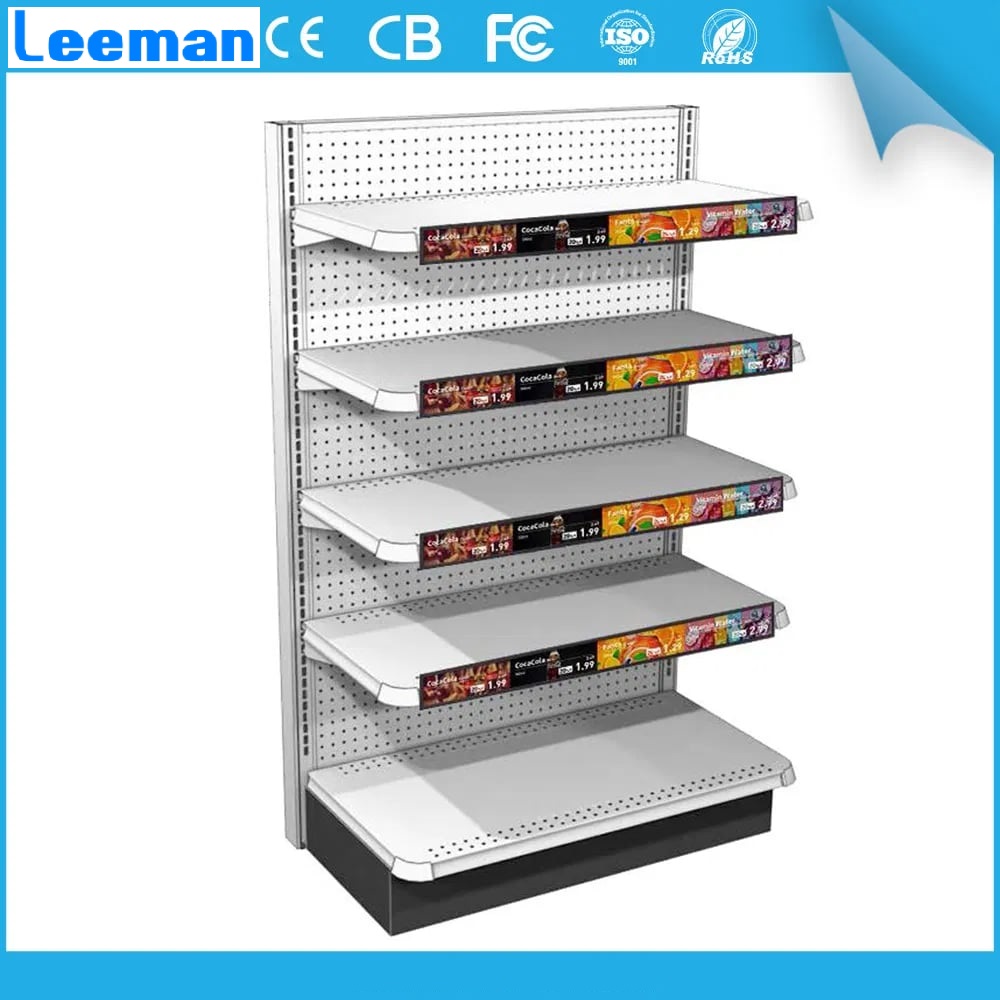

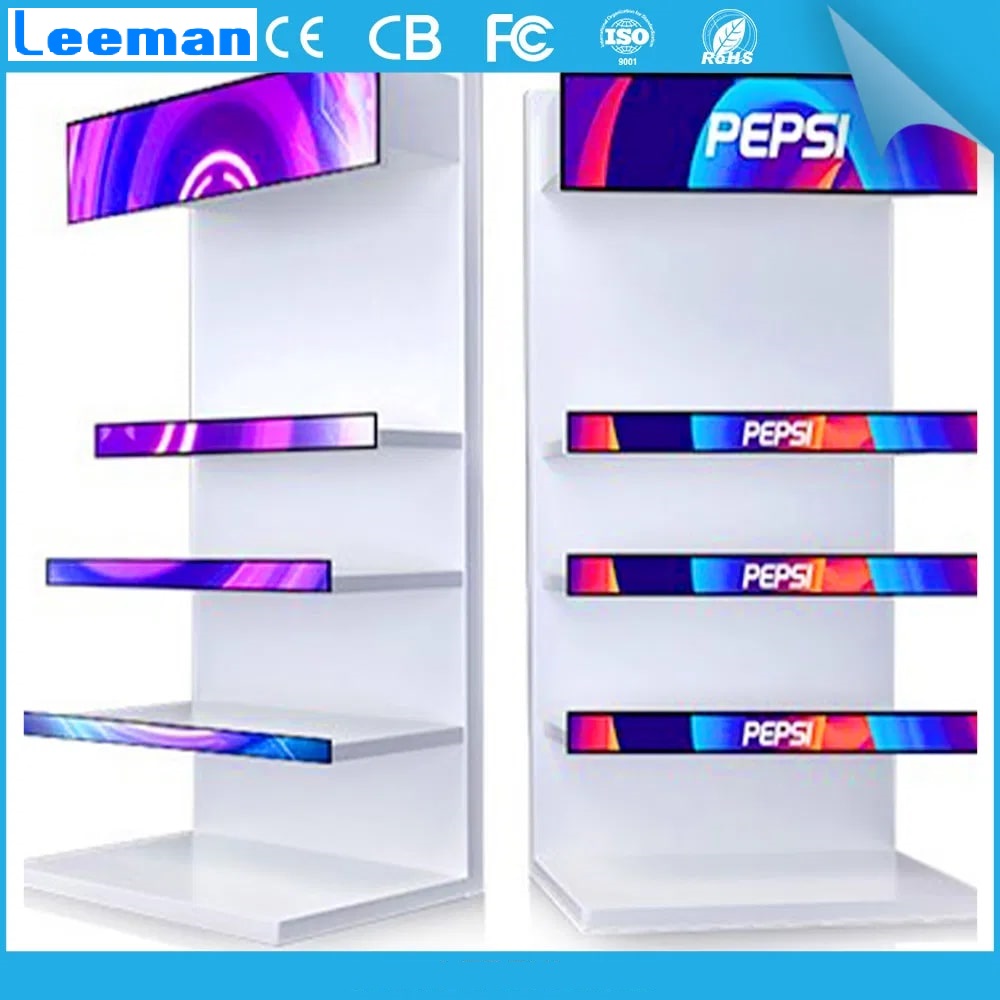

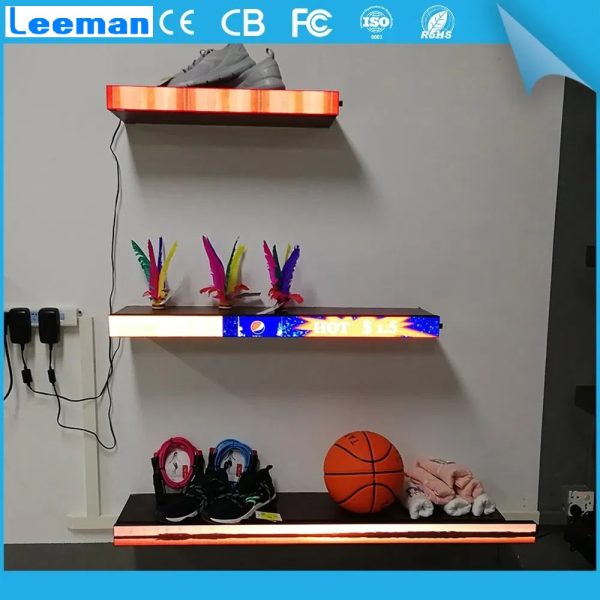

Digital Shelf LED Display for Retail
$25.00
P1.875 P1.5 P1.25 COB LED Shelf Display 300×60*38mm 600*60*38mm 900*60*38mm 1200*60*38mm
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
IP65 waterproof
38mm Thickness
Common Cathode Design
Front Maintenance
Die Cast Aluminum
800cd High brightness
Advantages
Feature Description
- – Module GOB Design
- – Wireless Connection
- – Totally Front Maintenance
- – Ultra light& Slim
- – Creative Seamless splicing
- – Rigging & stacking installation
Video
Parameters
Cabinet size
1200*60*38mm, 900*60*38mm, 600*60*38mm, 300*60*38mm
Full front maintenance
All componments can be front access,just 5 seconds to repalce one module
High precision
The cabinet corner with CNC design to make sure the high precision assembling

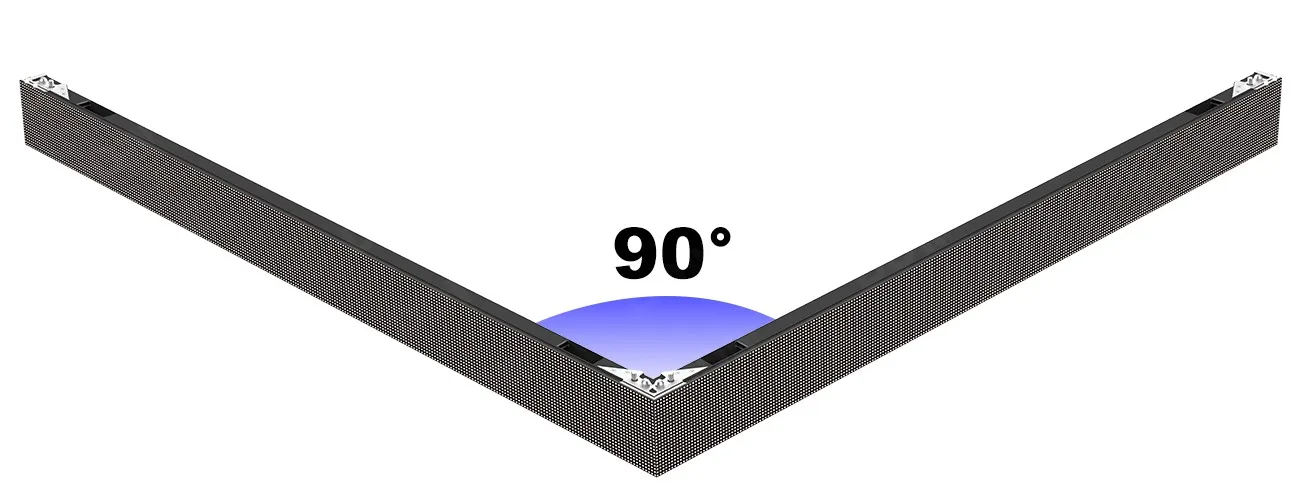

90 degree splicing installation
Cabinet supports 90 ° right angle splicing
Installation
Multiple installation methods
Connecting Diagram
Aging test
Digital Shelf LED Display for Retail Specifications
| Model name | COB-P1.25/P1.5/P1.875 |
| Pixel Pitch (mm) | 1.875 |
| Pixel Density (dot/m²) | 262144 |
| LED sealing Type | SMD1515 |
| Module Size (mm*mm) | 250*93.75 |
| Module Resolution (PX* PX) | 128*48 |
| Module Weight (kg) | 0.15 |
| Module Thickness | 3 |
| Average Module Power Consumption (W) | 10 |
| Drive Mode | Constant current |
| Horizontal Viewing Angle (Deg) | 160 |
| Ver tical Viewing Angle (Deg) | 140 |
| Brightness | 600~800nits |
| Grey Scale (bit) | ≥14 |
| Refresh rate | 3840HZ |
| Maximum Cabinet Power Consumption (W) | 40w |
| Average Cabinet Power Consumptian (W) | 16w |
| Cabinet Size (mm*mm) | 600×60/900×60/1200×60 |
| Cabinet Weight (Kg) | 2kg/2.5kg/3.5kg |
| Cabinet thickness | 38mm |
| Input Voltage (V) | 100- 240V |
| Working Temperature (°C) | -20~ +40 |
| Working humidity range | 1 0%~90% |
| Storage temperature range | -40~ +80 |
| Operation humidity (RH) | 1 0%~90% |
| Waterproof Level | IP20 |
| Working life | 50000H |
| Working Environment | Indoor |
| Installtion Method | Fixed |
Accessories
Sending box
Power Supply
Pickup card
Connector
Signal cable
Power cable
Movable power cabinet
Carton packaging
Additional information
| Weight | 5 kg |
|---|
