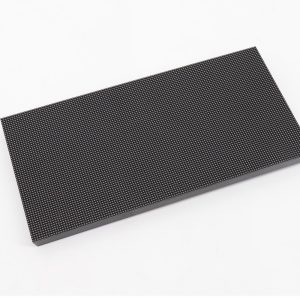

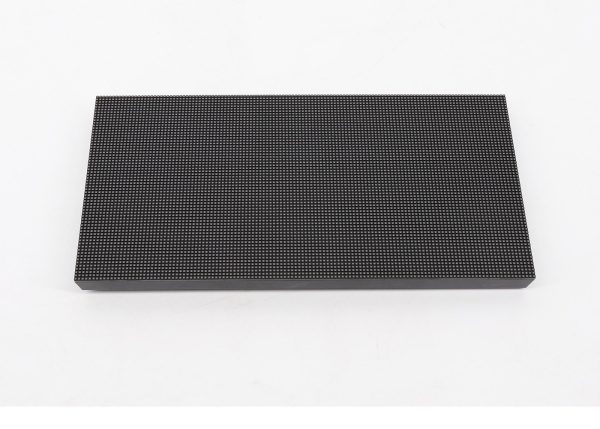

GOB LED Display Module Panel - Image 1

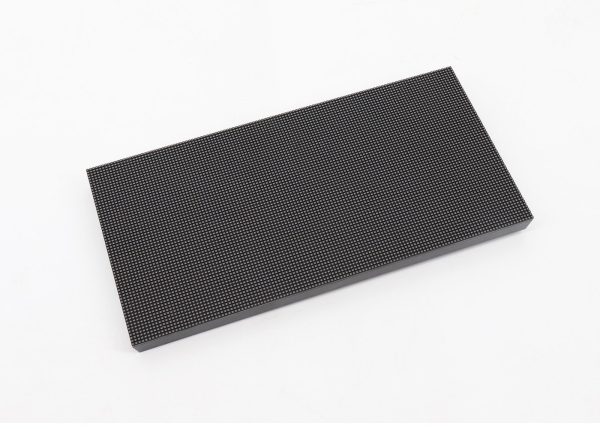

GOB LED Display Module Panel - Image 2

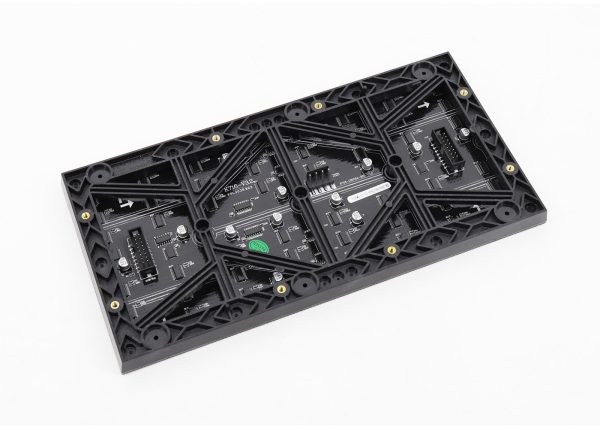

GOB LED Display Module Panel - Image 3

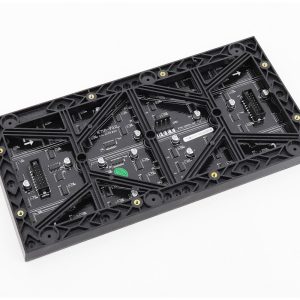

GOB LED Display Module Panel - Image 4

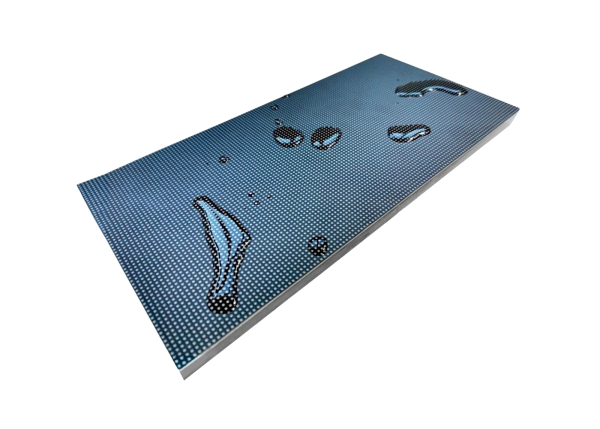

GOB LED Display Module Panel - Image 5

GOB LED Display Module Panel

COB LED Display Module Panel
Indoor Flexible LED Panel Screen Display

GOB LED Display Module Panel

$15.00

In stock
0 out of 5

$15.00

GOB LED Display Module 320x160mm,250x250mm

SKU: GOB LED Display Module Panel Categories: , Tag:
Add to wishlist

Description



Features

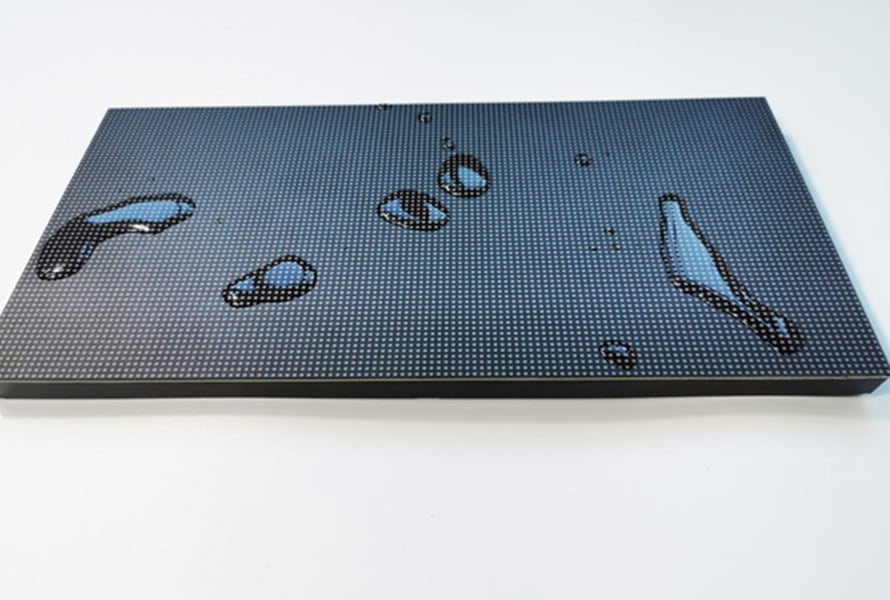

65e6cf55a26c7
Feature Description
  • – High Refresh Rate
  • – High Brightness
  • – Anti-knock Performance
  • – 3 Years Warranty
  • – IP65 Waterproof
  • – CE,RoHS,FCC Approved

320x160mm GOB LED module

Pixel Pitch LED Type Module Size（MM） Module Resolution Driving Mode Refresh Rate(Hz) Brightness(Nits)
P1.25mm SMD1010 (Black LED) 320*160 256*128 1/32Scan 3840 600
P1.53mm SMD1010 (Black LED) 320*160 208*104 1/26Scan 3840 600
P1.86mm SMD1515(Black LED) 320*160 172*86 1/43Scan 3840 600
P2mm SMD1515(Black LED) 320*160 160*80 1/40Scan 3840 700
P2.5mm SMD2020(Black LED) 320*160 128*64 1/32Scan 1920 / 3840 800
P3.076mm SMD2020(Black LED) 320*160 104*52 1/26Scan 1920 / 3840 800

250x250mm GOB LED Module

Pixel Pitch LED Type Module Size（MM） Module Resolution Driving Mode Refresh Rate(Hz) Brightness(Nits)
P3.33mm SMD1415 320*160 96*48 1/12Scan 1920 / 3840 5500
P4mm SMD1921 320*160 80*40 1/10Scan 1920 / 3840 5500
P5mm SMD1921 320*160 64*32 1/8Scan 1920 / 3840 5500
P6.67mm SMD2727 320*160 48*24 1/6Scan 1920 / 3840 5500
P8mm SMD2727 320*160 40*20 1/5Scan 1920 / 3840 5000
P10mm SMD2727 320*160 32*16 1/2Scan 1920 / 3840 6000

Additional information

Weight 1 kg
