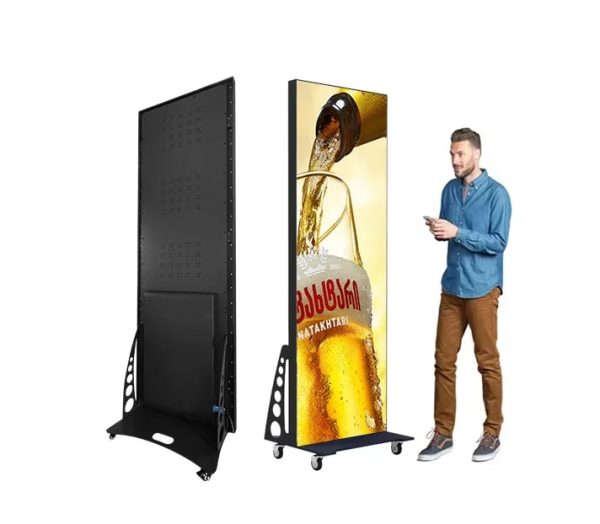

GOB COB Indoor LED Poster Display
$800.00

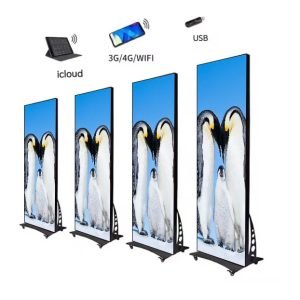

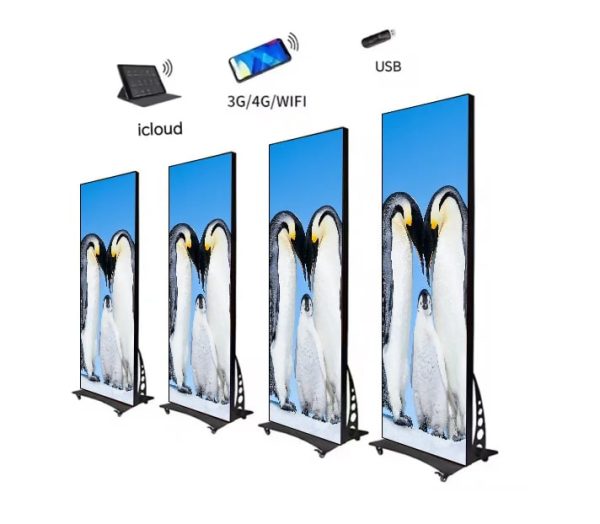

COB indoor led poster is a high-quality digital poster that supports floor mounting, wall mounting and ceiling mounting. It also supports multiple control modes, including USB, WIFI, 4G/5G, APP and HDMI input signal.
The key features are super thin, interchangeable module, easy control. It is widely used in airports, high speed railway stations, subway stations, hotels, banks, hospitals, shopping malls, etc. It can help you better attract customers’ attention and improve advertising exposure.
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles

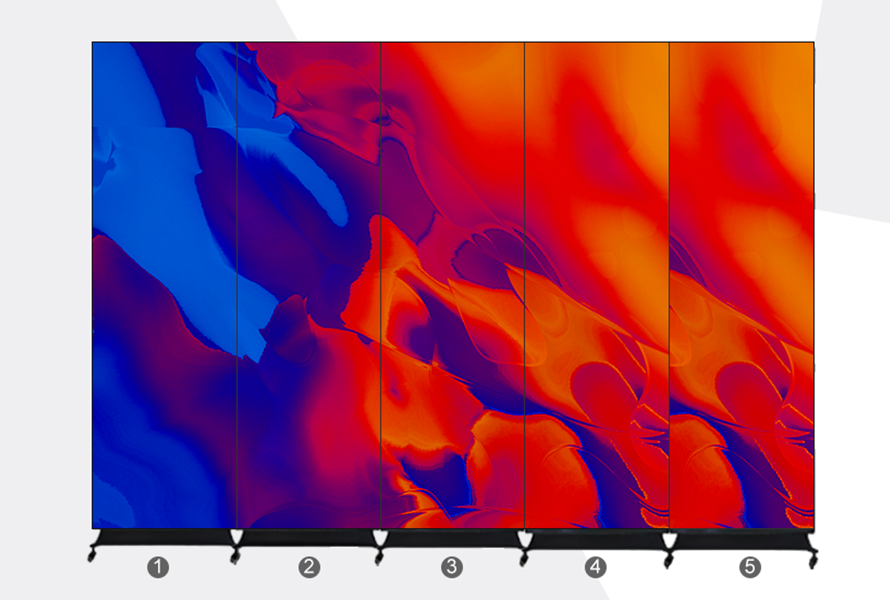

Seamless Splicing
Ultra-thin 33mm
800-1300cd/㎡

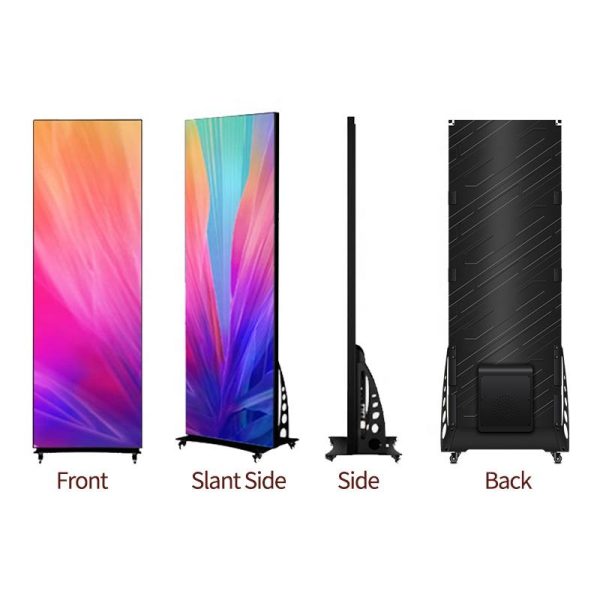

Rear Maintenance
Die Cast Aluminum
Easy to move
Advantages
Feature Description
- – Very slim, depth: 33mm
- – Very light, weight: ≤27kg
- – High refresh rate: 3960Hz

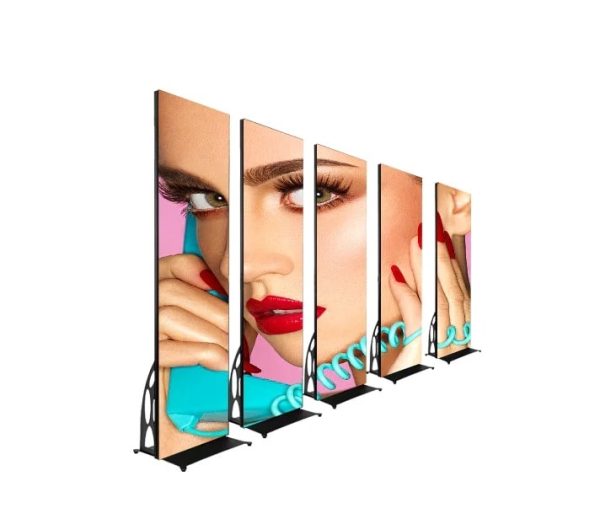

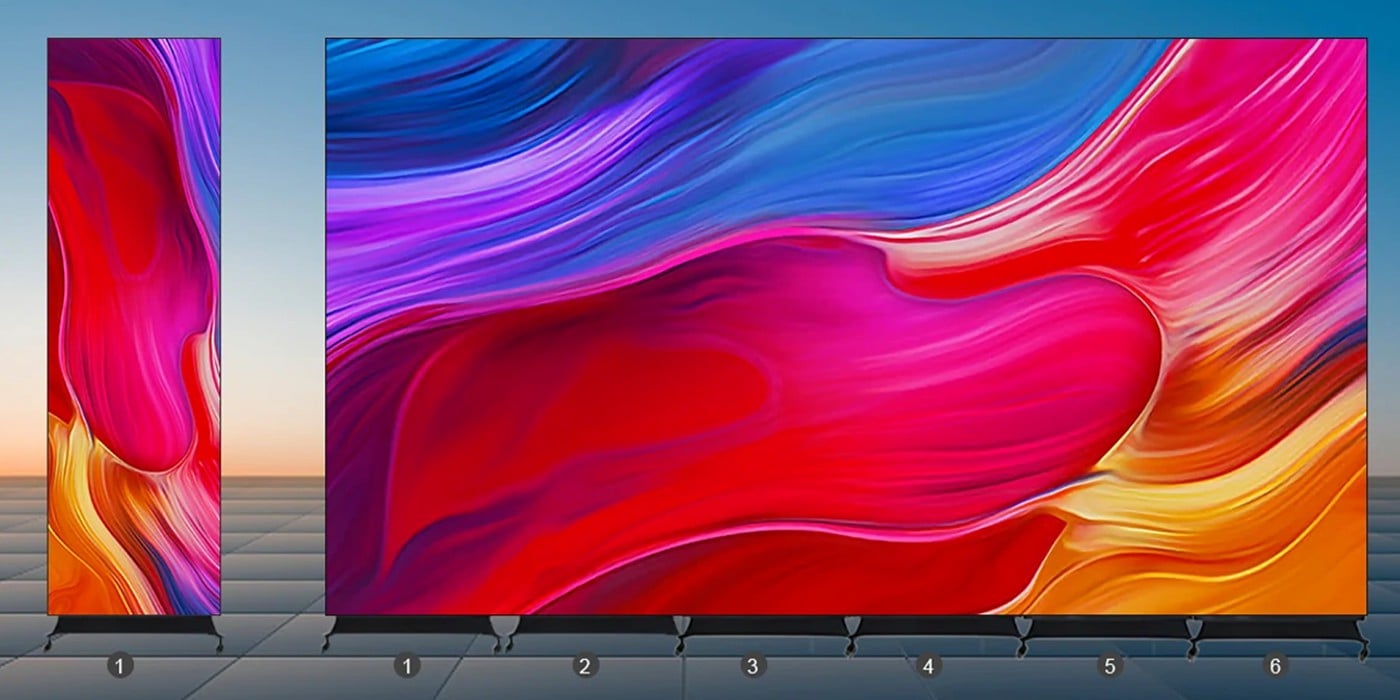

- – Support multiple screen loop video wall
- – Aluminum Bottom module , 4 layer PCB board
Video
Parameters

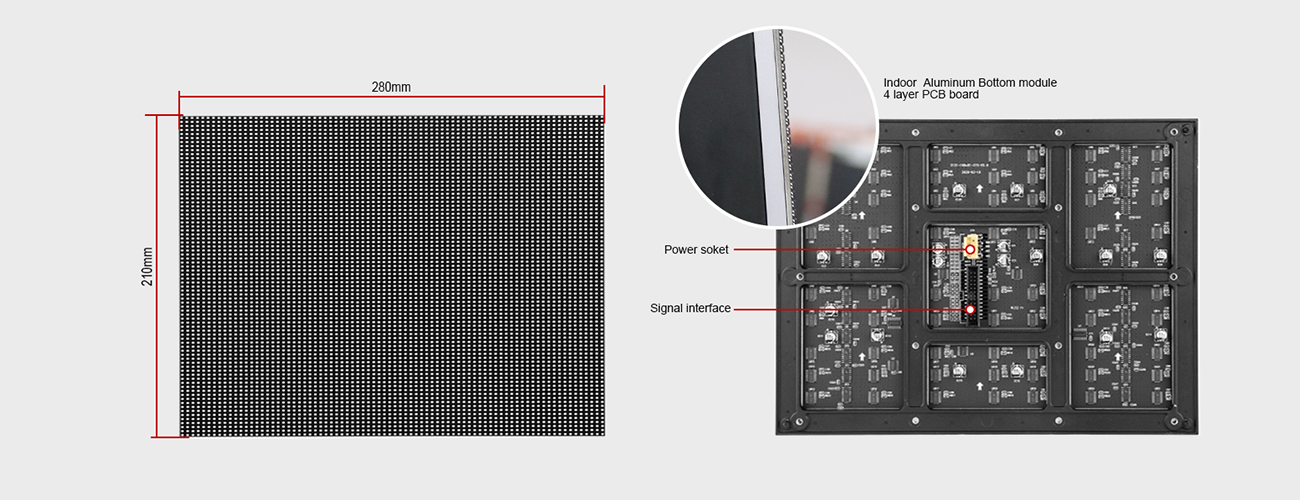

Aluminum Module
Aluminum Bottom module , 4 layer PCB board

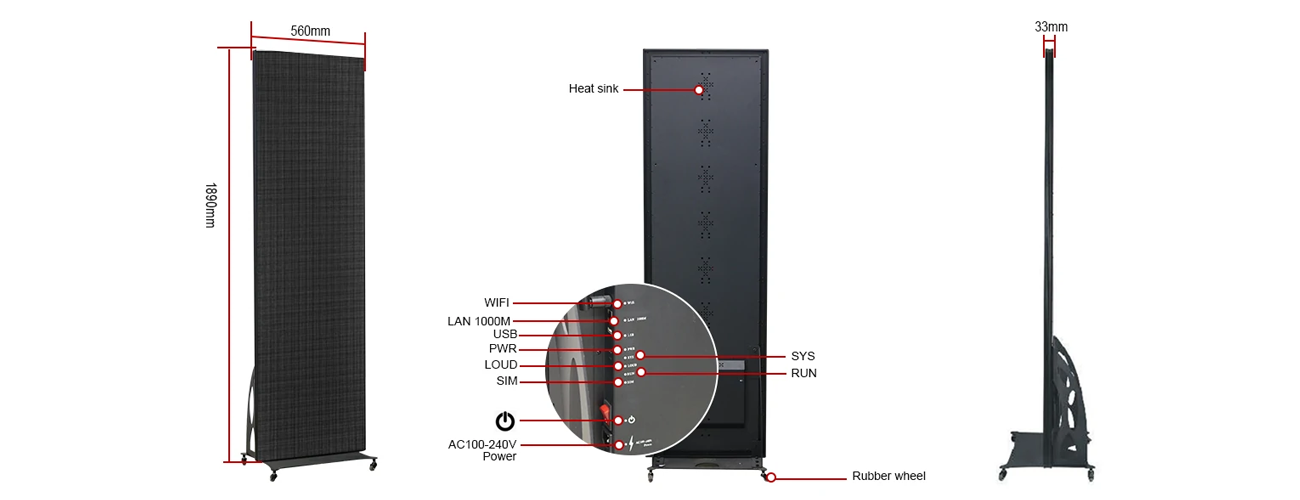

Cabinet Specs
Standard size: 1920 * 640 * 33mm/1600 * 640 * 33mm/1440 * 640 * 33mm

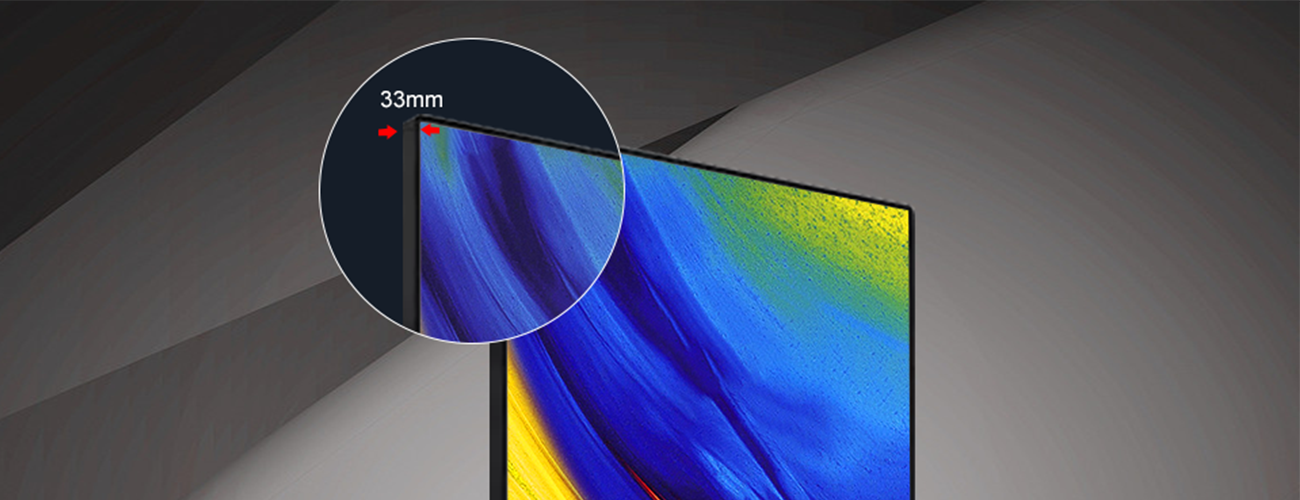

Ultra thin and light design
Frame thickness 33mm,Screen weight : ≤27kg

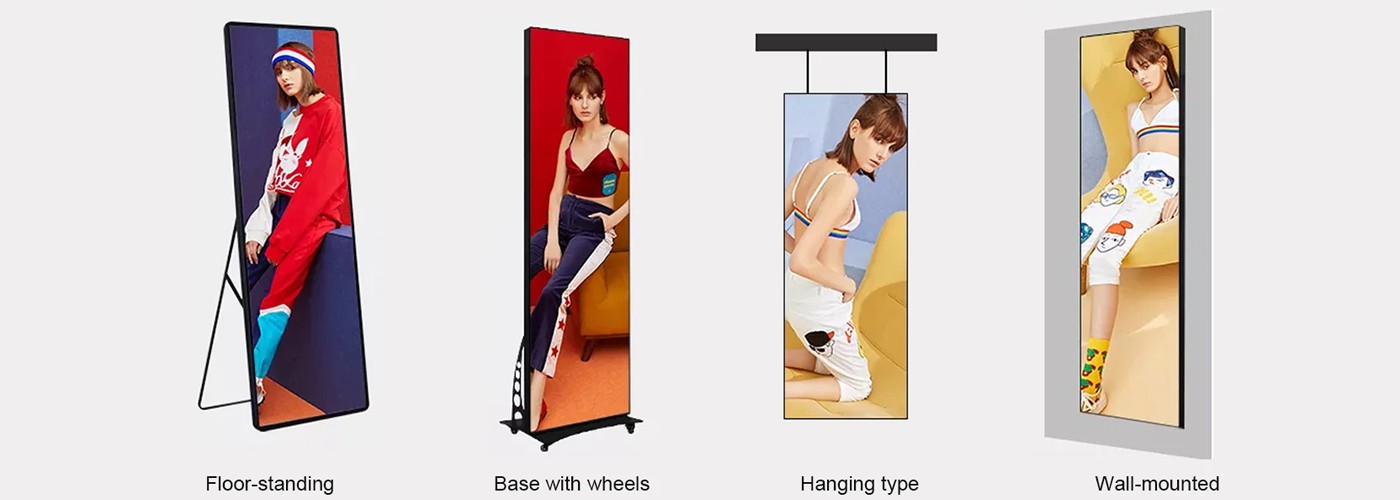

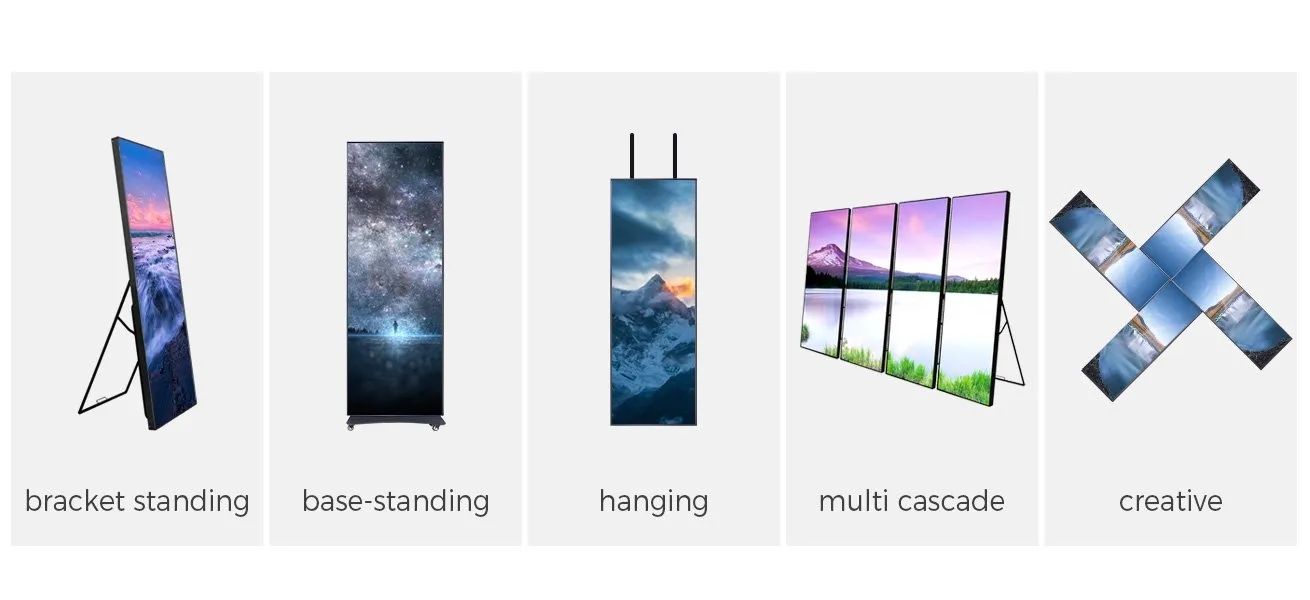

Installation
Various installation mode
Indoor LED Poster Display Specifications
| Display size | 640*1920mm/640*1600mm/640*1440mm | ||
| Pixel pitch | 1.25mm | 2mm | 2.5mm |
| Screen size | 1920*640*33mm | 1920*640*33mm | 1920*640*33mm |
| Maintenance | Rear(Back) | Rear(Back) | Rear(Back) |
| Screen weight | ≤27KG | ≤27KG | ≤27KG |
| LED configuration | RGB(SMD 1010) | RGB(SMD 1515) | RGB(SMD 2020) |
| Module size | 320mm*160mm | 320mm*160mm | 320mm*160mm |
| Module resolution | 256X128 | 160X80 | 128*64 |
| LED packaging manufacturer | Nationstar/Kinglight | ||
| Brightness(nits) | ≥1300cd/m | ||
| Grey scale | 16bits | ||
| Out of control points | 281 trillion | ||
| Best viewing angle | ≥3m | ||
| Viewing angel | ≥160° | ||
| Scan mode | 1/40 scan | 1/32 scan | 1/27 scan |
| Frame change frequency | Manual programming andautomatic with sensors | ||
| Refresh rate | >3960HZ | ||
| Control method | Mobile APP（ WiFi） | ||
| Compatible | HDMI,SDI,S-Video,Mp4 | ||
| Life span Continuous working hours | >80,000 | ||

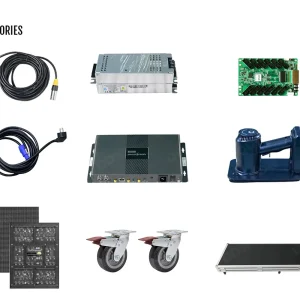

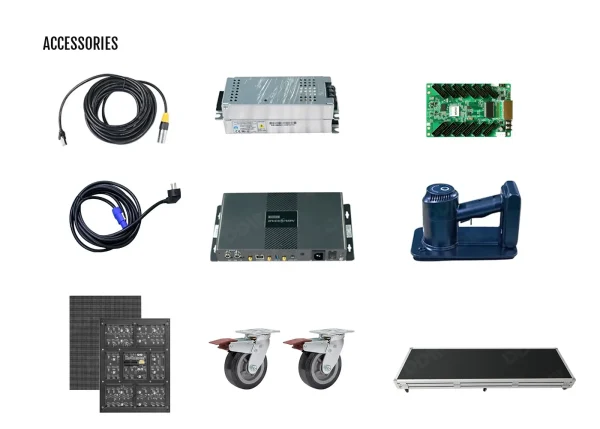

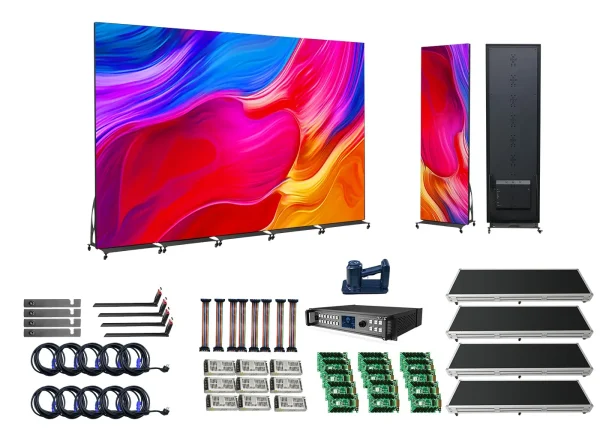

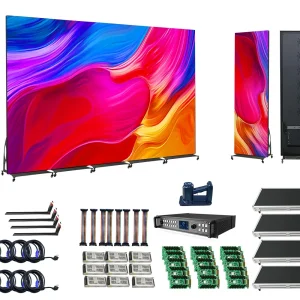

Accessories
Sending box

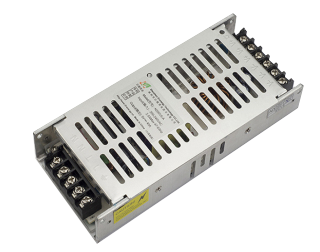

Power Supply
LED suction cup
CAT cable 5V Power-cable
Power line
Power cable-Flat cable
Receiving card
Flight case
Additional information
| Weight | 98 kg |
|---|
