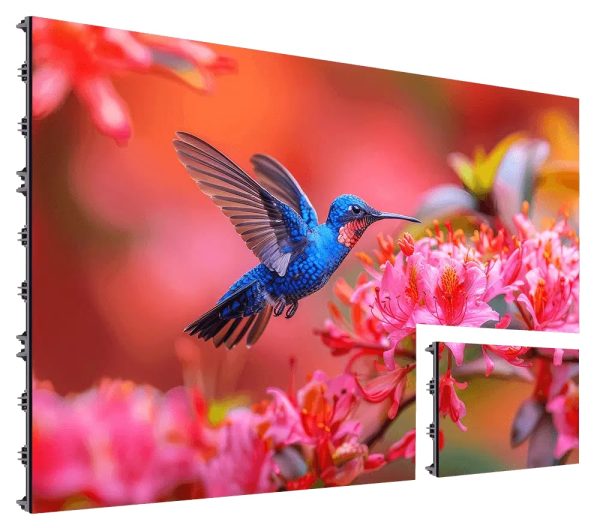

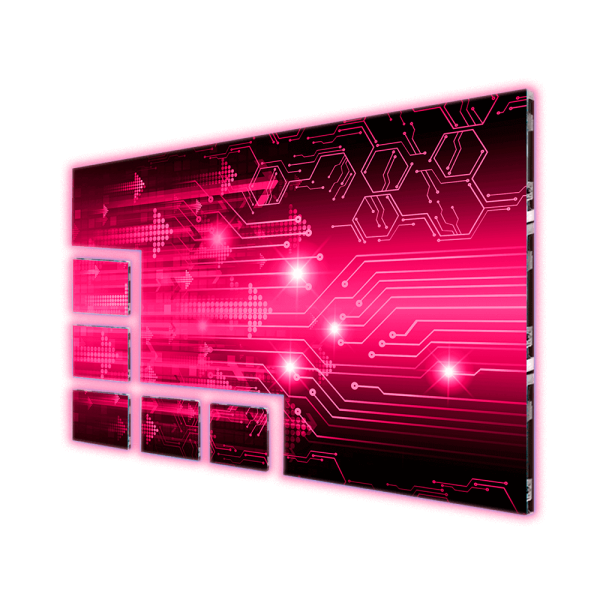

Outdoor Indoor Rental LED Screen Display for Churches
$99.00
Indoor Outdoor Rental LED Display 500×500 and 500×1000
- Description
- Additional information
Description
Features
1920Hz/3840Hz
Wide Viewing Angles
Outdoor IP65 Waterproof
High Scalability
Magnetic Suction Installation
Front Rear Maintenance
Die Cast Aluminum
7kg/12.5kg

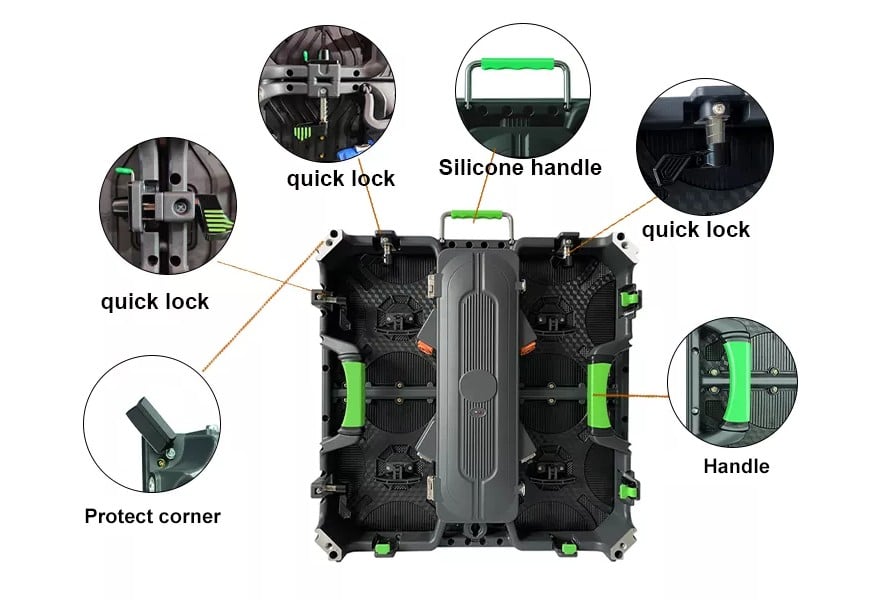

Advantages
Feature Description
- – Die-cast aluminum cabinet, convenient and beautiful
- – High precision, strong strength
- – Lightweight, save transportation costs
- – Side lock design, easy installation
- – 3840Hz High refresh
Video
Parameters

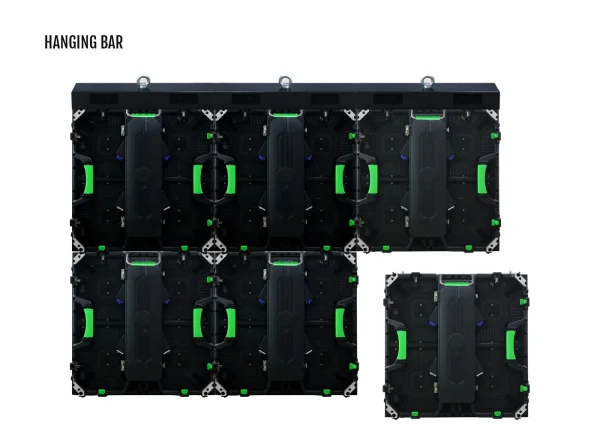

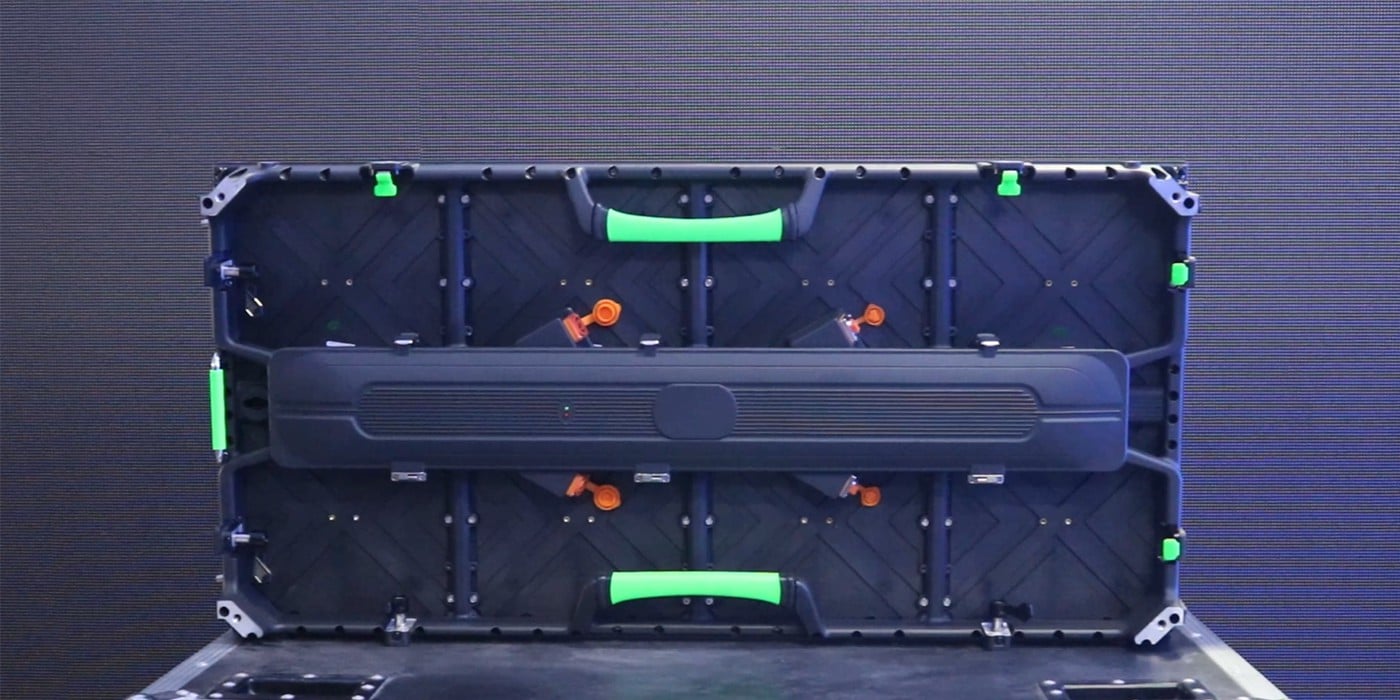

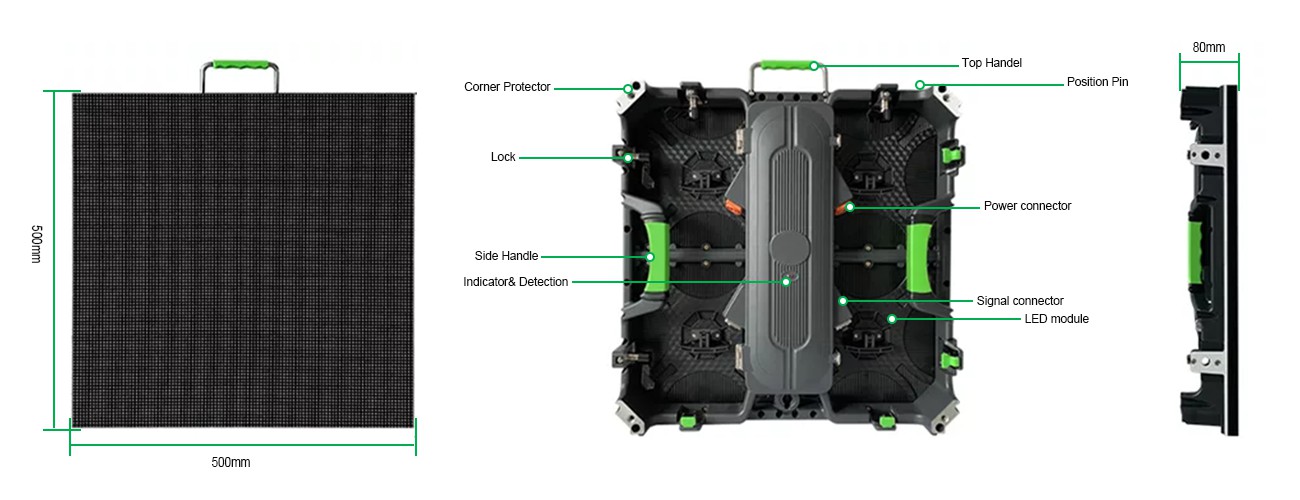

Cabinet Specs
Each cabinet (include all components) is only 7.5 kg , four sets strong fast lock to make assembling to be easier.
Friendly Maintenance
RA-Series is module and receiving card with flat cable,outdoor back access

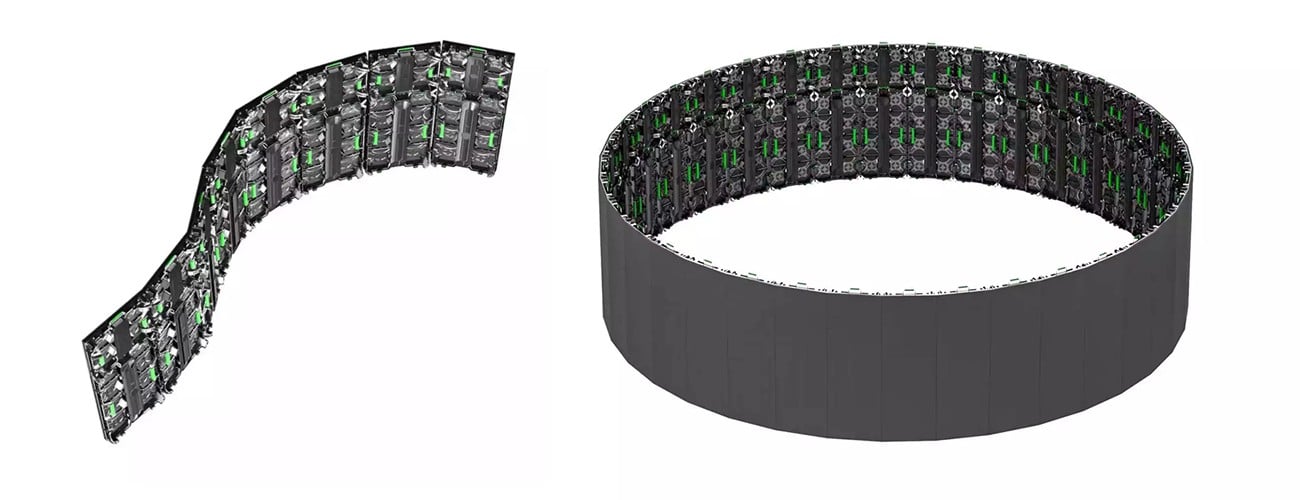

Creative combination
Allows to make curve video wall Inner outer arcs 15°,0°,-15° adjustable,right angle combination and other creative combinations

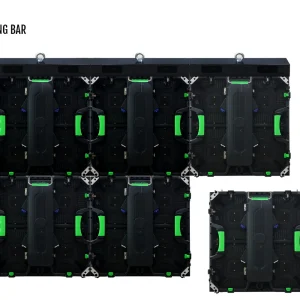

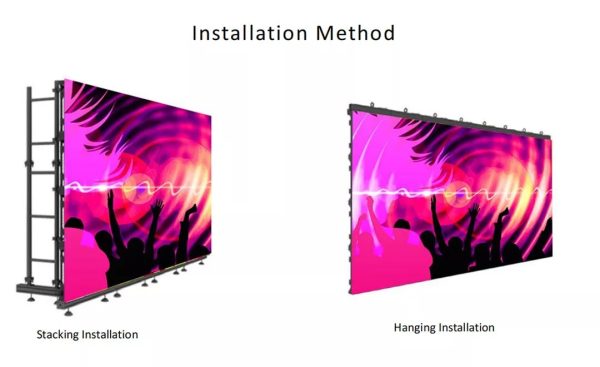

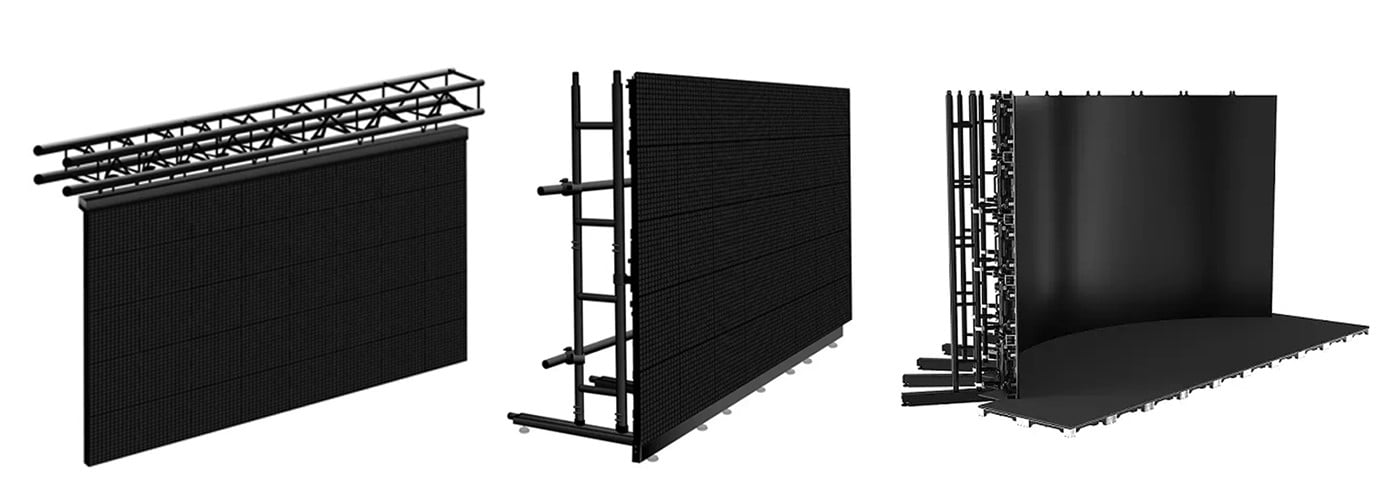

Installation

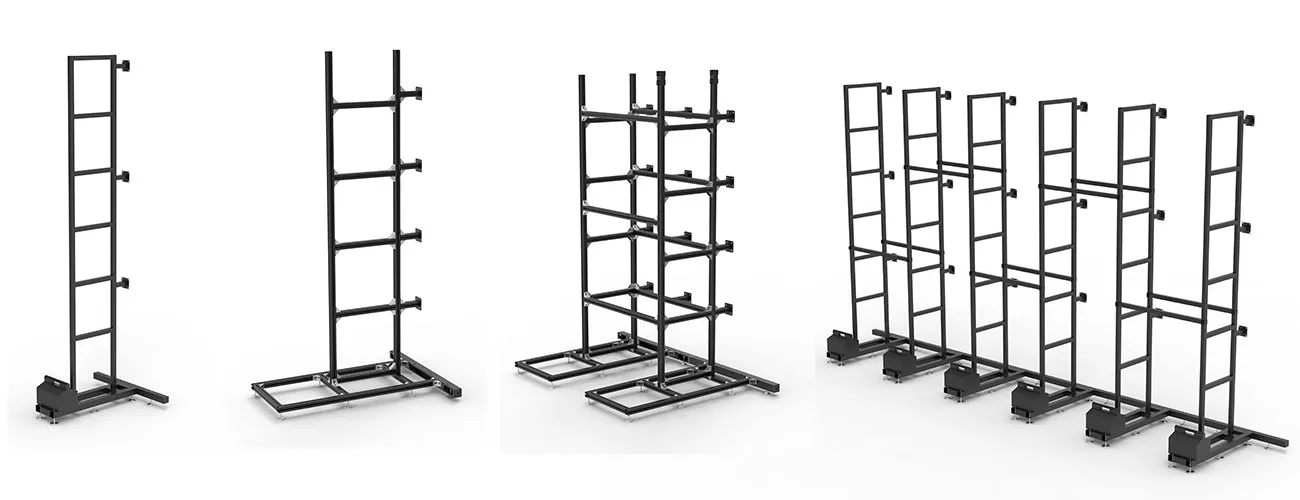

Aluminum profile support
Various installation mode
Outdoor Indoor Rental LED Screen Display Specifications
| Model | P2.604 | P2.976 | P3.91 | P4.81 |

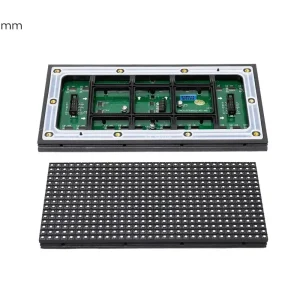

| Module size(mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Module resolution (dot) | 96×96 | 84×84 | 64×64 | 52×52 |
| Scanning | 1/32S | 1/28S | 1/16S | 1/13S |
| SMD | SMD1515/SMD1415 | SMD1515/SMD1415 | SMD2121/SMD1921 | SMD2121/SMD1921 |
| Maintenance | Front/Back | Front/Back | Front/Back | Front/Back |
| Installation | Hanging/streching | Hanging/streching | Hanging/streching | Hanging/streching |
| Cabinet size(mm) | 500×500/500x1000mm | 500×500/500×1000 | 500×500/500×1000 | 500×500/500×1000 |
| Density(dot/m²) | 147456 | 112896 | 65536 | 43264 |
| Brightness(cd/m²) | 800-1200/4500-6500 | 800-1200/4500-6500 | 800-1200/4500-6500 | 800-1200/4500-6500 |
| Max. Power Consumption（w） | 800 | 800 | 800 | 800 |
| Average Power Consumption（w） | 400 | 400 | 400 | 400 |
| Cabinet weight (kg) | 6.5/12.5 | 6.5/12.5 | 6.5/12.5 | 6.5/12.5 |
| Cabinet material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| IP rate | IP31/IP65 | IP31/IP65 | IP31/IP65 | IP31/IP65 |
| Grayscale | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Refresh rate(hz) | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7680 |
| Frame change frequency | 50/60hz | 50/60hz | 50/60hz | 50/60hz |
| Horizontal viewing angle | >140° | >140° | >140° | >140° |
| Vertical viewing angle | >140° | >140° | >140° | >140° |
| Best viewing distance | >3m | >3m | >4m | >5m |
| Input Voltage | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V |
| Module Max. current | 5.0-7.0 | 5.0-7.0 | 6.0-7.5 | 5.5-7.0 |
| Temperature-operating | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ |
| Humidity-operating | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Life span (H) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 |
| MTBF (H) | >10,000 | >10,000 | >10,000 | >10,000 |

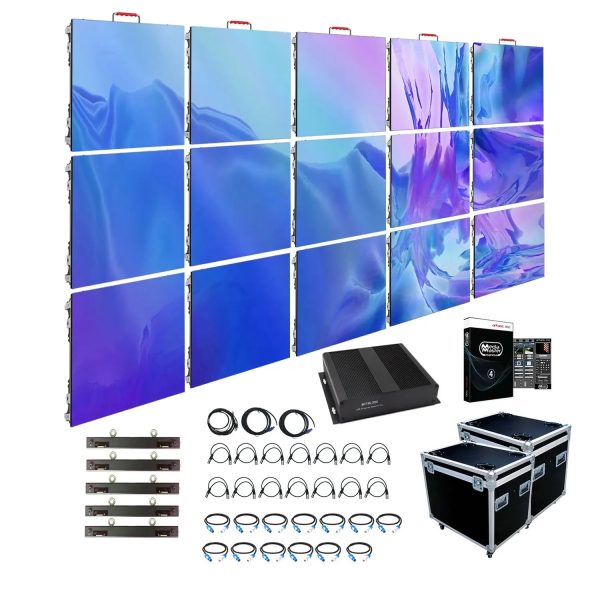

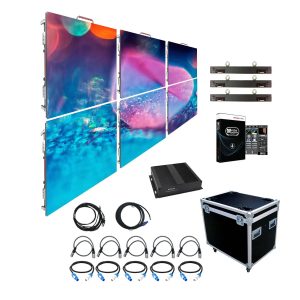

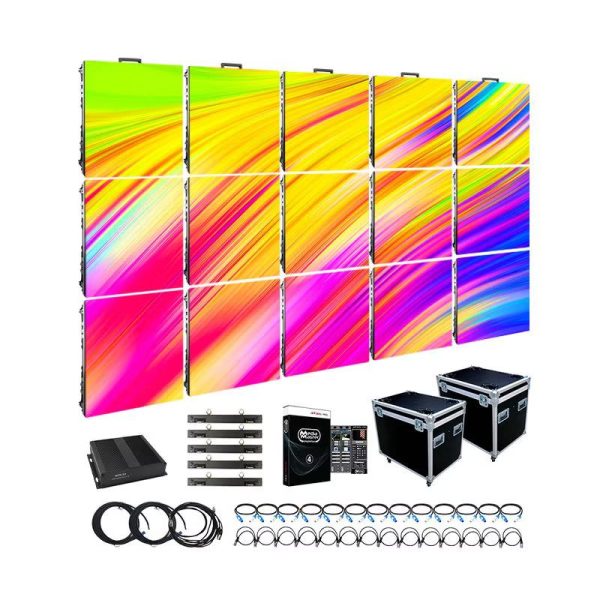

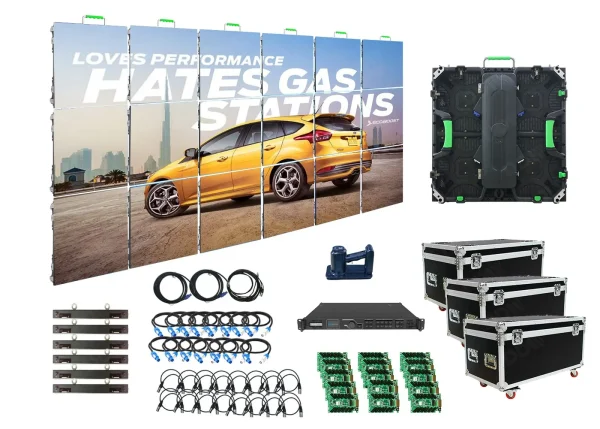

Accessories

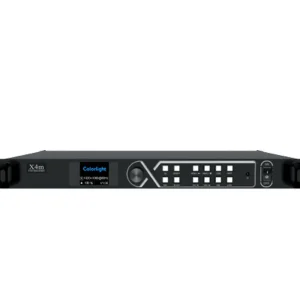

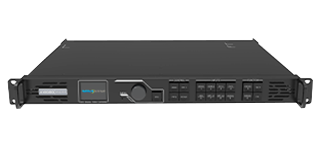

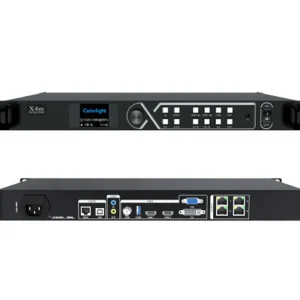

Video Processor

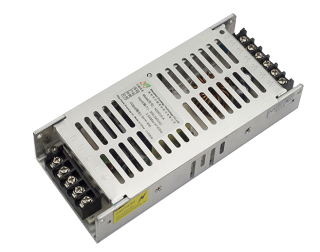

Power Supply
LED suction cup
Mounting accessories
Signal cable
Power cable
Movable power cabinet
Flight case
Additional information
| Weight | 30 kg |
|---|
