Name: Indoor Curved Soft Flexible LED Screen Panel
SKU: Soft Flexible LED Screen Panel
Availability: InStock

outdoor-WATERPROOF-flexible-LED-module-320x160

Indoor Curved Soft Flexible LED Screen Panel - Image 1

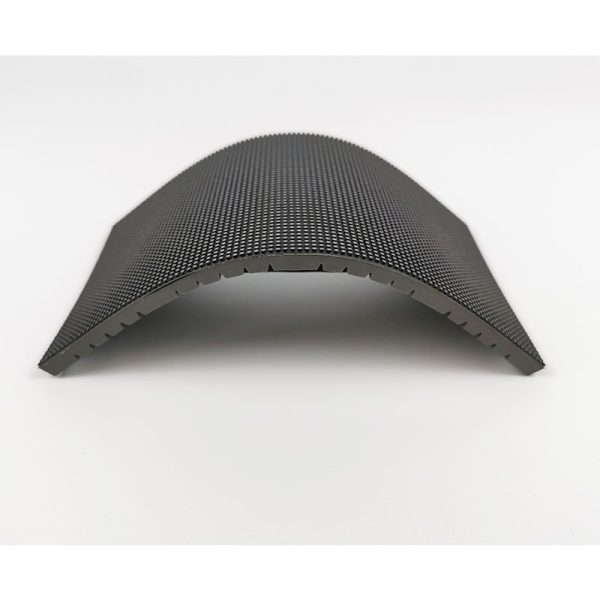

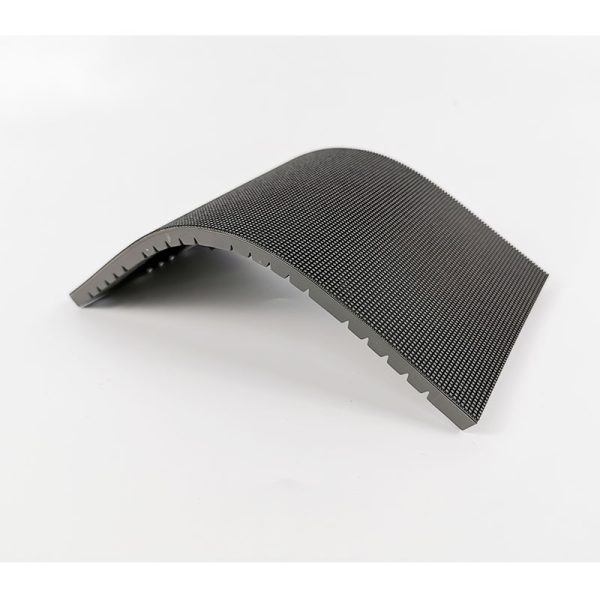

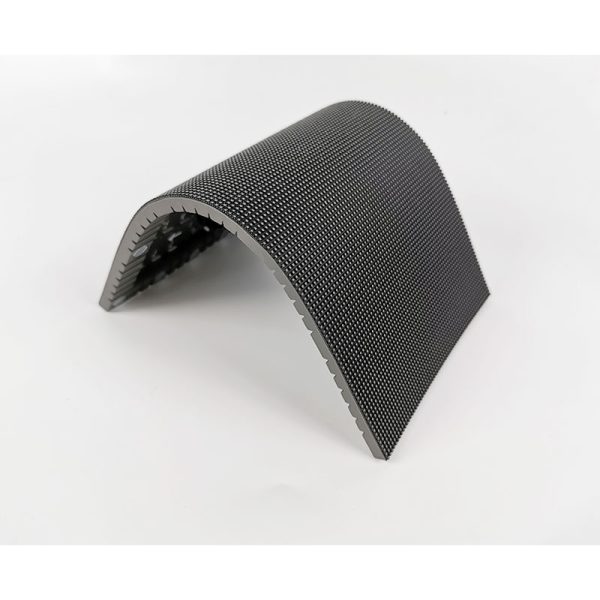

Indoor Curved Soft Flexible LED Screen Panel

0 out of 5

$10.00

Interior Outdoor P0.9 P1.25 P1.5 P1.8 P2 P2.5 P3mm 240×120 and 320×160 curved soft flexible led modules, widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.

SKU: Soft Flexible LED Screen Panel Categories: LED Display Panel, Leeman LED Module Panel Tag: Leeman LED Display

Add to wishlist

Description
Additional information

Description

Features

3840 Hz

Wide Viewing Angles

Arc installation

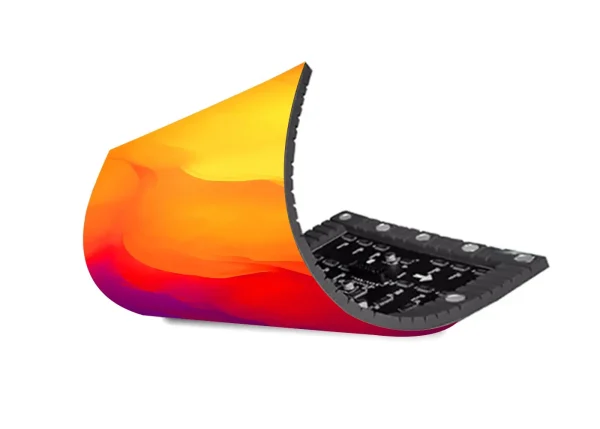

High Flexibility

Magnetic Suction Installation

Front Maintenance

Die Cast Aluminum

Low Power Consumption

Advantages

Feature Description

– Soft silicone back shell High contrast ratio
– Ultra-light and ultra-thin
– 160° Wide Viewing angle
– Remain picture clearly & seamless, no delay
– Simple & fast to maintain

Video

Parameters

Module Specs

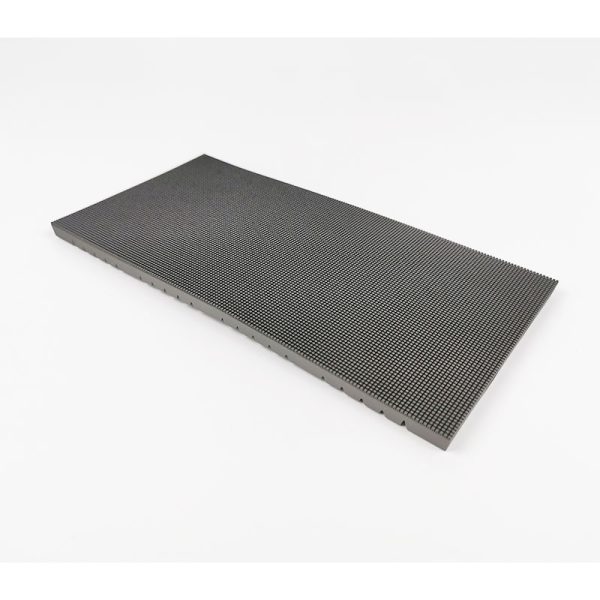

The dimensions of flexible led modules are 240 * 120 (mm) and 320 * 160 (mm). These modules will be the basic elements to build the entire screen.

LeemanLEDSCREEN-Outdoor-Flexible-Soft-P4-LED-Display-Module-3-e1678186002752

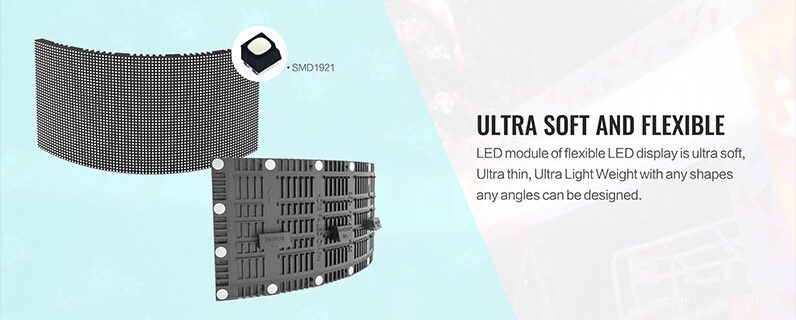

LeemanDisplay-Outdoor-Flexible-Soft-P4-LED-Display-Module-2-e1678185756865

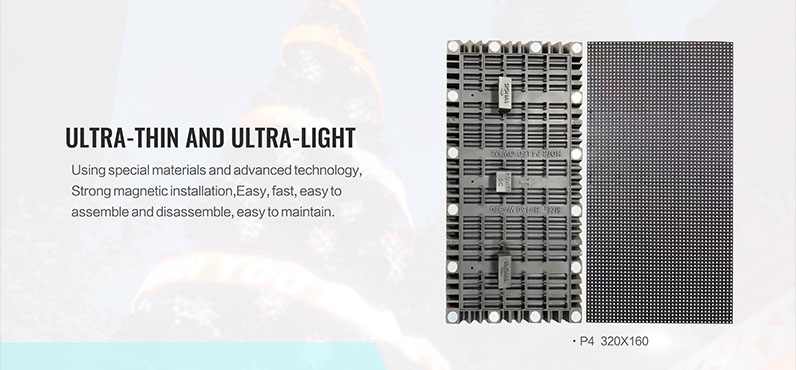

LeemanLED-Outdoor-Flexible-Soft-P4-LED-Display-Module-1

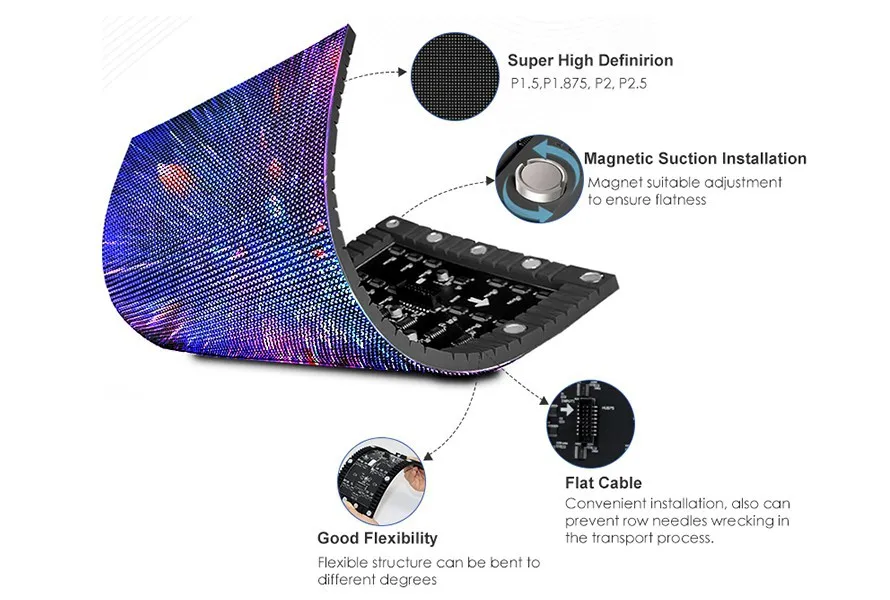

Magnetic suction installation

Magnet suitable adjustment to ensure flatness

Paste by Magnets,Easy installation

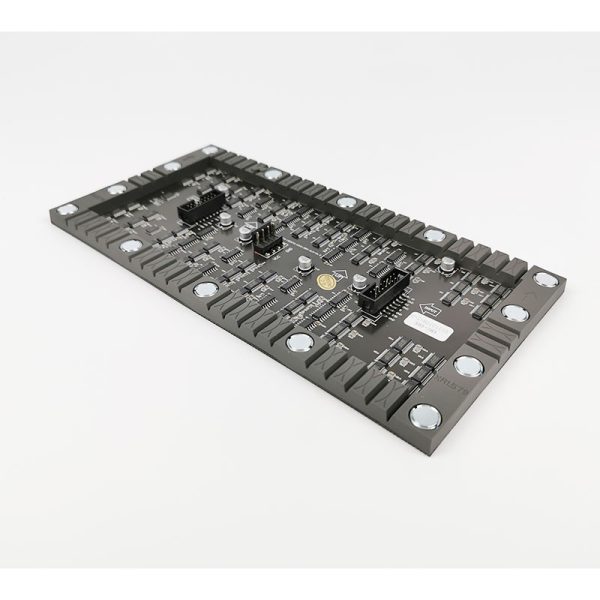

There’re multiple strong magnets on rear of each module. You need to just paste on the frame surface during the assembly process.When the frame surface is uneven and there is a gap, it allows us to adjust flexibly. We can also easily remove the module and restore it back.

Installation

Installation steps

COB GOB Outdoor Flexible LED Module 480x160

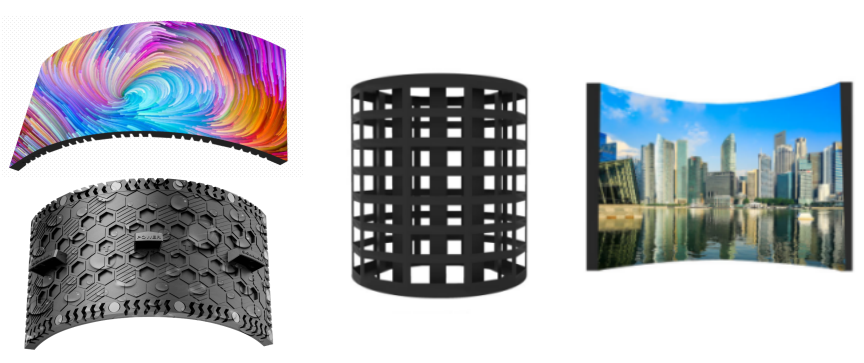

Various installation mode

Aging test

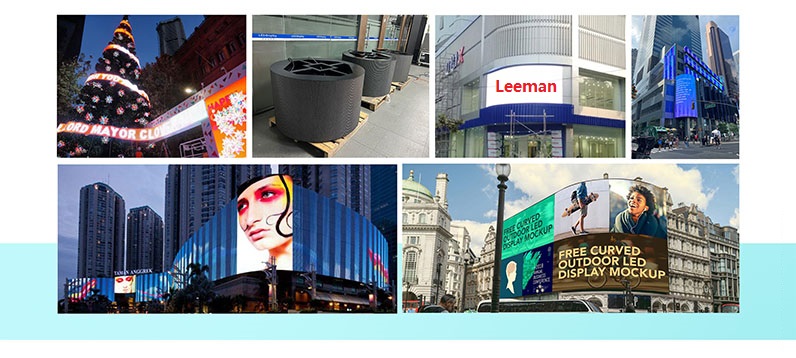

Waterproof-Outdoor-Flexible-Soft-LED-Display-Module-case

Soft Flexible LED Screen Panel Specifications

	P1.25	P1.579	P1.667	P1.875	P2	P2.5	P3	P4
Lamp bead packaging specification	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020
Pixel density (dots/m2)	640000	401111	360000	284444	250000	160000	111111	62500
Module size (mm)	320x160x10 and 240x120x8.6 (L x H x T)
Module Resolution	192×96	152×76	144×72	128×64	120×60	96×48	80×40	60×30
Refresh rate (Hz)	3840
Frame frequency (Hz)	60hz
Gray level (bit)	16-18bit
Signal interface mode	HUB75
Module bottom shell material	Silicone soft bottom shell
Module weight (kg/piece)	0.215	0.203	0.195	0.216	0.205	0.175	0.175	0.17
Degree of protection	IP30
Installation/maintenance mode	Front and rear installation/maintenance
Brightness (cd)	≥600	≥650	≥650	≥750	≥750	≥750	≥750	≥750
Color temperature (K)	≤12000adjustable
coordinate	X:0.2500 Y:0.3000
Brightness uniformity	≥95%
Horizontal/vertical viewing angle	≥170°/≥160°	≥160°/≥140°
contrast ratio	≥5000:1
