Name: Creative LED Display Flexible LED Screen
SKU: Creative LED Display Flexible LED Screen
Availability: InStock

Leeman-Outdoor-Flexible-Soft-P4-LED-Display-Module

Creative LED Display Flexible LED Screen - Image 1

Creative LED Display Flexible LED Screen

0 out of 5

$582.00

COB GOB P0.9 P1.25 P1.5 P1.8 P2 P2.5 soft LED screen panel 240×120 320×160 flexible led modules, widely used for indoor curve LED screens for decoration,advertising,creative design studio,cylinder, sphere and any place need to realize some eye catching applications.

SKU: Creative LED Display Flexible LED Screen Categories: Flexible LED Screen, Leeman LED Display Screen Tag: Leeman LED Display

Add to wishlist

Description
Additional information

Description

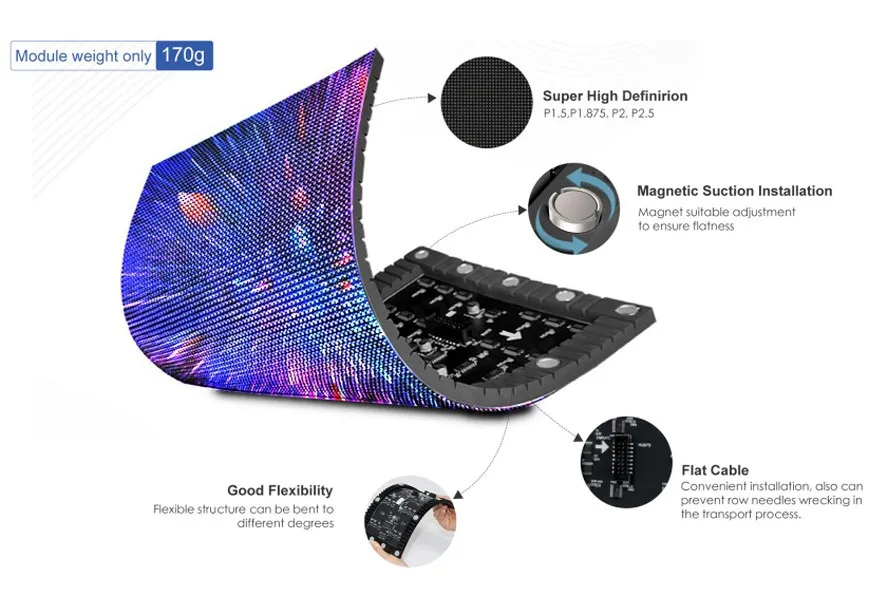

Features

3840 Hz

Wide Viewing Angles

800-1200cd/²

High Flexibility

Magnetic Suction Installation

Front Maintenance

Soft silica gel

Arc installation

Advantages

Feature Description

– Soft silicone back shell High contrast ratio
– Ultra-light and ultra-thin
– 160° Wide Viewing angle
– Remain picture clearly & seamless, no delay
– Simple & fast to maintain

Video

Parameters

Module Specs

The dimensions of flexible led modules are 240 * 120 (mm) and 320 * 160 (mm). These modules will be the basic elements to build the entire screen.

Magnetic suction installation

Magnet suitable adjustment to ensure flatness

Paste by Magnets,Easy installation

There’re multiple strong magnets on rear of each module. You need to just paste on the frame surface during the assembly process.When the frame surface is uneven and there is a gap, it allows us to adjust flexibly. We can also easily remove the module and restore it back.

COB GOB Outdoor Flexible LED Module 480x160

Installation

Installation steps

Various installation mode

Creative LED Display Flexible LED Screen Specifications

	P1.25	P1.579	P1.667	P1.875	P2	P2.5	P3	P4
Lamp bead packaging specification	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020
Pixel density (dots/m2)	640000	401111	360000	284444	250000	160000	111111	62500
Module size (mm)	240x120x8.6 (L x H x T)
Module Resolution	192×96	152×76	144×72	128×64	120×60	96×48	80×40	60×30
Refresh rate (Hz)	3840
Frame frequency (Hz)	60hz
Gray level (bit)	14-18bit
Signal interface mode	HUB75
Module bottom shell material	Silicone soft bottom shell
Module weight (kg/piece)	0.215	0.203	0.195	0.216	0.205	0.175	0.175	0.17
Degree of protection	IP30
Installation/maintenance mode	Front and rear installation/maintenance
Brightness (cd)	≥600	≥650	≥650	≥750	≥750	≥750	≥750	≥750
Color temperature (K)	≤12000adjustable
coordinate	X:0.2500 Y:0.3000
Brightness uniformity	≥95%
Horizontal/vertical viewing angle	≥170°/≥160°	≥160°/≥140°
contrast ratio	≥5000:1
