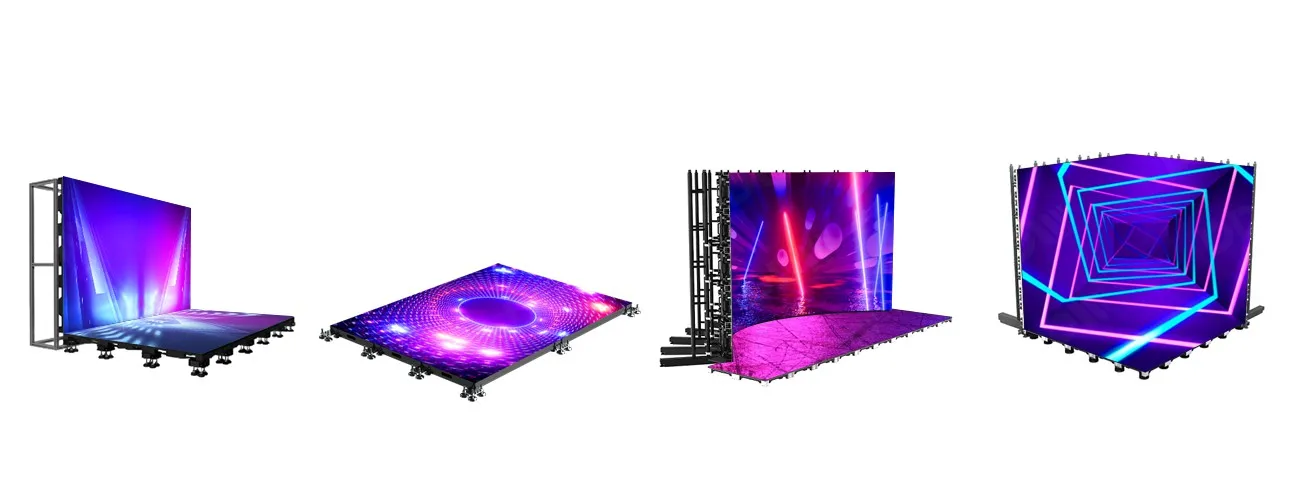

Indoor Outdoor Interactive Dance Floor LED Display
$218.00
IP66 outdoor Iron cabinet size500X500 and 500x1000x110 Indoor Outdoor Interactive Dance Floor LED Display P2.5,P2.6,P2.97,P3.91,P4.81,P5.2,P6.25,2200kg/sqm load-bearing capacity
- Description
- Additional information
Description
Features
3840 Hz
Common Cathode Design
Interaction
Wide Viewing Angles
2200kg/m² Load capacity
Front rear Maintenance
Iron cabinet
IP66 waterproof
Advantages
Feature Description
- – Selected Mask material, Anti-UV
- – Surface Anti-skid, Anti-scratch design
- – Waterproof design, IP66 protection
- – Build-in Interactive IC
- – Max. Brightness up to 3000nit
- – Iron Cabinet-Anti-corrosion, Anti-rust treatment
Video
Parameters

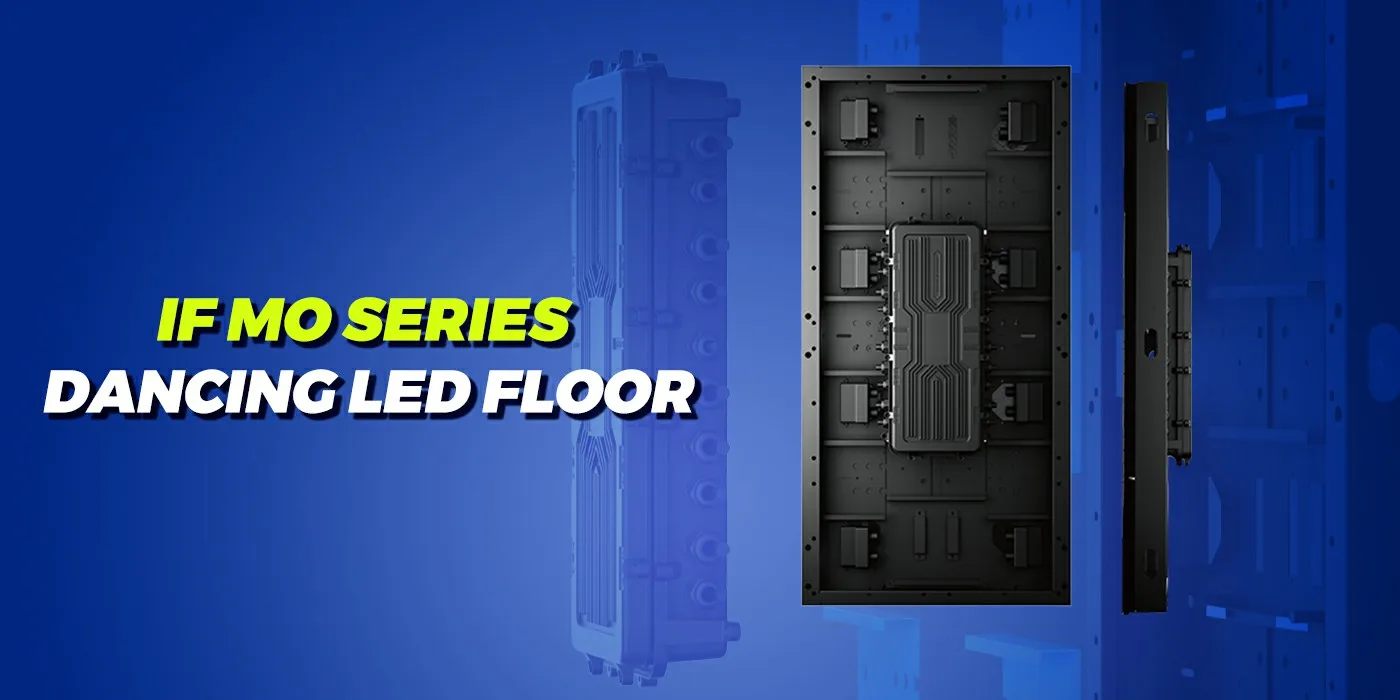

Cabinet Size
Cabinet size 1000x500x100mm, module size 250x250mm
Highly Stable Design
Strong PC mask make our led floor to be anti-skid, anti-knock, anti-glare, and module is with the cooling board to ensure the heat can be discharged quickly and effectively

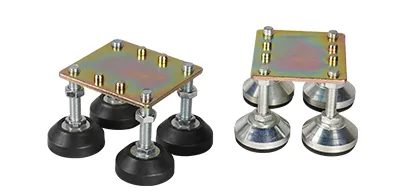

Adjustable Foot 130-170mm
IP66 waterproof
IP66-Professional outdoor waterproof design

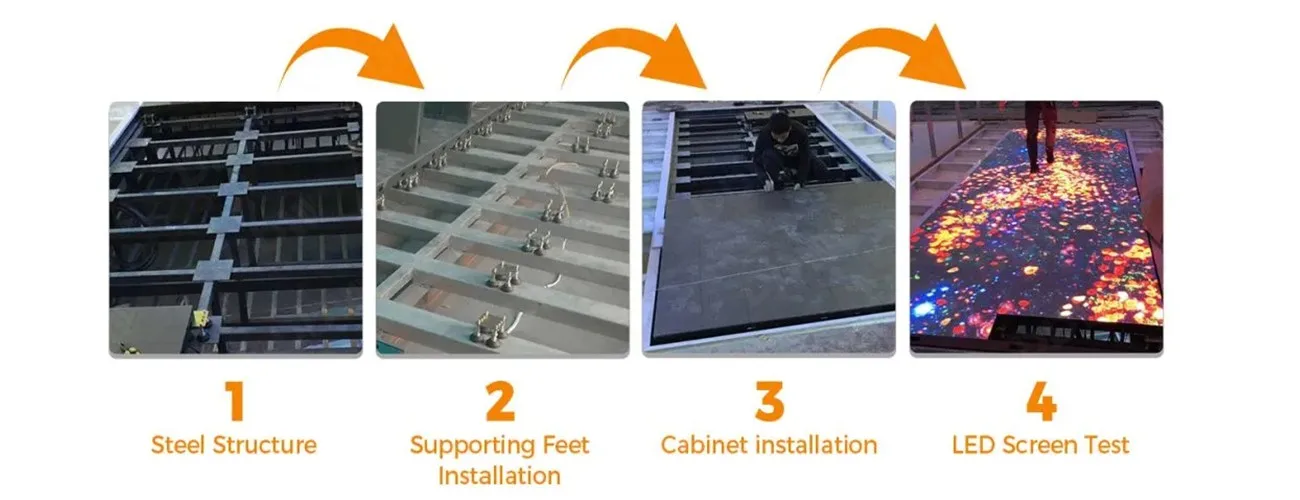

Installation
Easy Installation
Various installation mode
Indoor Outdoor Interactive Dance Floor LED Display Specifications
| Model Number | P2.5 | P2.6 | P2.976 | P3.91 | P4.81 | P5.2 | P6.25 |
| Pixel Pitch (mm) | 2.5 | 2.6 | 2.976 | 3.91 | 4.81 | 5.2 | 6.25 |
| LED Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Module Resolution | 100 x 100 pixels | 96 x 96 pixels | 84 x 84 pixels | 64 x 64 pixels | 52x 52 pixels | 48 x 48 pixels | 40x 40 pixels |
| Module Dimensions(W x H x D)(mm) | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 |
| Cabinet Resolution | 200 x 200 pixels | 192 x 192 pixels | 168 x 336 pixels | 128 x 256 pixels | 104 x 208 pixels | 96 x 192 pixels | 80 x 160 pixels |
| Cabinet Dimensions(W x H x D)(mm) | 500 x 500 x 110 | 500 x 500 x 110 | 500 x 1,000 x 110 | 500 x 1,000 x 110 | 500 x 1,000 x 110 | 500 x 1,000 x 110 | 500 x 1,000 x 110 |
| Contrast Ratio | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 |
| Brightness (cd/㎡) | 900-1800 | 900-1800 | 900-1800 | 900-1800 | 900-3000 | 900-3000 | 900-3000 |
| Max./Avg. Power(W/Cabinet) | 200 / 100 | 200 / 100 | 400 / 200 | 400 / 200 | 400 / 200 | 400 / 200 | 400 / 200 |
| Viewing Angle | 160°/160° | ||||||
| Operating Voltage | 100-240V AC 50-60Hz | ||||||
| Refresh Rate | 3840Hz | ||||||
| IP Rating (Front/Rear) | IP66/IP66 | ||||||
| Cabinet Weight(Kg/Cabinet) | 12.5 | 24 | |||||
| Cabinet Material | Iron | ||||||
| Max Load-Bearing | 2200 Kg | ||||||

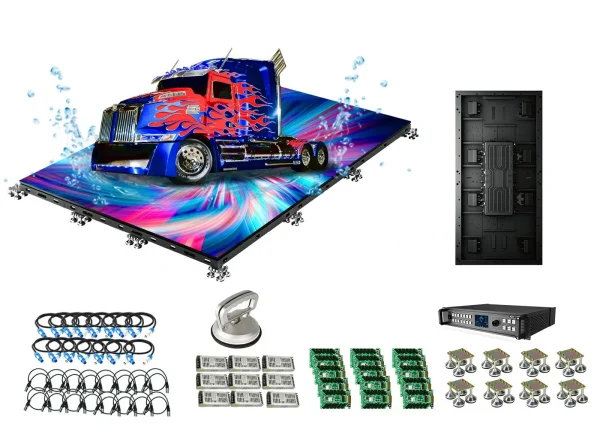

Accessories
Sending box
Power Supply
LED suction cup
Video Processor

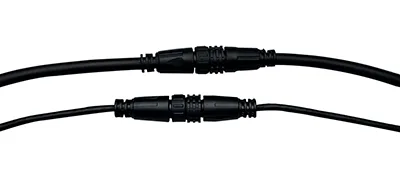

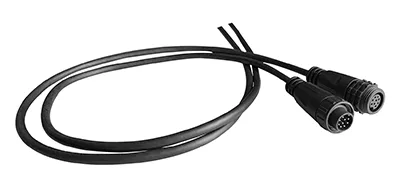

Signal cable
Power cable
Adjustable Foot
Wooden case packing
Additional information
| Weight | 40 kg |
|---|
