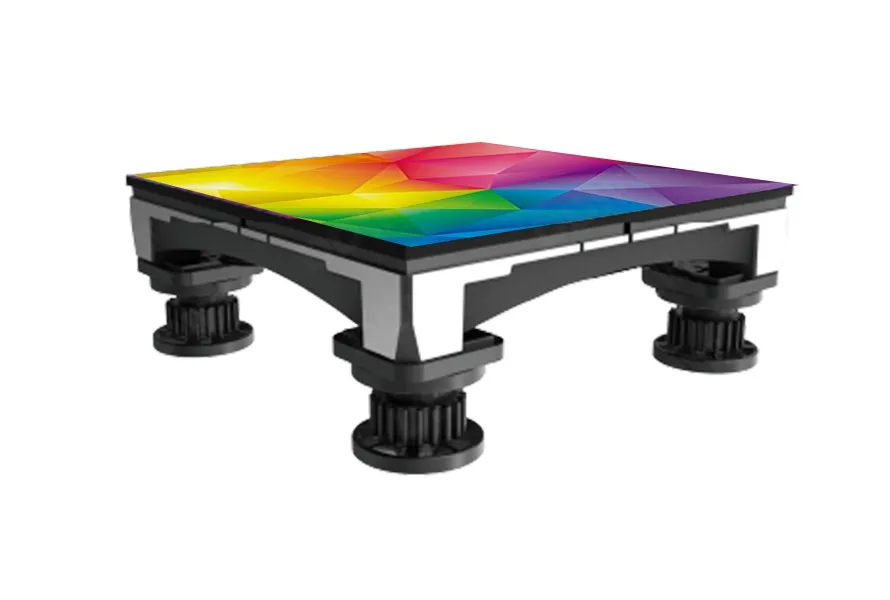

Indoor Interactive LED Dance Floor Panels
$163.00
IP54 IP45 Indoor Aluminum cabinet size 500x500x92mm Indoor Interactive LED Dance Floor Panels P1.83,P2.5,P2.6,P2.97,P3.91,P4.81,P5.2,P6.25,2200kg/sqm load-bearing capacity
- Description
- Additional information
Description
Features
3840 Hz
Common Cathode Design
Interaction
Wide Viewing Angles
2200kg/m² Load capacity
Front rear Maintenance
Aluminium cabinet
High Strength Structure
Advantages
Feature Description
- – Guid-Rail installation, Easy and Fast
- – High precision and strong strength
- – Selected Mask Material with surfaceAnti-skid & Anti-cratch treatment
- – Build-in Interactive IC
- – Max. Brightness up to 3000nit
- – Super Strong Load-bearing Performance
Video
Parameters
Highly Stable Design
Strong PC mask make our led floor to be anti-skid, anti-knock, anti-glare, and module is with the cooling board to ensure the heat can be discharged quickly and effectively
High-Performance Load-Bearing
The load-bearing capacity reaches 2200kg/sqm, which can cope with direct trampling on high heels, rolling on vehicles, etc.
Intelligent induction
The module has a built-in self-developed interactive sensor chip with a response speed of only 0.016s

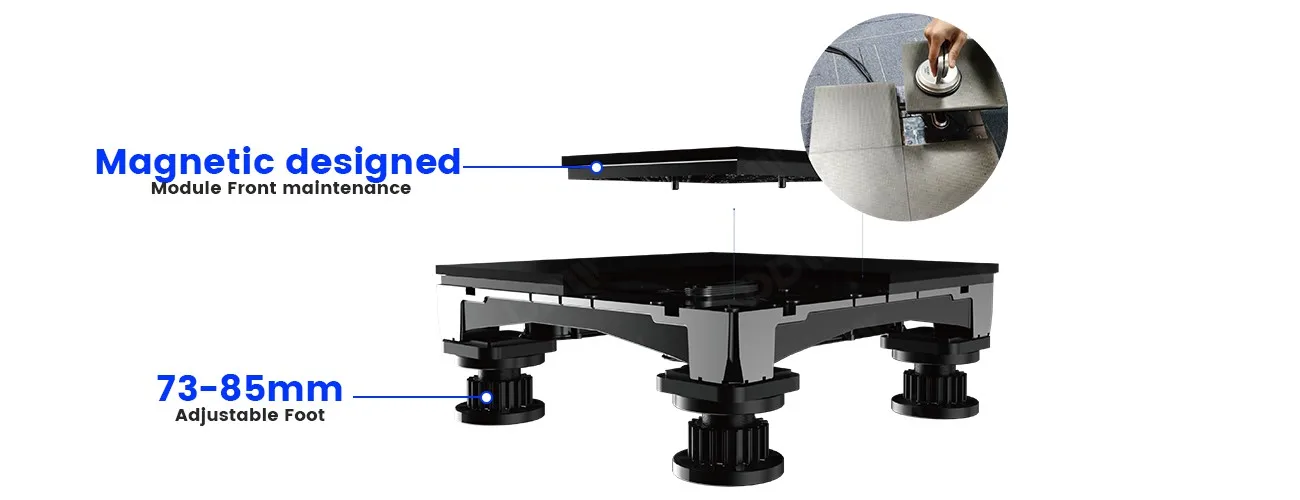

Easy maintenance
Front maintenance for LED module, receiving card, and power supply
Installation

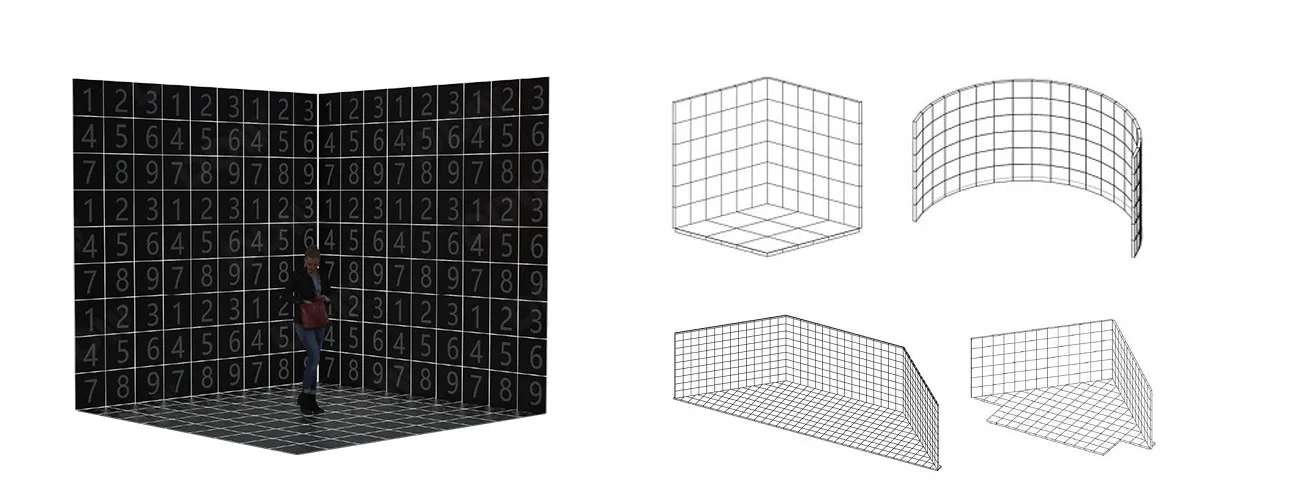

XR solution available

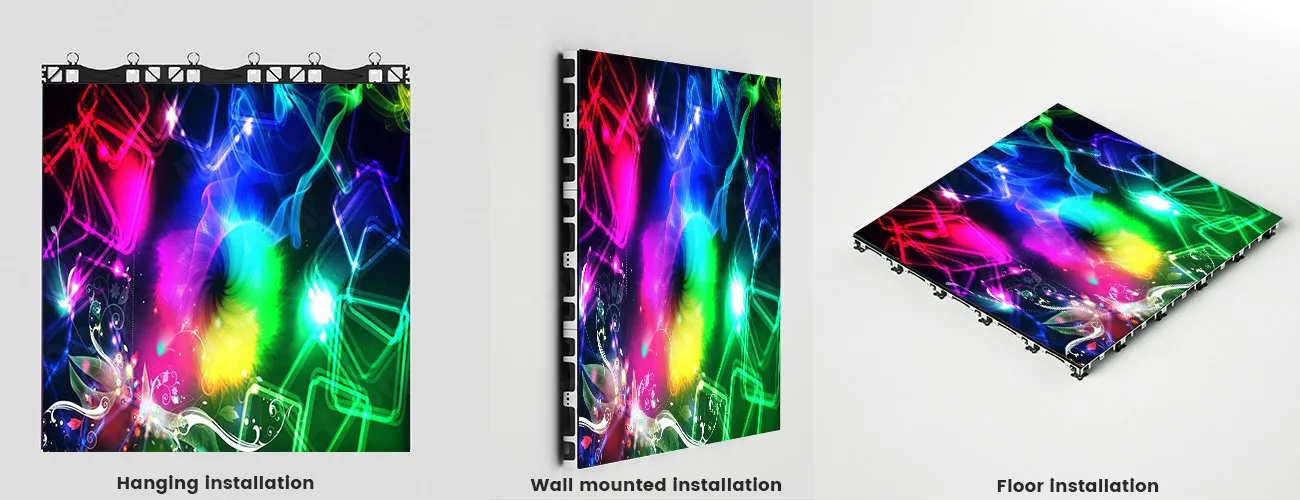

Various installation mode
Indoor Interactive LED Dance Floor Panels Specifications
| Model Number | ||||||||
| Pixel Pitch (mm) | 1.83 | 2.5 | 2.6 | 2.976 | 3.91 | 4.81 | 5.2 | 6.25 |
| LED Configuration | SMD1415-DOB | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Module Resolution | 136 x 136 pixels | 100 x 100 pixels | 96 x 96 pixels | 84 x 84 pixels | 64 x 64 pixels | 52 x 52 pixels | 48 x 48 pixels | 40x 40 pixels |
| Module Dimensions(W x H x D)(mm) | 250 x 250 x 24 | 250 x 250 x 24 | 250 x 250 x 24 | 250 x 250 x 24 | 250 x 250 x 24 | 250 x 250 x 24 | 250 x 250 x 24 | 250 x 250 x 24 |
| Cabinet Resolution | 272 x 272 pixels | 200 x 200 pixels | 192 x 192 pixels | 168 x 168 pixels | 128 x 128 pixels | 104 x 104 pixels | 96x 96 pixels | 80 x 80 pixels |
| Cabinet Dimensions(W x H x D)(mm) | 500 x 500 x 92 | 500 x 500 x 92 | 500 x 500 x 92 | 500 x 500 x 92 | 500 x 500 x 92 | 500 x 500 x 92 | 500 x 500 x 92 | 500 x 500 x 92 |
| Contrast Ratio | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 |
| Brightness (cd/㎡) | 600-1000 | 900-1800 | 900-1800 | 900-1800 | 900-1800 | 900-1800 | 900-3000 | 900-3000 |
| Max./Avg. Power(W/Cabinet) | 200 / 100 | 200 / 100 | 200 / 100 | 200 / 100 | 200 / 100 | 200 / 100 | 200 / 100 | 200 / 100 |
| Viewing Angle | 160°/160° | |||||||
| Operating Voltage | 100-240V AC 50-60Hz | |||||||
| Refresh Rate | 3840Hz | |||||||
| IP Rating (Front/Rear) | IP54/IP45 | |||||||
| Cabinet Weight(Kg/Cabinet) | 11.5 | |||||||
| Cabinet Material | Aluminum Dicasting | |||||||
| Max Load-Bearing | 1000 Kg | 2200 Kg | ||||||

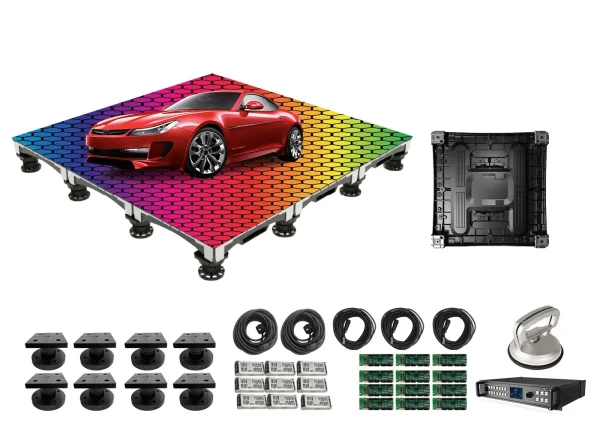

Accessories
Sending box
Power Supply
LED suction cup
Video Processor

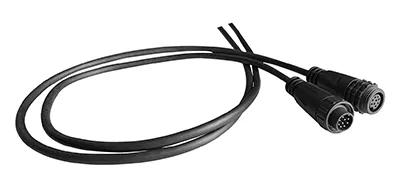

Signal cable

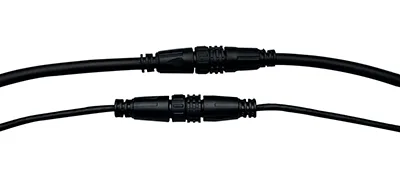

Power cable

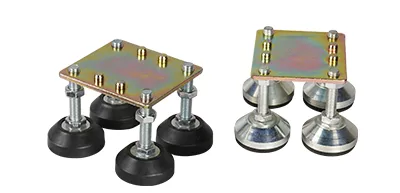

Adjustable Foot
Wooden case packing
Additional information
| Weight | 25 kg |
|---|
