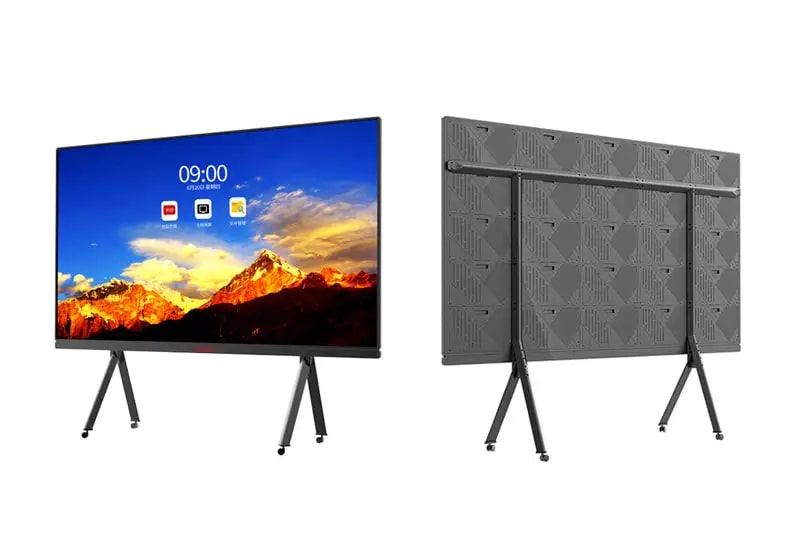

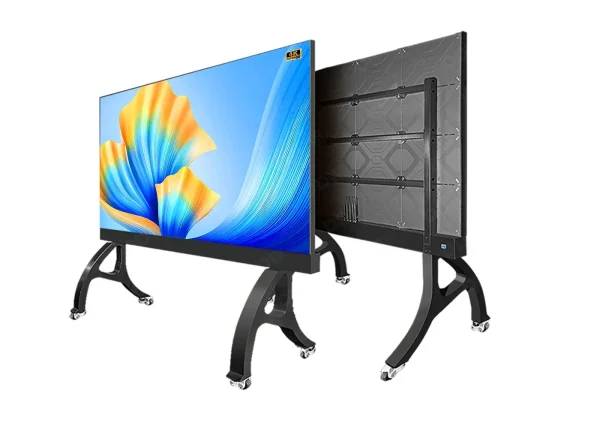

COB All in One LED Display TV
$1,937.00
Adopted COB technology effectively improves the reliability, light color and protection
performance of LED display. It can effectively achieve waterproof, dust proof, oxidation
resistance, and static electricity prevention.
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
Common Cathode Design
High Strength Structure
Magnetic Suction Installation
Front Maintenance
Easy to move
Wireless projection screen
Advantages
Feature Description
- – UHD full HD, intelligent brightness
- – The interface is simple and easy to operate, and the installation is simple and easy to use.
- – One-button start, wireless screen projection, USB plug and play;
- – Simple and generous appearance, rich external interfaces
- – Die-cast aluminum design, seamless border less
Video
Parameters
Size customization
81” 108” 135” 162”
Standardized Cabinet Design
Can be quickly and seamlessly spliced into a large screen
Intelligent touch
Supports 32 dots infrared touc
IP65 Protection Level
Waterproof, dust proof, anti oxidation, anti-static, anti impact, high stability
Installation
Various installation mode
Specifications
| COB All-In-One Size | 81″ | 108″ | 135″ | 162″ | ||
| Pixel Pitch (mm) | 0.93 | 1.25 | 1.56 | 1.87 | 0.93 | |
| Dot to Dot Resolution | 2K(1920×1080) | 2K(1920×1080) | 2K(1920×1080) | 2K(1920×1080) | 4K(3840×2160) | |
| Physical Density (dot/m²) | 1,137,778 | 640,000 | 409,600 | 284,444 | 1,137,778 | |
| Module Size (W ×H ×D) mm | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 | |
| Module Resolution (W ×H) | 160*180 | 120*135 | 96*108 | 80*90 | 64*72 | |
| Packaging Process | COB Flip Chip | |||||
| Cabinet Size (W ×H ×D) mm | 600*337.5*32.5 | |||||
| Cabinet resolution (W×H) dot | 640*360 | 480*270 | 384*216 | 320*180 | 640*360 | |
| Cabinet Material | Die-casting aluminum | |||||
| Scanning Mode | 1/60 | 1/45 | 1/48 | 1月30日 | 1/60 | |
| Grey Scale (Bit) | 14Bit+Control Software 2Bit=16Bit | |||||
| Protection Level | LED Lamp side IP65 | |||||
| Installation/Service Method | Front or back installation/Front service | |||||
| Brightness | 600-3000cd/㎡ adjustable | |||||
| Color Temperature | 3200-9300K adjustable | |||||
| Brightness Uniformity | ≥98% | |||||
| Color Uniformity | Within 0.003Cx, Cy | |||||
| Horizontal/Vertical View Angle | 160°（±10°） | |||||
| Contrast Ratio | ≥10000:1 | |||||
| Color Calibration of Single Dot | Yes | |||||
| Brightness Calibration of Single Dot | Yes | |||||
| Drive Mode | Constant Current Drive | |||||
| Standard Receiving Card | A7S | A5S-PLUS | A5S-PLUS | A5S-PLUS | A7S | |
| Refresh Frame Frequency | 50/60 Hz | |||||
| Max Refresh Rate | ≥2880Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥2880Hz | |
| Network Connection Port | RJ45 | |||||
| Input Voltage AC | 110-220V | |||||
| Module Max Current DC | DC4.2V | |||||
| Module Input Voltage DC | 2.5A | |||||
| Cabinet Max Power Consumption | ≤450W/m2 | |||||
| Cabinet Aver. Power Consumption | ≤150W/m2 | |||||
Accessories
Sending box
Power Supply
LED suction cup
Mounting accessories
Signal cable
Power cable
Movable power cabinet
Flight case
Additional information
| Weight | 155 kg |
|---|
