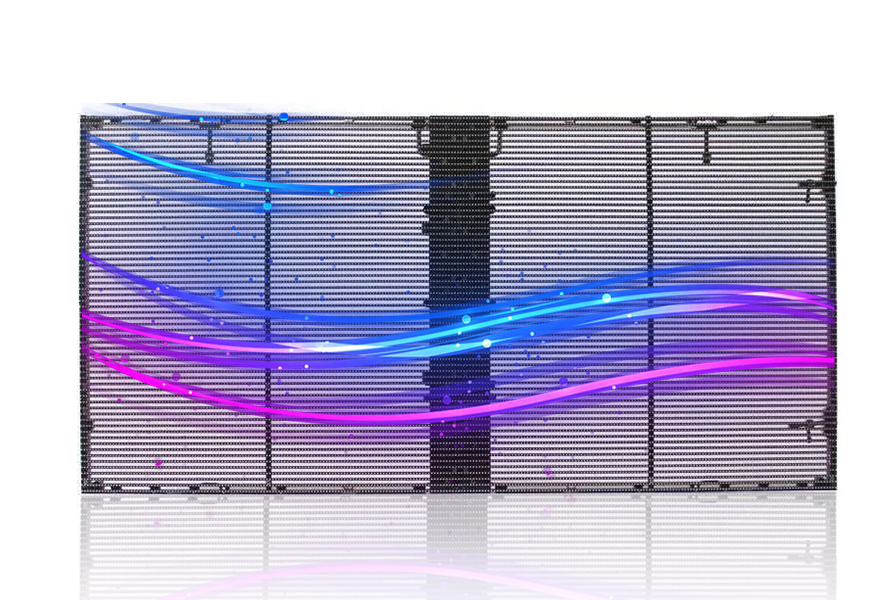

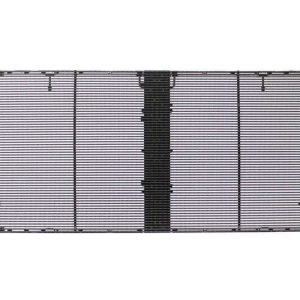

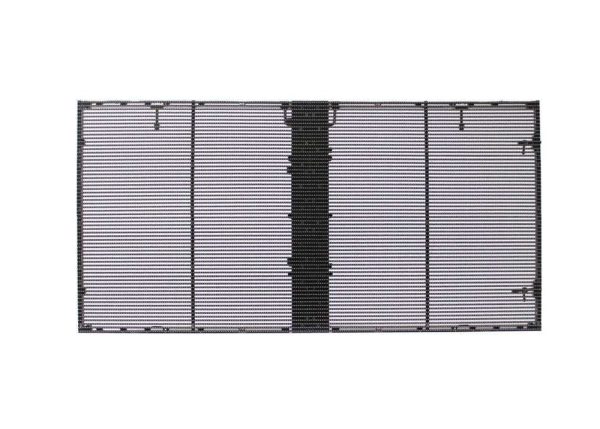

Outdoor Indoor Rental Transparent LED Screen
$183.00
P3.91mm-7.82mm Outdoor Indoor Rental Transparent LED Screen 1000x500x75mm Die cast aluminum 3500cd/m ² High brightness
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
High Transparency
3500cd/㎡
Magnetic Suction Installation
Front Rear Maintenance
Die Cast Aluminum
75mm ultra-thin
Advantages
Feature Description
- – High transparency, high light transmittance
- – Simple structure and light weight
- – Fast installation and easy maintenance
- – Green energy saving, good heat dissipation
- – 3840Hz High refresh
Video
Parameters

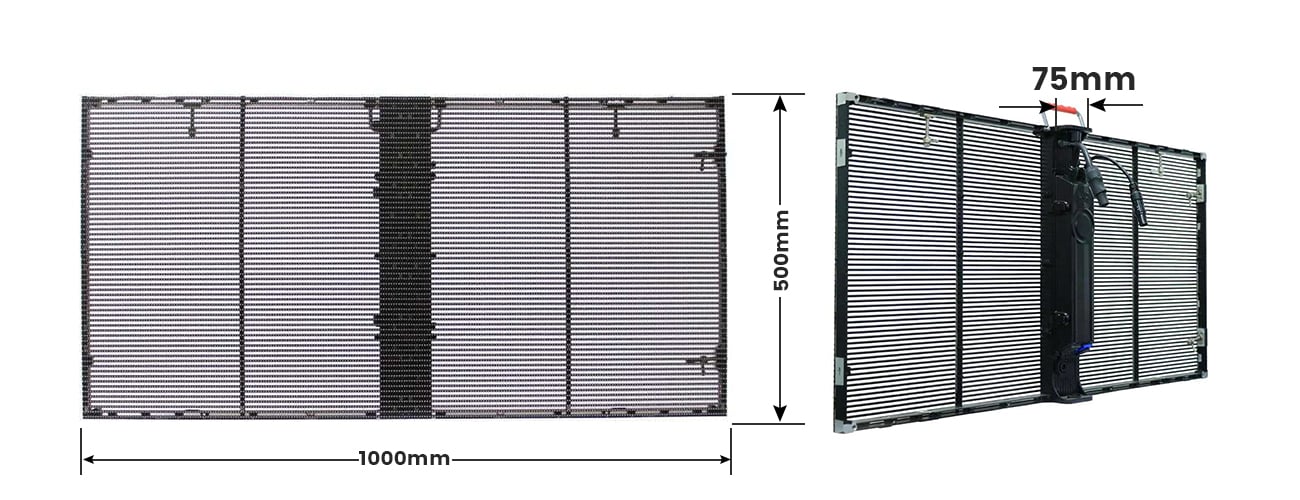

Cabinet Specs
First class design for die casting cabinet frame, each cabinet (include all components) is only 6kg ,Size: 500x1000mm

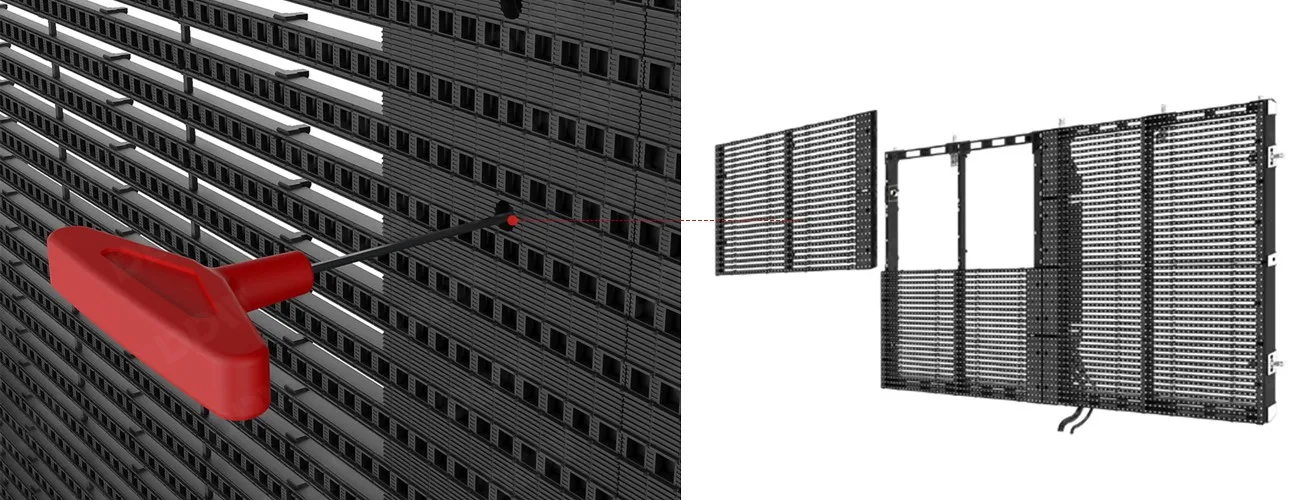

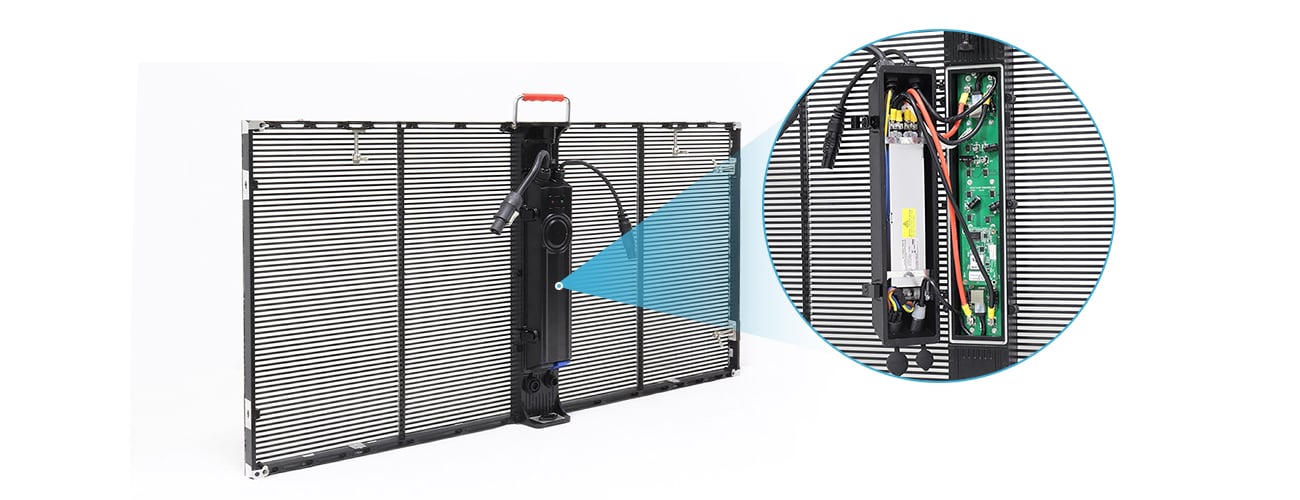

Front Serivce, Fast And Efficient
Front serivce module and independent power module Use the pre-maintenance tool to rotate the pre-maintenance hole here,Remove the pre-maintenance module and front-service for the the module

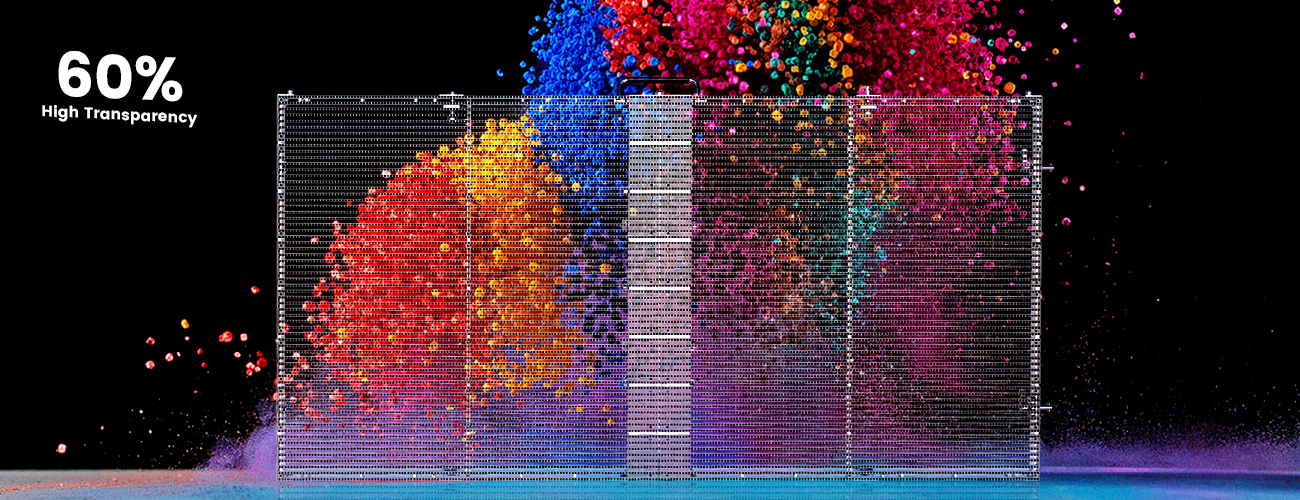

60% High Transparency
60% transparency does not affect indoor vision
Energy saving
Highly integrated circuit design, ultra-low power consumption, 50% lower than traditional display screens

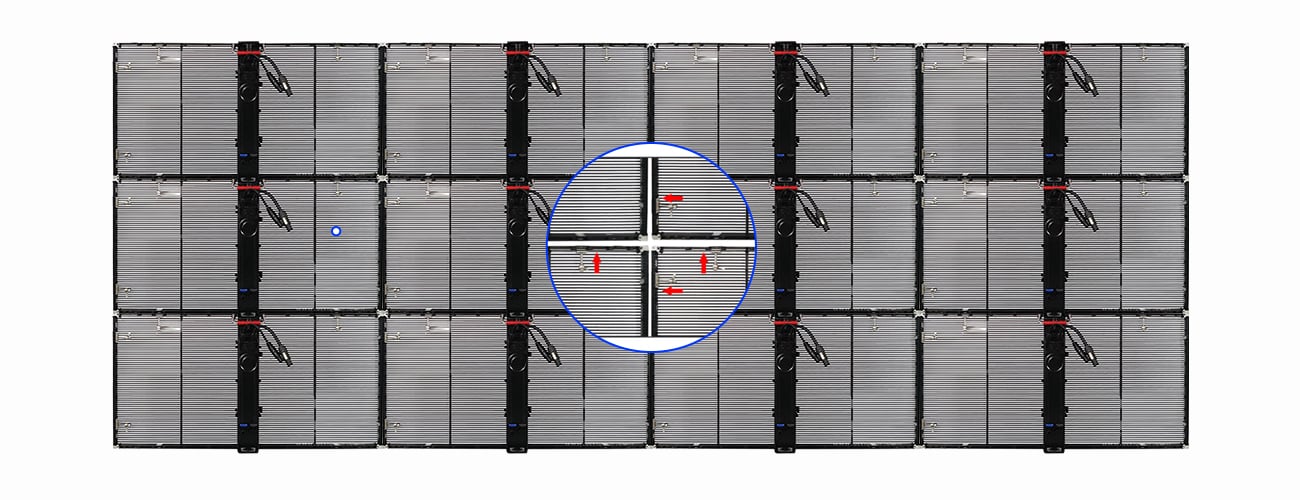

Quick lock design
Fast &Seamless assembly by hand without tools

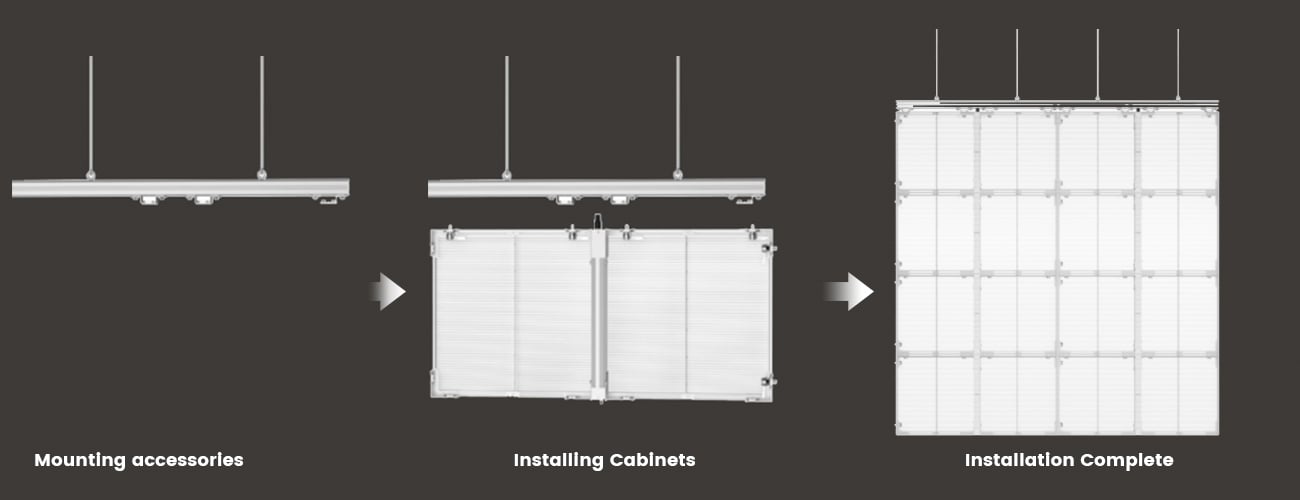

Hoisting install step
Easy and fast installation

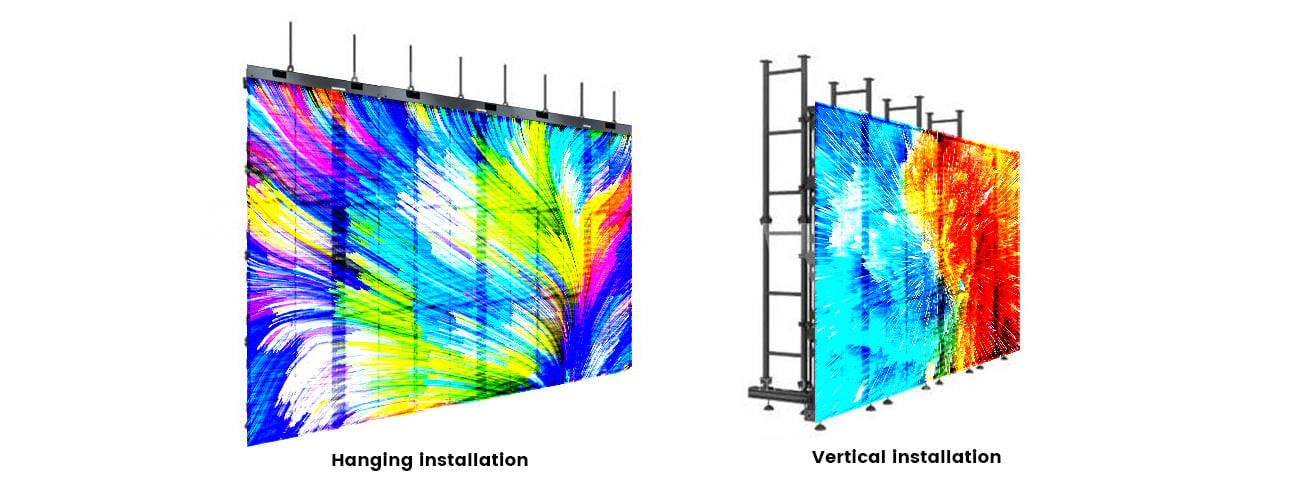

Various installation mode
Outdoor Indoor Rental Transparent LED Screen Specifications
| P3.91-7.82 | |
| Pixel spacing (mm) | 3.91mm-7.82mm |
| LED | SMD1921 |
| Drive IC | High refresh rate ICN2038s, 8 scans |
| Physical density | 32768PX/m ² |
| Brightness (cd/m) ²) | 3500cd/m ² |
| transparency | 65% |
| Grayscale level | 65536 (15bit) |
| Refresh frequency (Hz) | ≥ 1920Hz |
| PCB board | 6 layers, 2.0 thickness, raw materials |
| Screen lifespan (h) | ≥ 100000 hours |
| Connector | 3M gold-plated |
| Waterproof level | Not waterproof |
| Brightness adjustment | Level 256 |
| visual angle | 120 ° |
| Viewing distance (m) | 5m-12m |
| Power supply requirements | DC5-3.5V/AC85-240V |
| Average power consumption (w) | Average power consumption 200W/m ² |
| Peak power consumption (w) | Maximum power consumption 600W/m ² |
| Cabinet size (mm) | 1000mm * 500mm * 75mm |
| Weight (kg/m) | 12kg |
| Environmental requirements | Temperature: -10 ℃ to+40 ℃; Humidity: 15% to 90% RH |

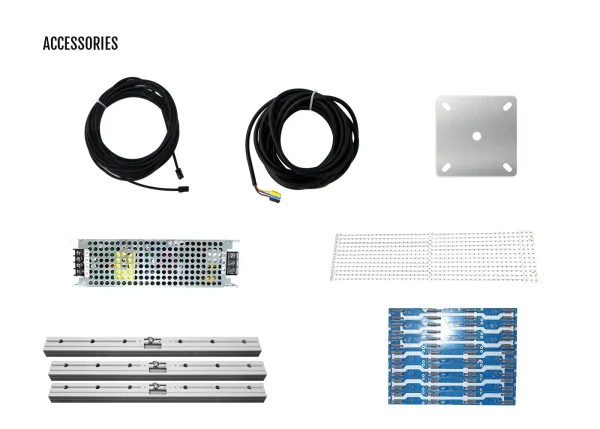

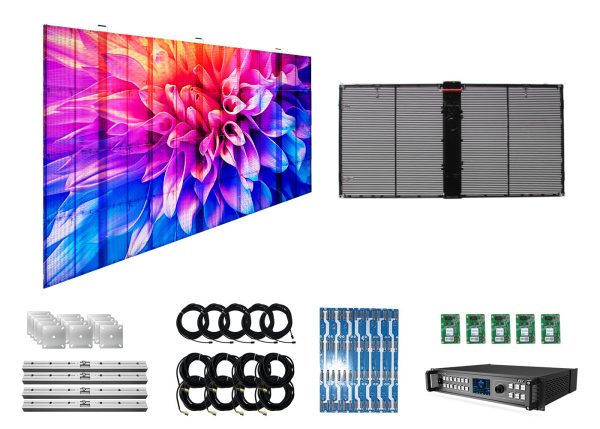

Accessories

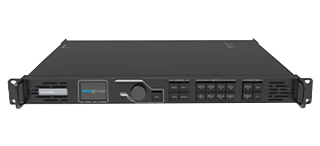

Video Processor

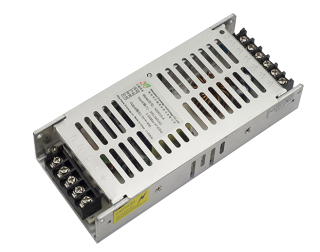

Power Supply
LED module
Mounting accessories
Signal cable
Power cable
Adapter board
Connecting piece
Additional information
| Weight | 35 kg |
|---|
