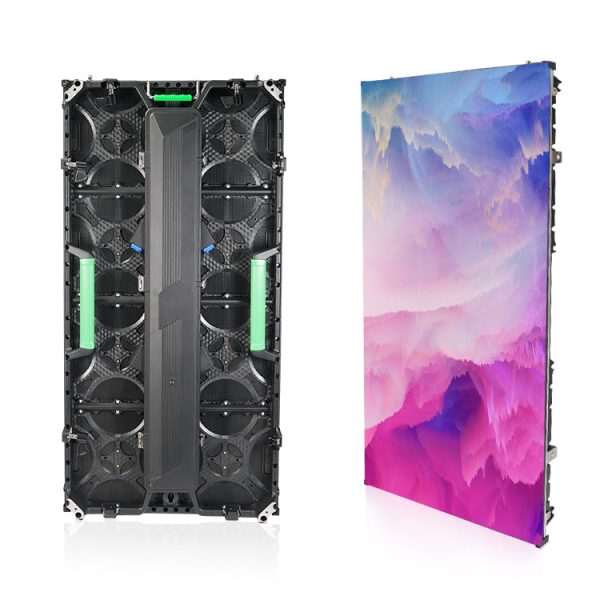

1000x500mm Flexible Curved Indoor Rental P1.56 P1.95 P2.6 P2.98 P3.91 P4.81 LED Display Screen
$120.00 – $250.00

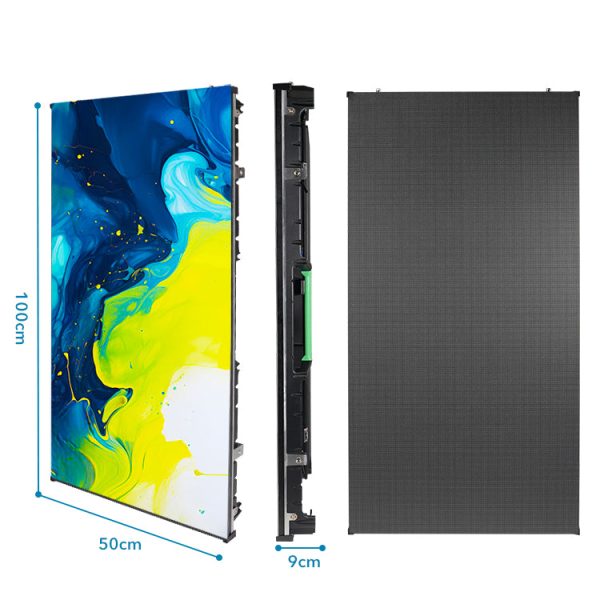

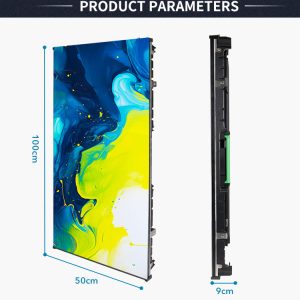

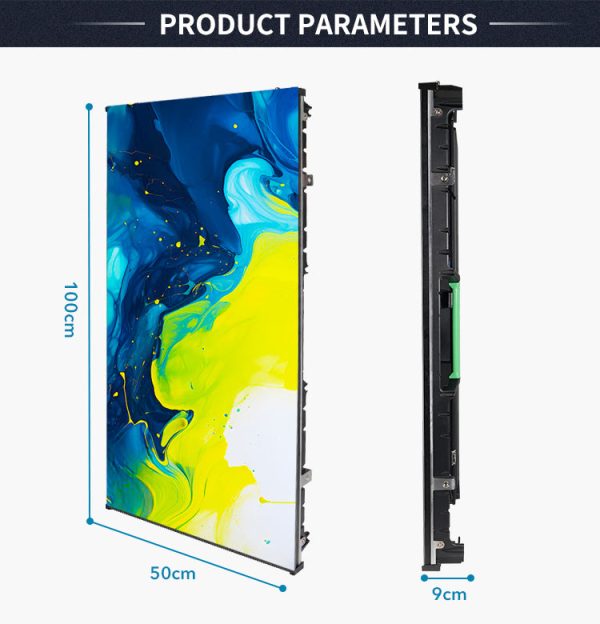

High Refresh Rate : >3840Hz · High Brightness : >1000 Nits · Cabinet Size : 500mm x 1000mm x 80mm
- Description
- Additional information
Description
1000x500mm Indoor Rental P1.56 P1.95 P2.6 P2.98 P3.91 P4.81 LED Display Screen Panels
| Model No. | P1.56 | P1.95 | P2.5 | P2.6 | P2.9 | P3.91 | P4.81 |
| Pixel pitch | 1.5625mm | 1.95mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Led type | SMD1212 GOB | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Resolution(dots/m²) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 | 43264 |
| Brightness(Nits) | ≤800 | ≤800 | ≤800 | ≤800 | ≤1000 | ≤1000 | ≤1000 |
| Drive mode | 1/40 | 1/32 | 25 scan | 1/32 | 28 scan | 16 scan | 13 scan |
| Module size(mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |

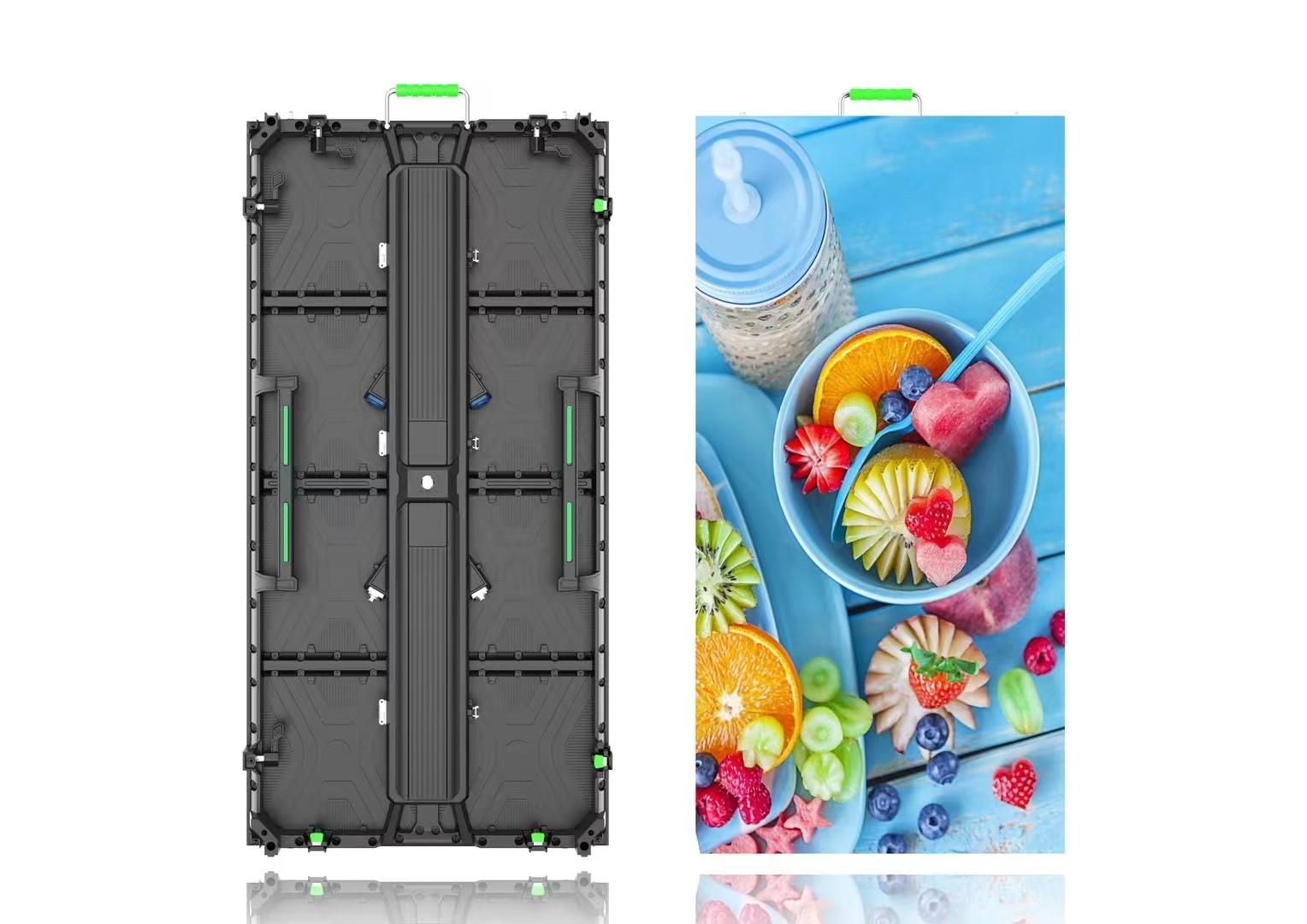

| Panel size (mm) | 1000×500 | 1000×500 | 1000×500 | 1000×500 | 1000×500 | 1000×500 | 1000×500 |

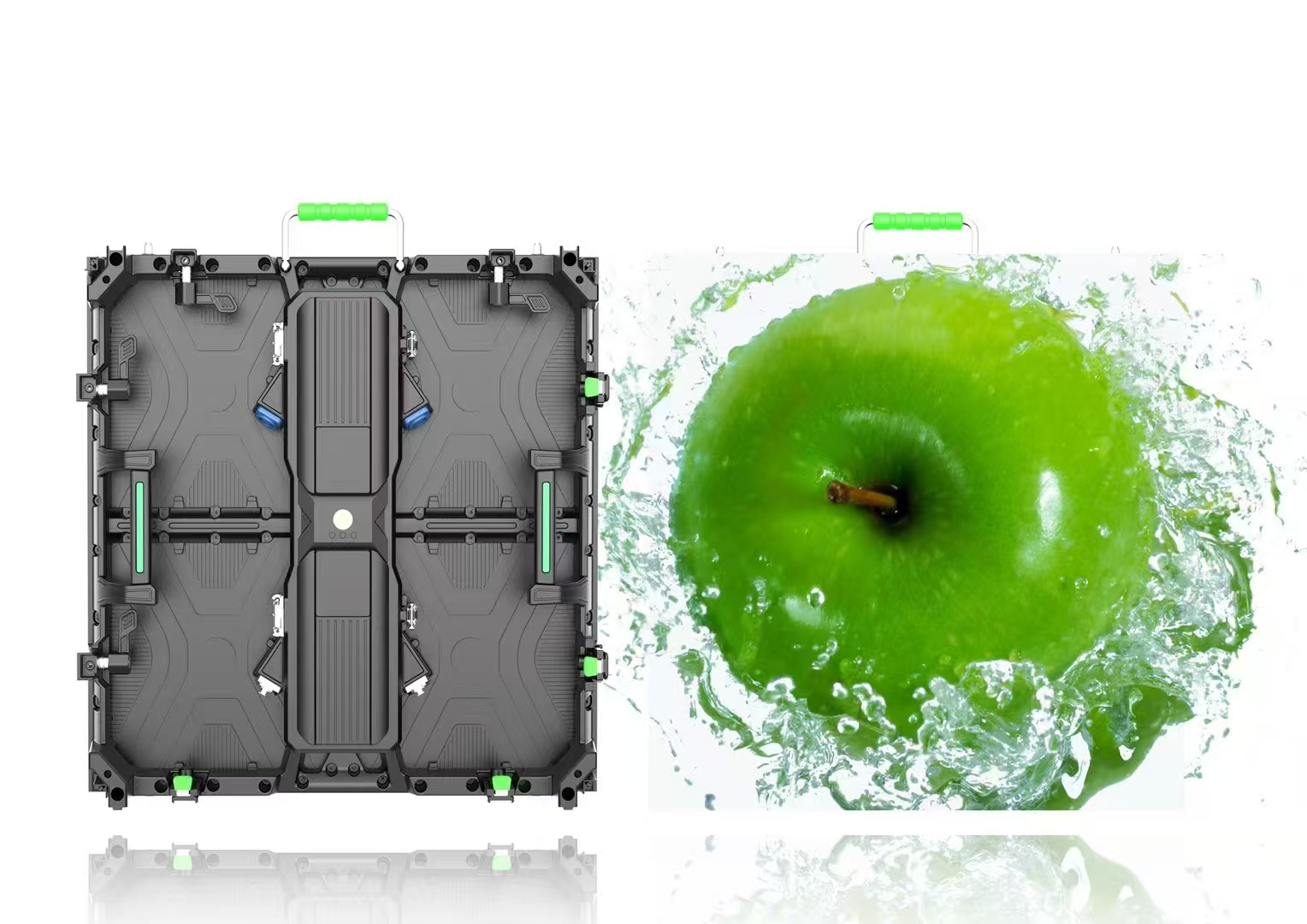

| 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | |
| 1000×250 | 1000×250 | 1000×250 | 1000×250 | 1000×250 | 1000×250 | 1000×250 | |
| 750×250 | 750×250 | 750×250 | 750×250 | 750×250 | 750×250 | 750×250 | |
| 500×250 | 500×250 | 500×250 | 500×250 | 500×250 | 500×250 | 500×250 | |
| Module resolution | 160×160 | 128 x128 | 100 x100 | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| (dots) | |||||||
| Panel weight(kg/sq.m) | 25kgs | 25kgs | 25kgs | 25kgs | 25kgs | 25kgs | 25kgs |
| Power consumption | 800/350 | 800/350 | 800/350 | 600/300 | 600/300 | 700/300 | 560/280 |
| Max./Avg. (W/m²) | |||||||
| View angle(H/V) | 160°/140° | 160°/140° | 160°/140° | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Refresh rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥1920 | ≥1920 |
| Best view distance | >1.5m | >2m | >2.5m | >2.6m | >2.9m | >4m | >4m |
| Protection level | IP45 | ||||||
| Input Power (V) | 110V±10% / 220V±10% | ||||||
| Working Temperature | -35ºC~+50ºC ±10% | ||||||
| Working humidity | 10% ~90% | ||||||
| Control | Caste ≤100M, Fiber optical≤10000M | ||||||
Additional information
| Weight | 4 kg |
|---|---|
| Pixel | P2.604(500*1000mm), P2.976(500*1000mm), P3.91(500*1000mm), P4.81(500*1000mm), P1.95(500*1000mm), P2.84(500*1000mm) |
