Indoor Interactive LED Display Panel Dance Floor
$229.00
IP54 IP45 Indoor Iron cabinet size 500x1000x60mm Indoor Interactive LED Display Panel Dance Floor P2.5,P2.6,P2.97,P3.91,P4.81,P5.2,P6.25,2000kg/sqm load-bearing capacity
- Description
- Additional information
Description
Features
3840 Hz
Common Cathode Design
Interaction
Wide Viewing Angles
2200kg/m² Load capacity
Front rear Maintenance
Iron cabinet
High Strength Structure
Advantages
Feature Description
- – 160 ° wide viewing angle
- – High precision and strong strength
- – Selected Mask Material with surfaceAnti-skid & Anti-cratch treatment
- – Build-in Interactive IC
- – Max. Brightness up to 3000nit
- – Super Strong Load-bearing Performance
Video
Parameters
Highly Stable Design
Strong PC mask make our led floor to be anti-skid, anti-knock, anti-glare, and module is with the cooling board to ensure the heat can be discharged quickly and effectively
High-Performance Load-Bearing
The load-bearing capacity reaches 2000kg/sqm, which can cope with direct trampling on high heels, rolling on vehicles, etc.

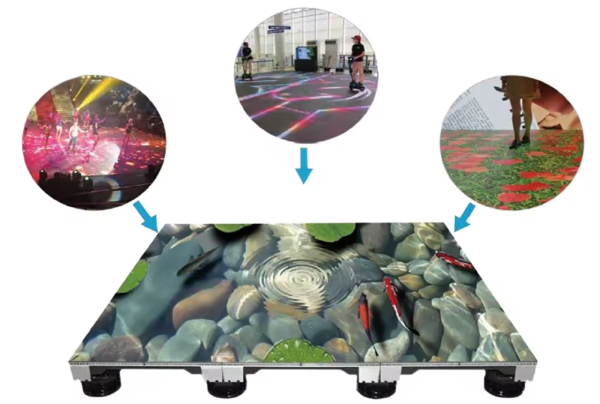

Intelligent induction
The module has a built-in self-developed interactive sensor chip with a response speed of only 0.016s
Easy maintenance
Front maintenance for LED module, receiving card, and power supply

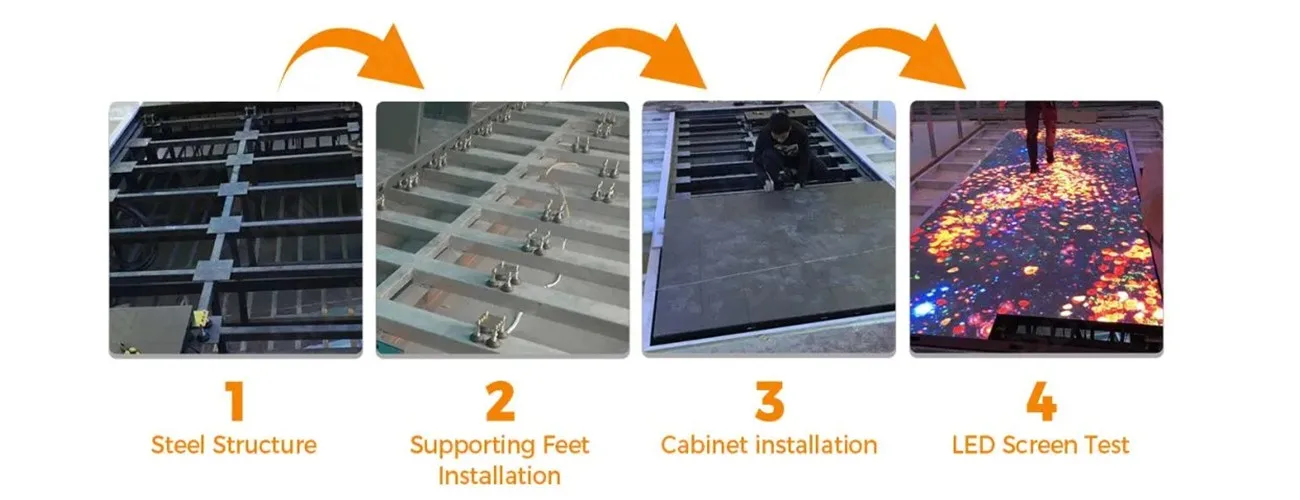

Installation
Easy Installation

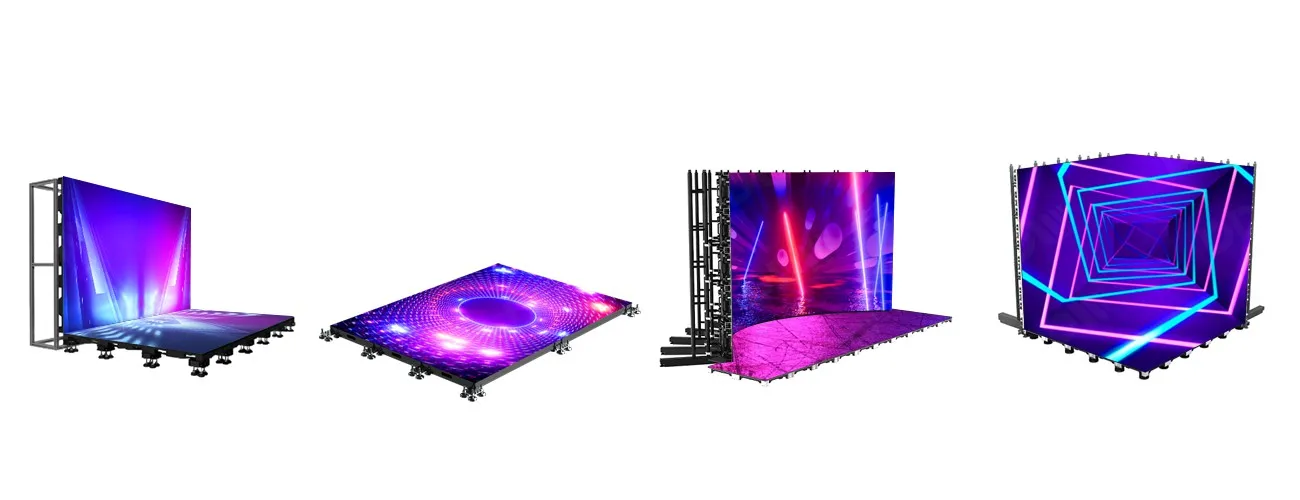

Various installation mode
Indoor Interactive LED Display Panel Dance Floor Specifications
| Pixel Pitch (mm) | 2.5 | 2.6 | 2.976 | 3.91 | 4.81 | 5.2 | 6.25 |
| LED Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Module Resolution | 100 x 100 pixels | 96 x 96 pixels | 84 x 84 pixels | 64 x 64 pixels | 52 x 52 pixels | 48 x 48 pixels | 40x 40 pixels |
| Module Dimensions(W x H x D)(mm) | 250 x 250 x 18 | ||||||
| Cabinet Resolution | 200 x 200 pixels | 192 x 192 pixels | 168 x 336 pixels | 128 x 256 pixels | 104 x 208 pixels | 96 x 192 pixels | 80 x 160 pixels |
| Cabinet Dimensions(W x H x D)(mm) | 500 x1,000 x 60 | ||||||
| Contrast Ratio | >3,000:1 | ||||||
| Brightness (cd/㎡) | 900-1800 | 900-1800 | 900-1800 | 900-1800 | 900-3000 | 900-3000 | 900-3000 |
| Max./Avg. Power(W) | 400 / 200 | ||||||
| Viewing Angle | 160°/160° | ||||||
| Operating Voltage | 100-240V AC 50-60Hz | ||||||
| Refresh Rate | 3840Hz | ||||||
| IP Rating | IP54/IP45 | ||||||
| Cabinet Weight(Kg) | 23 | ||||||
| Cabinet Material | Iron | ||||||
| Max Load-Bearing | 2200 Kg | ||||||

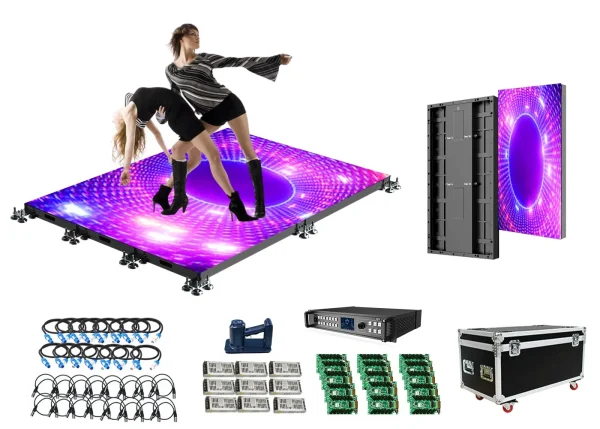

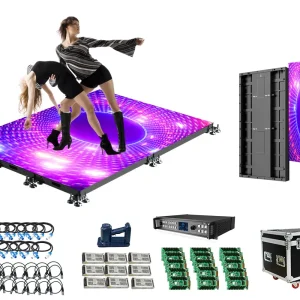

Accessories
Sending box
Power Supply
LED suction cup
Video Processor

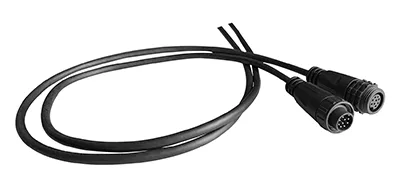

Signal cable

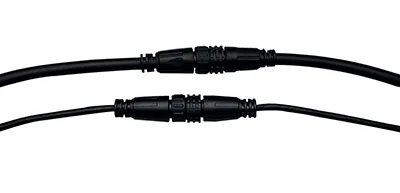

Power cable

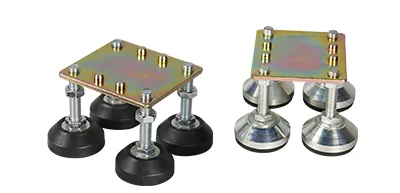

Adjustable Foot
Wooden case packing
Additional information
| Weight | 40 kg |
|---|
