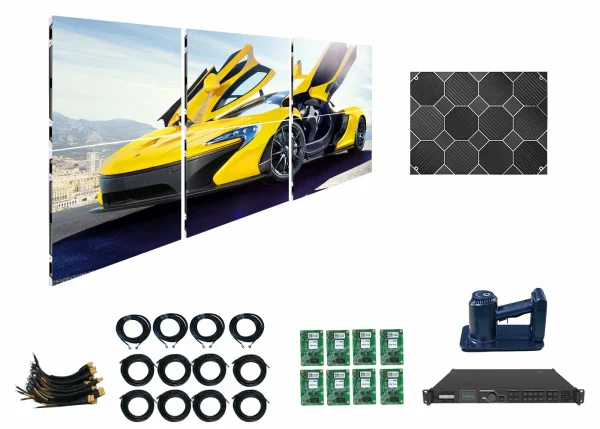

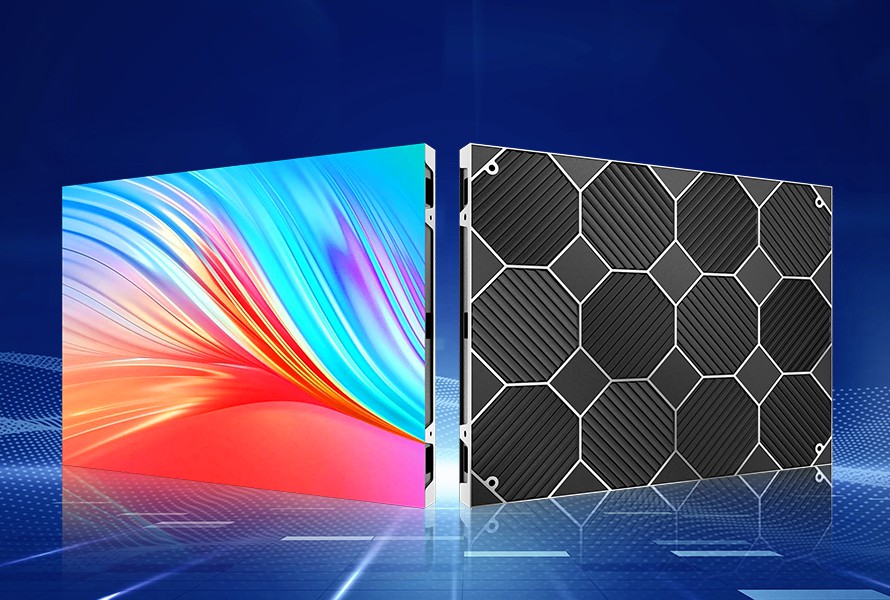

Indoor HD COB GOB Small Pitch LED Display
$173.00
The cabinet size of GOB series is 640*480mm .Key features support power backup and system backup .Also It supports front maintenance ,fixed installation and ceiling installation . And it is compatible with P1.25 P1.53 P1.66 P1.86 P2 and P2,5 pixel pitch .This ultra fine HD led display is widely used in high-end HD displays such as smart cities, command and dispatch center, conference medical education, security monitoring and emergency center, radio and television broadcasting hall, military operation command center, airspace and rail transit control room, electric sports events, oil and gas energy control center and other fields.
- Description
- Additional information
Description
Features
Upto 3840Hz
Wide Viewing Angles
Common Cathode Design
High Flexibility
Magnetic Suction Installation
Front Maintenance
Die Cast Aluminum
6.5kg/pc
Advantages
Feature Description
- – Low brightness and high gray technology, 5000:1, low power consumption
- – 3840Hz refresh rate,real and natural high dynamic picture display ,no smear
- – Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
- – Metal heat dissipation, ultra-quiet fan less design
- – Full front maintenance. High precision adjustment
- – Optional power supply and signal dual backup function
- – Die-cast aluminum design, seamless border less, infinite splicing
Video
Parameters
Die cast aluminum design
Full front maintenance，Module, receiving card, Hub card, power supply takes out from front side.

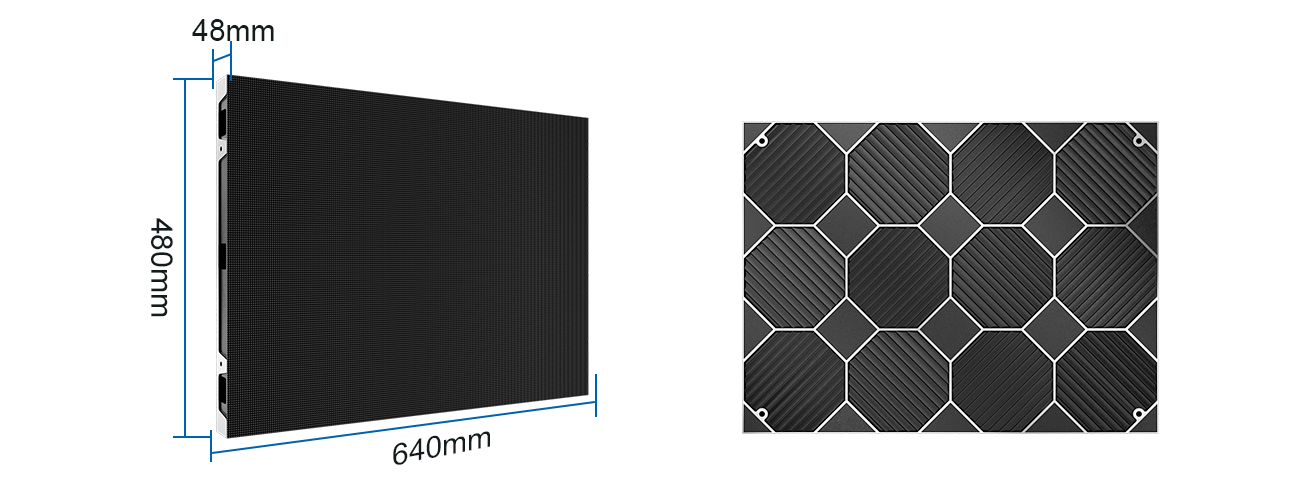

Cabinet Specs
First class design for die casting cabinet frame, each cabinet (include all components) is only 6.5 kg , four sets strong fast lock to make assembling easier.

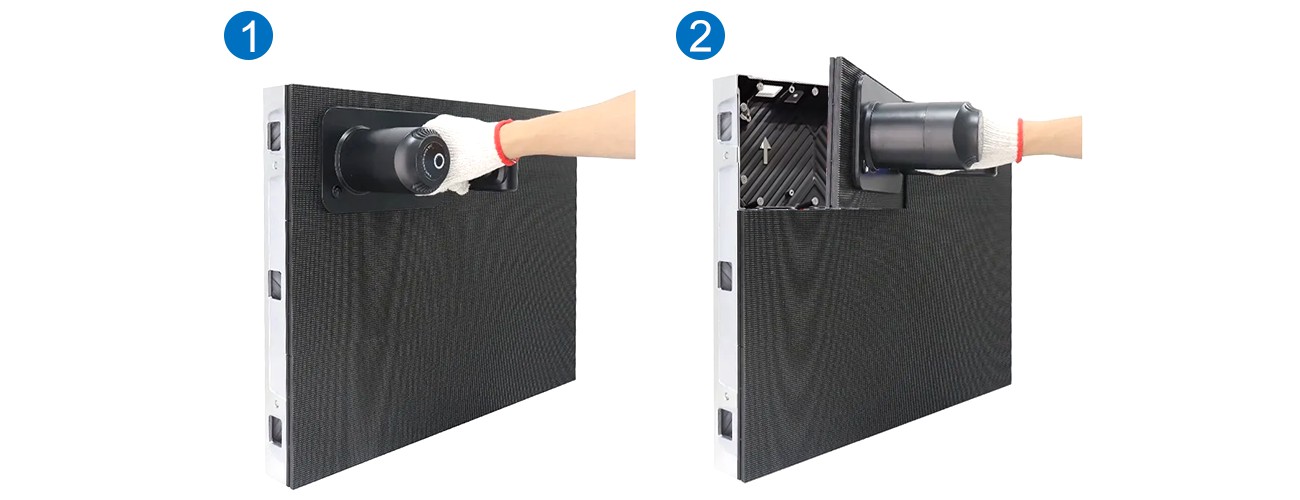

Front maintenance
Full front maintenance，Module, receiving card, Hub card, power supply takes out from front side.

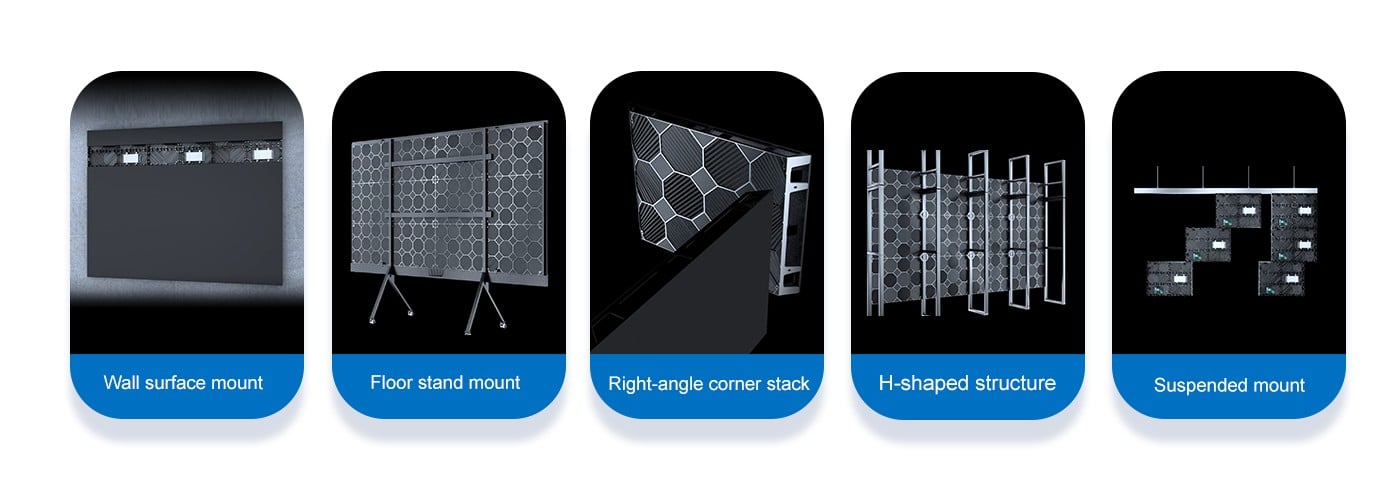

Installation
Various installation mode
Indoor HD COB GOB Small Pitch LED Display Specifications
| Pixel (mm) | 1.25mm | 1.53mm | 1.66mm | 1.86mm | 2mm | 2.5mm |
| Pixel Density (Pixel/ m²) | 640000 | 422750 | 360000 | 289000 | 250000 | 160000 |
| Cabinet Resolution | 512×384 | 416×312 | 384×288 | 344×258 | 320×240 | 256×192 |
| Led Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2121 |
| Cabinet Size(mm) | 640×480×60 | |||||

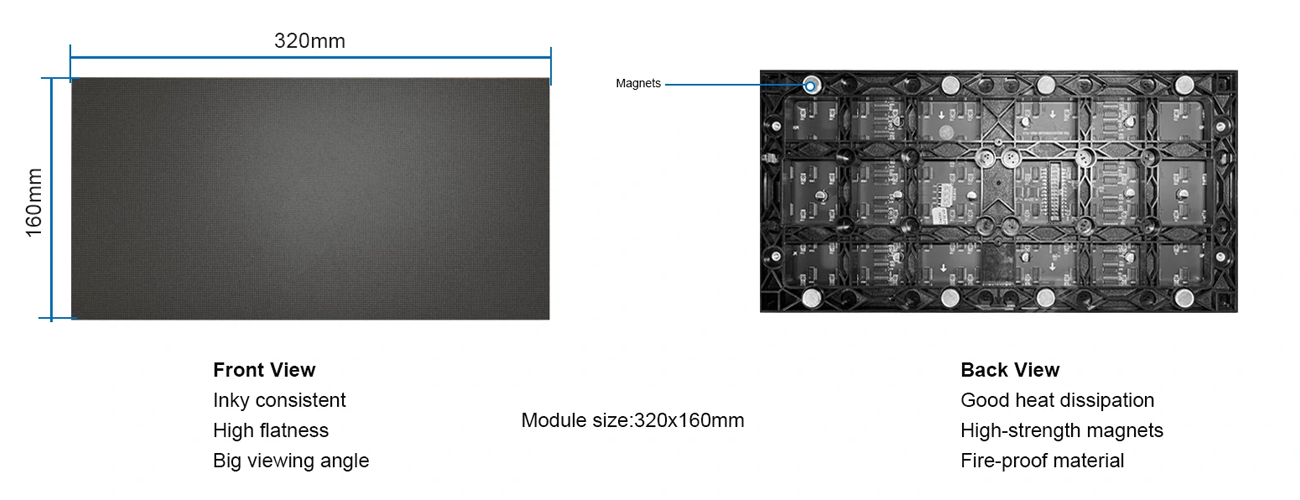

| Module Size(mm) | 320×160 | |||||
| Brightness | 800~1200 | |||||
| Gray Scale（bit） | 16 | |||||
| Module Resolution | 256×128 | 208×104 | 192×96 | 172×86 | 160×80 | 128×64 |
| Control Mode | Synchronous asynchronous | |||||
| Repetition Frequency | 60Hz | |||||
| Refresh | ≥3840 | |||||
| Working Voltage | AC:110v~240V | |||||
| Average Power Consumption | 100W/ m²~300w/m² | |||||
| LED Lifetime(H) | 100,000h | |||||
| Storage Temperature (℃) | -20C~+60℃ | |||||
| Operation Temperature (℃) | -10C~+40℃ | |||||
| Protection Grade | 10％～90％RH,Non-condensing | |||||
| Operation Humidity | IP43 | |||||
| Cabinet Weight（kg） | 6.5 | |||||
| Maintenance | Front maintenance | |||||

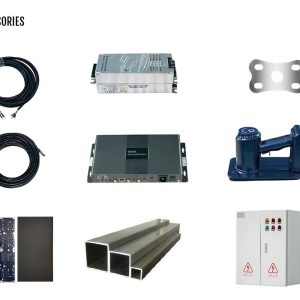

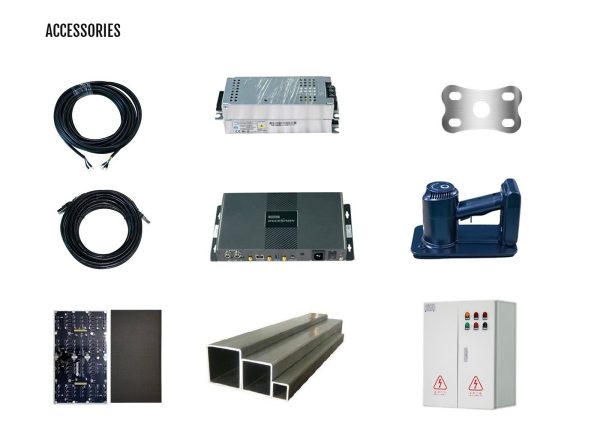

Accessories

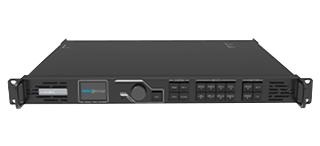

Video Processor

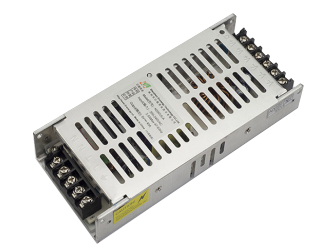

Power Supply
LED suction cup
Receiving card
Signal cable
Power cable
Power cabinet
Wooden case packing
Additional information
| Weight | 30 kg |
|---|
