Mini 4 in 1 COB LED Display Screen 600×337.5
$347.00
16:9 P0.4 P0.5 P0.6 P0.7 P0.9 P1.2 P1.5 P1.8 P1.9 COB LED Display 600×337.5×27.5mm size, high flatness, Front service design for easy install and disassemble, High definition quality image with excellent visual effect.
- Description
- Additional information
Description
Features
Upto 3840Hz
Wide Viewing Angles
Dual Card Backup
High Flexibility
Magnetic Suction Installation
Front Maintenance
Die Cast Aluminum
4.5kg/pc
Advantages
Feature Description
- – Low brightness and high gray technology, 10000:1, low power consumption
- – 3840Hz refresh rate,real and natural high dynamic picture display ,no smear
- – Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
- – Natural heat dissipation of the cabinet, ultra- quiet fanless design, reducing screen heat and noise
- – Full front maintenance. High precision adjustment
- – Optional power supply and signal dual backup function

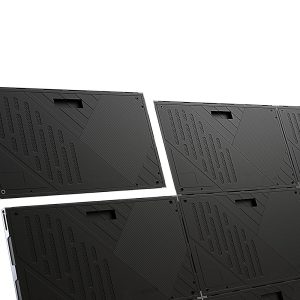

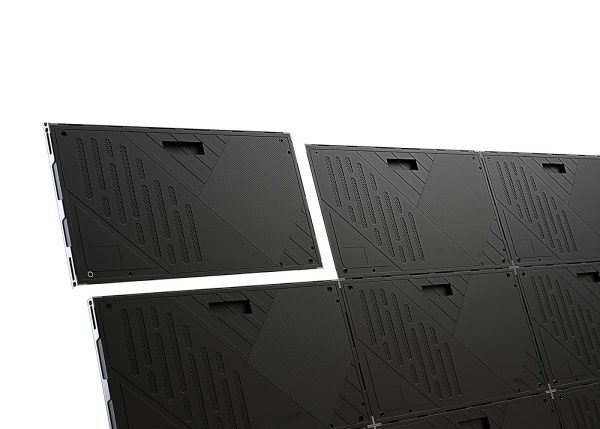

- – Die-cast aluminum design, seamless border less, infinite splicing
Video
Parameters
16:9 Cabinet Design

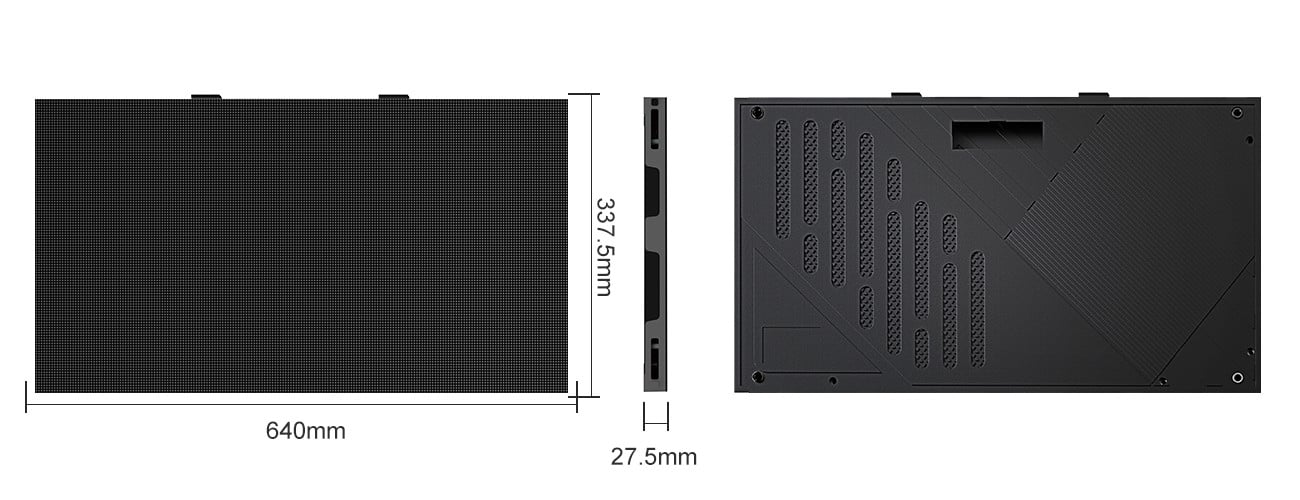

16:9 Golden Ratio Fine Pitch LED Display features , Die cast aluminum cabinet with 600×337.5×27.5mm size, Better color uniformity and high definition display visual quality.
Cabinet Flatness ≤ 0.1MM

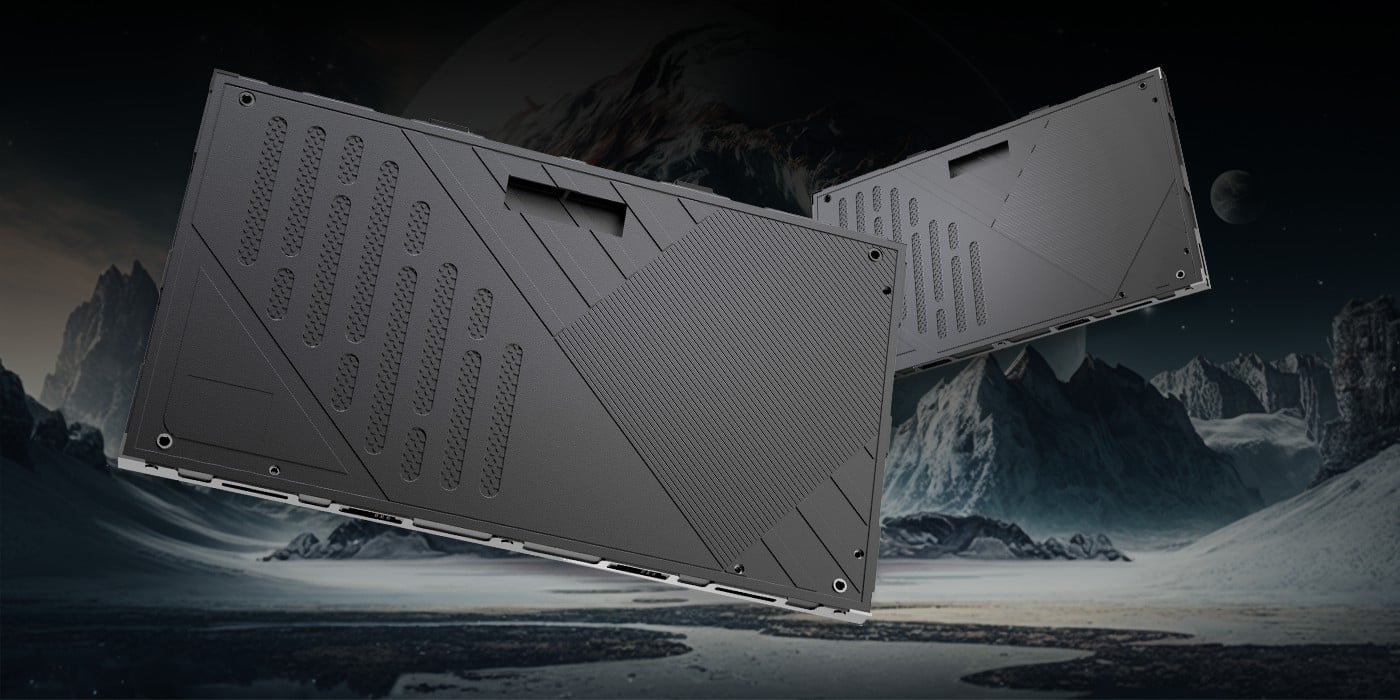

CNC high-precision die-casting aluminum cabinet (cabinet flatness less than or equal to 0.1mm) with no screw design, faster and more secure installation, super silent and fanless design

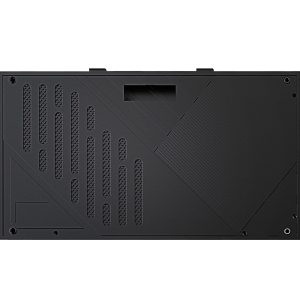

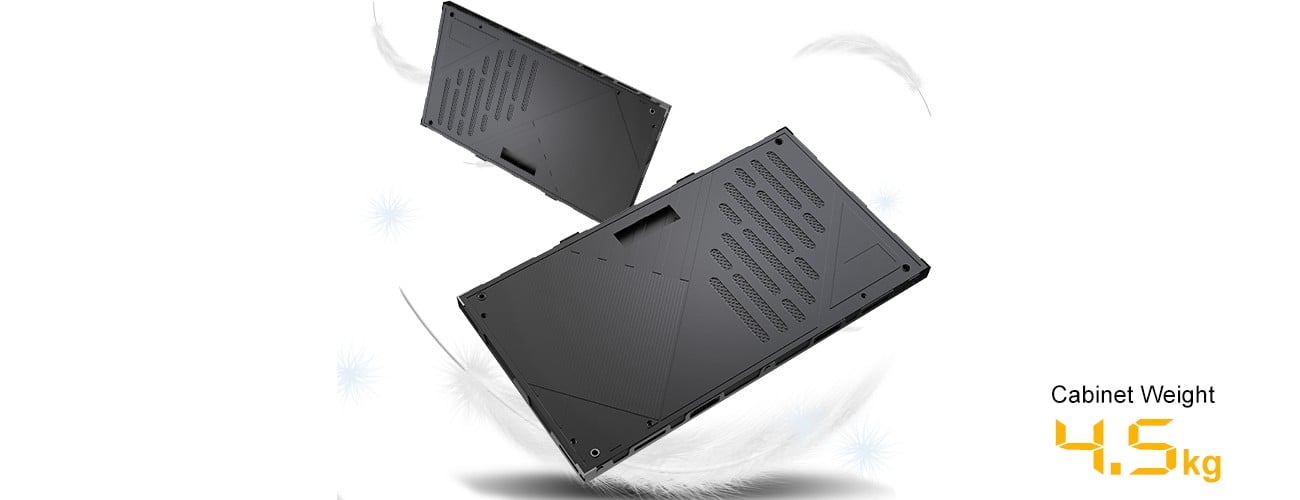

Lightweight Cabinet and Thin Panel

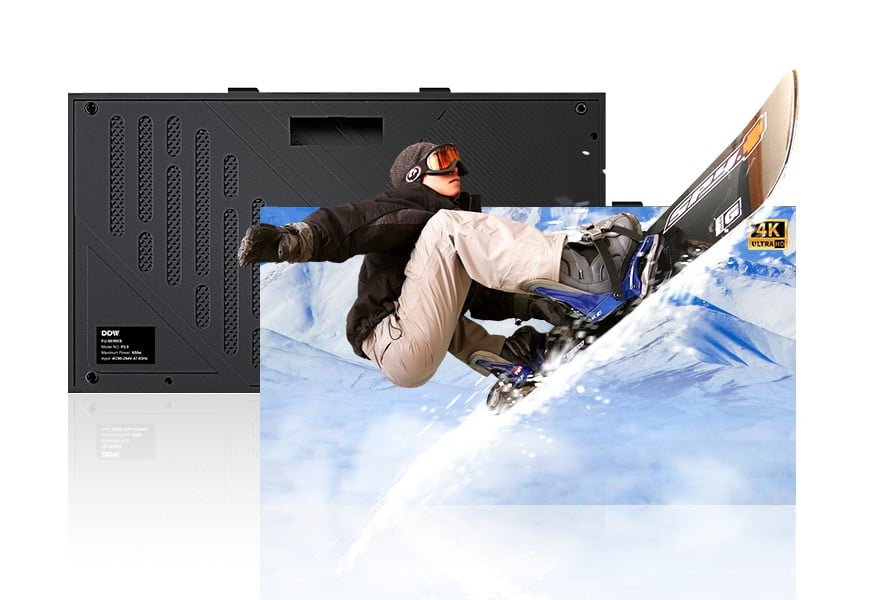

Fine Pitch LED Display with the features of ultra thin, ultra light. the weight is only 4.5kg,which make the LED display is easy to take, transport and assemble, saving time and labor cost.

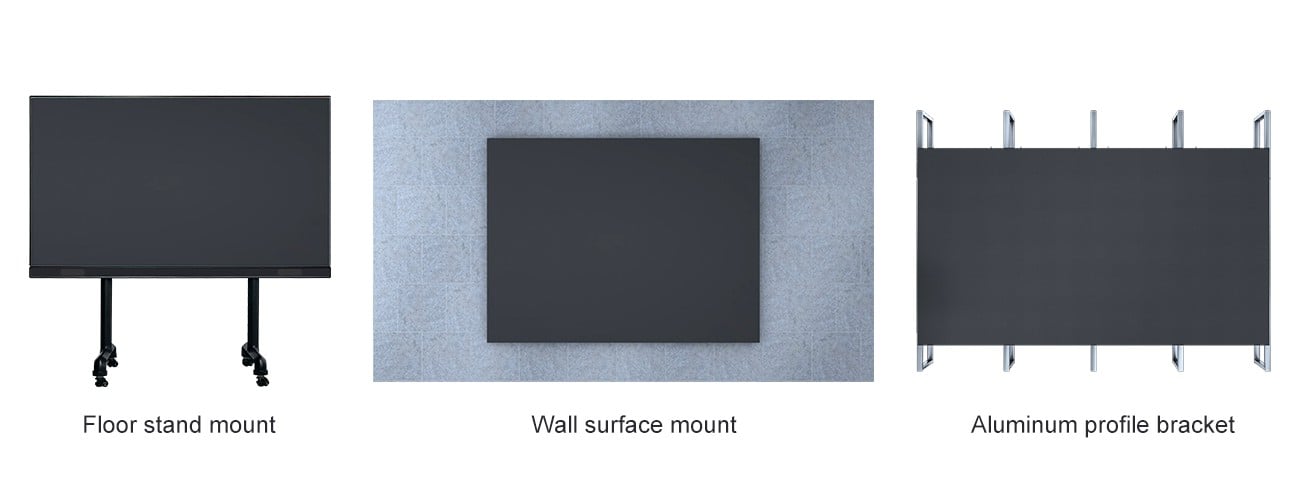

Installation
Various installation mode
COB LED Display Wall-Mounted & Vertical Fixed HD COB LED Video Screen Specifications
| Pixel Pitch | P0.78125 | P0.9375 | P1.25 | P1.5625 | P1.875 |
| LED Type | Mini 4-in-1 | Mini 4-in-1 | SMD1010 | SMD1010/1212 | SMD1010/ SMD1515 |
| Physial Density (dots/m²) | 1638400 | 1137778 | 640000 | 409600 | 284444 |
| Module Resolution | 192×216 | 320×180 | 240×135 | 192×108 | 160×90 |
| Module Size (WxH) | 150×168.75 | 300×168.75 | 300×168.75 | 300×168.75 | 300×168.75 |
| Cabinet Size(mm) | 600×337.5×27.5 | ||||
| Cabinet Resolution | 768×512 | 640×360 | 480×270 | 384×216 | 320×180 |
| Module QTY /Cabinet (WxH) | 4×2 | 2×2 | 2×2 | 2×2 | 2×2 |
| Cabinet Weight(kg) | 4.5 | ||||
| Maintenance Mode | Front access | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| LED brightness correction | Yes | ||||
| Brightness | ≥600 | ||||
| Color Temperature(K) | 1000-18500 Adjustable | ||||
| Grey Level | 16 bit | ||||
| Viewing Angle(H/V) | 170*/170 | ||||
| Brightness/Color Uniformity | ≥99.8% | ||||
| Contrast Ratio | 10000:01 | ||||
| Frame Frequency | 50/60 | ||||
| Drive Mode | Static, 1/48 Scan | Static, 1/46 Scan | Static, 1/45 Scan | Static, 1/48 Scan | Static, 1/45 Scan |
| Refresh Rate (Hz) | 3840 | ||||
| Max Power Consumption（W/m²） | 420 | ||||
| Awerage Power Consumption(W/m²） | 100 | ||||
| IP Grade | IP31 | ||||
| Input Power | AC90-264V, 47-63 Hz | ||||
| Working Temperature/Humidity（°C/RH） | -20-60°C / 10%-85% | ||||
| Storage Temperature/Humidity（°C/RH） | -20-60°C / 10%-85% | ||||

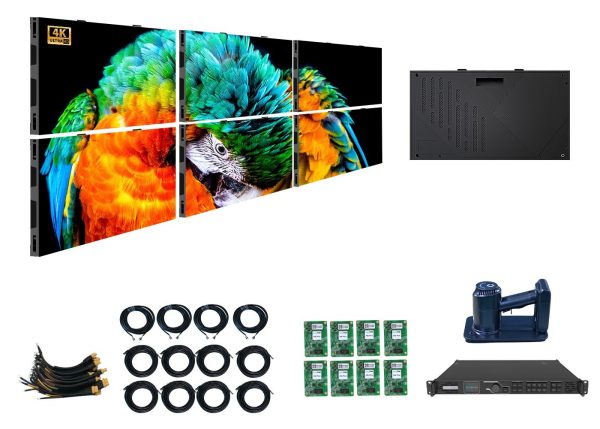

Accessories

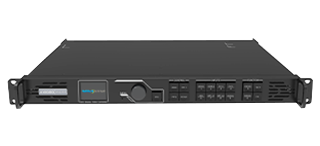

Video Processor

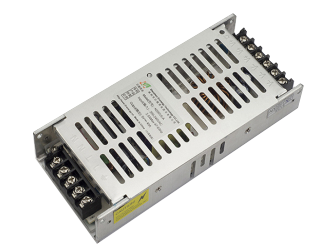

Power Supply
LED suction cup
Receiving card
Signal cable
Power cable
Power cabinet
Wooden case packing
Additional information
| Weight | 35 kg |
|---|
