Outdoor Energy Saving LED Screen Manufacturer
$399.00
High-end Outdoor DOOH LED Display Solutions Energy Saving LED Screens carefully designed in quality and detail, which is used for outdoor fixed installation. It is the most common and widely used outdoor display screen.
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
IP65 Waterproof
High Flexibility
Common Cathode Design
Front Rear Maintenance
Die Cast Aluminum
6500cd High brightness
Advantages
Feature Description
- – High precision Aluminum cabinet frame
- – Electric power saving up to 30%
- – Steel material fast lock system
- – 5000:1 High contrast ratio
- – Hub board front access
- – IP65 waterproof grade
Video
Parameters
IP65 waterproof grade

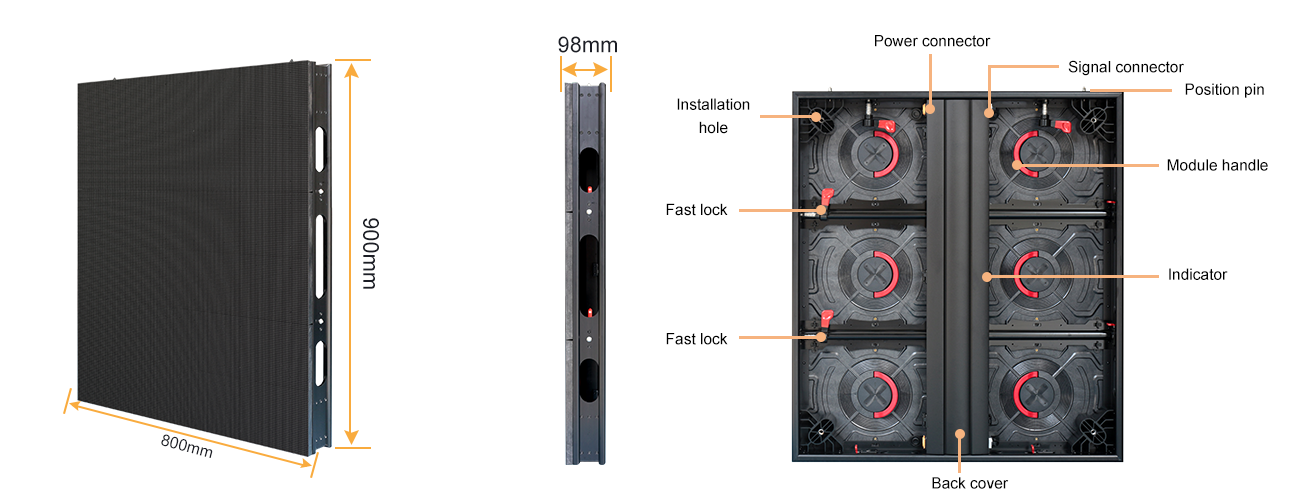

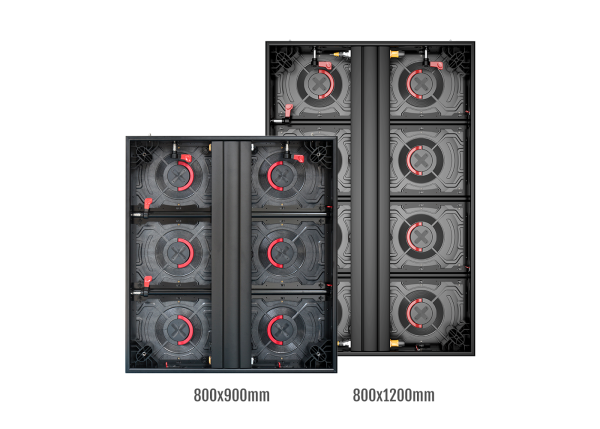

800x900x98mm/800x1200x98mm/1600x900x98mm

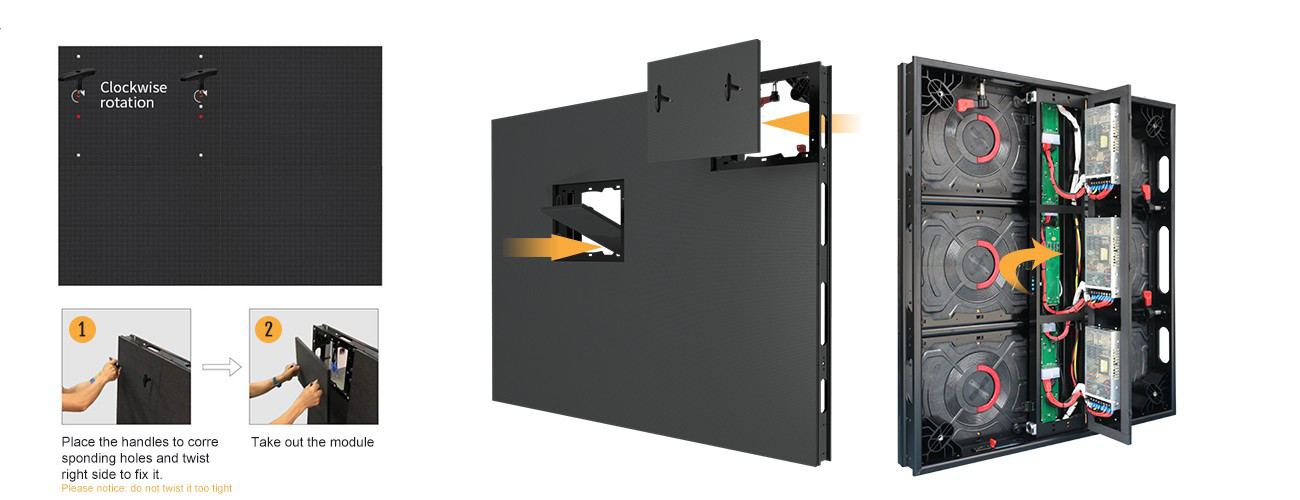

Front and rear maintenance
Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble and disassemble easily and quickly.
Hot-swapping technology

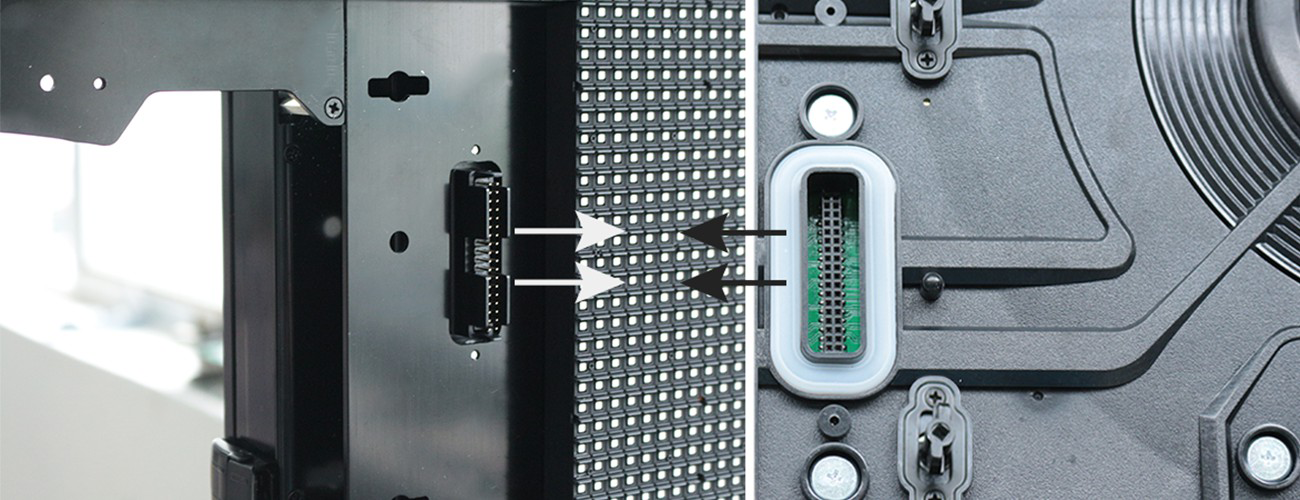

Hard connection supports full front access

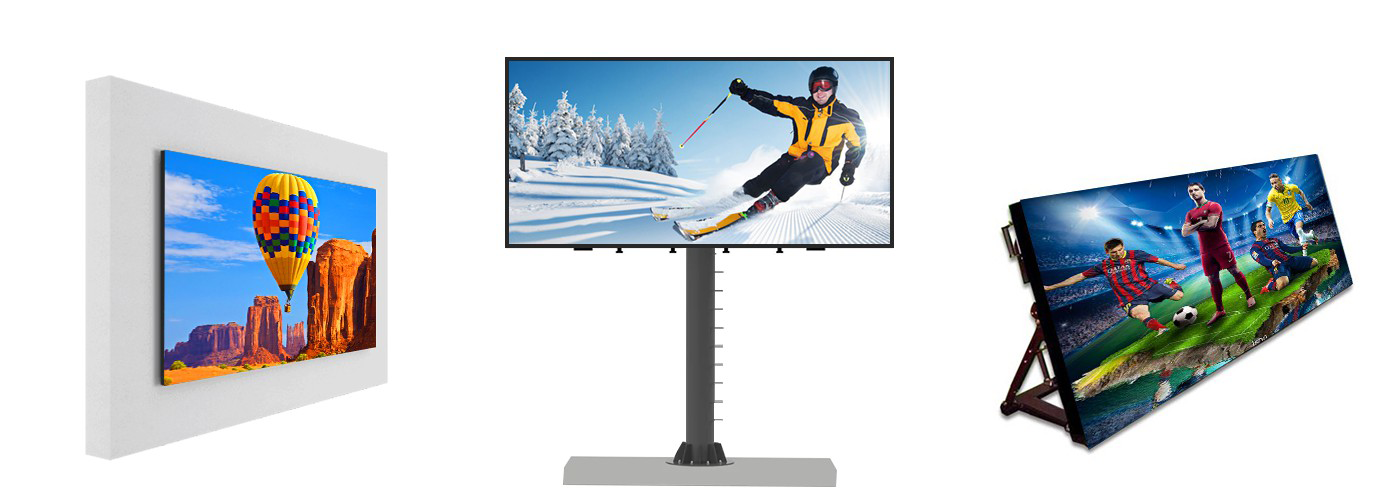

Installation
Wall hanging/single column/vertical support
Outdoor DOOH Energy Saving LED Screens Specifications
| P4.16 | P5 | P6.25 | P8.33 | P10 | |
| SMD type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Physical density（dots/sqm） | 57600 | 40000 | 25600 | 14400 | 10000 |
| Module resolution | 96X72 | 80X60 | 64X48 | 48X36 | 40X30 |
| Module dimension | 400X300 | 400X300 | 400X300 | 400X300 | 400X300 |
| Module quantity（W×H） | 2X3 / 2×4 | 2X3 / 2×4 | 2X3 / 2×4 | 2X3 / 2×4 | 2X3 / 2×4 |
| Panel resolution（W×H） | 192X216 / 192X288 | 160X180 / 160X240 | 128X144 / 128X192 | 96X108 / 96X144 | 80X90 / 80X120 |
| Panel size（mm） | 800×900 / 800X1200 | 800×900 / 800X1200 | 800×900 / 800X1200 | 800×900 / 800X1200 | 800×900 / 800X1200 |
| Flatness（mm） | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 |
| Maintenance mode | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Brightness（nits） | 6500 | 6500 | 6500 | 6500 | 6500 |
| Color temperature（K） | 3200-9300 optional | 3200-9300 optional | 3200-9300 optional | 3200-9300 optional | 3200-9300 optional |
| Grey scale | 65536 | 65536 | 65536 | 65536 | 65536 |
| Viewing angle（V/H） | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° |
| Contrast ratio | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Frame-changing frequently | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Drive mode | Constant curren | ||||
| 1/6 scale | 1/6 scale | 1/6 scale | 1/3 scale | 1/2 scale | |
| Refresh rate | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max power consumption（W/m2） | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 |
| Avg. power consumption（W/m2） | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Electric power requirements | AC90-264V | AC90-264V | AC90-264V | AC90-264V | AC90-264V |
| 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | |

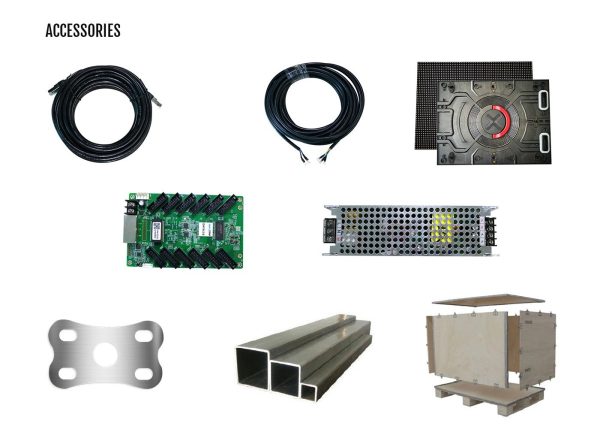

Accessories
Sending box
Power Supply
Pickup card
Outdoor Movable power cabinet
Signal cable
Power cable
Power cabinet
Wooden case packing
Additional information
| Weight | 45 kg |
|---|
