Name: Narrow Pixel Fine Pitch HD 4K COB LED Display
SKU: Narrow Pixel Fine Pitch HD 4K COB LED Display
Availability: InStock

Narrow Pixel Fine Pitch HD 4K COB LED Display

0 out of 5

$217.00

P1.25 P1.56 P1.66 P1.923 400*300mm support power backup and system backup front maintenance ,fixed installation and ceiling installation

SKU: Narrow Pixel Fine Pitch HD 4K COB LED Display Categories: HD LED Screen, Leeman LED Display Screen Tag: Leeman LED Display

Description

≥3840Hz

Wide Viewing Angles

Common Cathode Design

High Flexibility

Magnetic Suction Installation

Front Maintenance

Die Cast Aluminum

Right Angle Splicing

Feature Description

– Low brightness and high gray technology, 5000:1, low power consumption
– 3840Hz refresh rate ,Real and natural for High dynamic picture display,no smear
– Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
– Metal heat dissipation, ultra-quiet fan less design
– Full front maintenance. High precision adjustment
– Optional power supply and signal dual backup function
– Cabinet size 16:9 golden section, easy splicing of 2K, 4K, 8K large screens, point-to-point true color restoration

Aluminum module

200x150mm aluminum module

Magnetic adsorption

Front maintenance design of magnetic suspension adsorption module

Front maintenance

Support both front installation while fully front-accessible serviceability makes more friendly maintenance and saves your space.

Aluminum profile support

Wall-mounted installation

Pixel pitch	1.25mm	1.56mm	1.667mm	1.923mm
Panel resolution (W×H)	320×240	256×192	240×180	208×156
Module distribution (W×H)	2×2
Flatness between modules	≤0.1mm

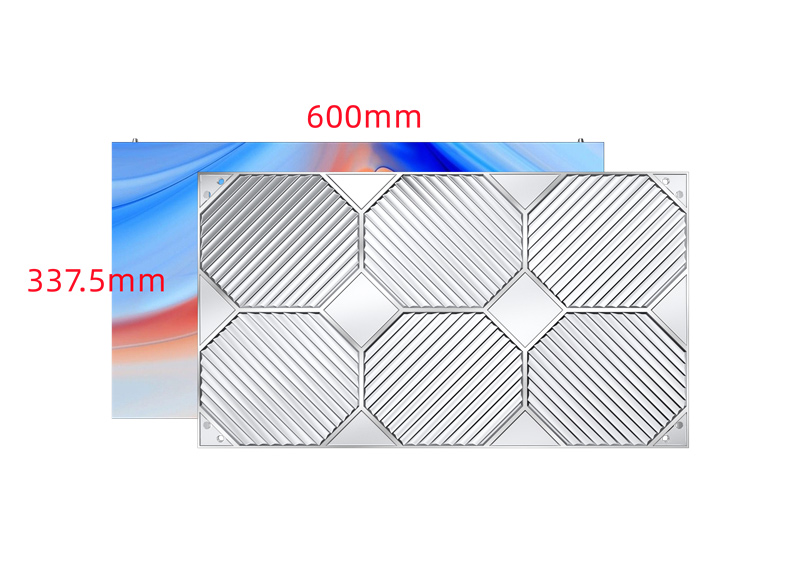

Panel size(WxHxD)	640mmx480mmx60mm or 600mmx337.5mmx60mm
Panel weight	3.5Kg/pc

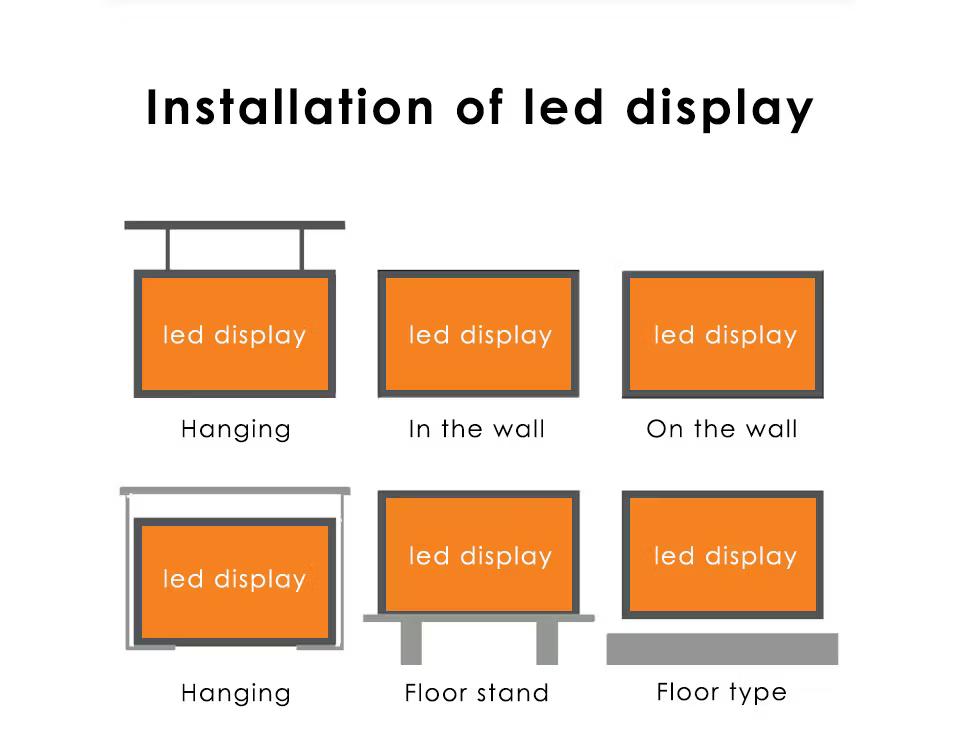

Installation method	Back Frame Installation / Hoisting / Inner Arc Installation
Brightness	200cd~800cd/ m’Adjustable
Viewing Angle(H/V)	140°/140°
Driving Way	Constant current drive
Refresh rate	≥3840Hz
Working voltage	AC : 110V~240V、50~60Hz
Avg.Power Consumption	100w/ m² ~ 300w/ m²
Screen temperature rise(running state)	≤5 degrees
Operating Temperature	-10℃ ~60℃
Operating Humidity	10%~90%RH,No condensation
LED Lifetime	100000 hrs
