Indoor LED Screen Panel
$247.00
P2 P2.5 P2.9 P3 P3.9 P4 P4.8 P5 P6,SPCC iron cabinet can be made in many sizes,most cost-effective indoor fixed mount LED display screen solution.
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
High Strength Structure
Magnetic Suction Installation
Common Cathode Design
Front Rear Maintenance
Quality SPCC Cabinet
600-1000nits Brightness
Advantages
Feature Description
- – Iron cabinet, convenient and simple design
- – 3840Hz High refresh
- – High refresh rate, the screen playback is clearer and smoother
- – Simple structure,lron cabinet design, light weight
- – Easy installation with connector design Saving about 1/3 installation time
Video
Parameters
High Quality Frame
First class design for iron cabinet, each cabinet (include all components) has four sets strong fast lock to make assembling to be easier.

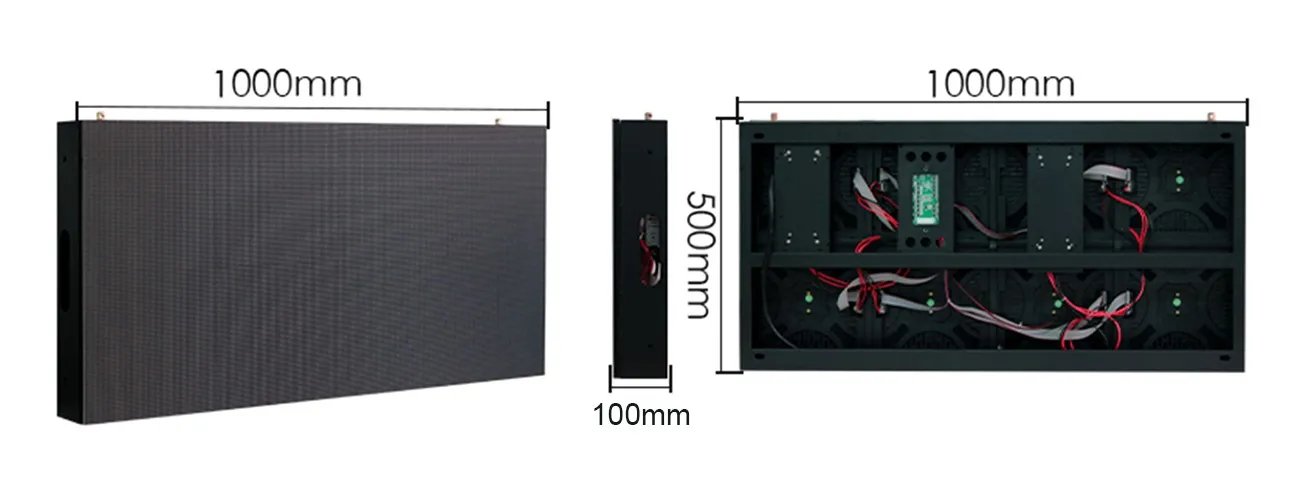

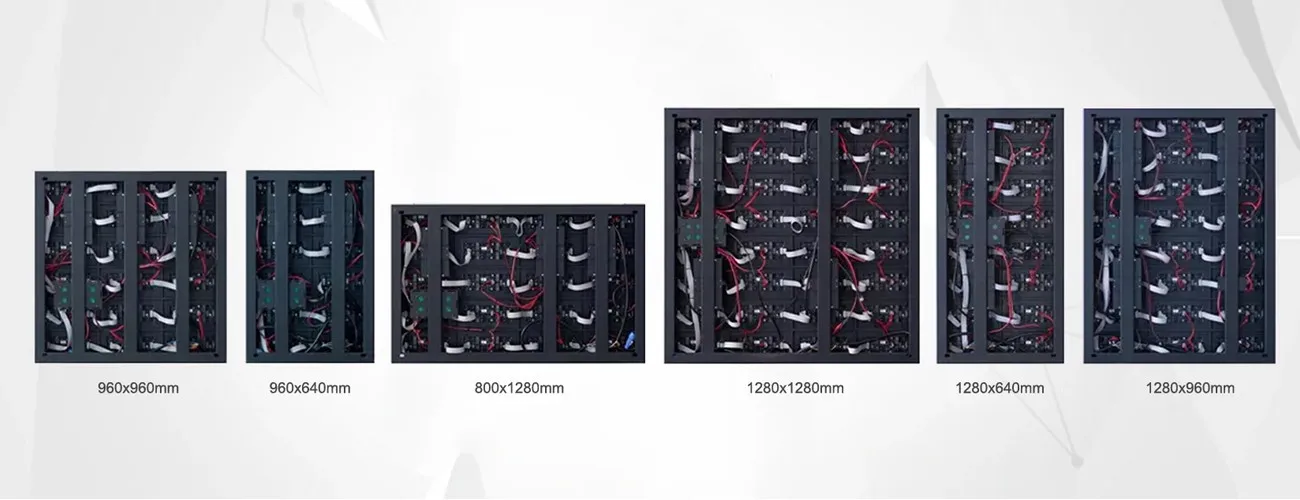

Cabinet Size Customized
Flexible cabinet size:960*640/960*960/800*1280/1280*500/1280*960/1280*1280mm

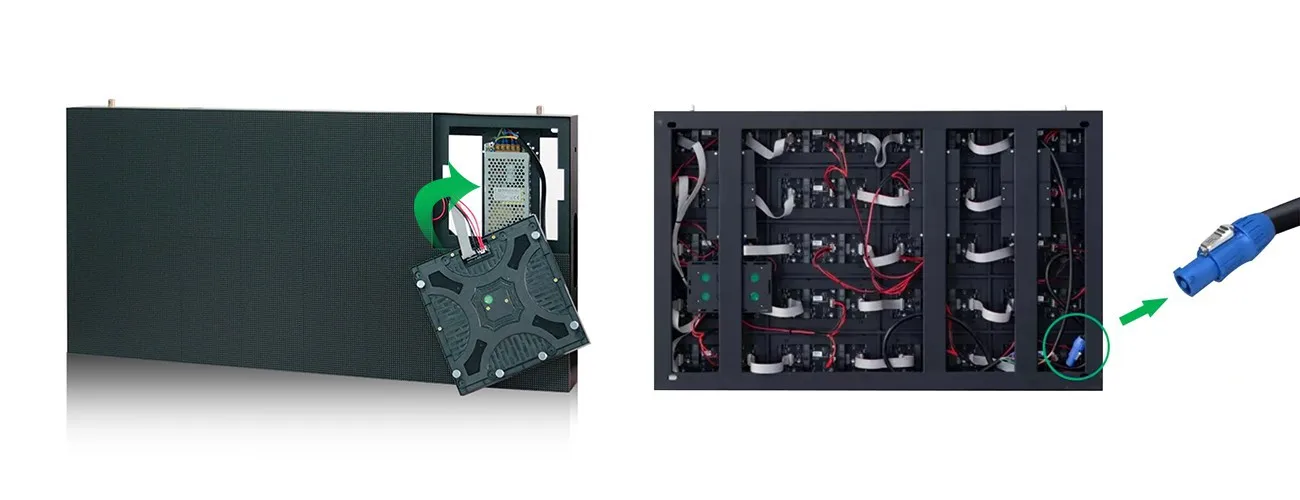

Front maintenance
The front maintenance, installation and maintenance of magnetic suction module are convenient，Easy installation with connector design Saving about 1/3 installation time
Installation

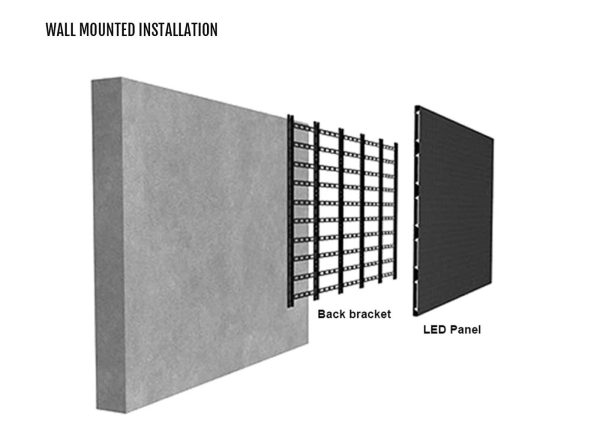

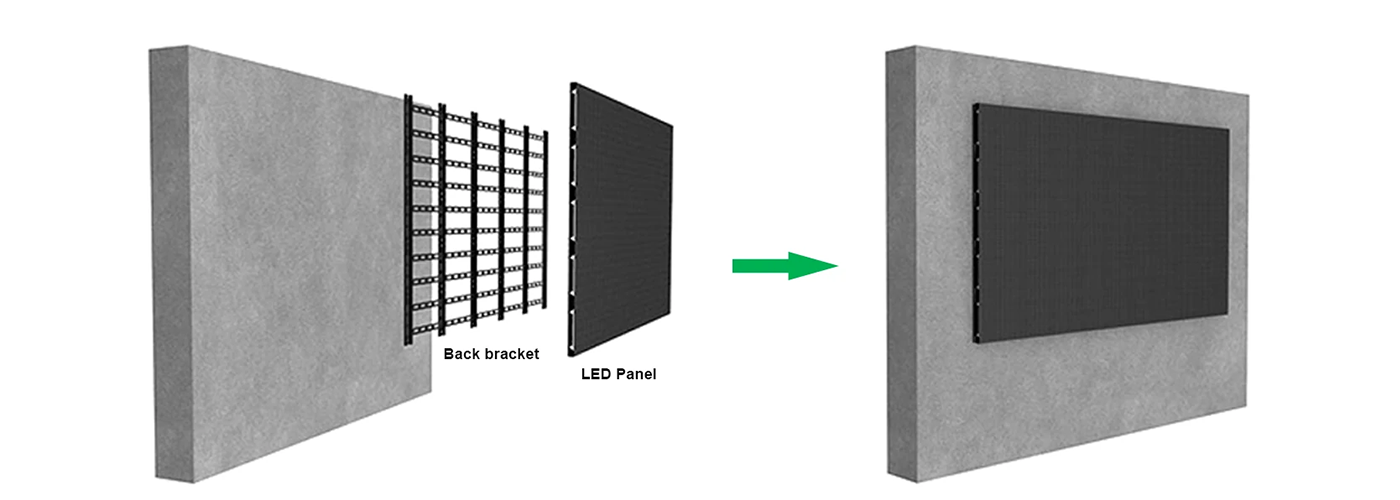

Wall-mounted installation
Various installation mode
Indoor LED Screen Panel Specifications
| Model | P2 | P2.5 | P2.976 | P3 | P3.91 | P4 | P4.81 | P5 | P6 |
| Module size(mm) | 320×160 | 320×160 | 250×250 | 192×192 | 250×250 | 320×160 | 250×250 | 192×192 | 320×160 |
| Module resolution (dot) | 160×80 | 128×256 | 84×84 | 64×64 | 64×64 | 64×32 | 52×52 | 32×32 | 64X32 |
| Scanning | 1/40S | 1/32S | 1/28S | 1/32S | 1/16S | 1/20S | 1/13S | 1/16S | 1/16S |
| SMD | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B |
| Maintenance | Front | Front | Front | Front | Front | Front | Front | Front | Front |
| Installation | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back |
| Cabinet size(mm) | 960×960 | 960×960 | 1000×1000 | 960×960 | 1000×1000 | 960×960 | 1000×1000 | 960×960 | 960×960 |
| Density(dot/㎡) | 250000 | 160000 | 112896 | 111111 | 66410 | 62500 | 43222 | 40000 | 40000 |
| Brightness(cd/㎡) | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Max. Power Consumption | 600w | 600w | 600W | 600w | 600W | 600w | 600W | 600w | 600w |
| Average Power Consumption | 200w | 200w | 200W | 200w | 200W | 200w | 200W | 200w | 200w |
| Cabinet weight (kg/m²) | 18.5kg | 18.5kg | 20kg | 18.5kg | 20kg | 18.5kg | 20kg | 18.5kg | 18.5kg |
| Cabinet material | Iron | Iron | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| IP rate | IP31 | IP31 | IP 31 | IP31 | IP 31 | IP31 | IP 31 | IP31 | IP31 |
| Grayscale | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Refresh rate(hz) | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7860 | 3840-7680 | 3840-7680 | 3840-7860 |
| Frame change frequency | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz |
| Horizontal viewing angle | >140° | >140° | >140° | >140° | >140° | >140° | >140° | >140° | >140° |
| Vertical viewing angle | >140° | >140° | >140° | >140° | >140° | >140° | >140° | >140° | >140° |
| Best viewing distance | >2m | >2.5m | >3m | >3m | >4m | >4m | >4m | >5m | >6m |
| Input Voltage | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V |
| Module Max. current | 3.5-4.5 | 4.0-5.0 | 2.5-3.5 | 2.5-3.5 | 3.0-4.5 | 3.0-4.5 | 3.0-4.5 | 3.0-3.5 | 3.0-3.5 |
| Temperature-operating | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ |
| Humidity-operating | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Life span (H) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 |
| MTBF (H) | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 |

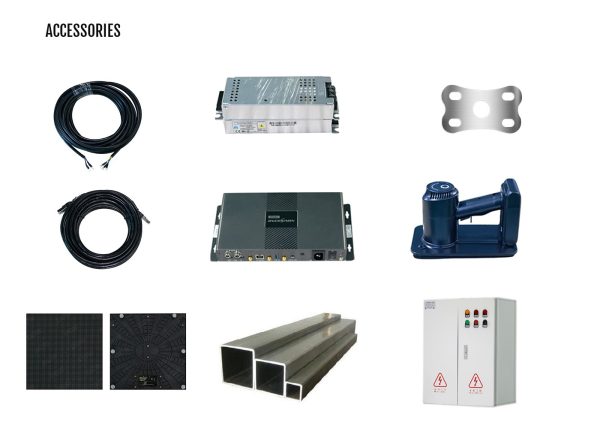

Accessories

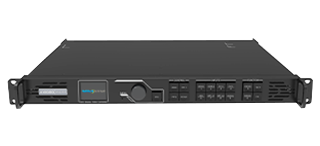

Video Processor

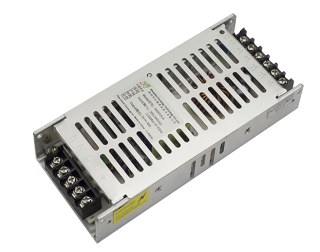

Power Supply
LED suction cup
Receiving card
Signal cable
Power cable
Power cabinet

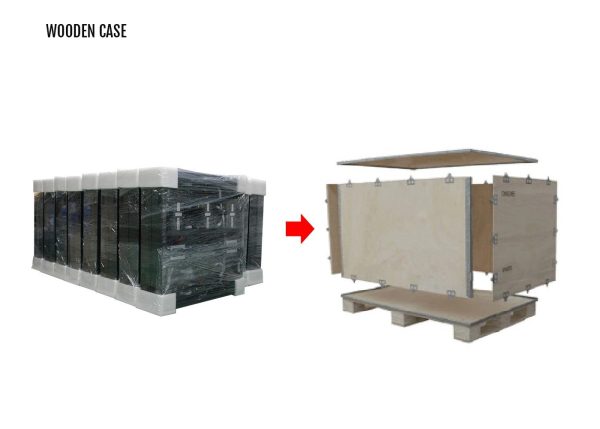

Wooden case packing
Additional information
| Weight | 40 kg |
|---|
