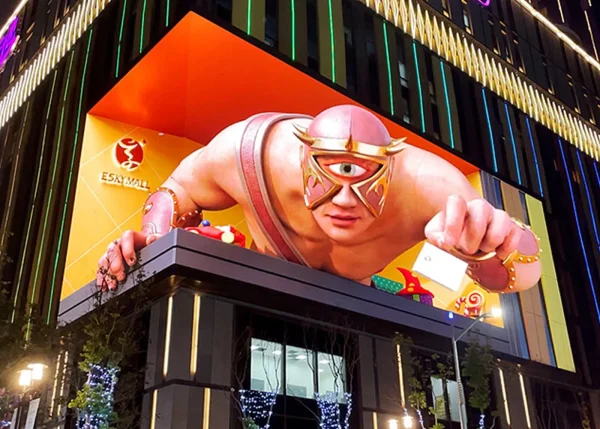

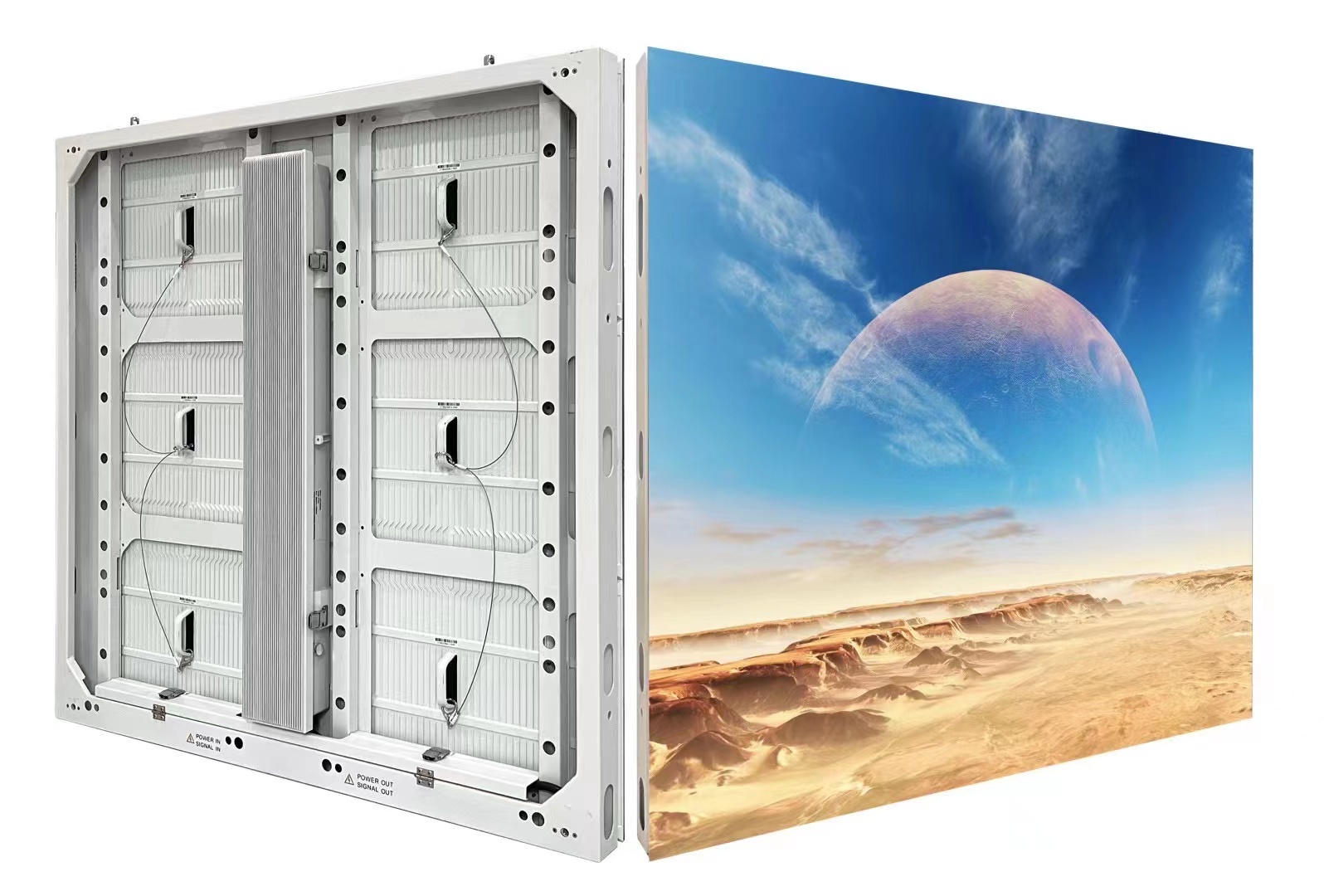

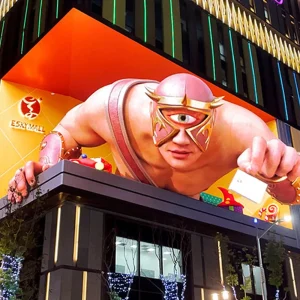

Naked-Eye 3D LED Display Screen
$426.00
P2.9 P3.9 P4.8 P5.7 P6.6 P8.3 P10 960×1280/960×960/960×640/1440×1280/1440×960 Outdoor 3D LED screen aluminum cabinet
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles
IP66 Waterproof
High Flexibility
Common Cathode Design
Front Rear Maintenance

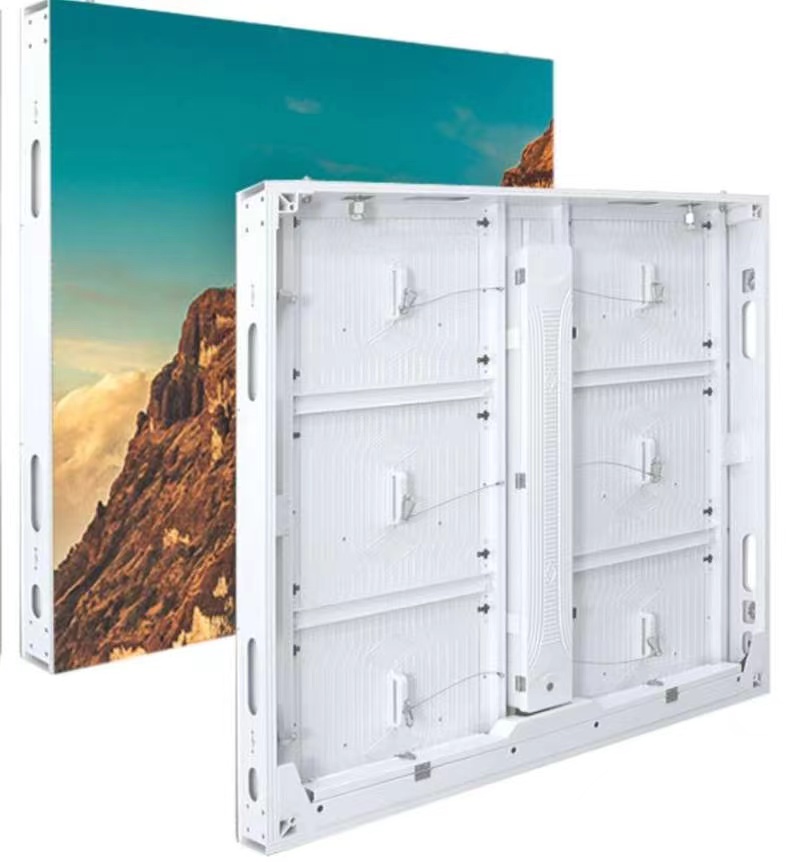

Die Cast Aluminum
12000cd High brightness
Advantages
Feature Description
- – 10000nits Ultra High Brightness
- – Aluminum Module Chassis Heat Dissipation
- – 30% Energy Saving
- – Stable and Reliable Performance
- – Total front & rear service
Video
Parameters
Cabinet size optional
Size options: 960 * 1280/960 * 960/960 * 640 /1440 * 1280/1440 * 960

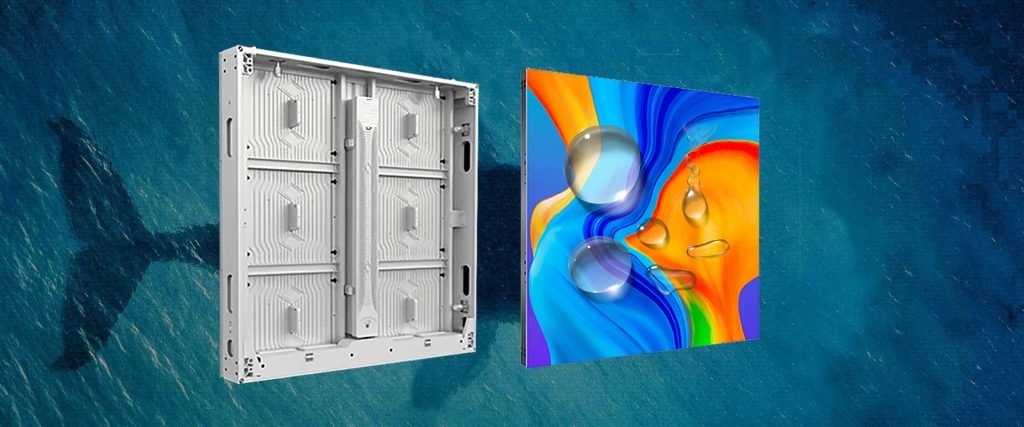

IP66 waterproof
It’s for outdoor application with high waterproof level and dust-proof level. It can resist some bad weather during outdoor events.

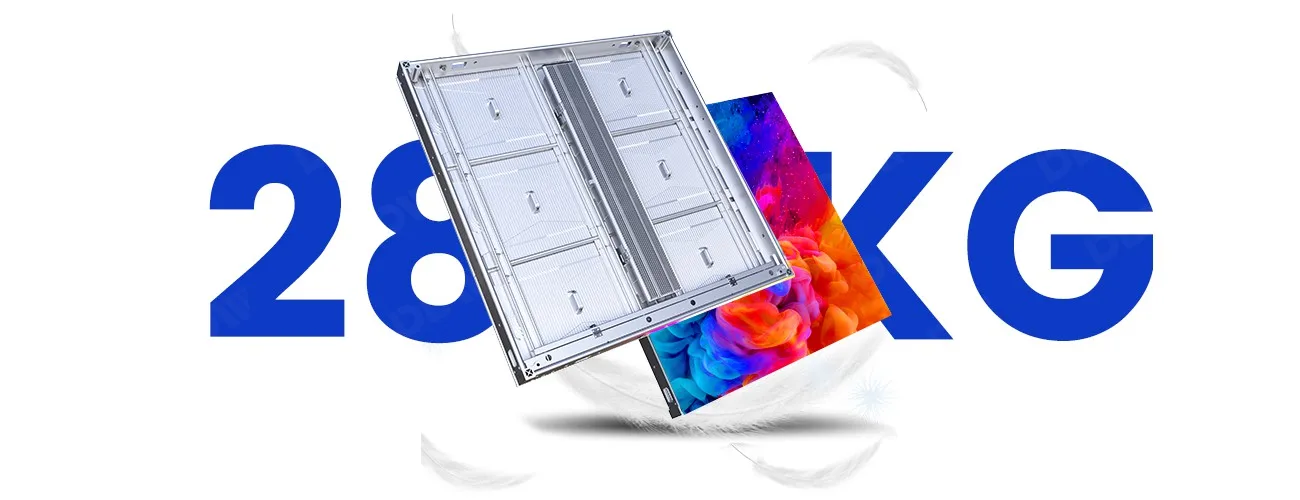

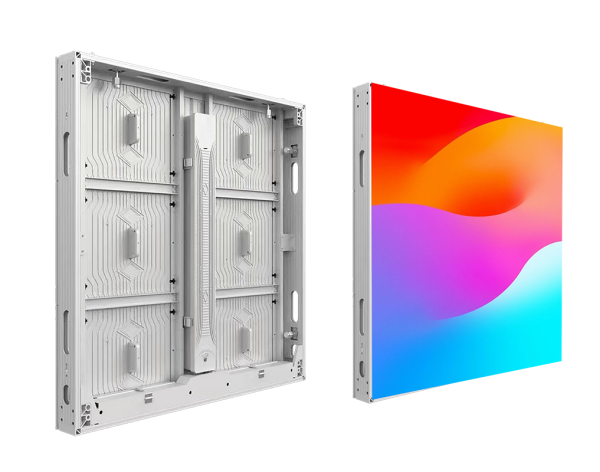

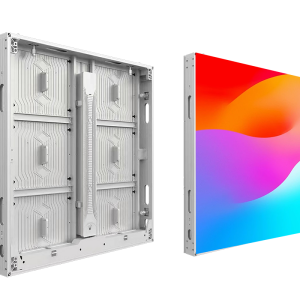

High Quality Frame
The weight of a single box is only 28KG, and the thickness of the box is 110MM. The box can be installed without structure. Although this display screen is also die-casting aluminum, its overall weight is lighter and thinner due to the better structural design.
CCES
Accurate electricity distribution for RGB LED chips to save energy and lower the power consumption by more than 30%.
Installation

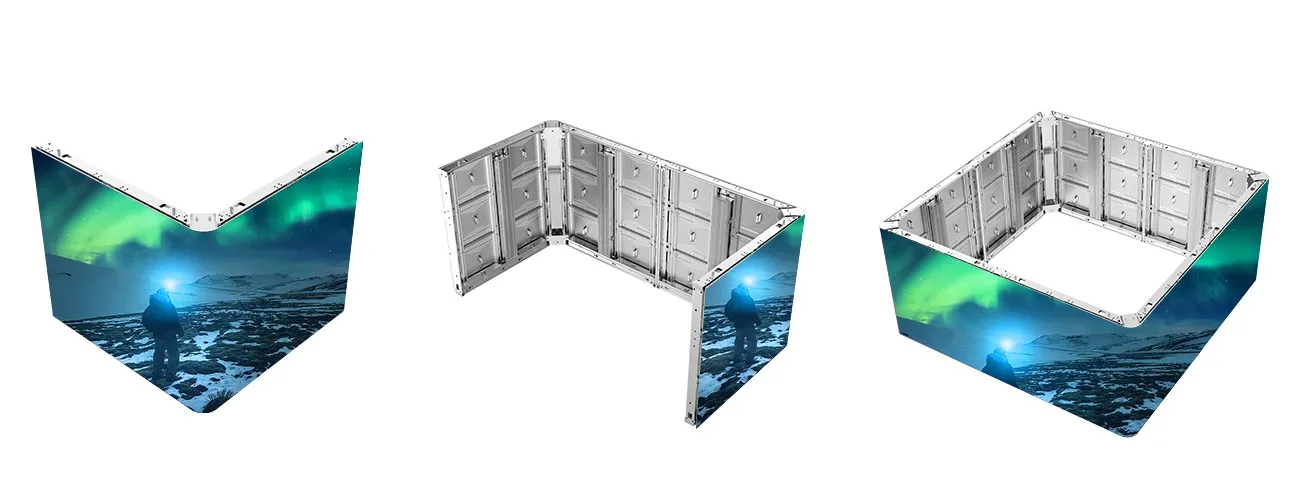

Installation Diagram
Curved installation
Naked-Eye 3D LED Display Screen Specifications
| Item Number | P6.67 | P10 |
| Pixel Pitch | 6.67 | 10 |
| Pixel Density | 22500 | 10000 |
| LED Arrangement | SMD2727 | SMD3535 |
| Module Resolution | 72*48 | 48*32 |
| Module Dimension | 480*320 | 480*320 |
| Module Weight | 2.3KG | 2.3KG |
| Module Thickness | 23.5mm | 23.5mm |
| Grey Scale (bit) | 14-16bit | 14-16bit |
| Brightness Level | 6000nits-8500nits | 6500nits-10000nits |
| Cabinet Size | 960*1280/960*960/960*640 1440*1280/ 1440*960 |
960*1280/960*960/960*640 1440*1280/ 1440*960 |
| Cabinet Weight(Kg) | 28≤30KG/㎡ | 28≤30KG/㎡ |
| Cabinet Thickness(mm) | 101mm | 101mm |
| Max Power Consumption/m² | 550w/㎡ | 550w/㎡ |
| Ave Power Consumption/m² | 200w/㎡ | 200w/㎡ |
| Visual View Angle | 160°/60°/30° | 160°/60°/30° |
| Operating Power Source | AC110-220V/200-240V | AC110-220V/200-240V |
| Operating Temperature | （-30~ +60） | （-30~ +60） |
| Refresh Rate | 3840Hz | 3840Hz |
| Protecting Rating | IP66 | IP66 |

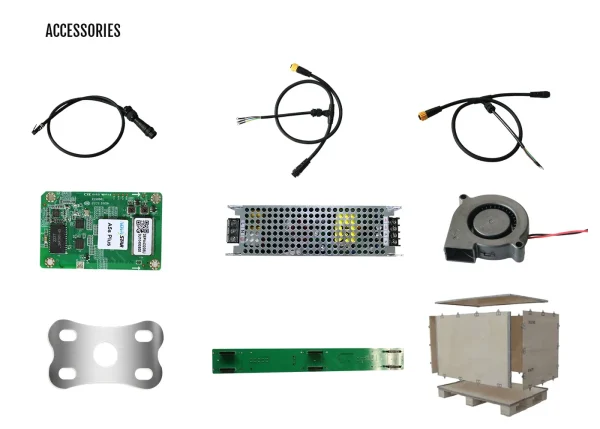

Accessories

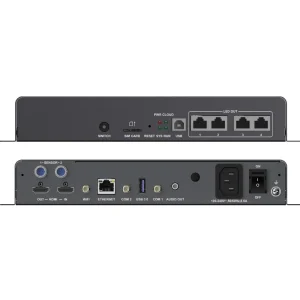

Sending box
Power Supply
Receiving card
Cooling fan
Signal cable
Power cable
Fixings

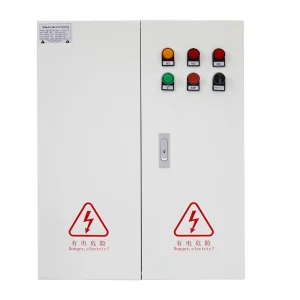

Power cabinet
Additional information
| Weight | 45 kg |
|---|
