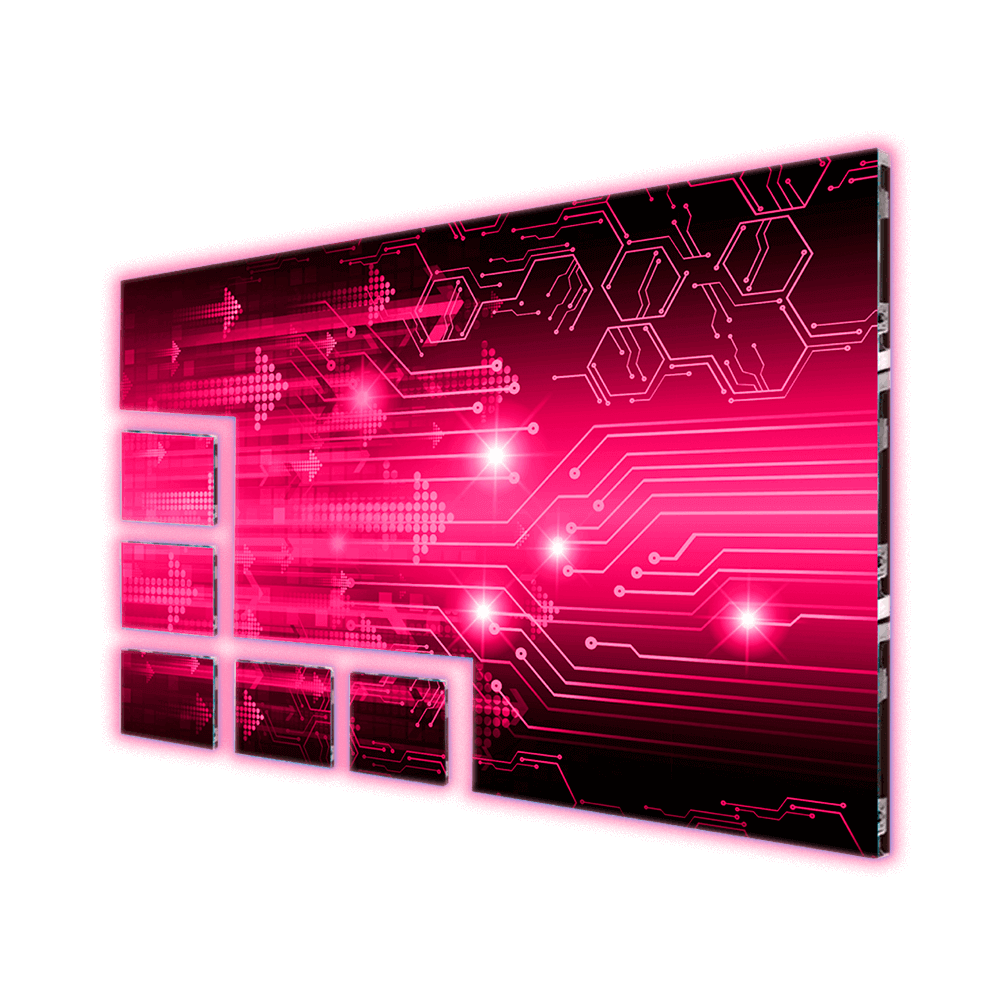

Narrow Pixel Fine Pitch HD 4K P1.25 COB LED Display P0.6 COB LED Screen Display P.07 COB LED Wall P0.9 COB LED screen Factory Price
Original price was: $217.00.$180.00Current price is: $180.00.
P1.25 P1.56 P1.66 P1.923 400*300mm support power backup and system backup front maintenance ,fixed installation and ceiling installation
- Description
- Additional information
Description
Features
≥3840Hz
Wide Viewing Angles
Common Cathode Design
High Flexibility
Magnetic Suction Installation
Front Maintenance
Die Cast Aluminum
Right Angle Splicing
Advantages
Feature Description
- – Low brightness and high gray technology, 5000:1, low power consumption
- – 3840Hz refresh rate ,Real and natural for High dynamic picture display,no smear
- – Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
- – Metal heat dissipation, ultra-quiet fan less design
- – Full front maintenance. High precision adjustment
- – Optional power supply and signal dual backup function
- – Cabinet size 16:9 golden section, easy splicing of 2K, 4K, 8K large screens, point-to-point true color restoration
Video
Parameters
Aluminum module
200x150mm aluminum module
Magnetic adsorption
Front maintenance design of magnetic suspension adsorption module
Front maintenance
Support both front installation while fully front-accessible serviceability makes more friendly maintenance and saves your space.

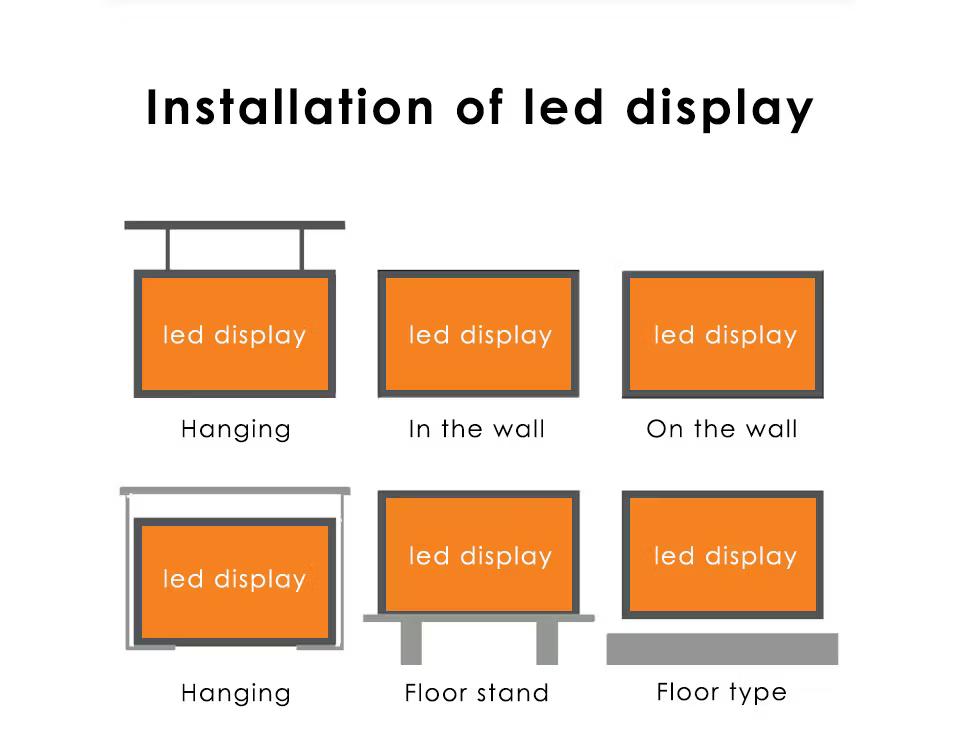

Installation
Aluminum profile support
Wall-mounted installation
Narrow Pixel Fine Pitch HD 4K COB LED Display Specifications
| Pixel pitch | 1.25mm | 1.56mm | 1.667mm | 1.923mm |
| Panel resolution (W×H) | 320×240 | 256×192 | 240×180 | 208×156 |
| Module distribution (W×H) | 2×2 | |||
| Flatness between modules | ≤0.1mm | |||

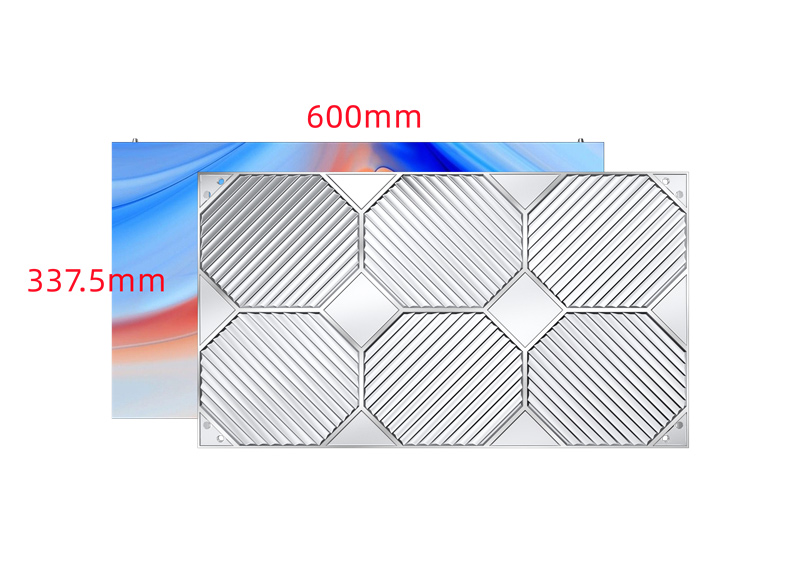

| Panel size(WxHxD) | 640mmx480mmx60mm or 600mmx337.5mmx60mm | |||
| Panel weight | 3.5Kg/pc | |||
| Installation method | Back Frame Installation / Hoisting / Inner Arc Installation | |||
| Brightness | 200cd~800cd/ m’Adjustable | |||
| Viewing Angle(H/V) | 140°/140° | |||
| Driving Way | Constant current drive | |||
| Refresh rate | ≥3840Hz | |||
| Working voltage | AC : 110V~240V、50~60Hz | |||
| Avg.Power Consumption | 100w/ m² ~ 300w/ m² | |||
| Screen temperature rise(running state) | ≤5 degrees | |||
| Operating Temperature | -10℃ ~60℃ | |||
| Operating Humidity | 10%~90%RH,No condensation | |||
| LED Lifetime | 100000 hrs | |||

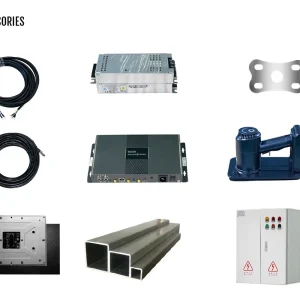

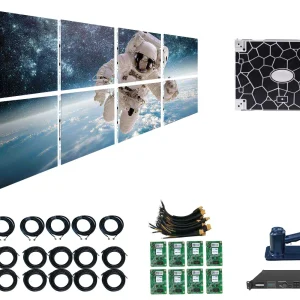

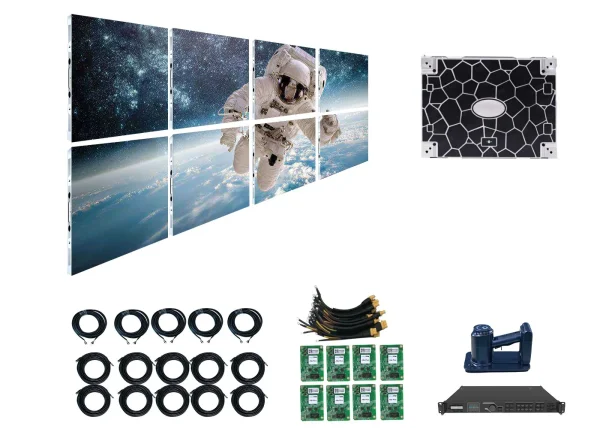

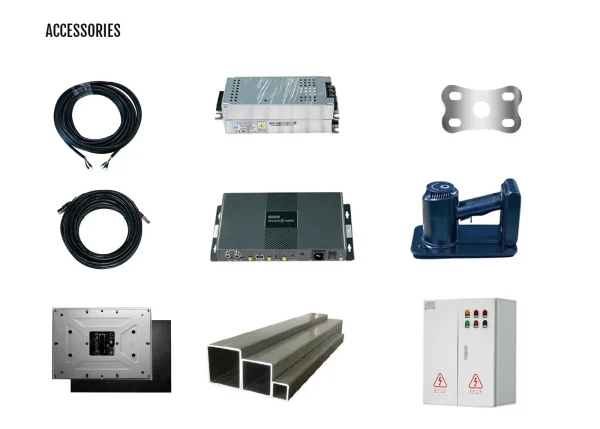

Accessories
Sending box
Power Supply
LED suction cup
Mounting accessories
Signal cable
Power cable
Movable power cabinet

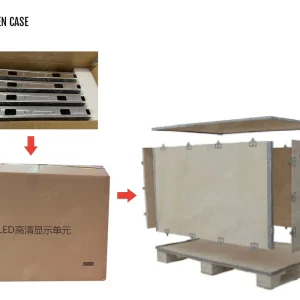

Wooden packing
Additional information
| Weight | 30 kg |
|---|
