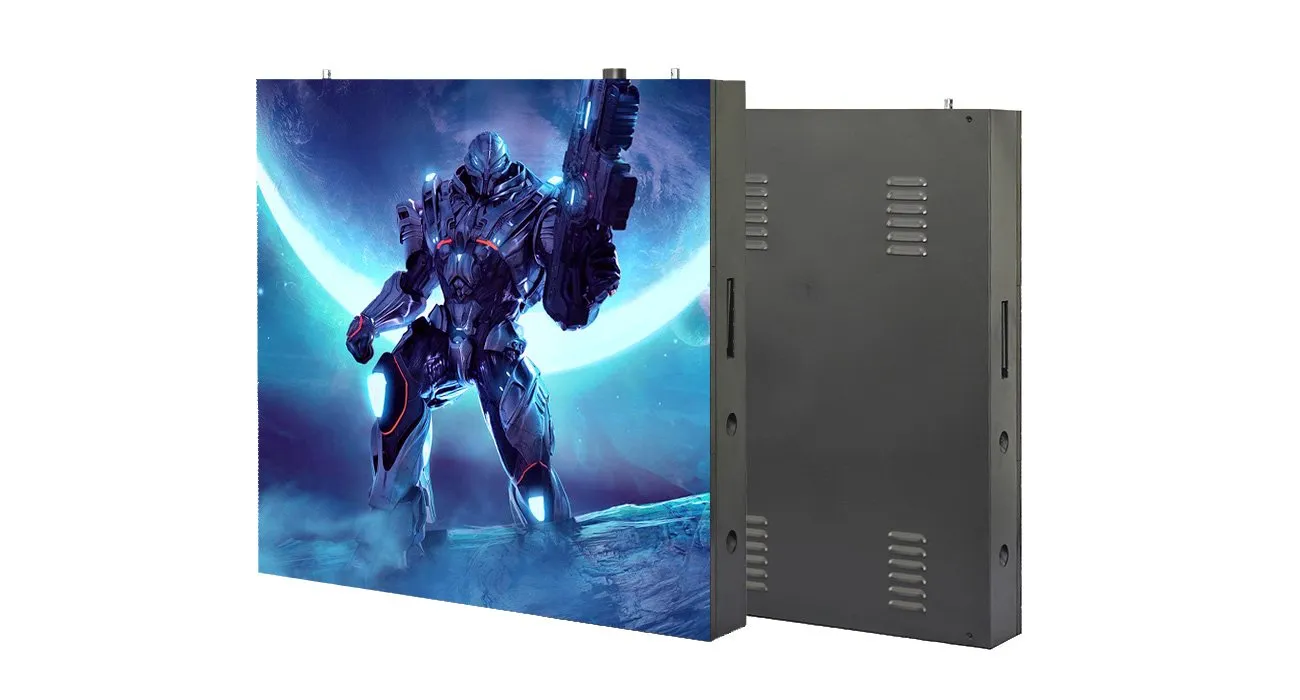

Outdoor Front Maintenance LED Display
$326.00
Front maintenance outdoor LED display screen that can support convenient maintenance of modules and boxes through locks in all weather outdoor conditions
- Description
- Additional information
Description
Features
3840 Hz
Wide Viewing Angles

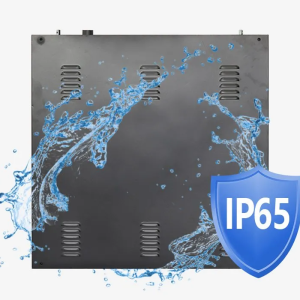

IP65 Waterproof
High Flexibility
Common Cathode Design
Front Maintenance
Quality SPCC Cabinet
7500cd High Brightness
Advantages
Feature Description
- – IP65 waterproof rating, long service life
- – 7500cd High brightness, bright colors
- – Any size, seamless stitching
- – Simple internal connection and easy installation
- – There are cooling fans in the cabinet, better heat dissipation effect
Video
Parameters

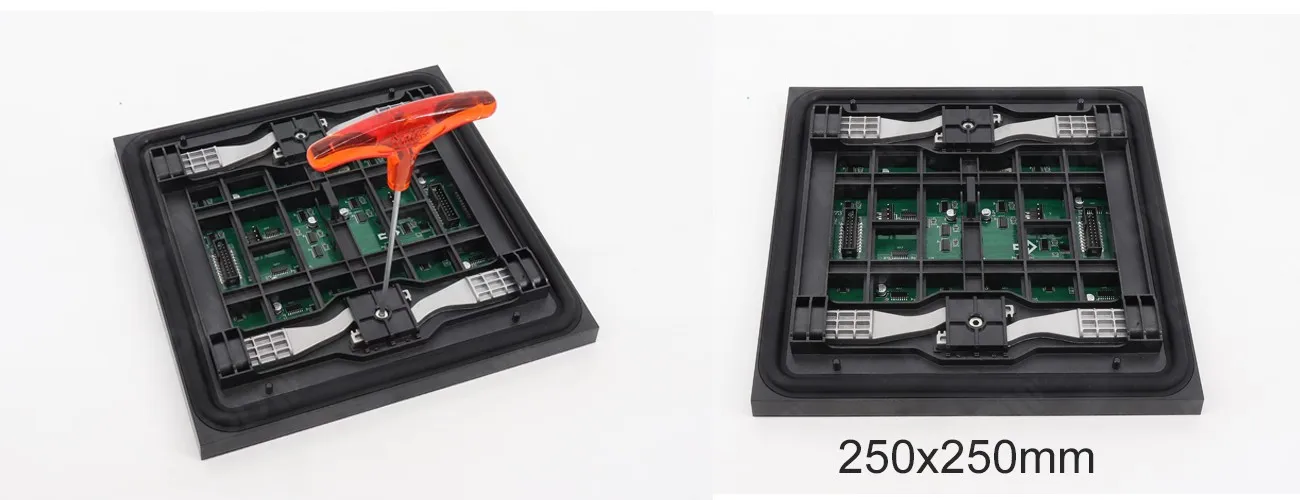

Module Specification
Suitable for all kinds modules ,Upgrade replacement is easy

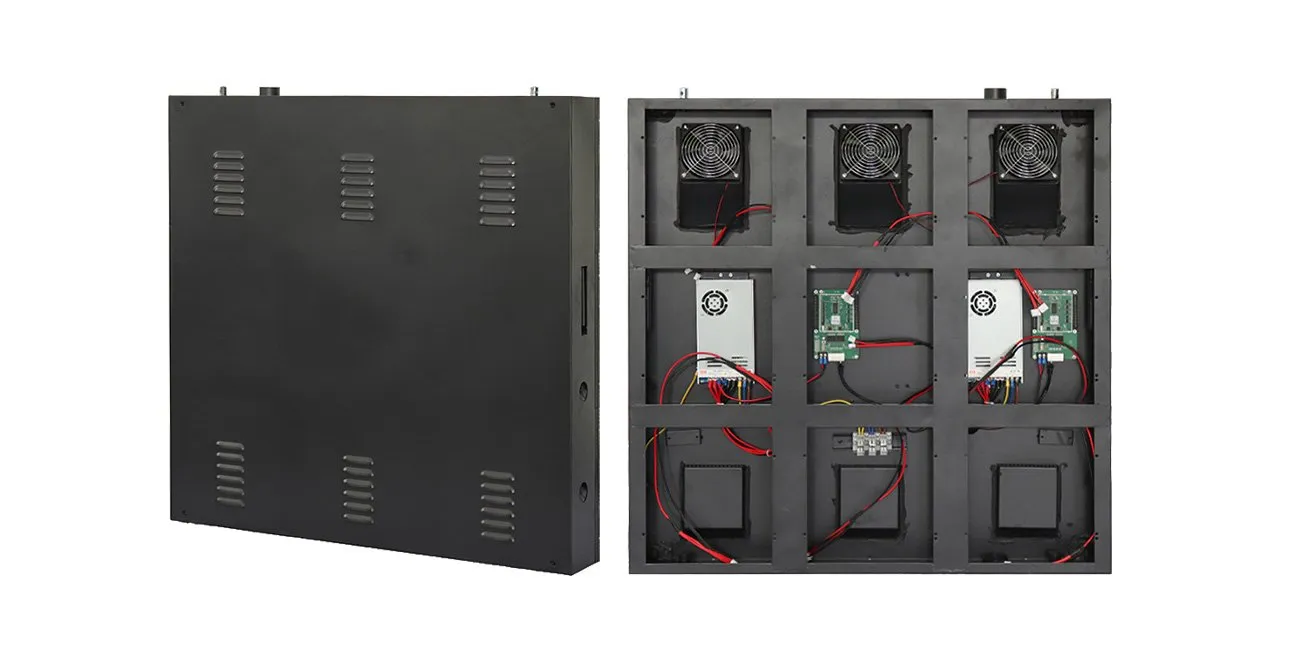

Cabinet Specs
The weight of a single iron cabinet is only 40KG, and the thickness of the cabinet is 130mm.

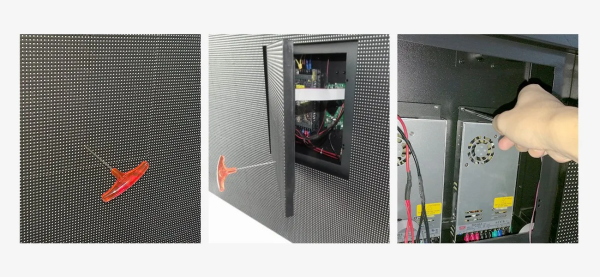

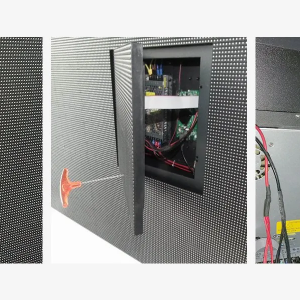

Front maintenance design
Adopting a pure front maintenance design, all cabinet components (such as power supply, receiving cards, and other accessories) can be removed from the Remove the front of the LED cabinet.
Installation
Installation Diagram

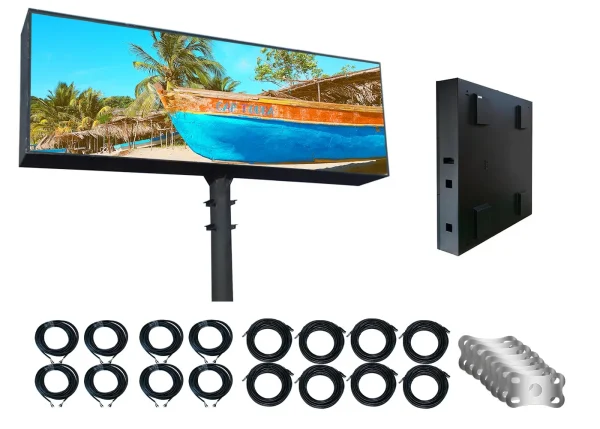

Single Column Installation
Outdoor Front Maintenance LED Display Screen Specifications
| Pixel Pitch | P2.976 | P3.91 | P4.81 | P6.67 | P8 | P10 |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 112896/m² | 65410/m² | 42849/m² | 22500/m² | 15625/m² | 10000/m² |
| Module Size | 250x250mm | 250x250mm | 250x250mm | 320x320mm | 320x320mm | 320x320mm |
| Panel Dimension | 960x960mm | |||||
| Panel Weight | 45kg | |||||
| Maintenance Mode | Front maintenance | |||||
| Brightness | 5500-9000cd/m² | |||||
| Gray Grade | 16bit | |||||
| Viewing Angle | Horizontal >170 Vertical>120 | |||||
| Display color | 4096*4096*4096 | |||||
| Refresh Frequency | 3840-7680Hz | |||||
| Drive Mode | 1/8s | |||||
| Protection Degree | IP65 | |||||
| Max Power Consumption | <800W/m2 | |||||
| Avg Power Consumption | 240W/m² | |||||
| Humidity | 10%-95%RH | |||||
| Working Temperature | -20°C-+60°C | |||||
| Screen power supply | 220VAC/50HZ+_10% | |||||
| Life span | 100000Hours | |||||

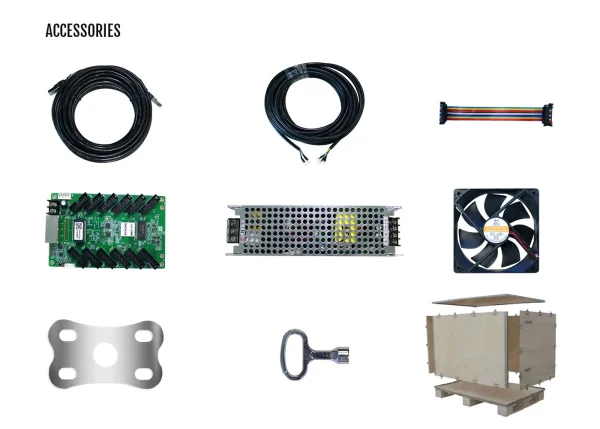

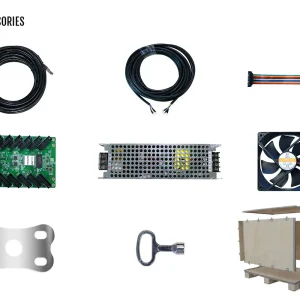

Accessories
Sending box
Power Supply
Pickup card
Connecting piece
Signal line
Power line
Cooling fan
LED module
Additional information
| Weight | 45 kg |
|---|
