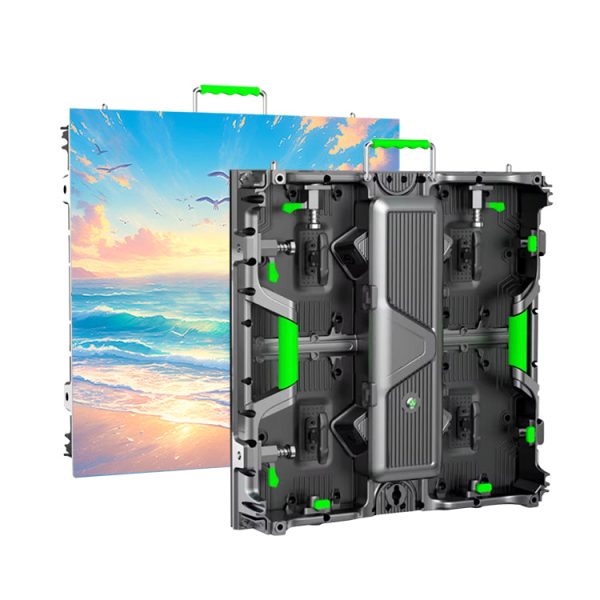

Outdoor Rental LED Display 500x500mm P1.9 P2.6 P2.97 P3.91 P4.81 Soft Curved Flexible LED Screen Panel Enhance Your Event Stage
$100.00 – $150.00
LedScreenPanels’ wide range of LED displays! Find high-quality indoor, outdoor, and rental solutions for any visual experience
- Description
- Additional information
Description
Outdoor Rental LED Display 500x500mm P1.9 P2.6 P2.97 P3.91 P4.81 LED Stage Screen Enhance Your Event
| Leeman Pro Series Outdoor Rental & Fixed Installation LED Display Screen 500×1000 And 500×500 | |||||
| Model NO. | P1.953 | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Pitch | 1.95mm | 2.6mm | 2.9mm | 3.91mm | 4.81mm |
| LED Chip Lamp | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire | NationStar Gold Wire |
| LED type | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2525 |
| Flatness between modules | ≤ 0.1mm | ≤ 0.1mm | ≤ 0.1mm | ≤ 0.1mm | ≤ 0.1mm |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |

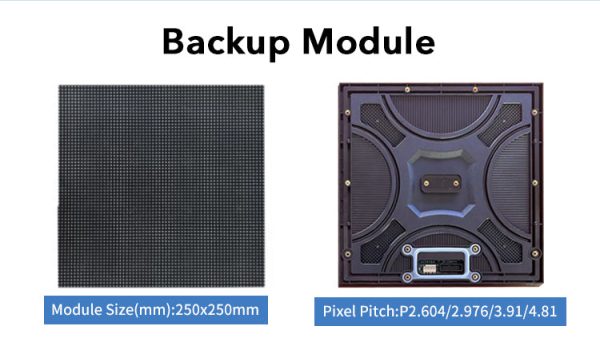

| Module size (W*H) | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Module resolution (W*H) | 128*128dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots |

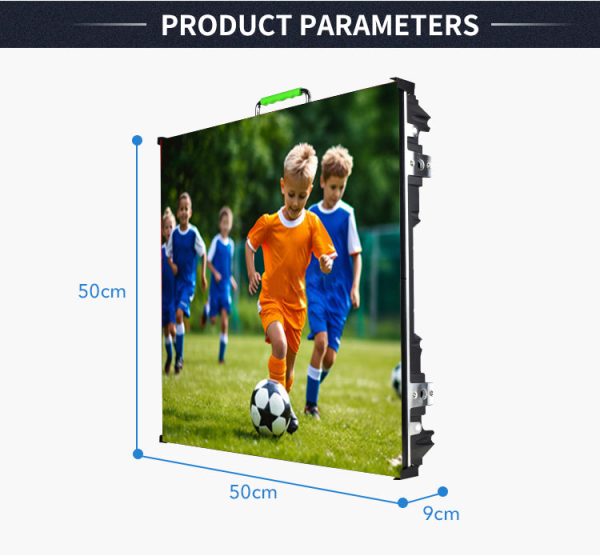

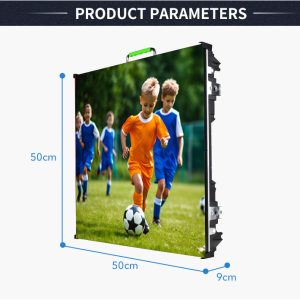

| Cabinet size(W*H*D) | 500*1000*75mm | 500*1000*75mm | 500*1000*75mm | 500*1000*75mm | 500*1000*75mm |
| Cabinet resolution (W*H) | 256*512dots | 192*384dots | 168*336dots | 128*256dots | 104*208dots |
| Cabinet weight | 14.5kg/pc | 14.5kg/pc | 14.5kg/pc | 14.5kg/pc | 14.5kg/pc |
| Density | 262144dots/m² | 147456dots/m² | 112896dots/m² | 65400dots/m² | 43264dots/m² |
| IC | ICN2153S ICN2165 | ICN2153S ICN2165 | ICN2153S ICN2165 | ICN2153S ICN2165 | ICN2153S ICN2165 |
| Scan | 32S | 32S | 21S | 16S | 13S |
| Best viewing distance | >1.9m | >2.6m | >3m | >4m | >5m |
| Best viewing angle | 160°/ 120° | 160°/ 120° | 160°/ 120° | 160°/ 120° | 160°/ 120° |
| Brightness | 5500-6000cd/m² | 5500-6000cd/m² | 6000-6500cd/m² | 6000-6500cd/m² | 6500-7000cd/m² |
| Working voltage | AC:110-240V 50~60Hz | AC:110-240V 50~60Hz | AC:110-240V 50~60Hz | AC:110-240V 50~60Hz | AC:110-240V 50~60Hz |
| Maximum power | ≤600W/ m² | ≤600W/ m² | ≤600W/ m² | ≤600W/ m² | ≤600W/ m² |
| Average power consumption | 100W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
| ~300W / m² | ~300W / m² | ~300W / m² | ~300W / m² | ~300W / m² | |
| Screen temperature rise(running state) | ≤ 5 degrees | ≤ 5 degrees | ≤ 5 degrees | ≤ 5 degrees | ≤ 5 degrees |
| Operation of Environmental Temperature/°C | -10°C~60°C | -10°C~60°C | -10°C~60°C | -10°C~60°C | -10°C~60°C |
| Operating Temperature | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH |
| No condensation | No condensation | No condensation | No condensation | No condensation | |
| Screen color temperature | 2000K～9500K | 2000K～9500K | 2000K～9500K | 6500K～9500K | 7000K～10000K |
| Driving method | 1/32 scanning | 1/32 scanning | 1/32 scanning | 1/16 scanning | 1/16 scanning |
| Gray scale | 16bits～24bits | 16bits～24bits | 16bits～24bits | 16bits～24bits | 16bits～24bits |
| Refresh frequency | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz | ≥3840Hz – 7680Hz |
| IP grade | Front:IP68 | Front:IP68 | Front:IP68 | Front:IP68 | Front:IP68 |
| Back:IP66 | Back:IP66 | Back:IP66 | Back:IP66 | Back:IP66 | |
| Continuous working time | ≥7×24hrs | ≥7×24hrs | ≥7×24hrs | ≥7×24hrs | ≥7×24hrs |
| Lifetime | 100,000hrs | 100,000hrs | 100,000hrs | 100,000hrs | 100,000hrs |

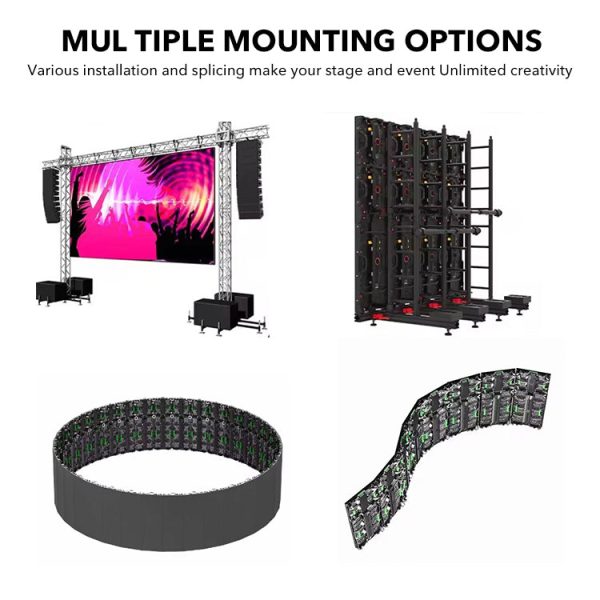

| Installation method | Back Frame Installation / Hoisting / Inner Arc Installation | ||||
| Pixel correction | Equipped with point – by – point brightness and chromaticity correction | ||||
| Contrast ratio | 6000:1 | ||||
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | ||||

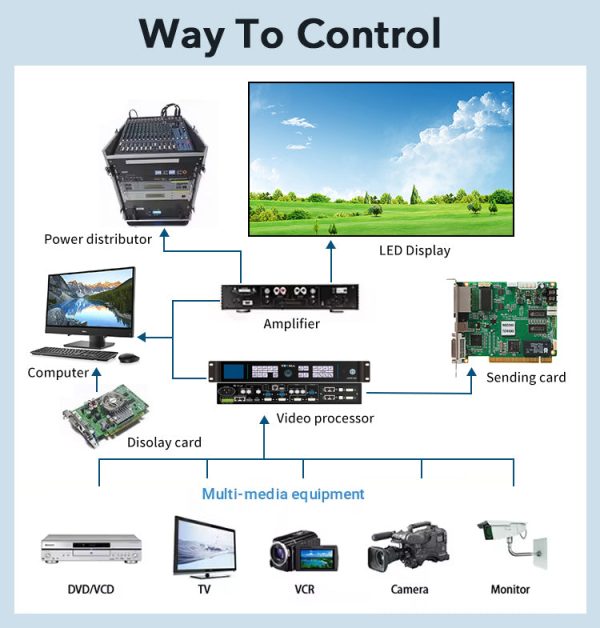

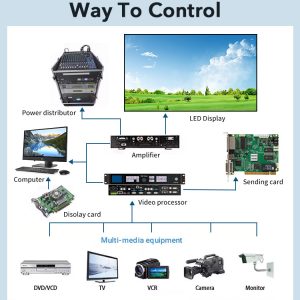

| Control mode | Synchronization control | ||||
| Control distance | Super five double stranded network cable, more than 100 meters using optical fiber transmission | ||||
| Software interface | Windows XP /7/8/10 IOS | ||||
| Signal input | HDMI、DVI, VGA, USB, LAN（Extensible interface） | ||||

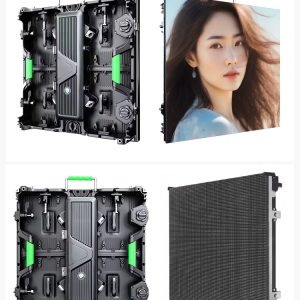

| Cabinet material | Waterproof Die-casting Aluminum | ||||

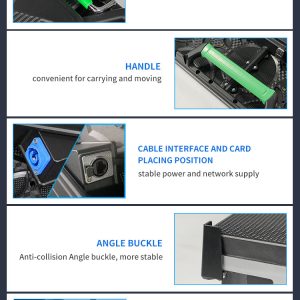

| PowerCon | Neutrick Power connector with cable | ||||
| EtherCon | Neutrick Power connection with cable | ||||
| Maintenance method | Dual Service, Front Maintenance and Back service | ||||
| Warranty time | 5 years warranty time and free lifetime technical support | ||||
| Certification | UL CE ETL ROHS EMC FCC ISO, IECEE, CB | ||||
Additional information
| Weight | 4 kg |
|---|---|
| Pixel Pitch | P2.6(500*500mm), P2.97(500*500mm), P3.91(500*500mm), P4.81(500*500mm) |
